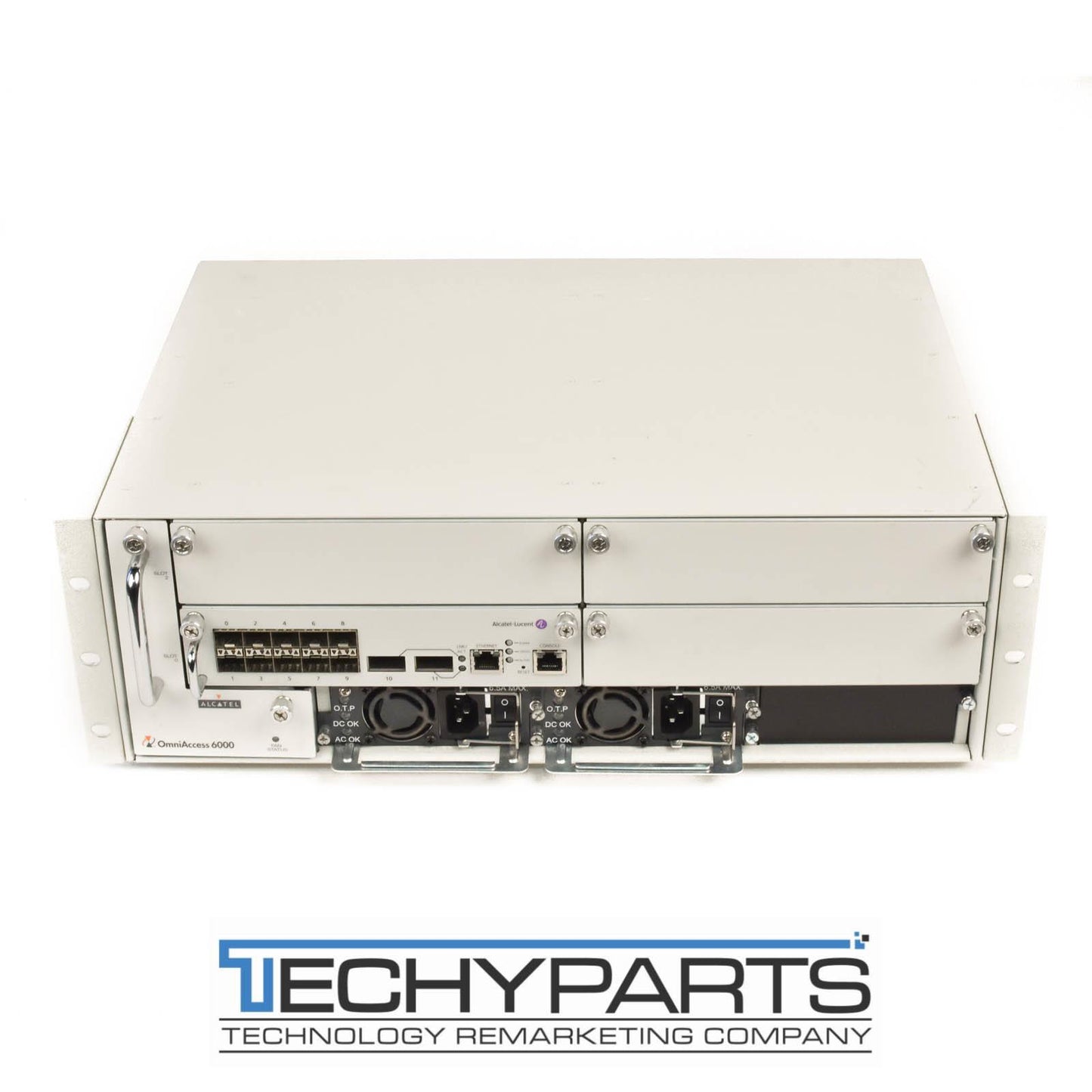

Alcatel-Lucent OmniAccess 6000 Wireless LAN Switch OAW-6000 with Supervisor 3 OAW-S3-C-2X10G
The modular 6000 WLAN Switch/Controller from Alcatel-Lucent delivers a wide range of network services to large campus networks. Offering unmatched scalability, the 6000 WLAN switch/controller supports up to 32,768 users and performs stateful firewall policy enforcement at speeds up to 80 Gbps.
Through secure IP tunnels, Alcatel-Lucent access points (APs) and Access Switches move traffic to the 6000 WLAN switch/controller over a public or private transport network and provide local bridging at the access layer, depending on the end user application or IT traffic forwarding requirements.
Includes:
OAW-6000 Chassis
OAW-S3-0-2X10G Supervisor 3 Module
OAW-6000-FT Fan Tray
2x 400W Power Supplies
Tested, guaranteed 100% working.
Switch has been reset to Factory Default settings.
No cables or other accessories are included except what is pictured. Comes with rack mounting ears.
30-Day Warranty!
Console Output:
CPBoot 1.2.0.0 (build 20527)
Built: 2009-01-20 at 18:55:40
DRAM: Total = 2048 MB
POST: Memory test: Physical 0 - 0x10000000 - quick test
Memory test: Physical 0x10000000 - 0x80000000 - quick test
PASS
CPU: XLR732 rev. C4 Clock: 1200MHz
Board: M3mk1
XPLD: rev: 20
SMP: All 32 cpus successfully started
Boot: Primary bootflash partition
CPBoot 1.2.0.0 (build 20527)
Built: 2009-01-20 at 18:55:40
DRAM: Total = 2048 MB
POST: Memory test: Physical 0 - 0x10000000 - quick test
Memory test: Physical 0x10000000 - 0x80000000 - quick test
PASS
CPU: XLR732 rev. C4 Clock: 1200MHz
Board: M3mk1
XPLD: rev: 20
SMP: All 32 cpus successfully started
Boot: Primary bootflash partition
PCI: Scanning Bus 0:
PCI device 182e:0000, 00:00 0
PCI device 14e4:b309, 00:04 0
FPGA: Pinot Configured
POST2: OK
Restart required for Pinot PCI Rescan..
CPBoot 1.2.0.0 (build 20527)
Built: 2009-01-20 at 18:55:40
DRAM: Total = 2048 MB
POST: Memory test: Physical 0 - 0x10000000 - quick test
Memory test: Physical 0x10000000 - 0x80000000 - quick test
PASS
CPU: XLR732 rev. C4 Clock: 1200MHz
Board: M3mk1
XPLD: rev: 20
SMP: All 32 cpus successfully started
Boot: Primary bootflash partition
PCI: Scanning Bus 0:
PCI device 182e:0000, 00:00 0
PCI device 14e4:b309, 00:04 0
PCI device 10ee:4062, 00:05 0
POST:
ibuf Data Bus Test
ibuf Address Bus Test: 0x0 - 0x10000000
obuf Data Bus Test
obuf Address Bus Test: 0x0 - 0x10000000
rldram Data Bus Test
rldram Address Bus Test: 0x0 - 0x2000000
PASS
POST2: OK
Net: xlr_gmac0
IDE: Bus 0: OK
Device 0: Model: CF 512MB Firm: 20080112 Ser#: 2010C 0000000244
Type: Removable Hard Disk
Capacity: 502.0 MB = 0.4 GB (1028160 x 512)
Alcatel-Lucent
AOS-W Version 3.3.2.16 (build 21395 / label #21395)
Built by p4build@antigua on 2009-05-26 at 16:16:22 PDT (gcc version 3.4.3)
All Rights Reserved (c) 2005-2009, Alcatel-Lucent.
