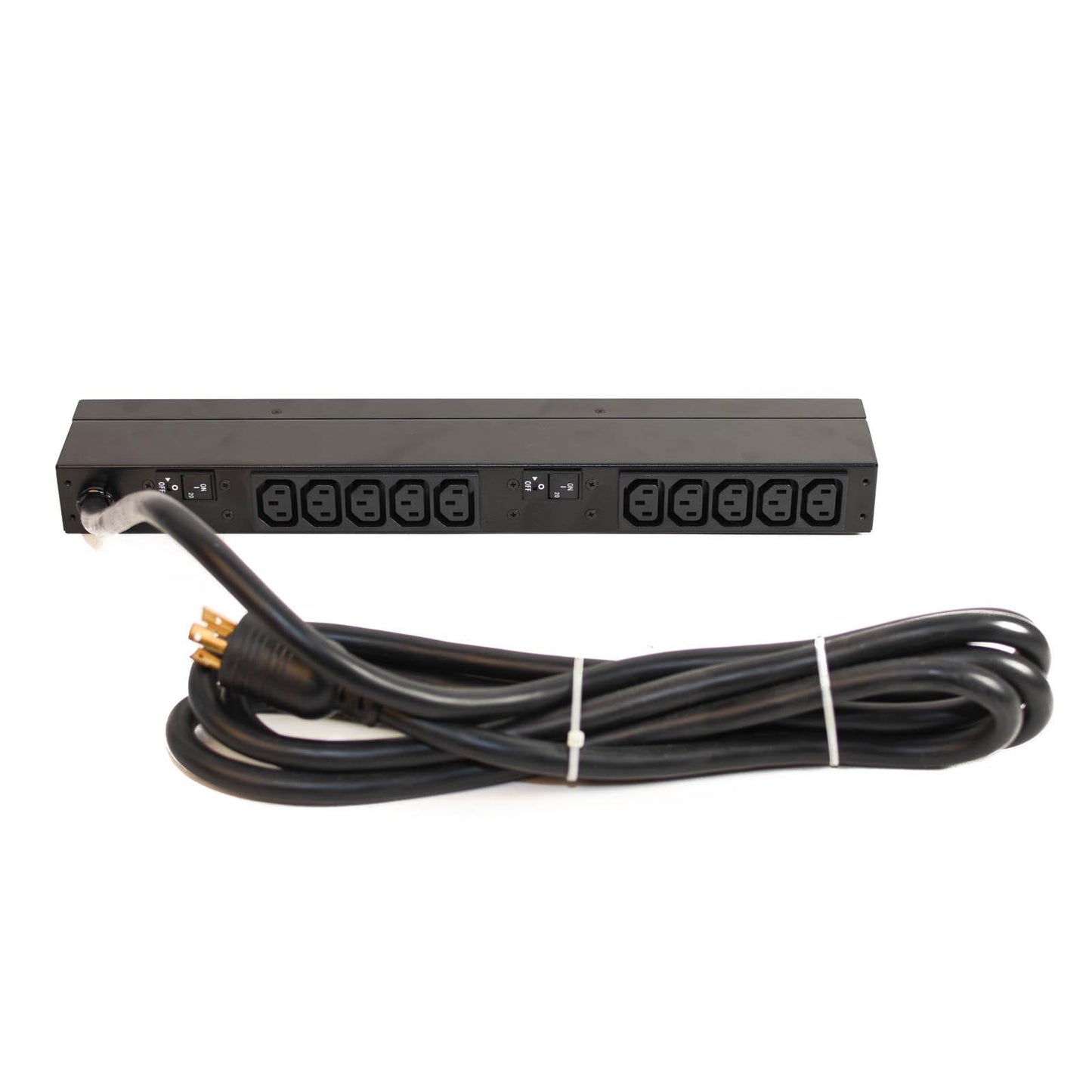

APC AP9571A 208V L6-30P 10 Outlet C13 1U Basic Rack Power Distribution Unit

APC AP9571A 208V L6-30P 10 Outlet C13 1U Basic Rack Power Distribution Unit

APC AP9571A 208V L6-30P 10 Outlet C13 1U Basic Rack Power Distribution Unit

APC P/N: AP9571A

Technical specifications:

Output

• Nominal Output Voltage: 208V
• Overload Protection: Yes
• Maximum Total Current Draw: 24

Output Connections

• (10) IEC 320 C13 (Battery Backup)

Input

• Nominal Input Voltage: 200V, 208V, 230V
• Input frequency: 50/60 Hz
• Input Connections: NEMA L21-20P
• Cord Length: 12ft
• Number of Power Cords: 1
• Load Capacity: 4992VA
• Maximum Input Current: 30A
• Regulatory Derated Input Current (North America): 24A

Physical

• Maximum Height: 1.73 in.
• Maximum Width: 17.52 in.
• Maximum Depth: 3.03 in.
• Net Weight: 5.6 lbs
• Color: Black

Environmental

• Operating Temperature: 5 - 113 *F
• Operating Relative Humidity: 5 - 95 %
• Operating Elevation: 0-15000ft
• Storage Temperature: -25 - 65 °C
• Storage Relative Humidity: 5 - 95 %
• Storage Elevation: 0-15000meters

Conformance

• cUL Listed, PSE, UL 60950, UL Listed
