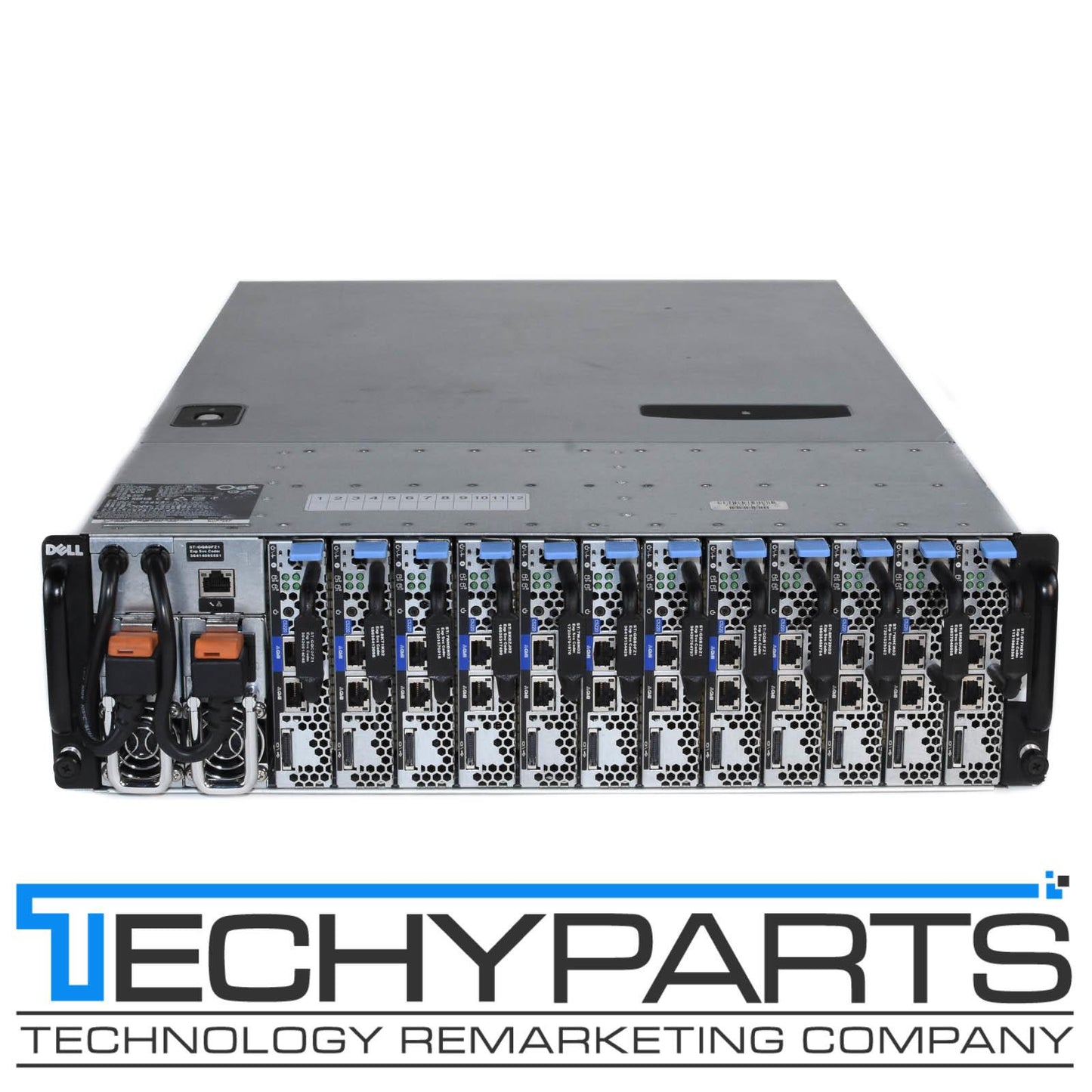

Dell PowerEdge C5220 12-Node Xeon E3-1200v1/v2 DDR3 3U Rackmount Microserver CTO
87359Dell PowerEdge C5220 12-Node Xeon E3-1200v1/v2 DDR3 3U Rackmount Microserver CTO
Dell PowerEdge C5220 12-Node Xeon E3-1200v1/v2 DDR3 3U Rackmount Microserver CTO
Dell PowerEdge C5220 12-Node Xeon E3-1200v1/v2 series 4x DDR3 3U Rackmount Microserver CTO Configure-to-Order Server
Specifications:
| Form Factor | 3U Rack Mount Dell PowerEdge C5000 chassis |
|---|---|
| Model | 12x Dell PowerEdge C5220 nodes - 4x 2.5" internal SATA bays |
| Supported Processors |
Each node supports: 1x Intel Xeon E3-1200 or E3-1200v2, Intel Core i3-2120, and Intel Pentium 350 processor with 2 or 4 cores up to 65 W thermal design power (TDP) |
| Supported Memory | Each node has 4 DIMM slots for up to 32GB (2GB/4GB/8GB DDR3 ECC UDIMM (1600MT/s 1.35V and 1.5V; 1333MT/s 1.35V) |
| Hard Drives | Each node supports up to 4x 2.5” SATA 6.0 Gb/s SSD |
| RAID Controller | Embedded Intel C204 |
| RAID Levels | RAID 0, 1, 5, 10 |
| Power Supply | 2x 1400W |
| Network | Each node has 2x Intel 1GbE 82580DB LOM embedded |
| Remote Access | Embedded BMC with IPMI 2.0 support with 1 x 1GbE RJ45 connector on the chassis (dedicated) or the 1 x 1GbE port (shared) on the individual sled |
| Console Dongle | 1x Dell JJ556 JDDS81KTH500 KVM/USB/VGA Dongle included |
| Rackmount Rails | Not included |
| Power Cord | Not included |
| Power Input | 200-240V AC only |
Condition: Off-lease equipment. Clean and professionally tested by qualified technician.
- No memory (RAM), No processors (CPUs), No Hard Drives Installed?
Add memory, processors,hard drives, and rackmount rails to complete your preferred configuration.
We carry a lot of parts in stock and can configure this system to order upon request. Please contact us for a quote or if you have questions regarding current configuration.
Each server is configured to order. This process involves rigorous quality control which includes:
- Throughout visual inspection for physical damages
- Verification of all components and their functionality
- Full diagnostic test is performed utilizing manufacturer's diagnostic tools
- BIOS and firmware updates are installed
- All logs are cleared
- Passwords and settings are restored to factory defaults
Manufacturer's description:
No compromising
Put your microserver to work
Each independent PowerEdge C5220 hot-plug server is mounted on a small sled that slides vertically into the 3U PowerEdge C5000 chassis. The compact system is ideal for:
- Hosting: Help maximize your productivity per square foot with high server-node density and a shared infrastructure that enables efficient cooling and cabling for cloud system infrastructure and dedicated, virtualized, shared, root-access or SQL hosting.
- Web 2.0: Fill your need for a web file, front-end, fast-loading web content server.
- CDN: Help amplify content delivery network (CDN) efficiency for media content storage and distribution, including audio, video, Javascript, and CSS and XML elements.
Cut, save and simplify
Take advantage of the PowerEdge C5220 microserver design to help build a cost-effective data center that doesn't sacrifice performance. Shared fans and components help provide greater performance per watt than traditional 1U servers.
Cut costs
Save space
Simplify servicing
