F5 Networks F5-BIG-LTM-4200V Local Traffic Manager 4200v 16GB MEM Max SSL COMP
F5 Networks F5-BIG-LTM-4200V BIG-IP Switch Local Traffic Manager 4200v 16GB MEM, Max SSL, Max COMP with F5-UPG-AC-400W-4000 2nd Power Supply Upgrade
MSRP: $41,995.00
Software versions loaded at shipment: BIG-IP v11.5.4 Hotfix HF2, v12.1.2 Final

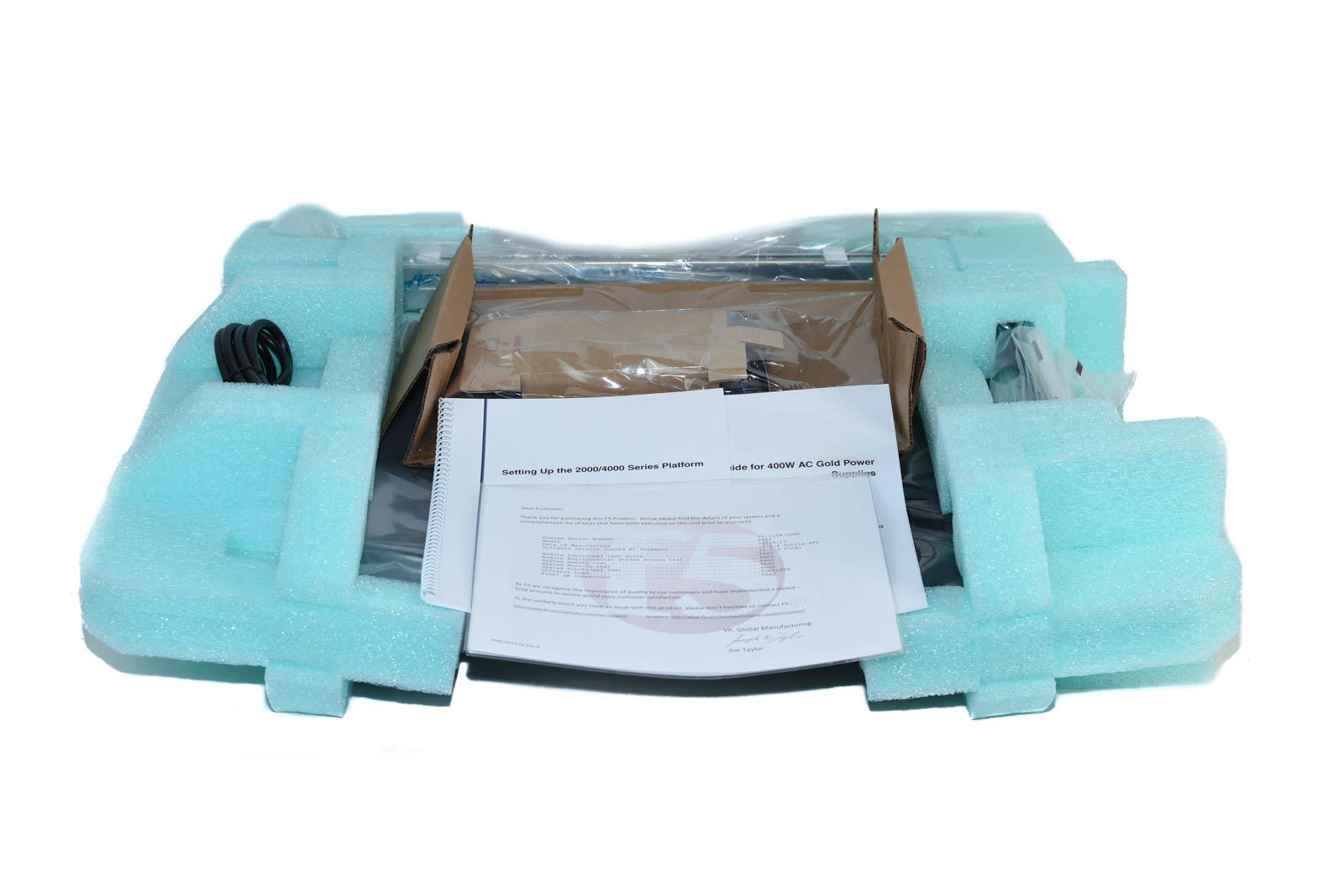

Condition: New, unused in an open box with F5-UPG-AC-400W-4000 2nd 400W Gold Power Supply upgrade. Everything is still sealed in factory plastic bags. All original accessories included. There is no factory warranty on this equipment.
We will double box this equipment since original box is somewhat distressed.
The following will be included with your purchase:
- 1x F5-BIG-LTM-4200V Local Traffic Manager 4200v 16GB MEM Max SSL COMP
- 1x F5-UPG-AC-400W-4000 2nd 400W Gold Power Supply upgrade
- 1x Set of communication cables (including RJ45 to DB9 serial console port cable, RJ45F to RJ45M rolled serial adapter and CAT5 cable)
- 2x Power cords
- 1x Set of rackmount rails
- 1x Set of rackmount ears
- 1x Set of mounting hardware
90-Day Warranty!
Main Features:
- Load balancing device
- 8 ports
- GigE
- AC 90
- 240 V
- 1U
- rack-mountable
Applications drive innovation and profitability, allowing your business to leverage trends such as cloud computing, mobility, and software-defined networks (SDN). Your IT department depends on your network infrastructure to meet the challenges of today - and tomorrow.
F5 BIG-IP Local Traffic Manager (LTM) helps you deliver your applications to your users, in a reliable, secure, and optimized way. You get the extensibility and flexibility of an intelligent services framework with the programmability you need to manage your physical, virtual, and cloud infrastructure. With BIG-IP LTM, you have the power to simplify, automate, and customize applications faster and more predictably.
-
Hard Drive
- Installed Qty :1
- Type :HDD
-
Performance
- Hardware compression
- Layer 4 throughput: 300000 connections per second
- Layer 7 throughput: 850000 connections per second
- SSL bulk throughput: 8 Gbps
- SSL encryption performance: 9000 transactions per second
- Throughput: 10 Gbps
-
Cabinet
- Chassis Built-in Devices :Keypad, Status LCD
-
Environmental Parameters
- Humidity Range Operating :10 - 90%
- Max Operating Temperature :104 °F
- Min Operating Temperature :32 °F
-
Header
- Brand :F5
- Compatibility :PC
- Manufacturer :F5 Networks
- Model :Local Traffic Manager 4200v
- Packaged Quantity :1
- Product Line :F5 BIG-IP
-
Interface Provided
- Connector Type :RJ-45
- Qty :8
- Type :1000Base-T
- Connector Type :SFP+
- Qty :2
- Type :10GBase-SR/LR
- Connector Type :Type A
- Type :USB 2.0
- Qty :1
- Type :1000Base-T (management)
- Type :Management
-
Miscellaneous
- Compliant Standards :CAN/CSA C22.2 No. 60950-1-07, CB, EN 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN300-386, EN55022, EN55024, FCC Class A certified, IEC 60950-1 Second Edition, UL 60950-1 Second Edition
- Height (Rack Units) :1
-
Modem
-
Networking
- Connectivity Technology :Wired
- Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
- Data Transfer Rate :10 Gbps
- Features :DDos attack prevention, F5 iApps, F5 iControl, F5 iRules, F5 ScaleN, Firewall protection, Internet Content Adaptation Protocol (ICAP) support, IPv6 support, Link Aggregation Control Protocol (LACP), Multiple Spanning Tree Protocol (MSTP) support, NAT+ support, Network monitoring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, SSL acceleration, Tagged VLAN
- Form Factor :Rack-mountable
- Ports Qty :8
- Type :Load balancing device
-
OS Provided
-
Power Device
- Frequency Required :50/60 Hz
- Hot-Plug :Hot-plug
- Installed Qty :1
- Max Supported Qty :2
- Nominal Voltage :AC 90 - 240 V
- Power Provided :400 Watt
- Power Redundancy :Optional
- Type :Internal power supply
-
Processor
- Installed Qty :1
- Manufacturer :Intel
-
Storage Hard Drive
-
Dimensions & Weight
- Depth :21 in
- Height :1.8 in
- Weight :20.06 lbs
- Width :17 in
-
RAM
