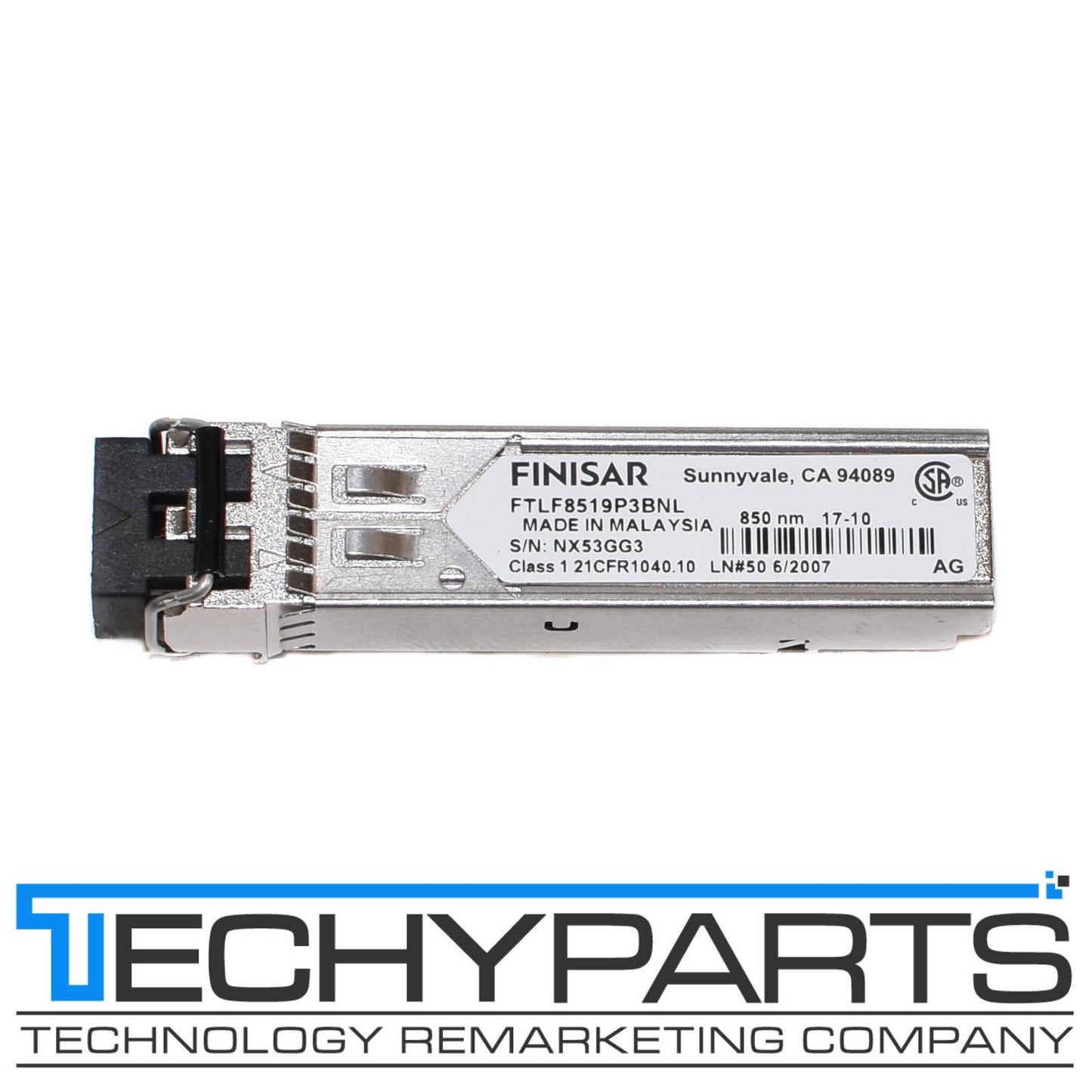

Finisar FTLF8519P3BNL 1000Base-SX 2G Fibre Channel 850nm SFP Optical Transceiver

Finisar FTLF8519P3BNL 1000Base-SX 2G Fibre Channel 850nm SFP Optical Transceiver

Condition: Clean, tested pull - Guaranteed 100% Working

30-Day Warranty!

Finisar's FTLF8519P3BNL Small Form Factor Pluggable (SFP) optical transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The transceiver is RoHS-6 compliant per Directive 2011/65/EU.

Features:

• Up to 2.125 Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Built-in digital diagnostic functions
• 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• RoHS compliant and Lead-Free
• Up to 500m on 50/125 µm MMF, 300m on 62.5/125 µm MMF
• Metal enclosure, for lower EMI
• Single 3.3 V power supply
• <500mW power dissipation
• Extended operating temperature range: -20°C to 85°C
