NEW Asus PIKE II 3008-8i SAS3 12Gbps 8-Port Internal PCI-e 3.0 RAID Controller
90729NEW Asus PIKE II 3008-8i SAS3 12Gbps 8-Port Internal PCI-e 3.0 RAID Controller
NEW Asus PIKE II 3008-8i SAS3 12Gbps 8-Port Internal PCI-e 3.0 RAID Controller
NEW Asus PIKE II 3008-8i SAS3 12Gbps 8-Port Internal PCI-e 3.0 RAID Controller
ASUS Model P/N: PIKE II 3008-8I
ASUS P/N: 90SC05E0-M0UAY0
Mounting bracket: Full height and Low Profile, SFF

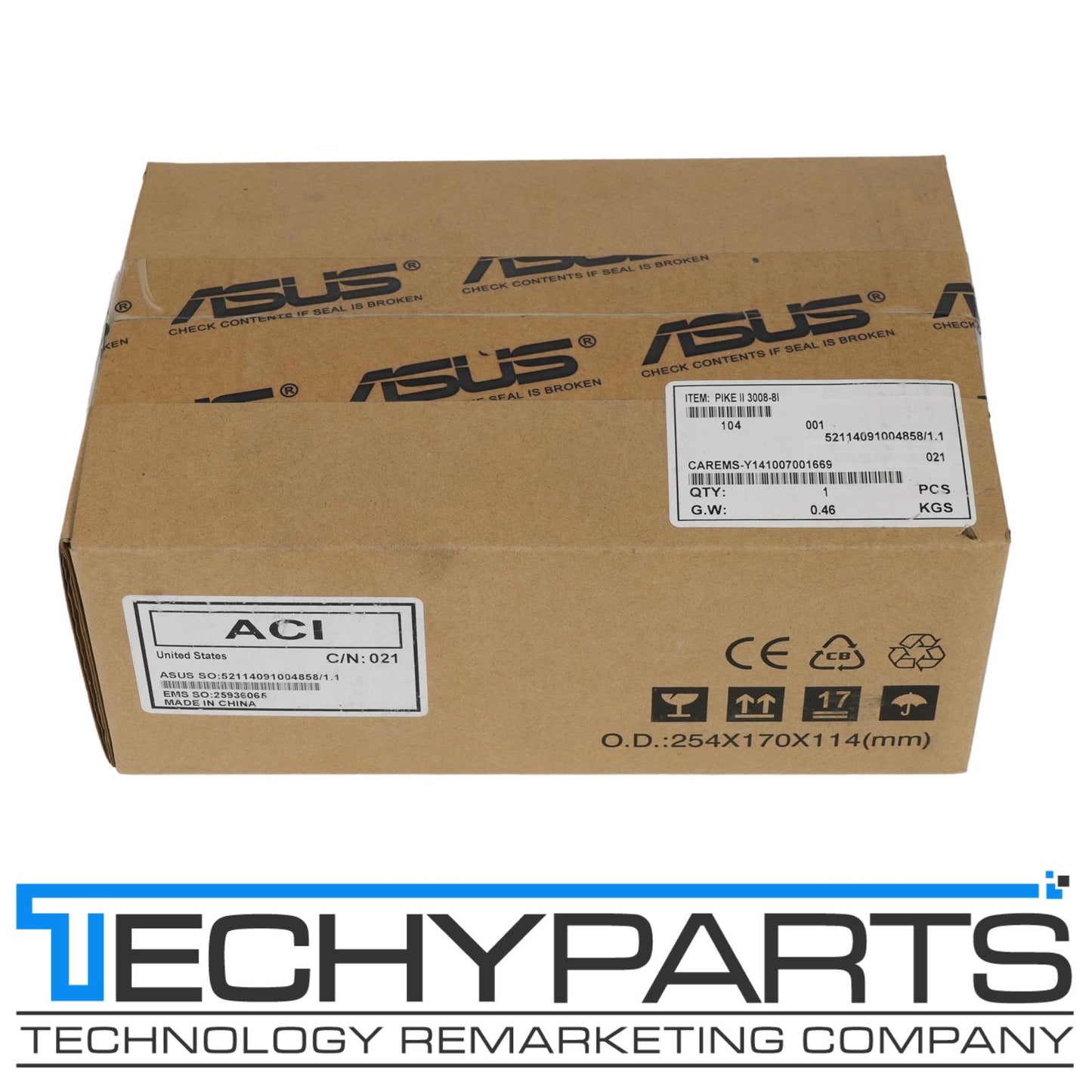

Condition: New, factory sealed
30-Day Warranty!
Manufacturer's description and specifications:
ASUS PIKE II 3008-8i is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAID 1, RAID 1E and RAID 10 data protection. Just placing the PIKE card can immediately enlarge the capacity, improve the performance, and strengthen the signaling, making it the great upgrade option.
Chipset: Broadcom (LSI) SAS3008
Host Interface: PCIe 3.0 x8
Ports: 8 internal ports by 2 Mini-SAS HD connectors
RAID Level Supported: 0, 1, 10, 1E
Devices Supported: SATA Devices, SAS Devices
Data Transfer Rate: Max. SAS 12Gb/s, Max. SATA 6Gb/s
JBOD Mode: Yes
Form Factor: Low-profile Card
Dimensions: 5.81 x 2.71 Inch
Package Content:
- 1 x Full-height Bracket (Default)
- 1 x Low-profile Bracket
- 1 x HDD LED Cable
- 1 x Driver Disc
Note: *The card only works with ASUS Server/Workstation motherboards and systems
System Requirements:
- ASUS Server motherboard
- PCI-E Gen3 slot
- SAS or SATA hard disk drives
- Mini-SAS HD cable
- Supporting Windows® and Linux Operating systems
- Appropriate thermal solution
- Certified power supply module
- Ensure to update BIOS to the latest version before using PIKE II 3008 series on ASUS Z9 or P9 series platform
