NOB LSI Broadcom SAS 9305-16i 16-port 12G SAS/SATA PCIe 3.0 HBA Host Bus Adapter

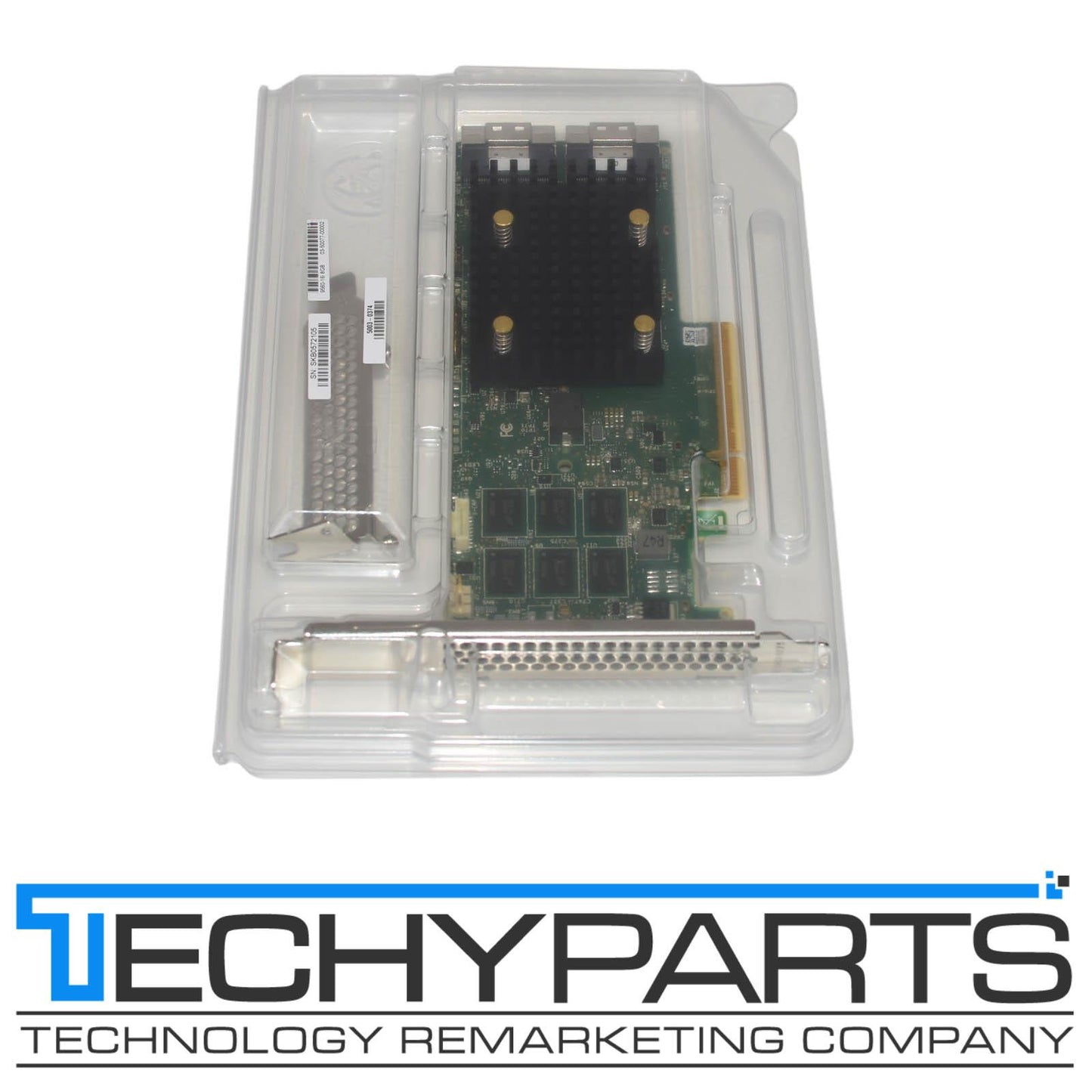

New, Bulk LSI Broadcom SAS 9305-16i 16-port 12G SAS/SATA PCIe 3.0 x8 HBA Host Bus Adapter

BROADCOM AVAGO LSI Model P/N: SAS 9305-16I

BROADCOM MPN: 05-25703-00

Mounting bracket: Full height and low profile SFF brackets included.

Condition: New, bulk

30-Day Warranty!

Manufacturer's description and specifications:

The 9305-16i is a single-chip low-profile adapter providing up to 16 direct internal drive connections or full scalability using expander backplanes. With performance of over 1.5 million input-output operations per second (IOPS), this adapter delivers the performance and scalability needed for critical applications.

  • Connects up to 1024 SAS and SATA devices with 16 internal 12Gb/s SAS ports
  • Support critical applications with the bandwidth of PCIe® 3.0 connectivity
  • Achieve more than 1.5 million IOPS for performance-sensitive applications
Host Bus Type x8 lane PCI Express® 3.0
Internal Connectors 4 mini-SAS HD SFF8643
Operating Temperature 0°C to 55°C
Operating Voltage (V) +12V +/-8%, 3.3V +/-9%
OS Support Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical
PCI Power Typical: 13.0W
Cable Support Passive Copper, Active Optical
I/O Controller SAS3224
Operating Humidity 20% to 80% Non-condensing
Brackets Full height and low profile SFF
Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), RoHS, Safety: EN60950, WEEE
Data Transfer Rates 12Gb/s SAS-3 Compliant
Management Software MegaRAID Storage Manager (MSM), StorCLI (Command-Line Interface), LSI Storage Authority (LSA), HII UEFI Human Interface Infrastructure), CTRL-R
