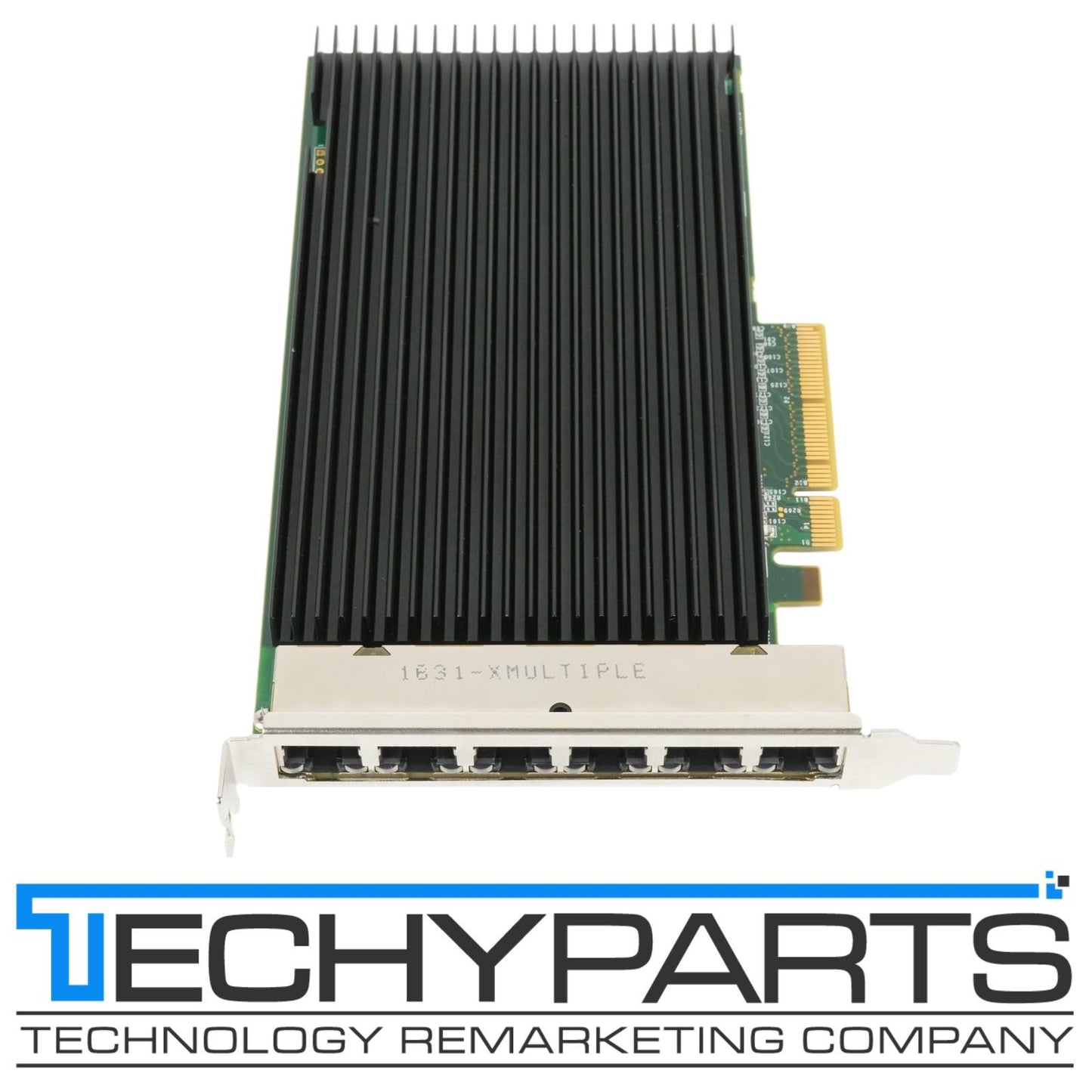

Silicom PE2G6I35-R 6-Port Gigabit PCI-e 2.0 X8 Ethernet Server Adapter I350

Silicom PE2G6I35-R 6-PORT Gigabit PCI-e 2.0 X8 Ethernet Server Adapter (Intel I350AM2 based) Rev. 3.0

SILICOM P/N: PE2G6I35-R

Revision: 3.0

Mounting bracket: Full Height

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included.

30-Day Warranty!

Performance Features:

  • 8 Transmit and 8 Receive queues per port
  • Up to 32 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
  • Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
  • Support for up to 8 virtual function ( VFs)
  • Partial replication of PCI Configuration space
  • Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port.
  • Support Direct Cache Access (DCA).
  • Support Intel I/O Acceleration Technology v3.0.
  • TSO interleaving for reduced latency
  • Minimized device I/O interrupts using MSI and MSI-X
  • UDP, TCP and IP checksum offload
  • UDP and TCP transmit segmentation offload (TSO). machine
  • SCTP receive and transmit checksum offload.
  • Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation.
  • EEE ( IEEE 802.3az) for reduced power consumption during low link utilization periods.

Copper Gigabit Ethernet 1000Base-T:

  • Independently copper Gigabit Ethernet channels support six Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T).
  • Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation
  • Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex
  • RJ-45 female connectors

Common Key features:

  • Support PCI Express Base Specification 2.1 (5 GTs)
  • High performance, reliability, and low power use in Intel i350 Quad integrated MAC + PHY and SERDES chip Controllers
  • Ultra deep, packet buffer per channel lowers CPU utilization
  • Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
  • Server class reliability, availability and performance features:
  • Link Aggregation and Load Balancing
  • Priority queuing – 802.1p layer 2 priority encoding
  • Virtual LANs –802.1q VLAN tagging.
  • Jumbo Frame (9.5KB)
  • 802.x flow control
  • Multicast/ broadcast Packet replication
  • Supports Vital Product Data (VPD)
  • LEDs indicators for link/Activity/Speed status
