Sonnet xMac Pro Server Thunderbolt 2 PCIe Enclosure with Mobile Rack MR-MPM-X3HD

85115

Sonnet xMac Pro Server Thunderbolt 2 PCIe Enclosure with Mobile Rack MR-MPM-X3HD

  • 85115-XMAC-PS_38913_base
1 1

SONNET

$999.90 USD
$999.90 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock
View full details

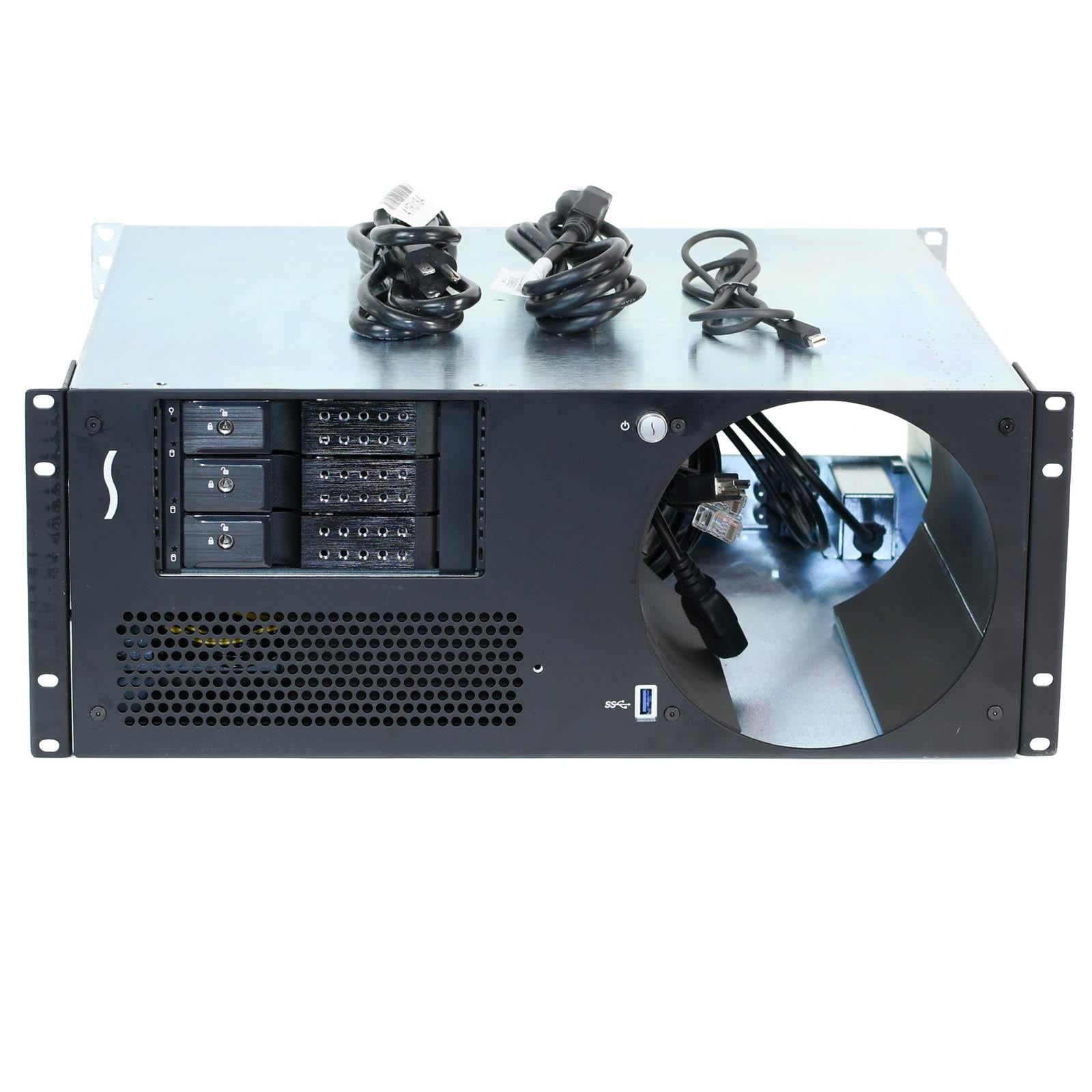

Sonnet xMac Pro Server Thunderbolt 2 PCIe Enclosure with Mobile Rack MR-MPM-X3HD

Sonnet xMac Pro Server Thunderbolt 2 PCIe Enclosure with optional Mac Pro Migration Edition Mobile 3x 3.5" Drive Rack Device Mounting Kit MR-MPM-X3HD

xMac Pro Server PCIe 2.0 Expansion System/4U Rackmount Enclosure for New Mac Pro with Thunderbolt 2 Ports (Mac Pro and PCIe cards sold separately.)

Condition: Off-lease equipment. Clean and tested by qualified technician. Includes 1x thunderbolt cable and 2x power cords.

30-Day Warranty!

Key Features:

  • Provides PCIe Card Expansion for Mac Pro - Use high-performance PCIe cards with the latest Mac Pro
  • Makes Your a Pro Road-Ready - 4U rackmount enclosure securely holds the computer and PCIe cards in place, adding mobility to your Mac
  • Three PCIe Slots - Supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card
  • Thunderbolt 2 Interface - Maximum performance with Mac Pro; backward compatible with devices equipped with 10Gbps Thunderbolt technology
  • Improved Design - New captive thumbscrews and two faceplates enable easier computer and PCIe card installation, and simpler cable access
  • Power for High Performance PCIe Cards - Integrated 300W power supply provides plenty of power for any cards you install; 75W auxiliary PCIe power connector enables use of power hungry cards such as the Avid Pro Tools|HDX or the RED ROCKET-X
  • Provides Space for Additional Devices - Using included Mac Pro Migration Edition Mobile Rack Device Mounting Kit MR-MPM-X3HD, you can add three of your own 3.5" hard drives to complete the package.
  • Remarkably Quiet - Temperature-controlled, variable-speed fans automatically and quietly cool installed PCIe cards
  • Front Panel Operation, Rear Panel Connectivity - Front panel power button activates power switch on Mac Pro; USB 3.0 port enables connection of peripheral devices such as a keyboard, mouse, thumb drives; two Gigabit Ethernet, three USB 3.0, and HDMI ports are mounted at the rear of the chassis for easy connectivity
  • Energy Efficient - Variable-speed fans automatically adjust to the unique needs of each configuration, and the auto power on/off feature ensures there is no energy wasted with cards powered on when the Mac Pro is sleeping or off
  • Supports Thunderbolt Expansion - Enables daisy chain connection of additional Thunderbolt technology devices when other Mac Pro Thunderbolt ports are in use
  • Every Thunderbolt-Compatible PCIe Card
  • Supported - Works with every Thunderbolt-compatible PCIe card, regardless of length or height
  • AVID Qualified for Pro Tools|HDX & HD Native and Media Composer/Symphony

Specifications:

Part No.
XMAC-PS xMac Pro Server
Hardware
Dimensions (WxDxH)

19 x 16 x 7 in. (48.3 x 40.6 x 17.8 cm)
Rack Depths Supported
  • 16 to 26 in. standard
  • 22.5 to 32.5 in. with optional Extension Rails
Weight

32.5 lbs (14.7 kg)

Rack Depths Supported
  • 16 to 26 in. standard
  • 22.5 to 32.5 in. with optional Extension Rails
External Connectors
  • Two RJ-45 Gigabit Ethernet port extensions
  • Four USB 3.0 port extensions (one front-mounted, and three rear-mounted)
  • One HDMI port extension
  • One 3.5 mm audio (in or out) extension
  • One C-13 power port extension
Internal Connectors
  • One 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)
  • One C-13 power
PCIe Expansion Slots Top to Bottom
  • One x8 mechanical (x4 electrical) PCIe 2.0
  • One x16 mechanical (x8 electrical) PCIe 2.0
  • One x8 mechanical (x8 electrical) PCIe 2.0
PCIe Cards Supported
  • Three full-length PCIe cards, or
  • One full-length, double-width PCIe card, plus one single-width card
Compatible PCIe Cards Up-to-date PCIe cards listed on our supporting Sonnet PCIe Card Thunderbolt Compatibility Chart
Power Supply

Universal 300W, 115-230V AC, 50-60 Hz
Operating Temperature

0º C to 35º C (32º F to 95º F)
RoHS Compliant Yes

Package Contents
  • xMac Pro Server (includes PCIe card expansion module; computer mounting module with one HDMI, one 3.5 mm audio (in or out), one power, two Gigabit Ethernet, and four USB 3.0 pass-through cables; assembled)
  • Mac Pro Migration Edition Mobile Rack Device Mounting Kit MR-MPM-X3HD (includes Mobile Rack Device Mounting Kit, Three 3.5” 6Gb/s SATA tray less hot-swap drive cages, Three e-SATA-to-internal SATA cables, External 4-port 6Gb/s eSATA PCIe 2.0 card). Add three of your own 3.5" hard drives to complete the package.
  • Thunderbolt cable
  • 2x Power cords

Notes: Mac Pro, Hard Drives, Solid State Drives, PCIe cards, Twin 10G, and all other accessories including locking HDMI cable, ThunderLok Thunderbolt connector retainer clip are sold separately.

Mac Pro Wi-Fi and Bluetooth antenna shielded from effective use upon installation.

Overview of xMac Pro Enclosure
