SuperMicro 1028U-TRT+ X10DRU-i+ 2x E5-2690v3 XEON 256GB 1U Server 12G SAS RAID
85739SuperMicro 1028U-TRT+ X10DRU-i+ 2x E5-2690v3 XEON 256GB 1U Server 12G SAS RAID

SuperMicro 1028U-TRT+ X10DRU-i+ 2x E5-2690v3 XEON 256GB 1U Server 12G SAS RAID

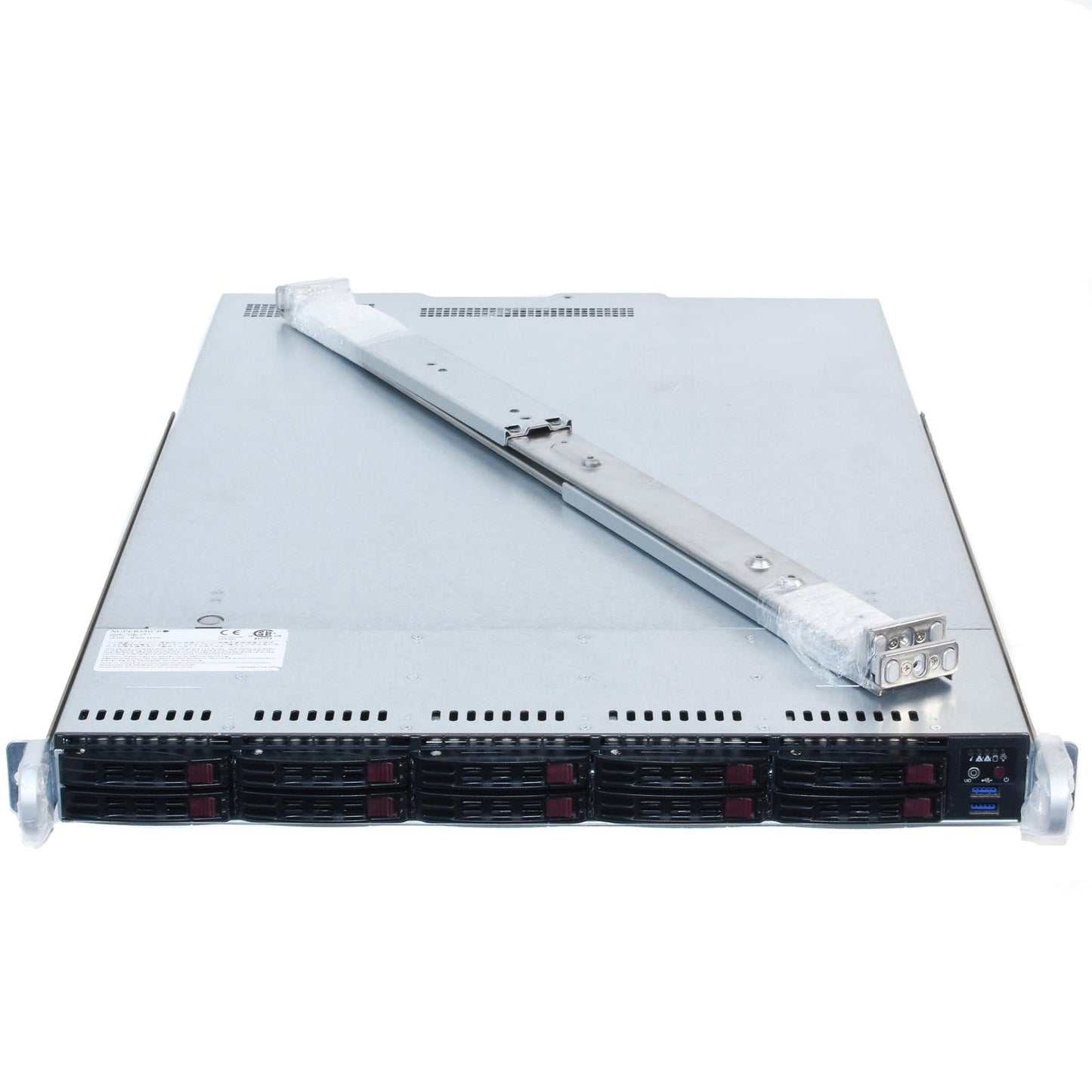

SUPERMICRO 1028U-TRT+ SuperServer X10DRU-i+ Dual Socket LGA2011v3 2x E5-2690v3 2.6GHz 12-Core Intel XEON CPUs 256GB RAM 1U Rackmount Server with AOC-S3108L-H8iR 8-port SAS3 12Gbps Controller.
Please note: This unit currently comes with an optional AOC-S3108L-H8IR 2GB 8-Port Internal SATA3 6Gbps/SAS3 12Gbps PCI-e 3.0 RAID Controller Card and AOC-SGP-i2 Dual Port Gigabit Ethernet Controller Card
- Right out of the box 8 bays connected to AOC-S3108L-H8iR SAS3 RAID controller and 2x SATA connectors are connected to Motherboard SATA-4 and SATA-5 Ports.
Specifications:
- SuperMicro 1U Chassis Model#: CSE-119UAC-R751-T
- SuperMicro X10DRU-i+ Dual Socket R3 (LGA 2011v3) Motherboard supporting Intel Xeon E5-2600v3/v4 family processors
- 2x Intel Xeon E5-2690v3 2.60GHz 12-Core CPUs
- 256GB (16x 16GB) PC4-2133P Registered ECC Memory Installed
- 10x SATA3 (6Gbps) ports (onboard)
- 24x 288-pin DDR4 DIMM slots
- 2x 10G Base-T RJ45 ports via AOC-UR-i2XT Intel® X540 10G Base-T
- BPN-SAS3-116A 10-port 1U SAS3 12Gbps direct-attached backplane, support up to 10x 2.5-inch SAS3/SATA3 HDD/SSD
- SUPERMICRO AOC-S3108L-H8IR 2GB 8-Port Internal SATA3 6Gbps/SAS3 12Gbps PCI-e 3.0 RAID Controller Card
- SUPERMICRO AOC-SGP-i2 Dual Port Gigabit Ethernet Controller
- 2x SuperMicro 750W Redundant Platinum Level Power Supplies Model#: PWS-750P-1R
- 10x 2.5" Hard Drive Caddies with screws
- No Hard Drives Installed
Condition: Used - Tested. Guaranteed working. Latest BIOS and IPMI Flashed and ready for v4 CPUs out of the box. Sold as pictured, no other accessories are included. Rackmount rails are included.
Custom configurations are available. Please contact us for a quote or if you have questions regarding current configuration.
