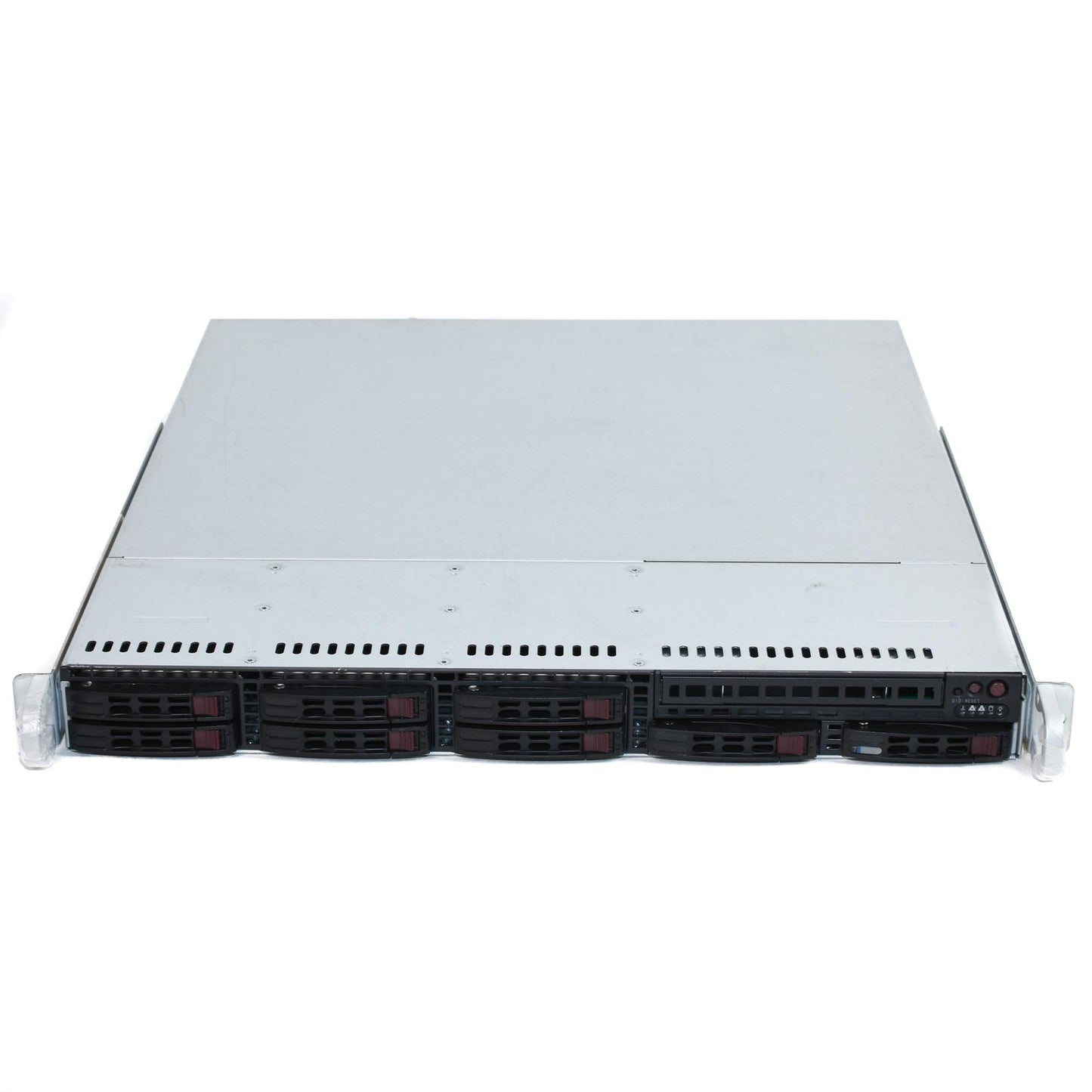

Supermicro CSE-113MTQ-563CB 8-bay 2.5" SFF 1U Rackmount Server Chassis

84168

Supermicro CSE-113MTQ-563CB 8-bay 2.5" SFF 1U Rackmount Server Chassis

  • 84168-CSE-113MTQ-563CB_37138_base
1 1

SUPERMICRO

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock
View full details

Supermicro CSE-113MTQ-563CB 8-bay 2.5" SFF 1U Rackmount Server Chassis

Supermicro CSE-113MTQ-563CB 8-bay 2.5" SFF 1U Rackmount Server Chassis

Specifications:

Form Factor 1U chassis supports for maximum motherboard sizes - ATX 12" x 10" and Micro-ATX 9.6" x 9.6"
Model SC113MTQ-563CB - 8x 2.5" Bays
Backplane
  • BPN-SAS-113TQ 8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD
Drive Bays
  • 8 x 2.5" hot-swap SAS/SATA drive bay
  • SAS or enterprise SATA HDD only recommended
Hard Drives Not included - 8 drive Trays included w/ screws
Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
  • Unit Identification (UID) button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Unit Identification (UID) LED
Power Supply
1U 560W/600W Multi-output power supply Gold level, 24Pin output
Power Efficiency
  • 92%
Total Output Power and Input
  • 560W with Input 100 - 180Vac
  • 600W with Input 180 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 279.4 x 76 x 40.4 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 46A / Min: 1A (100Vac - 180Vac)
  • Max: 49A / Min: 1A (180Vac - 240Vac)
+5V
  • Max: 18A / Min: 0.5A
+3.3V
  • Max: 15A / Min: 0.5A
+5Vsb
  • Max: 3A / Min: 0A
Optical Drive Not included
Rackmount Rails Not included (Unit comes with inner part of rail kit attached as pictured)

Condition: Off-lease equipment. Clean and tested by qualified technician.

Sold as pictured, no other accessories are included.

30-Day Warranty!
