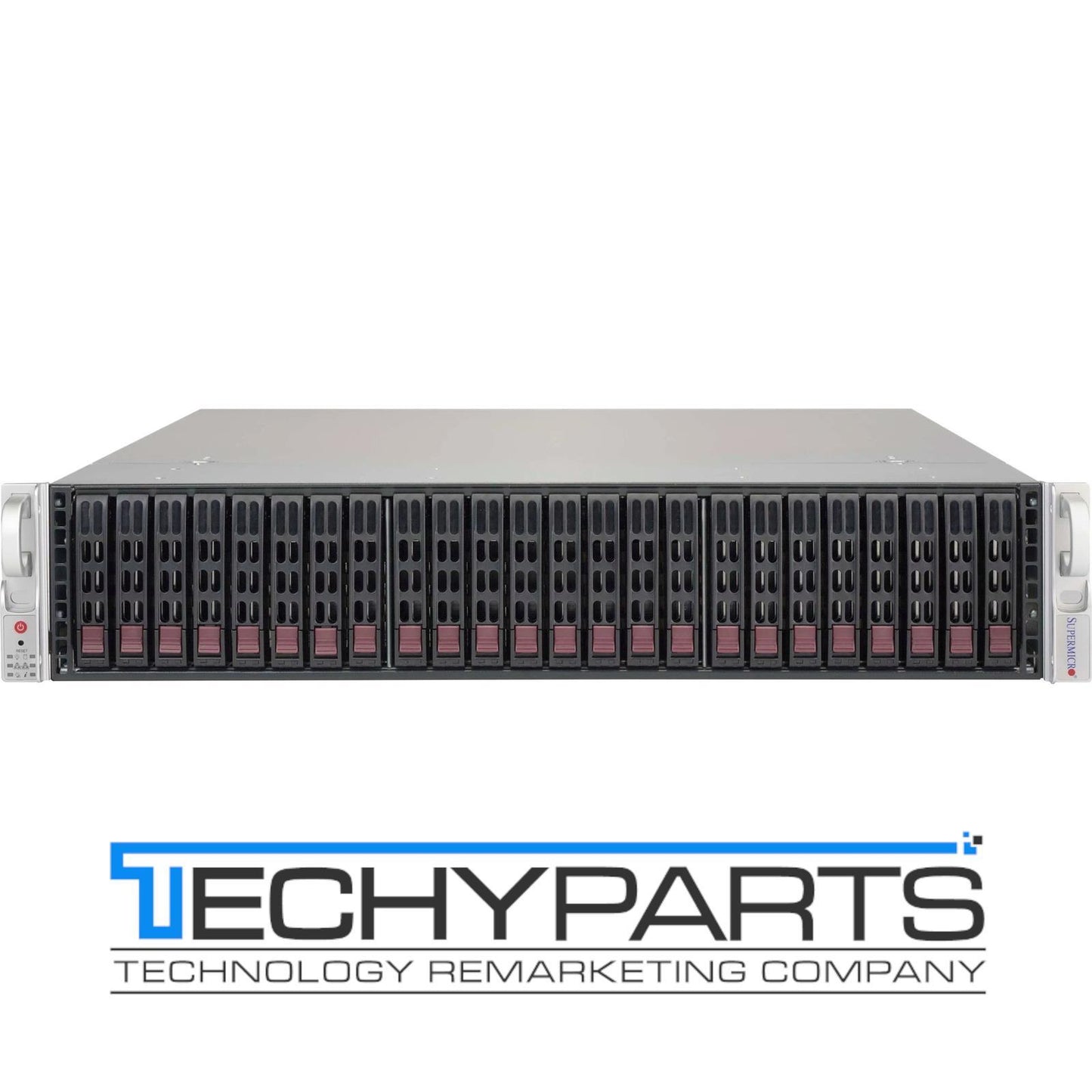

Supermicro CSE-216BE1C-R741JBOD Server 2U Storage Rackmount JBOD 24x 1.92TB SSDs

Supermicro CSE-216BE1C-R741JBOD Server 2U Storage JBOD Rackmount Chassis (Rail Kit Included) with 24x Samsung PM863a 1.92TB SSD 2.5" SATA III 6G Solid State Drive MZ-7LM1T90 MZ7LM1T9HMJP-00005 SSDs Installed

Drives Installed:

Quantity: 24x

Manufacturer: SAMSUNG

SAMSUNG Part Number: MZ7LM1T9HMJP-00005

Capacity: 1.92TB

Interface: SATA III

Form factor: 2.5"

Sequential Reads: 520MB/S

Sequential Writes: 480MB/S

Maximum Random 4k Read: 97,000 IOPS

Maximum Random 4k Write: 24,000 IOPS

• 2U 24x 2.5" Bays Storage CSE-216BE1C-R741JBOD JBOD Chassis

• 2x PWS-741P-1R 740W power supply w/ PMBus, PDB-PT216-2824 Power Distributor

• BPN-SAS3-216EL1 Single Expander Backplane Support SAS3/2 or SATA3 HDDs/SSDs

• CSE-PTJBOD-CB3 Control Board

Rackmount 2U Storage JBOD Chassis - Includes: 24x 2.5in SAS/SATA Hot-Swap HDD bays, Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput, 4x Mini-SAS HD ports for Internal / External Cascading Expander, 1x IPMI port for Remote System Power on/off or wake-on-LAN and system monitoring, Rails Kit, 740W Redundant 80 Plus Platinum Level Certified Power Supply

• 740W (1+1) 95% efficient Platinum level power supplies
• 3 x 80mm high efficient hot-swappable fans for best system cooling
• 2U Storage JBOD Chassis with capacity 24 x 2.5 hot-swappable HDDs bays
• Cloud Backup, Data Replication, or High-Density Archive Storage Applications
• Ideal for Cloud backup, data Replication or High-density Archive Storage Applications
• Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
• 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability, or high redundancy requirements
• 1x IPMI port for Remote System Power on/off, wake-on-LAN, and system monitoring 5. Support NTP for time synchronization & RTC battery backup

Condition: Used, Off-lease equipment. Tested and guaranteed to be in full working condition. The Rackmount rail kit and HDD trays are included.

30-Day Warranty!
