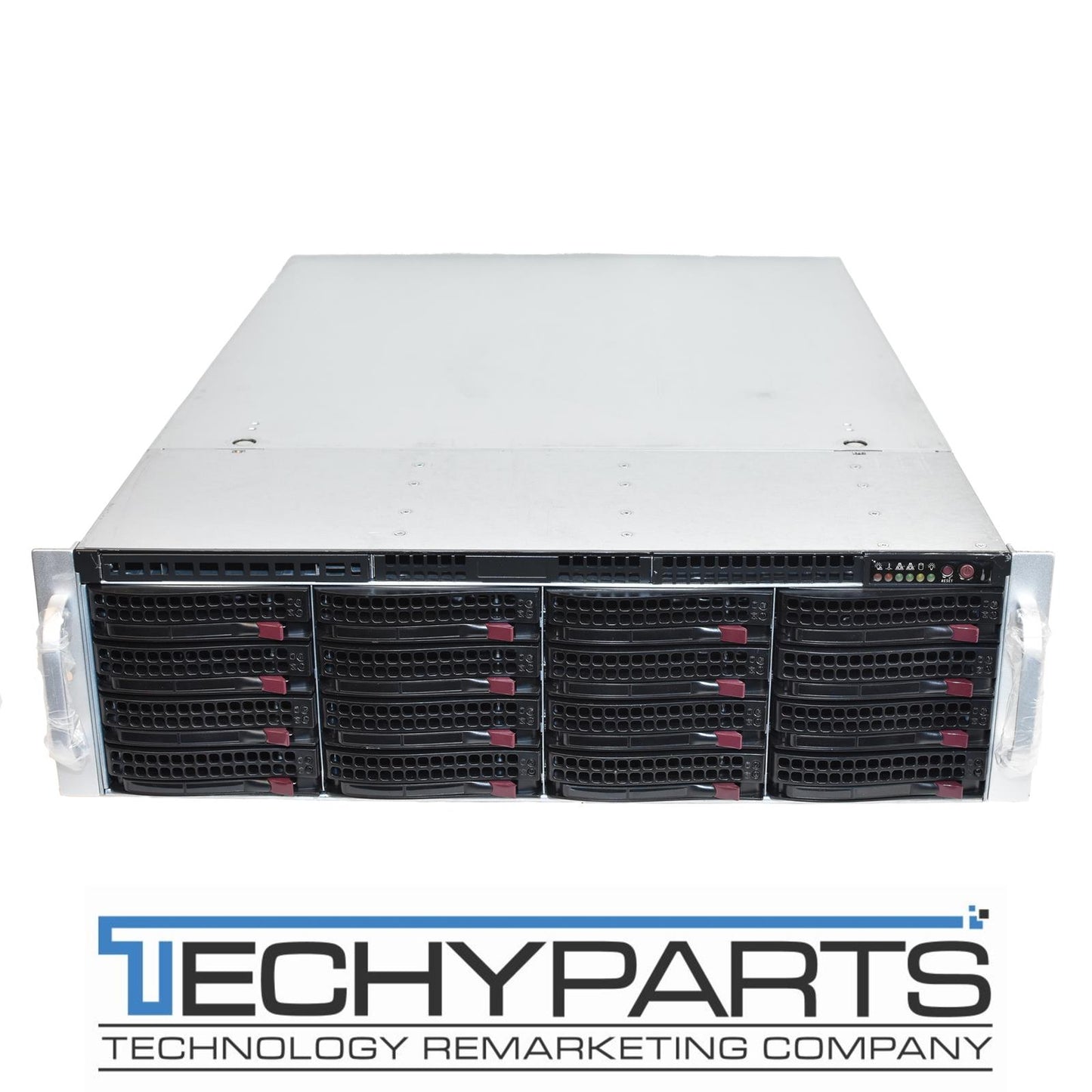

Supermicro SC837E16-RJBOD1 28-Bay SAS2/SATA3 Hot-Swap 3U JBOD w/ 2x 1620W Power Supplies and Rail Kit
Optimized for high-capacity storage applications, Supermicro's SC837 Chassis features 28x (16 front + 12 rear) hot-swap 3.5" SAS/SATA hard drive bays as JBOD chassis in a 3U space. The SC837 design offers extra high-density of HDD per space ratio n a 3U form factor, high power efficiency, optimized HDD signal trace routing and improved HDD tray design to dampen HDD vibrations and maximize performance. Equipped with redundant high-efficiency 1620W (Platinum Level) power supplies with PMBus functionality and I2C for enhanced power management, and 5 hot-plug redundant cooling fans, the SC837 is a reliable and hassle-free maintenance storage system.
- Cost-effective High-density 3U JBOD chassis solution: Total 28x (16 front + 12 rear) 3.5" Hot-swap HDD bays; 6Gb/s SAS2 Expander Backplane
- Cost effective HDD Backplane design: one expander chip for front/rear HDDs Single (E16) expander solution
- High-Availability Features: Redundant, Hot-pluggable cooling system, Power Supplies, Hot-swap drives
- Redundant 1620W Platinum Level power supplies
- 3x 8cm Hot-swap cooling fans, redundant cooling
- Cascade up to 240 SAS HDDs
| Form Factor | 3U Rack Mount |
|---|---|
| Model | SUPERMICRO 837E16-RJBOD1 - 28 3.5" Bays |
| Backplane | BPN-SAS2-837EL2 + BPN-SAS-837A |
| Front Cooling | 3x 8cm hot-swap cooling fans, Redundant cooling |
| Internal Bay | 28x (16 front + 12 rear) 3.5" Hot-swap HDD bays; direct hot-swap access to all HDDs, SAS or enterprise SATA HDD only recommended |
| Front Panel LED | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED |
| Controls | Power On/Off button, System Reset button |
| RAID Levels | |
| Power Supply | 2x 1620W high-efficiency redundant power supplies w/ PMBus, 80Plus Platinum Certified |
| Dimension (D x W x H) | 25.5" x 17.2 x 5.2" |
| Rackmount Rails | Included |
| Power Cord | Not Included |
