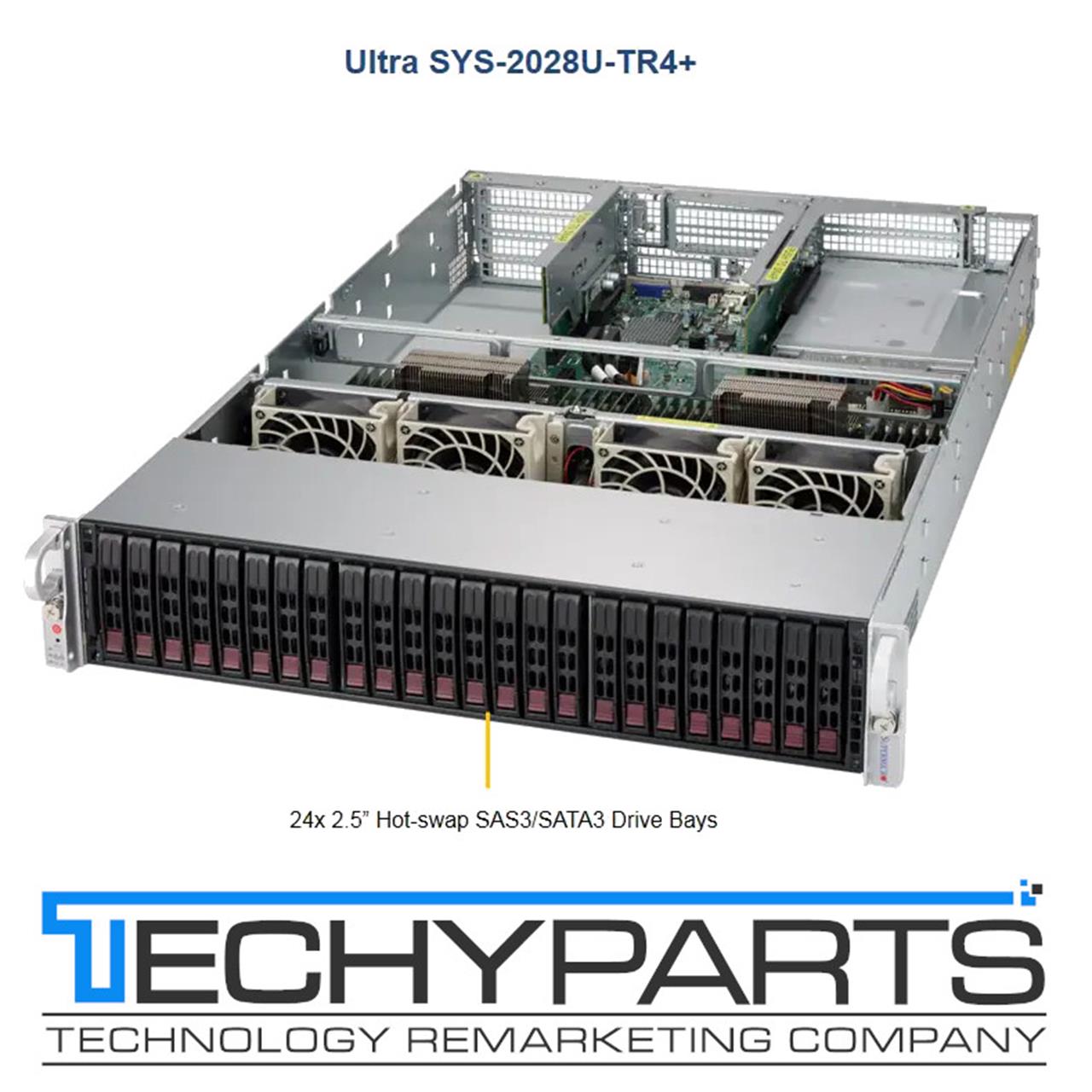

Supermicro SYS-2028U-TR4+ 2x E5-2650v3 2.3GHz 32GB 24x 2.5" Bay 2U Server
91607Supermicro SYS-2028U-TR4+ 2x E5-2650v3 2.3GHz 32GB 24x 2.5" Bay 2U Server
Supermicro SYS-2028U-TR4+ 2x E5-2650v3 2.3GHz 32GB 24x 2.5" Bay 2U Server
Supermicro SYS-2028U-TR4+ 2x E5-2650v3 2.3GHz 32GB 24x 2.5" Bay 2U Server
Specifications:
| Form Factor | 2U RACKMOUNT |
|---|---|
| Model | SUPERMICRO SYS-2028U-TR4 - 24 2.5" Bays |
| Processor(s) | 2x Intel SR1YA Xeon E5-2650v3 2.3Ghz 10-Core 25M 9.6GTs QPI LGA2011-3 Processor CPU |
| Memory | 32GB PC4-2133P (DDR4-2133MHZ) Registered ECC Memory |
| # of DIMMs and Capacity | 4x 8GB PC4-2133P (DDR4-2133MHZ) |
| Hard Drives | 24x Hot-swap SAS3/SATA3 2.5" Drive Bays: |
| RAID Controller | 3x AOC-S3008L-L8E Supermicro 12Gb/s Eight-Port SAS Internal Host Bus Adapters Connected to direct-attach backplane (no expander) |
| RAID Levels | N/A |
| Power Supply | 2x 1000W PWS-1K02A-1R |
| Optical Drive | N/A |
| Network | 4x GbE ports via AOC-2UR68-i4G Intel® i350 Gigabit Ethernet Controller 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Remote Access | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Rackmount Rails | NONE |
| Operating System | N/A |
| Power Cord | NONE |
Condition: Off-lease equipment. Clean and tested by a qualified technician. Rackmount rail kit is not included.
30-Day Warranty!
