Supermicro SYS-2029U-E1CRTP X11DPU 2x Xeon Gold 6130 192GB RAM SAS3 2U Server

91409

Supermicro SYS-2029U-E1CRTP X11DPU 2x Xeon Gold 6130 192GB RAM SAS3 2U Server

Skip to product information
1 of 1

SUPERMICRO

Regular price $1,099.00 USD
Regular price Sale price $1,099.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

View full details

Supermicro SYS-2029U-E1CRTP X11DPU 2x Xeon Gold 6130 192GB RAM SAS3 2U Server

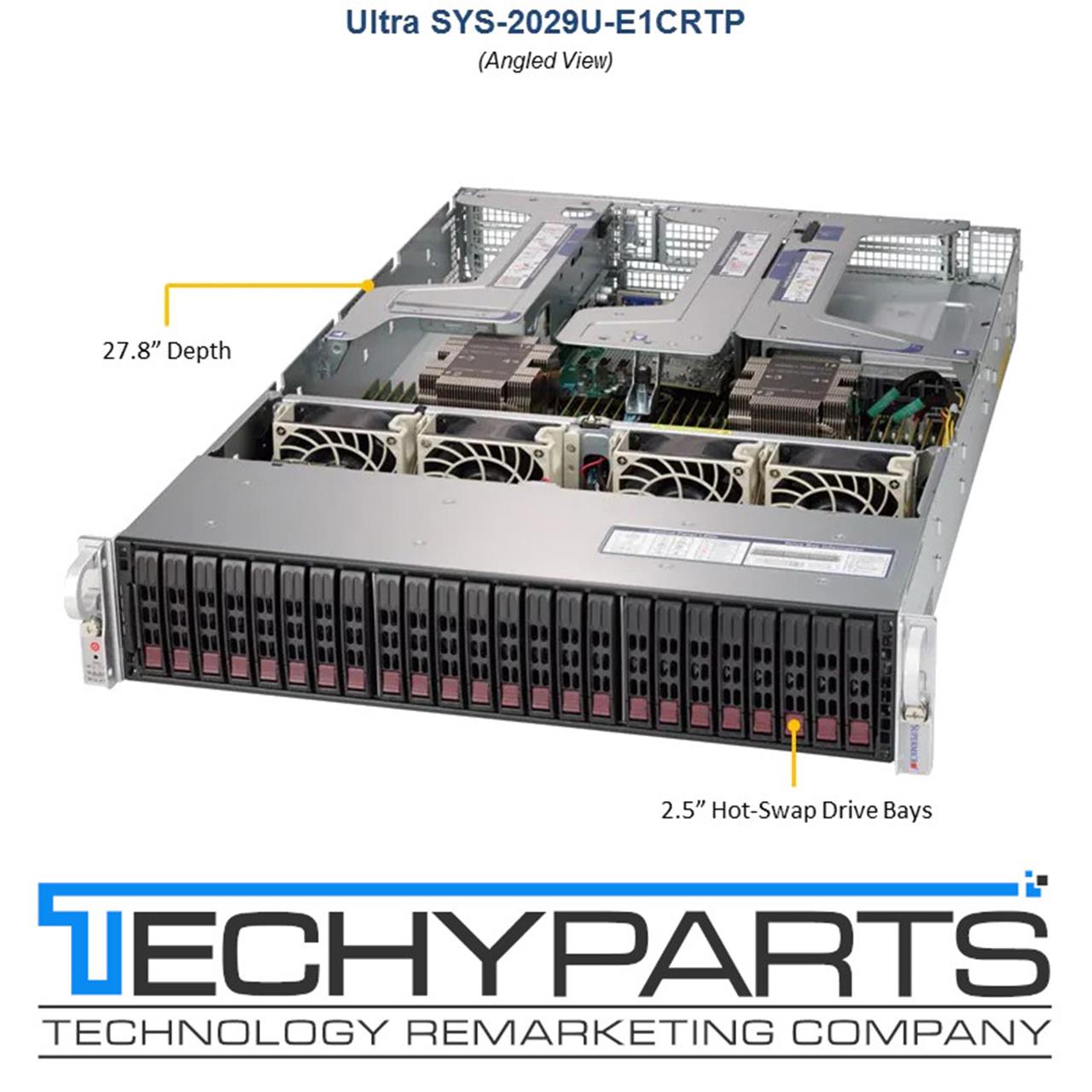

Supermicro SYS-2029U-E1CRTP X11DPU 2x Xeon Gold 6130 2.1GHz 16-Core CPUs 192GB RAM 2.5" 24-Bay 2U Rackmountable Server

Options installed:

  • Supermicro AOC-S3108L-H8iR 2GB 8-Port 12Gbps SAS PCI-e 3.0 RAID Controller
  • MCP-240-82922-0N-OEM 2 Rear 2.5" Hot-swap SATA Drive Bays Option

Specifications:

Form Factor 2U RACKMOUNT
Model SUPERMICRO SYS-2029U-E1CRTP - 24 2.5" Bays
Processor(s) 2x Intel SR3B9 Xeon Gold 6130 2.1Ghz 16-Core 22MB L3 Cache LGA3647 CPUs
Memory 192GB PC4-2666V (DDR4-2666MHZ) Registered ECC Memory
# of DIMMs and Capacity 12x 16GB PC4-2666V (DDR4-2666MHZ)
Hard Drives
  • 24x Hot-swap 2.5" drive bays (FRONT): 24x SAS3 via opt. AOC (INCLUDED)
  • Optional 2 hot-swap 2.5" rear drive bays for SSDs (INCLUDED)
RAID Controller Supermicro AOC-S3108L-H8iR 2GB 8-Port 12Gbps SAS PCI-e 3.0 RAID Controller
RAID Levels RAID 0, 1, 5, 6, 10, 50 and 60
Power Supply 2x 1000W PWS-1K02A-1R 1U Redundant Power Supply Titanium Level
Optical Drive N/A
Network

2x 10G SFP+ ports via AOC-2UR68-i2XS (Intel® 82599ES)

  • 2 10G SFP+ ports
  • 1 RJ45 Dedicated IPMI LAN port
Remote Access

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

Rackmount Rails Yes
Operating System N/A
Power Cord NONE

Condition: Off-lease equipment. Clean and tested by a qualified technician. Drive trays and rackmount rail kit are INCLUDED.

30-Day Warranty!
