Supermicro SYS-6019P-WTR w/X11DDW-L 4-Bay 3.5" 2x LGA-3647 CTO 1U Server w/Rails

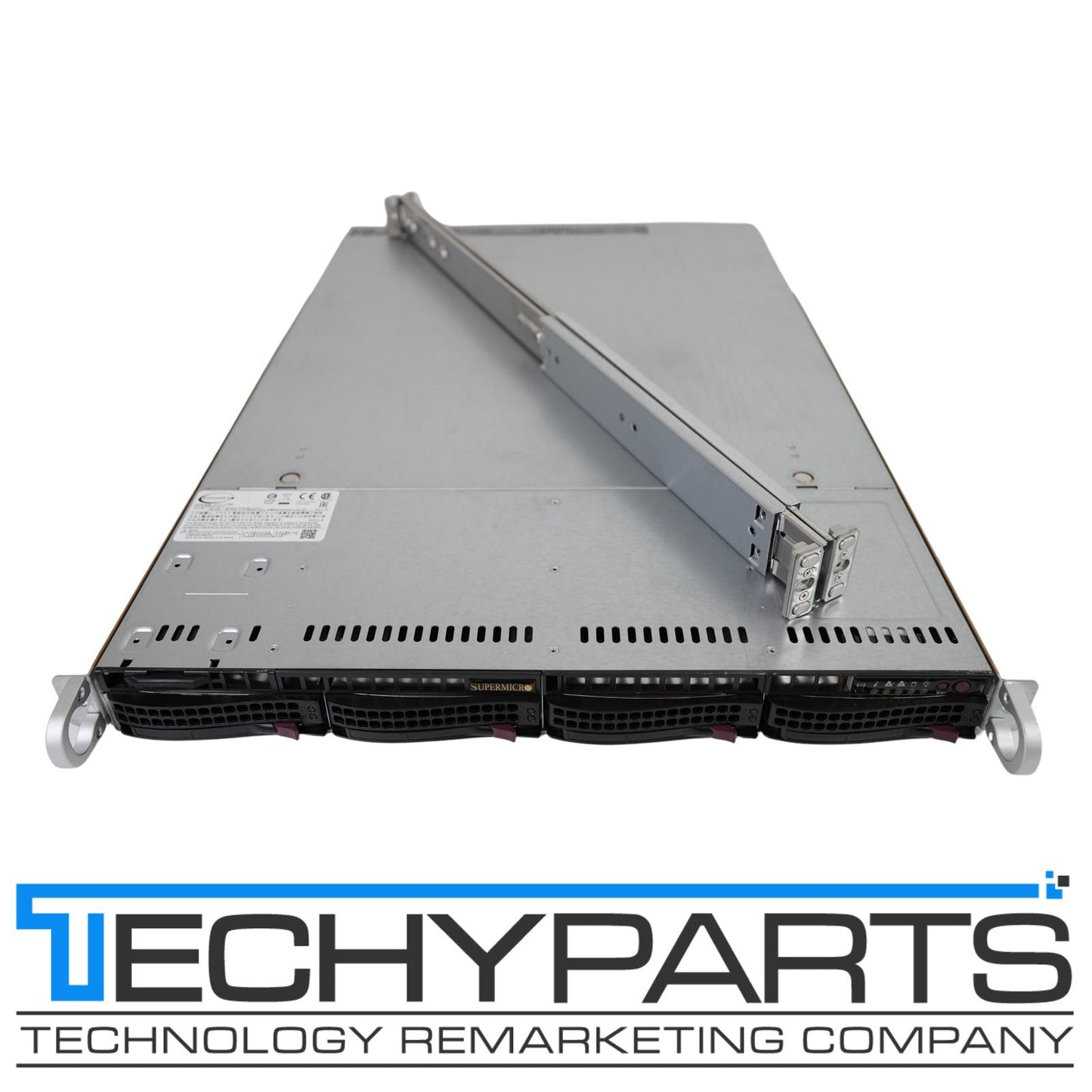

Supermicro SuperServer 6019P-WTR CSE-815TQC-R706WB2 X11DDW-L 4-Bay 3.5" LFF Dual Socket LGA-3647 (Socket P) Barebone CTO 1U Rackmount Server with Rackmount Rails

Condition: Off-lease equipment. Clean and tested by a qualified technician. Barebone CTO (Configure-to-Order) - NO CPUs, NO Memory, NO Drives included. Rail kit is included.

Each server is configured to order. This process involves rigorous quality control which includes:

  • Throughout visual inspection for physical damages
  • Verification of all components and their functionality
  • Full diagnostic test is performed utilizing manufacturer's diagnostic tools
  • BIOS and firmware updates are installed
  • All logs are cleared
  • Passwords and settings are restored to factory defaults

Custom configurations are available. Please contact us for a quote or if you have questions regarding current configuration.

30-Day Warranty!


Key Features:

  • Web Server, Firewall Apps.
  • Corporate-Wins, DNS, Print, Login
  • Gateway, provisioning servers
  • Compact Network Appliance
  • Cloud Computing
  1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  2. 12x DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
  3. 2x PCI-E 3.0 x16 (FHHL) slots, 1x PCI-E 3.0 x8 (LP) slot, 1x PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1x PCI-E 3.0 x4 NVMe M.2 slot
  4. Hot-swap 3.5" SAS3/SATA3 drive bays
  5. 2x 1GbE LAN ports via Intel C621
  6. 1 VGA, 4 USB 3.0 (rear)
  7. 750W Redundant Power Supplies Platinum Level High-efficiency
Parts List - (Items Included)
Description Part Number Qty Description
Motherboard / Chassis MBD-X11DDW-L

CSE-815TQC-R706WB2
1

1
Super X11DDW-L Motherboard

1U Chassis
Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Storage Cable CBL-SAST-0388L-02 1 MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG
Riser Card (left) RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card (right) RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink w/ Retention SNK-P0067PSMB 2 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster
Power Supply PWS-706P-1R 2 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
FAN FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Rail Kit MCP-290-00054-0N 1 Rail set, quick/quick, optional for 1U 17.2"W SC815

Manufacturer's description and specifications:

SYS-6019P-WTR
  • SuperServer 6019P-WTR (Black)
Motherboard

Super X11DDW-L
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,

    Dual UPI up to 10.4GT/s (processors are not included)
  • Support CPU TDP 70-165W*
  • 2x Supermicro SNK-P0067PSMB 1U High Performance Heatsinks included

Cores
  • Up to 28 Cores
Note

* Certain high frequency optimized CPUs within 165W TDP are not supported, such as Intel Gold 6144, 6146, 6244, 6246, 6250 and 6256.

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • Intel® C621 controller for 14 SATA3 (6 Gbps) ports onboard
  • RAID 0,1,5,10
Network Controllers
  • Dual LAN with Gigabit Ethernet from C621
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 4 SATA3 (6 Gbps) ports connected BPN-SAS3-815TQ backplane
LAN
  • 2 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TQC-R706WB2
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 25.6" (650mm)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FHHL) slots via Supermicro RSC-R1UW-2E16 1U LHS WIO Riser card with two PCI-E x16 slots
  • 1 PCI-E 3.0 x8 (LP) slot via Supermicro RSC-R1UW-E8R 1U RHS WIO Riser card with one PCI-E x8 slot
  • 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
  • 1 PCI-E 3.0 x4 NVMe M.2 slot

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5" SATA3 drive bays (4x hard drive caddies with screws included)
Backplane
  • Supermicro BPN-SAS3-815TQ 1U 4-Port 12Gbps SAS/SATA HDD Backplane Support 4x3.5"
System Cooling
Fans
  • 4 Counter-rotating 4cm PWM fans
AC/DC 240V Input Redundant Power Supply
  • Supermicro PWS-706P-1R 700W/750W Redundant Platinum Power Supplies with PMBus
Total Output Power
  • 700W/750W
Dimension (W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100 - 140Vac / 8 - 6A / 50-60Hz
  • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
  • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V
  • Max: 58A / Min: 0.5A (100 - 140Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification
  • Platinum Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
