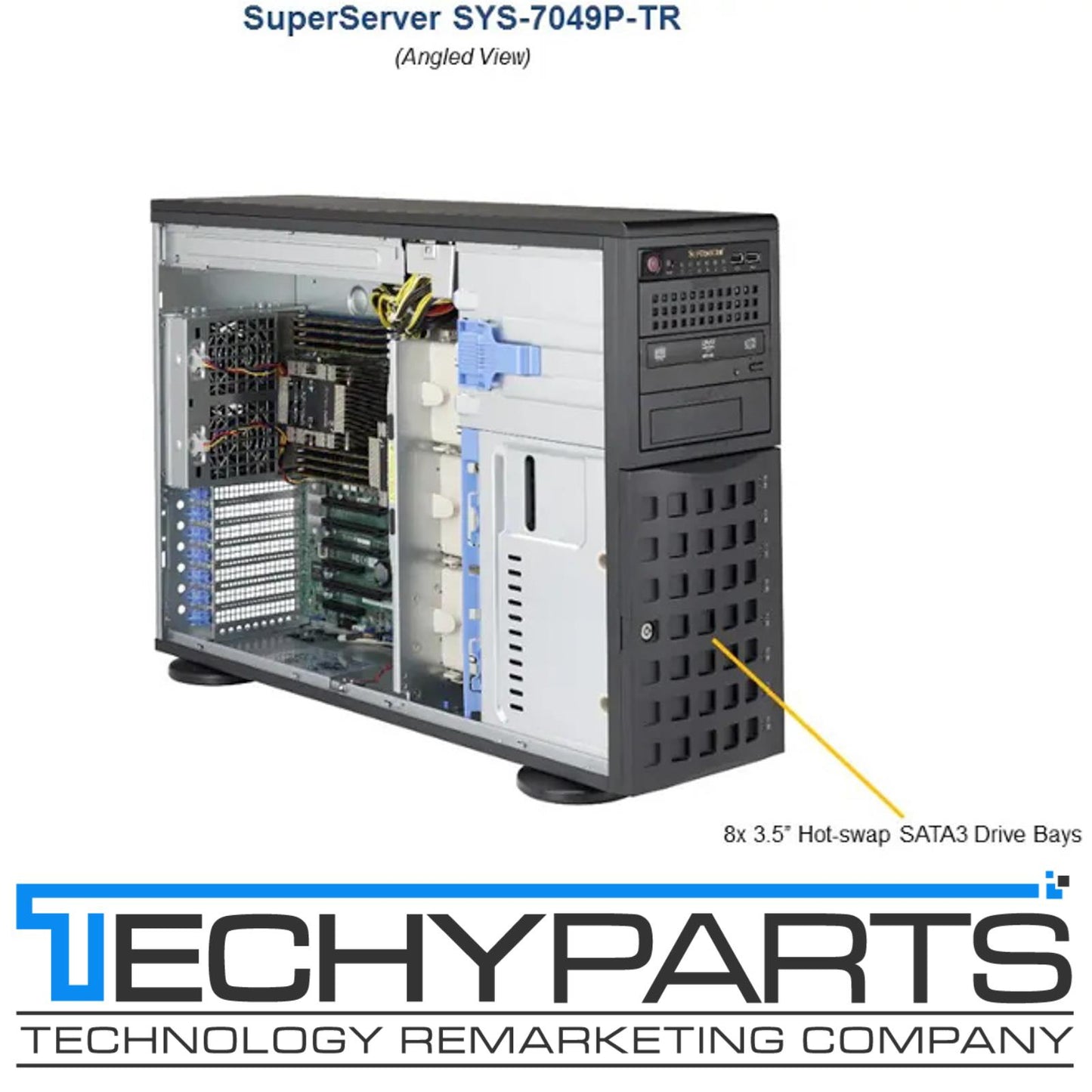

  • 91079-SYS-7049P-TR-50154_base
1 1

SUPERMICRO

$1,299.95 USD
$1,299.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock
View full details

Supermicro SYS-7049P-TR X11DPi-N w/1x Xeon Silver 4110 2.10GHz 32GB 2x1TB Server

NEW Supermicro SYS-7049P-TR X11DPi-N w/1x Xeon Silver 4110 2.10GHz 8-Core 32GB DDR4-2666 2x1TB HDD Full Tower Server

Parts List - (Items Included)

Part Number Qty Description
Motherboard / Chassis MBD-X11DPi-N

CSE-745BTS-R1K23B		 1

1		 Super X11DPi-N Motherboard

4U Chassis
Processor SR3GH 1 Intel Xeon Silver 4110 2.10GHz 8-Core/16-Thread 11 MB L3 Cache 85W TDP CPU
Memory MEM-DR416LA-ER26 2 16GB 1Rx4 DDR4 PC4-2666V-R Registered ECC 1.2V 288-pin RDIMM Server Memory
Hard Drive HDD-3T01T-1NECR 2 Supermicro (Seagate) ST1000NM000A 1TB 3.5" 7200RPM SATA3 6Gb/s 256M Internal Hard Drive
Backplane BPN-SAS3-743A 1 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Cable 1 CBL-SAST-0508-01 2 MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
Cable 2 CBL-SAST-0508-02 2 MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K23A-SQ 2 1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
Power Distributor PDB-PT747-4648 1 POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
Cable 3 CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable 4 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable 5 CBL-0216L 3 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
Cable 6 CBL-0471L 1 USB 3.0,INT,19 PIN/F TO 19PIN/F,2 CH,80CM,30/28/26AWG
FAN 1 FAN-0180L4 2 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
FAN 2 FAN-0182L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
Drive Tray(s) MCP-220-00092-0B 8 Black Hot-swap 3.5inch HDD Tray (w/o logo)
Parts MCP-290-74502-0B 1 Plastic feet (4 pcs set) for 4U tower chassis, black color
Air Shroud MCP-310-49001-0N 1 SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB

Condition: New in factory packaging.

90-Day Warranty!

Key Features:

  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
  • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots
  • 8 Hot-swap 2.5"/3.5" SATA3 (6Gbps) drive bays; RAID 0, 1, 5, 10
  • Optional DVD-ROM drive, optional support: 2 fixed 2.5" NVMe/SSD/HDD,1 M.2 support
  • M.2 Interface: PCI-E 3.0 x4 M.2; Form Factor: 2260, 2280, 22110; M.2 Key: M-Key
  • 3 Peripheral 5.25" bays
  • 2x 1GbE LAN ports with Intel® X722
  • 1200W Redundant Power Supplies Titanium Level (Updated for 2021 Version)

Manufacturer's description and specifications:

Product SKUs
SYS-7049P-TR
  • SuperServer 7049P-TR (Black)
Motherboard

Super X11DPi-N
Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

* CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 1GbE LAN with Intel® X722
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • Rear USB: 2 USB 3.0 + 2 USB 2.0
  • Front USB: 2 USB 3.0
  • USB Header: 1 Type A
Video
  • 1 VGA port
Serial Port / Header
  • 2 Fast UART 16550 serial
  • 2 COM Ports (1 rear, 1 header)
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-745BTS-R1K23B
Dimensions and Weight
Height
  • 17.8" (452mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Package
  • 24" (H) x 14" (W) x 26.5" (D)
Weight
  • Net Weight: 56 lbs (25.6 kg)
  • Gross Weight: 73.5 lbs (33.6 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power Fail LED
Ports
  • 2 USB Ports
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 2 PCI-E 3.0 x8 slots
  • Support total of 6 Full-height AOC
Drive Bays
Hot-swap
  • 8 Hot-swap 2.5"/3.5" SATA3 (6Gbps) drive bays
Peripheral Bays
  • 3 Peripheral 5.25" drive bays
SAS / SATA Backplane
SAS / SATA Hard Drive Backplane w/AMI MG9072
System Cooling
Fans
  • 3x 80mm high-performance fans
  • 2x 80mm PWM Rear Chassis fans
Power Supply
1200W Redundant High-efficiency Power Supplies
Total Output Power
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vac
  • 1200W with Input 200 - 240Vdc (for CCC only)
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 50-60Hz
+12V
  • Max: 83A & Min: 0A (100Vac-127Vac)
  • Max: 100A & Min: 0A (200Vac-240Vac)
Certification
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:

    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:

    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

    5% to 95% (non-condensing)
