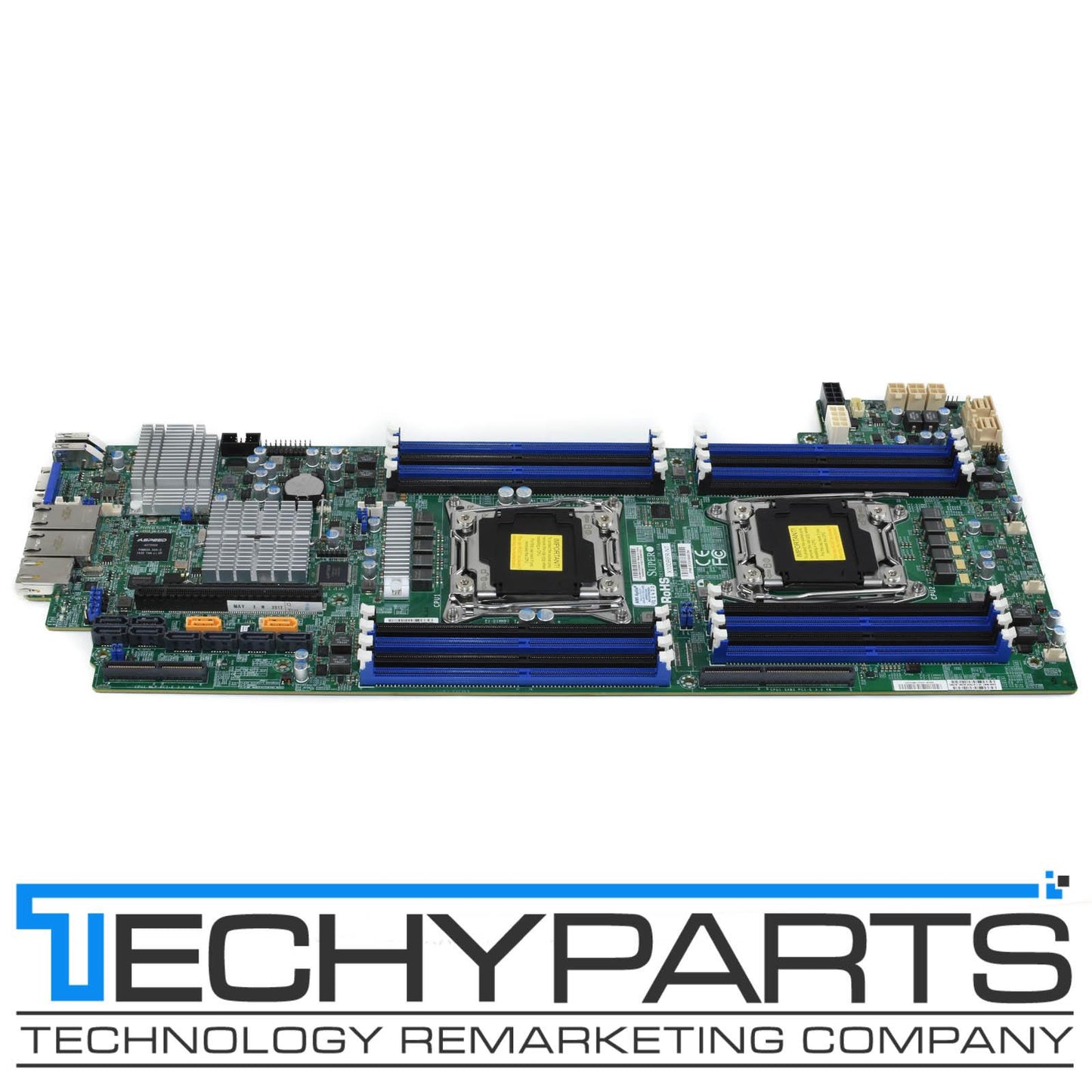

Supermicro X10DRFR-NT Dual LGA2011-3 16x DDR4 SATA3 2x 10GbE Node Motherboard

Supermicro X10DRFR-NT Dual LGA2011-3 16x DDR4 Slot SATA3 2-Port 10GbE X540 NVMe Node Motherboard

Condition: Clean, tested pull - Guaranteed 100% working! Does not come with chassis.

30-Day Warranty!

Key Features:

  1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 / v3 family; UPI up to 9.6GT/s
  2. Intel® C612 chipset
  3. Up to 2TB† ECC 3DS LRDIMM , up to

    DDR4- 2400†MHz; 16 DIMM slots
  4. 1 PCI-E 3.0 x16 (LP)

    1 PCI-E 3.0 x8 (Micro Low Profile)

    1 PCI-E 3.0 x8 connector for AOC
  5. Intel® X540 Dual port 10GBase-T
  6. 10 SATA3 (6Gbps); RAID 0, 1, 5, 10
  7. Integrated IPMI 2.0 and KVM with Dedicated LAN
  8. 3 USB 3.0 (2 rear, 1 Type A)
  9. 2 Internal NVMe ports (PCI-E 3.0 x4)

Manufacturer's Specifications:

Physical Stats
Form Factor
  • Proprietary FatTwin 19.463" x 6.8"
Dimensions
  • 19.463" x 6.8" (49.44cm x 17.27cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
Note
  • † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
  • Up to 1TB 3DS ECC RDIMM; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C612
SATA
  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with Intel® X540 10GBase-T Ethernet Controller

    Single LAN with Virtual Machine Device Queues reduce I/O overhead

    Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output

    Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2400 BMC
Input / Output
SATA
  • 10 SATA3 (6Gbps) port
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x8 connector for SMC add-on cards,
  • 1 PCI-E 3.0 x8 (Micro Low Profile)
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Management
Software
  • Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, Watchdog
System Mangement Software
  • SPM
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, VBAT
FAN
  • 4x 4-pin fan headers (up to 4 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED
  • Suspend static indicator LED, UID/Remote UID
Other Features
  • RoHS
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
