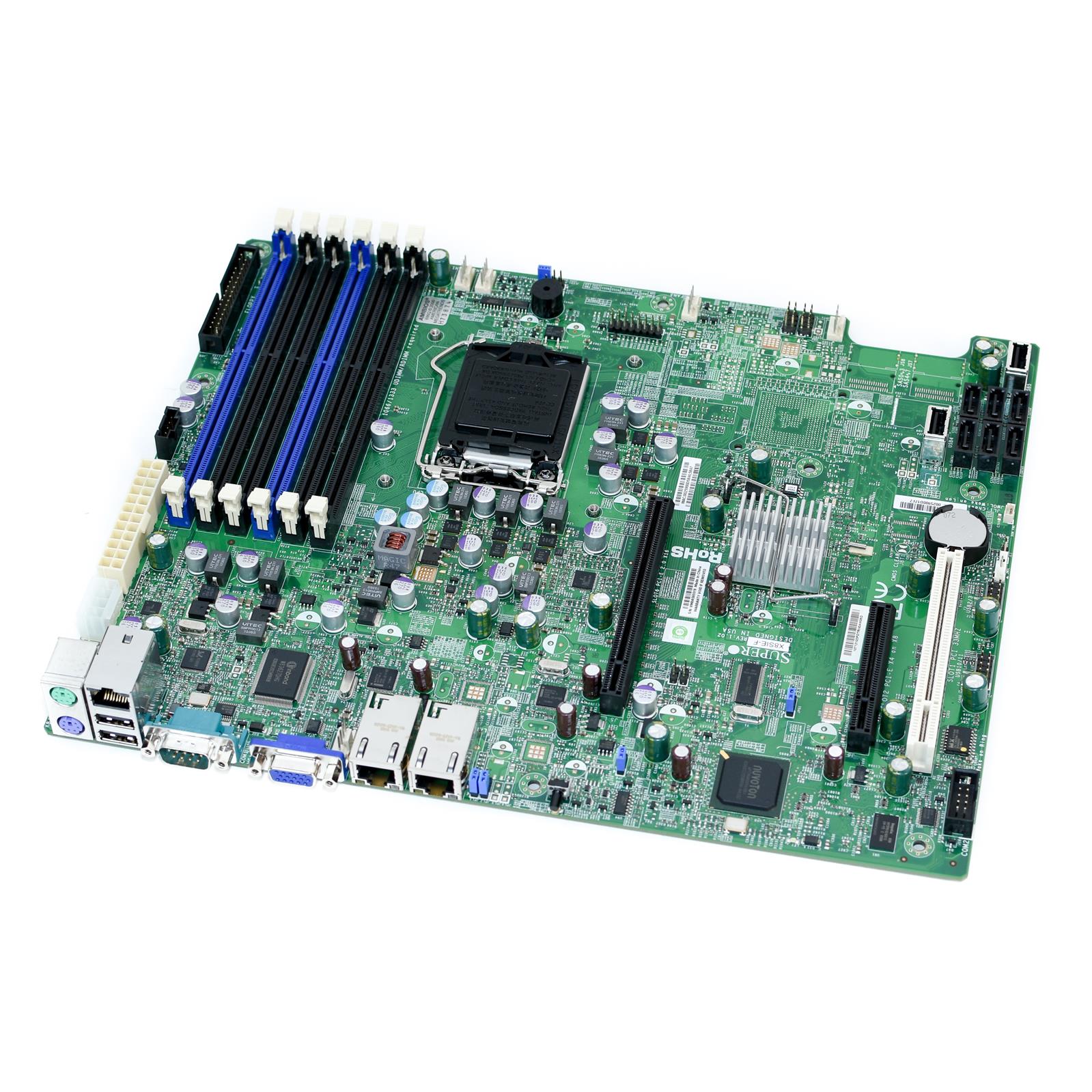

Supermicro X8SIE-F Intel Xeon X3400/L3400 Socket LGA1156 ATX Server Motherboard

Supermicro X8SIE-F Intel Xeon X3400/L3400 Socket LGA1156 ATX Server Motherboard

Supermicro X8SIE-F Intel Xeon X3400/L3400 Socket LGA1156 ATX Server Motherboard

• CPU: LGA 1156 Socket Supports Intel Xeon X3400/L3400 series processors
• Chipset: Intel 3420
• Memory: 6x 240pin DDR3-1333/1066/800MHz DIMMs, Support upto 32GB DDR3 ECC Registered memory, upto 16GB DDR3 ECC Un-Buffered memory
• Slots: 1x PCI-Express x16 Slot(Support PCI Express 2.0); 1x PCI-Express x4(using on x8) Slot; 1x 32-bit PCI Slot
• IDE/SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10
• Ports: 8x USB 2.0 Ports (2 rear, 4 by headers, 2 internal); 2x PS/2 Ports; 2x Serial Ports (1 rear, 1 by header); 1x VGA Port; 2x RJ45 LAN Ports
• LAN: Dual Intel 82574L Gigabit Ethernet Controllers

Item condition: Used. tested. Guaranteed working. Sold as pictured, no other accessories are included.

Please note: Board is a working pull from Supermicro server. The board has Supermicro BKT-0028L heatsink bracket attached with adheseve on the bottom. It is required to be used with Supermicro SNK-P0046P CPU Heatsink.

Please note: This motherboard only works with x8 DRAM such as 1Rx8, 2Rx8, 4Rx8. x4 DRAM modules such as 1Rx4, 2Rx4, 4Rx4 will not work. Also if you are planning on using Core i3, Pentium or Celeron processor you will need to get ECC Unbuffered memory. ECC Registered memory will not work with Core i3, Pentium or Celeron processors. ECC Registered memory will work only with Xeon processors.

30 Days Warranty!
