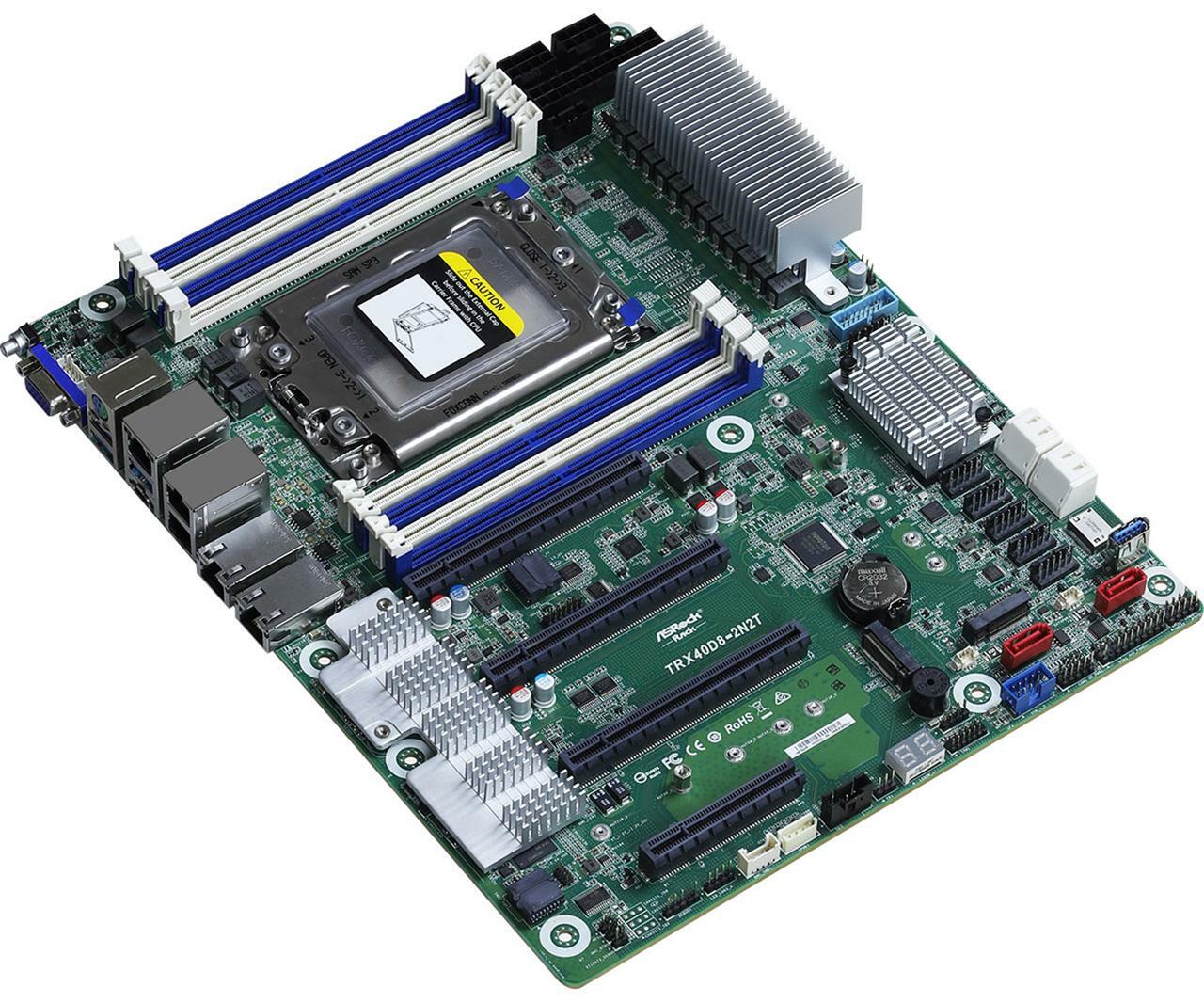

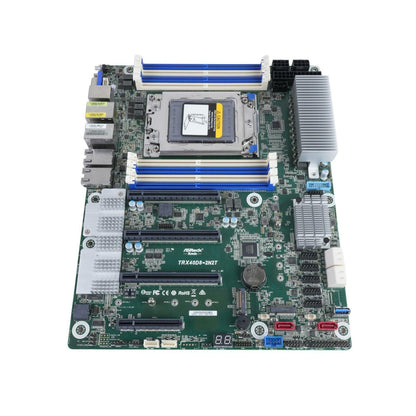

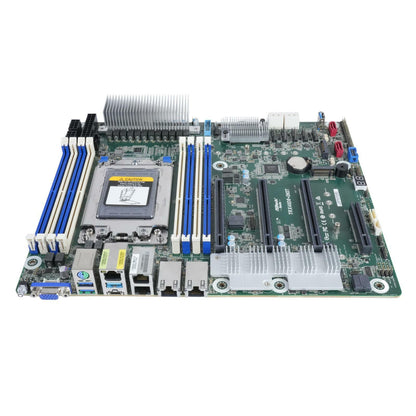

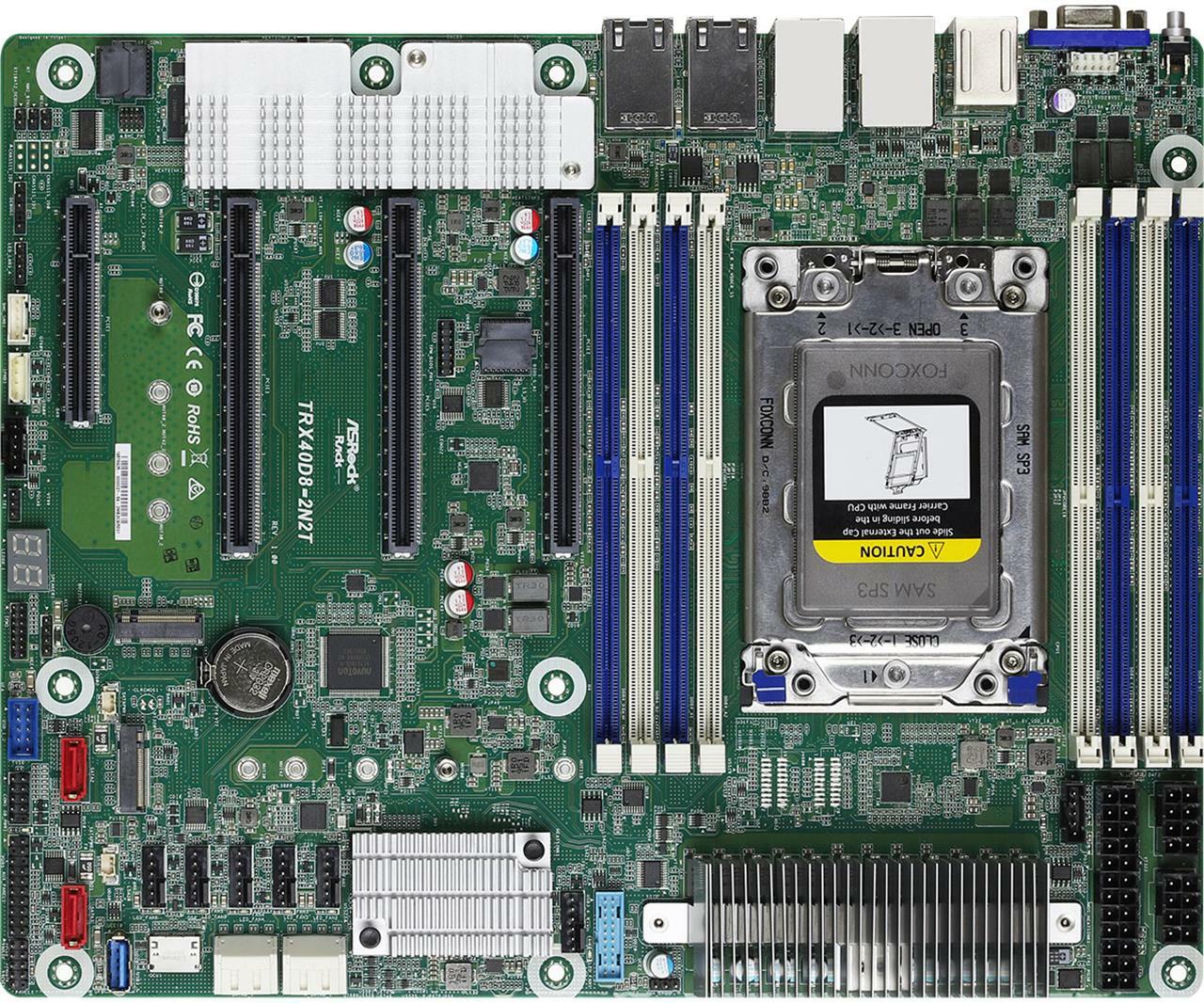

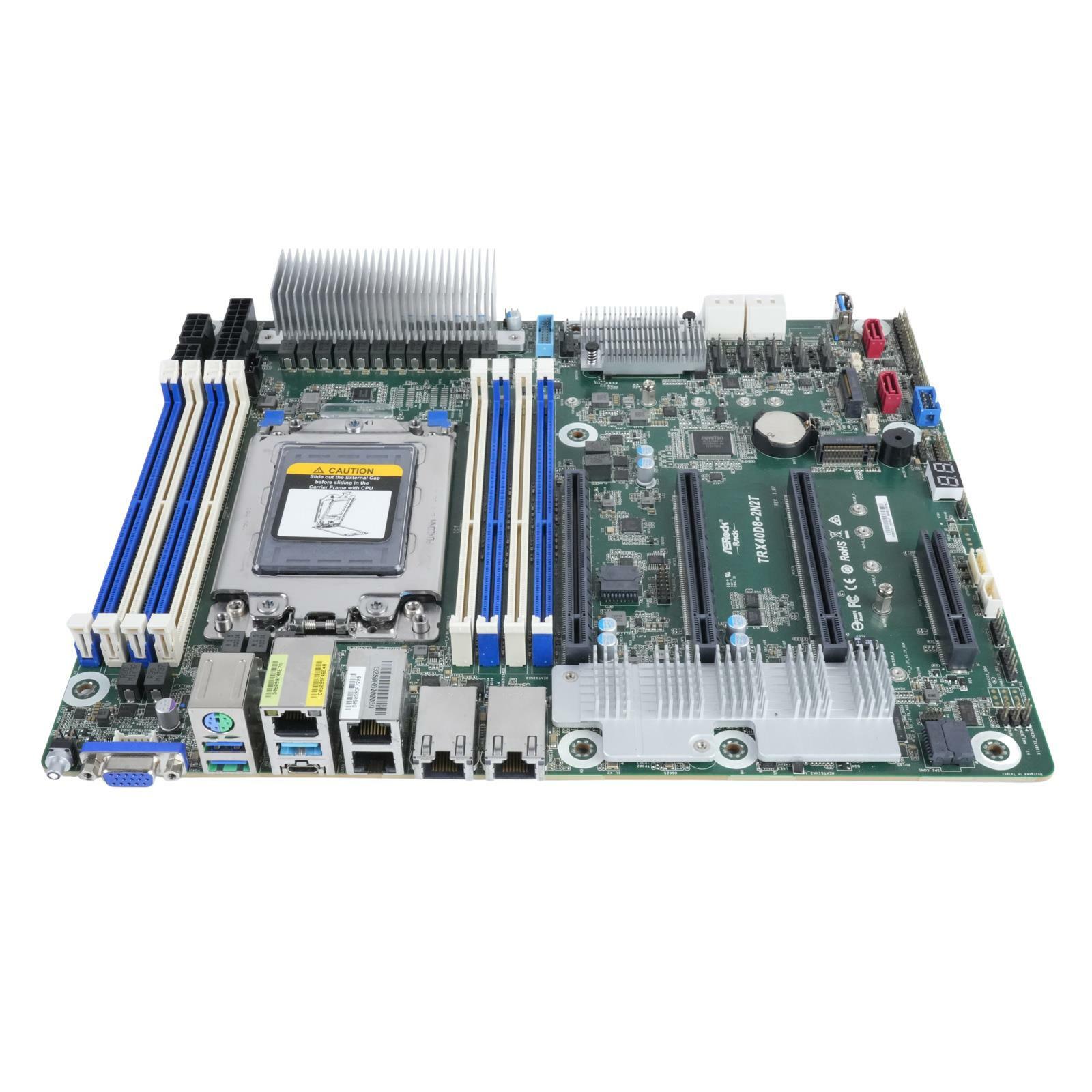

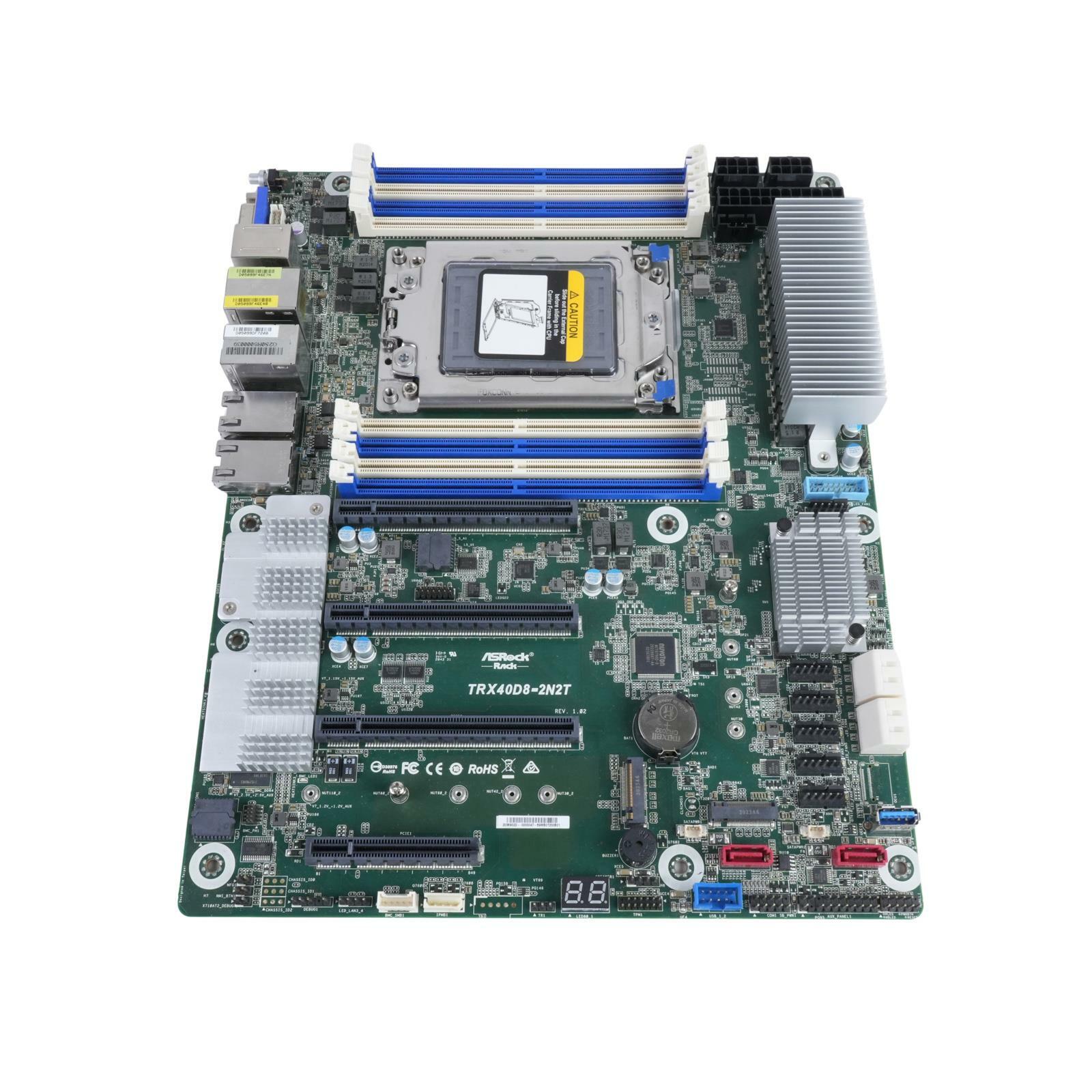

ASRock TRX40D8-2N2T AMD 3rd Gen Ryzen Threadripper sTRX40 ATX Server Motherboard
94399ASRock TRX40D8-2N2T AMD 3rd Gen Ryzen Threadripper sTRX40 ATX Server Motherboard
ASRock Rack TRX40D8-2N2T AMD 3rd Gen Ryzen Threadripper sTRX4 ATX Server Motherboard - High-Performance Beast for AI, Rendering & Servers!

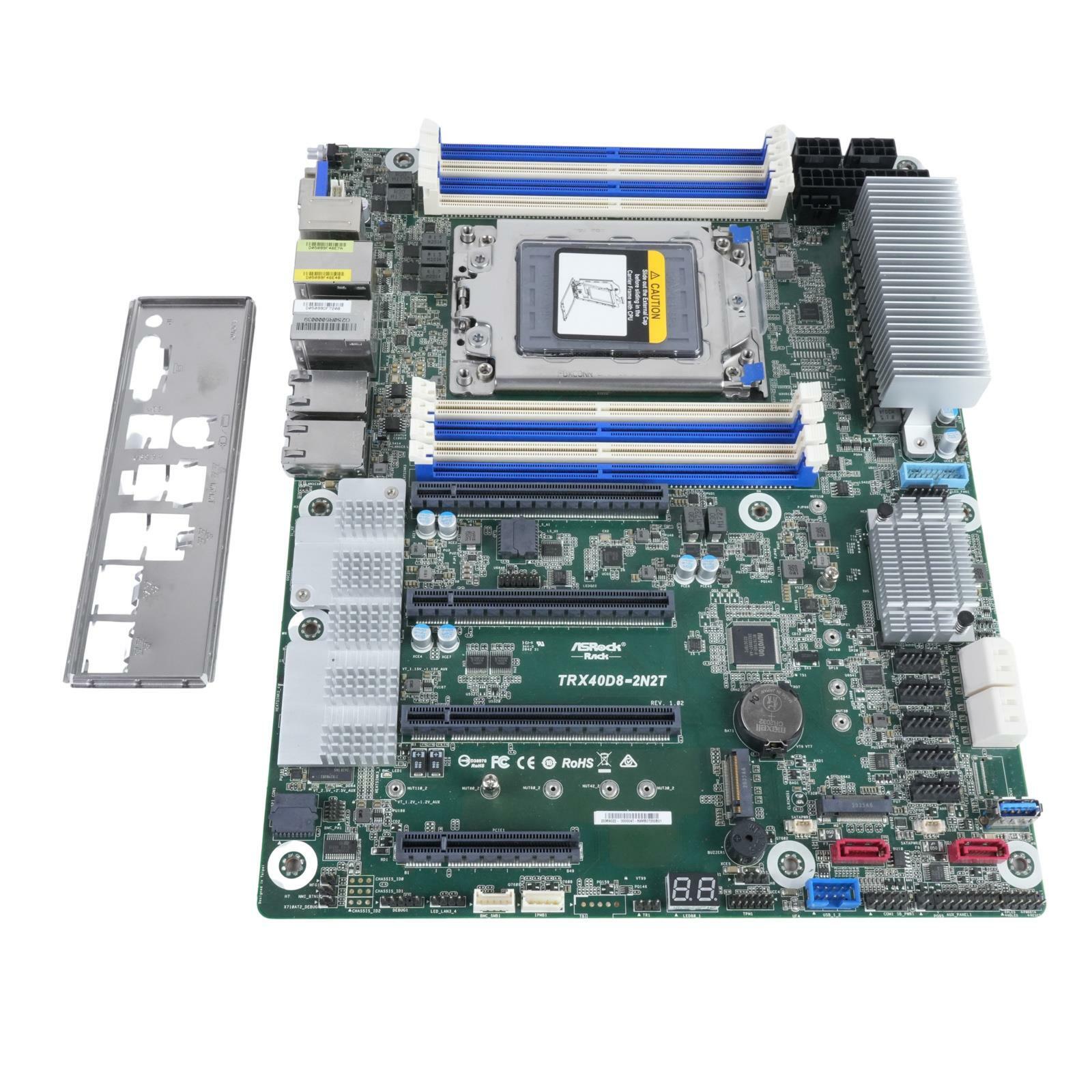

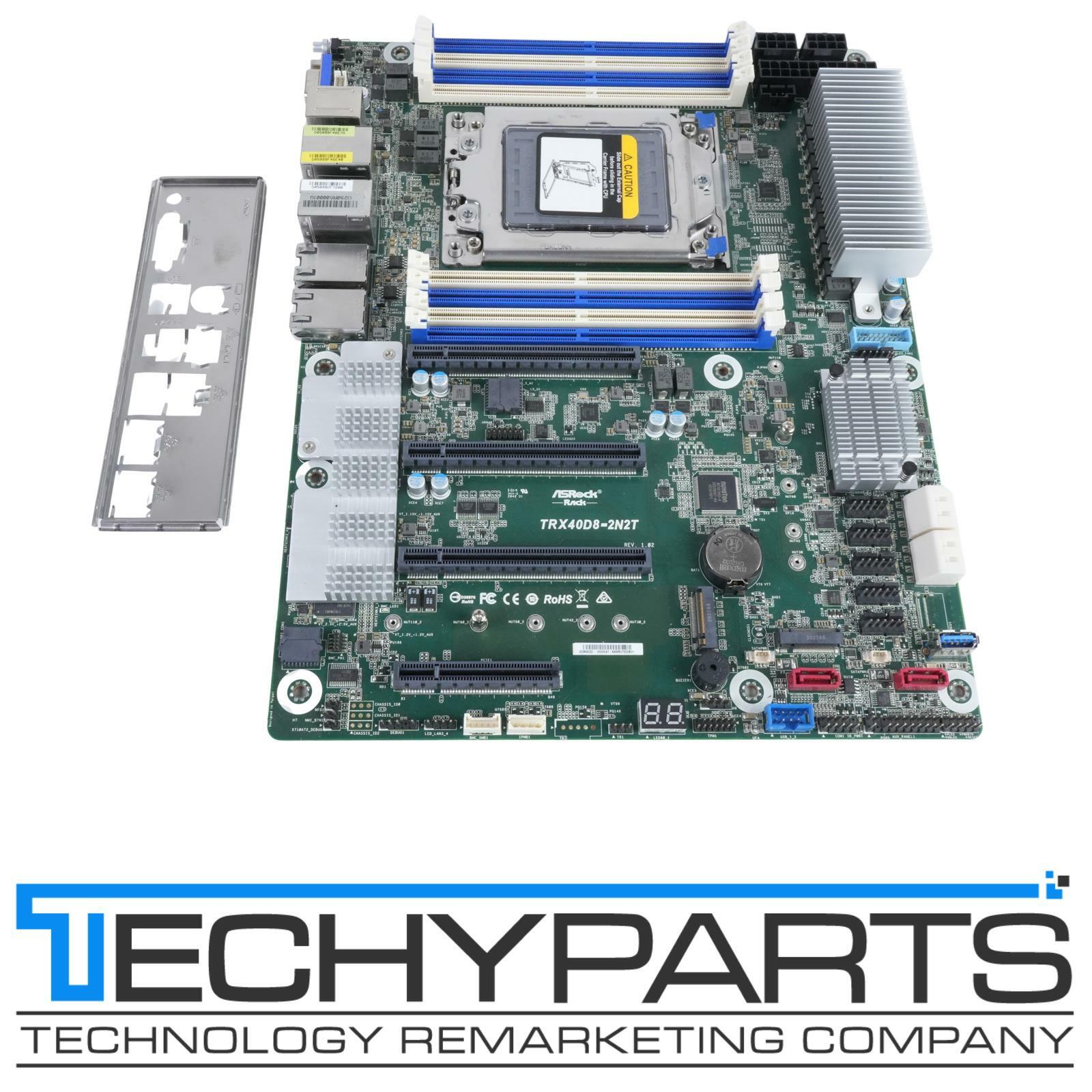

Condition: Clean, tested pull Guaranteed 100% working! IO shield is included. Fresh from enterprise upgrade, ready for your next build!
90-Day Warranty! Buy with confidence!
Manufacturer's description and specifications:
Power Up Your Builds! The ASRock Rack TRX40D8-2N2T is your ultimate ATX server motherboard, engineered on the AMD sTRX40 chipset with sTRX4 socket. It unleashes 3rd Gen AMD Ryzen Threadripper processors (up to 64 cores!) for blistering multi-core powerperfect for AI training, 3D rendering, virtualization, and heavy-duty servers. Dual 10GbE ports mean lightning-fast networking, PCIe 4.0 slots for top-tier GPUs, and IPMI for easy remote management. Compact ATX form fits standard cases, with rock-solid ECC memory support up to 256GB.
| Physical Status | |
| Form Factor | ATX |
| Dimensions | 12'' x 9.6'' (305 mm x 244 mm) |
| Processor System | |
| CPU | Supports AMD Ryzen Threadripper TR4+ Series Processors |
| Socket | AMD Socket TR4 4094P |
| Chipset | AMD TRX40 |
| System Memory | |
| Supported DIMM Quantity | 8 x 288-pin DDR4 DIMM slots Supports up to 256GB DDR4 ECC & non-ECC U-DIMM |
| Supported Type | Dual Channel Memory Technology Supports DDR4 ECC U-DIMM |
| Max. Capacity per DIMM | ECC U-DIMM: 32GB, 16GB, 8GB, 4GB |
| Max. DIMM Frequency | ECC / non-ECC U-DIMM: 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe4.0 x16 SLOT5: PCIe4.0 x16 SLOT3: PCIe4.0 x16 |
| PCIe x 8 | SLOT1: PCIe4.0 x8 |
| M.2 | 2 x M-key (PCIe4.0 x4) support 22110/2280/2260/2242/2230 form factor |
| Other PCIe Expansion Connectors | |
| OCuLink | 1 OCulink (PCIe3.0 x4) [BTO*] *Please contact ASRock Rack for further information |
| SATA/SAS Storage | |
| PCH Built-in Storage | TRX40: 2 x SATA 6Gb/s; 2x SATA DOM, support RAID 0, 1, 10 |
| Additional SATA Controller | Asmedia 1061: 2 x SATA3 6.0 Gb/s (A_SATA0/A_SATA1) |
| Ethernet | |
| Interface | 10Gbps/2.5Gbps |
| Additional GbE Controller | 2 x RJ45 10GbE by Intel X710-AT2 2 x RJ45 2.5GbE by Intel i225 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports PXE LAN3 Supports NCSI |
| Server Management | |
| BMC Controller | ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | NMI |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 16MB |

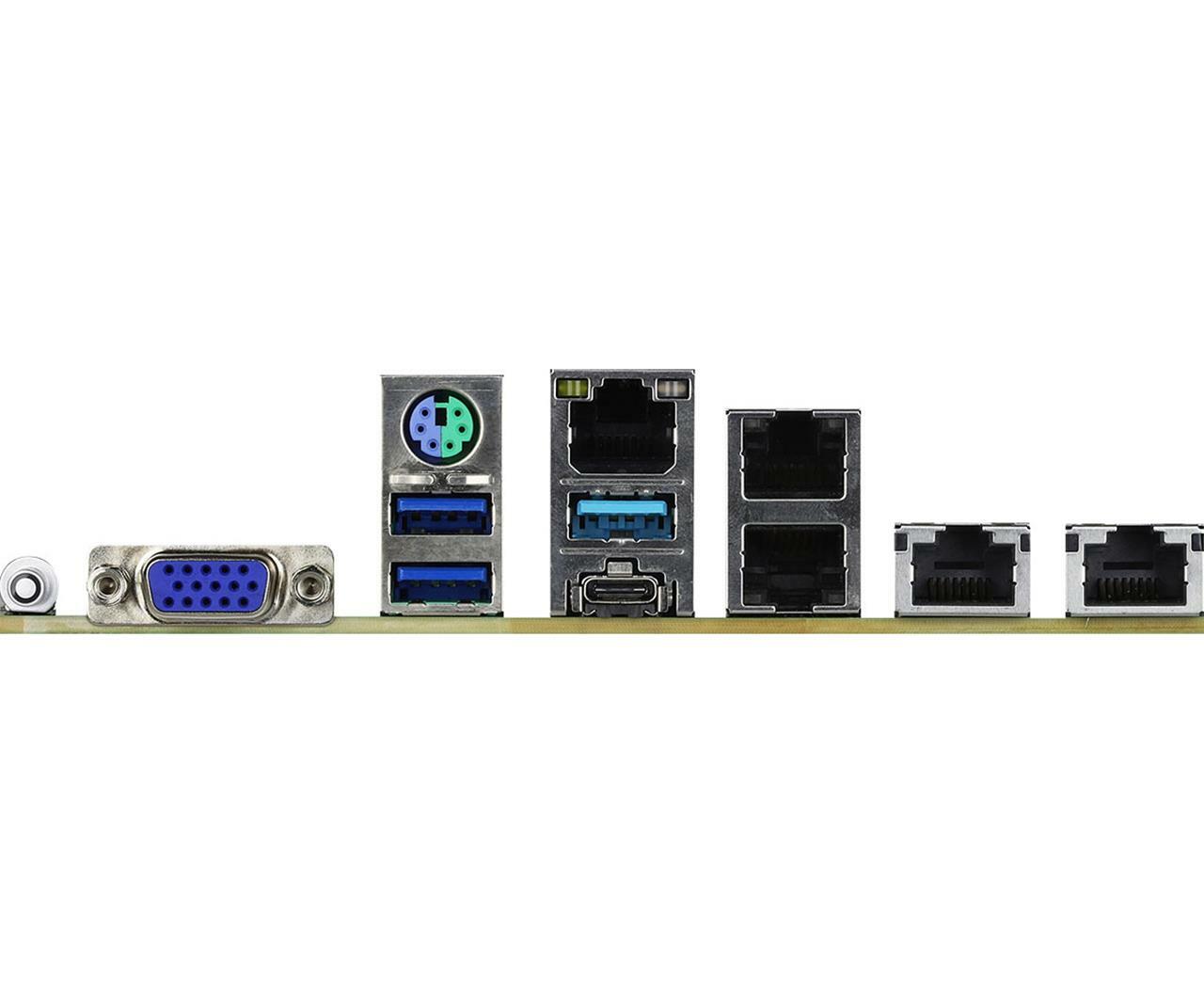

| Rear I/O | |
| UID Button/LED | 1 |
| Video Port | 1 x D-Sub |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| USB 3.2 Gen2 Port | 1 Type-A (USB3.2 Gen2) 1 Type-C (USB3.2 Gen2) |
| RJ45 | 2 x RJ45: 2 x 10GbE by Intel X710-AT2 2 x RJ45: 2 x 2.5GbE by Intel i225 1 x IPMI dedicated LAN LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Others | 1 Mouse |
| Internal Connector/Headers | |
| Power Connector | 1 ATX 24-pin, 2 ATX 12V 8-pin |
| Auxiliary Panel Header | 1 (includes chassis intrusion, location button & LED, system fault LED, and front LAN LED) |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Speaker Header | 1 |
| Buzzer | 1 |
| Fan Header | 6 x 6-pin Fans |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (short pad) |
| USB 3.2 (Gen1) Header | 1 |
| USB 2.0 Header | 1 (support 2 USB2.0 ports) |
| Type A USB 3.2 (Gen1) Port | 1 |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 (Fan Fail LED only) |
| System BIOS | |
| BIOS Type | BIOS Type 32Mb AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8 Support ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU Temperature Sensing System Temperature Sensing Card side Temperature Sensing System TR Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | +3VSB, +5VSB, VCORE, VCORE_NB, VCCM_AB, VCCM_CD, BAT, 3V, 5V, 12V |
| Supported OS | |
| OS | Microsoft Windows: Windows 10 (64 bit) Linux: CentOS 8.1 (64 bit) *The Linux system does not support Raid mode. *Please refer to our website for the latest OS support list. |
| Environment | |
| Temperature | Operation temperature: 10C ~ 35C / Non operation temperature: -40C ~ 70C |
| Humidity | Non operation humidity: 20% ~ 90% (Non condensing) |
