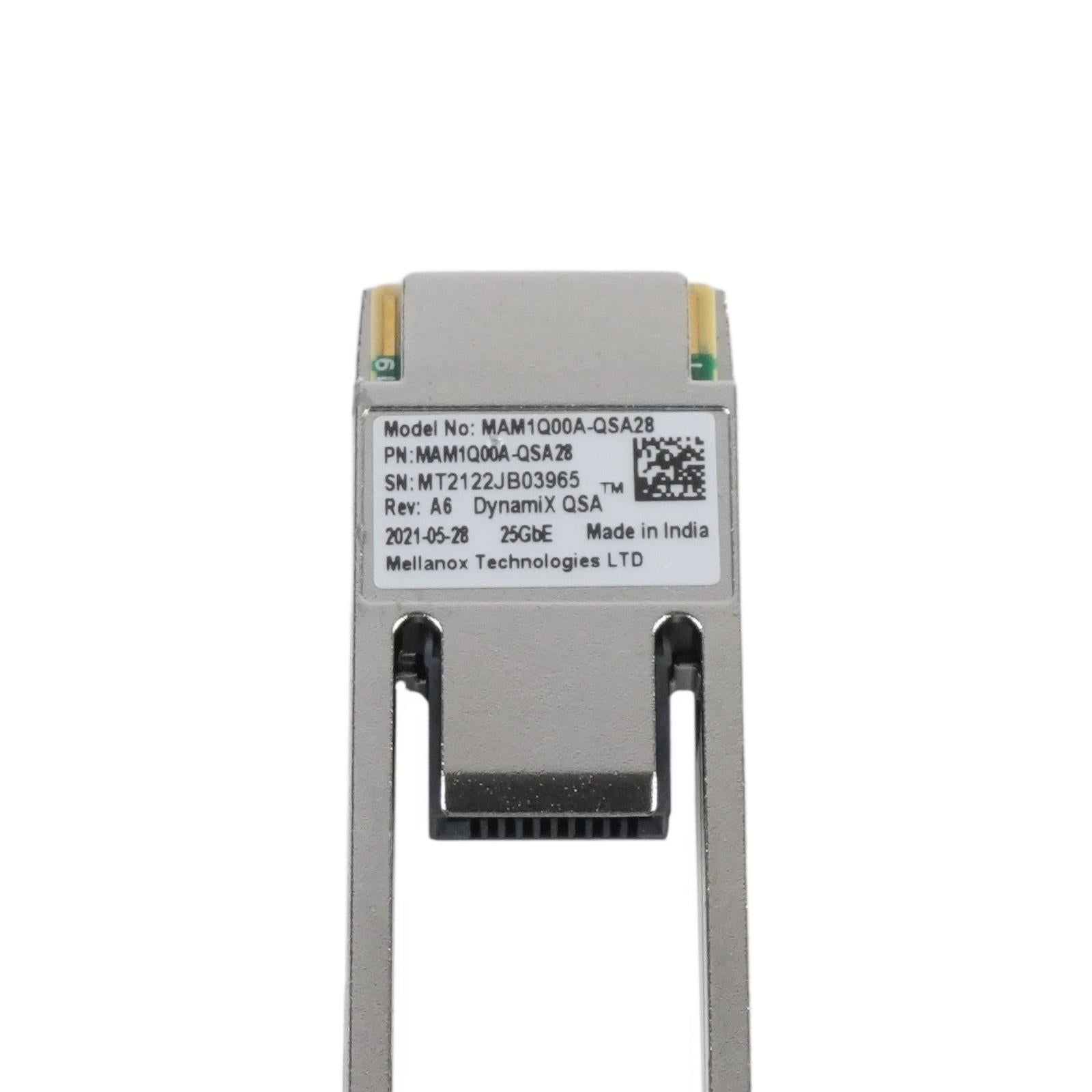

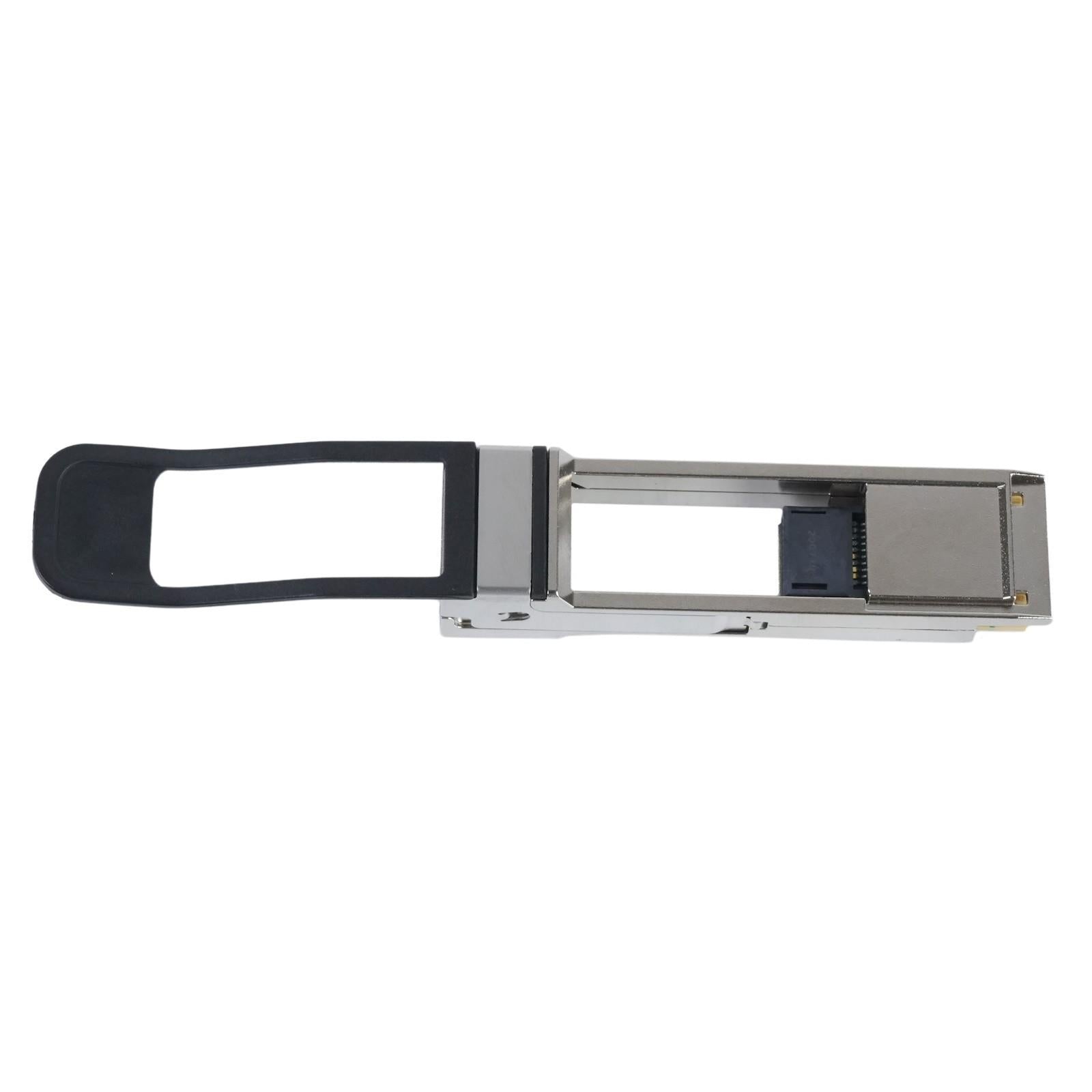

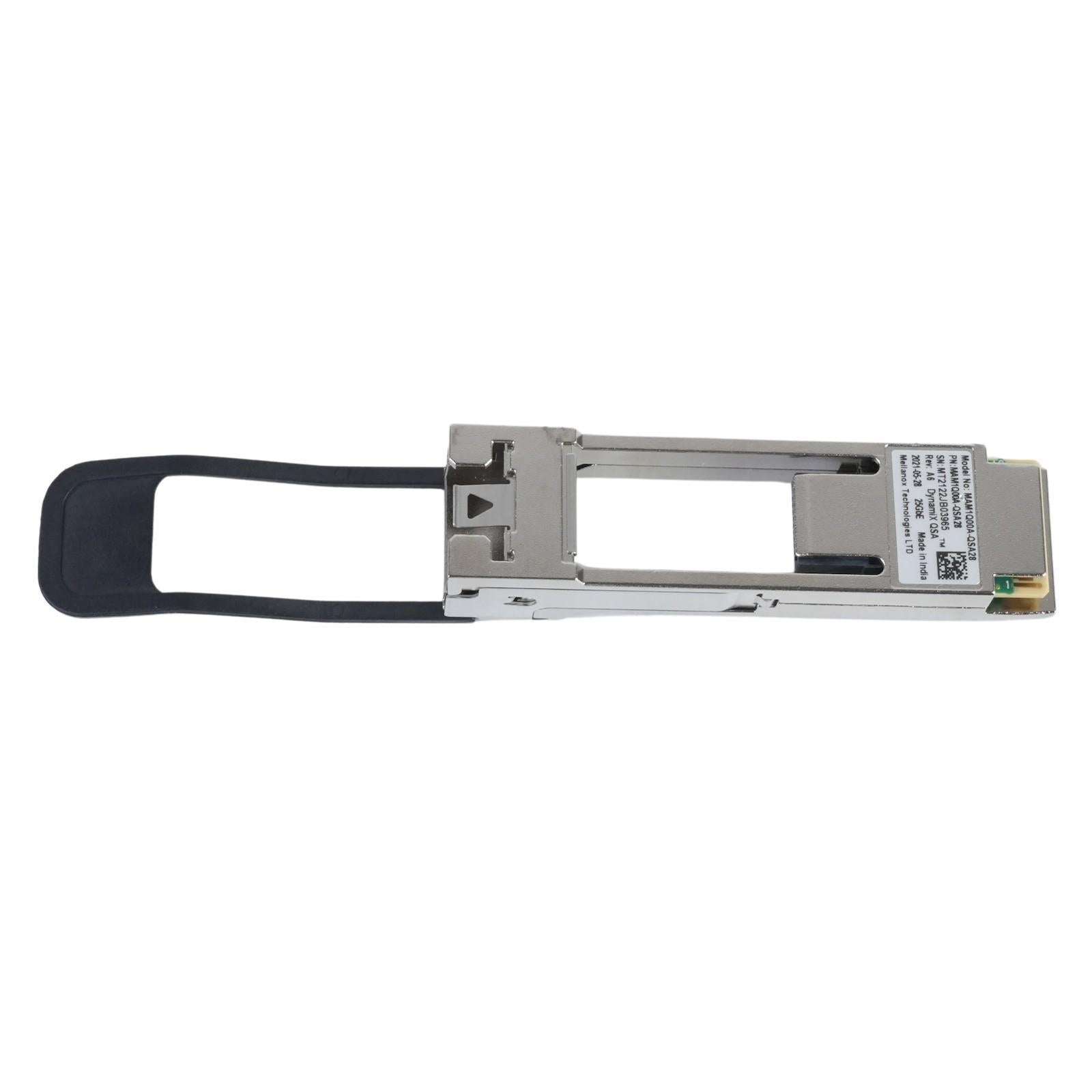

Mellanox MAM1Q00A-QSA28 QSFP28 to SFP28 Network Cable Adapter

No cables or other accessories are included except what is pictured.

30-Day Warranty!

Manufacturer's Description:

Mellanox DynamiX QSATM QSA28, QSFP28 to SFP28 adapter, enables a smooth cost-effective connection
between a single lane transceiver/cable and a quad lane port. The QSA28 provides the option to connect an
SFP28/SFP+/SFP transceiver or cable to a QSFP28 port of an Nx100Gbps switch or network interface card (NIC)

The QSA28 should be installed into a QSFP28 port, and is intended to either connect a switch QSFP28 port
to a NIC SFP28 port, or connect a NIC QSFP28 port to a switch SFP28 port. For example, an SFP28-based
cable can be connected to Mellanoxs 100GbE ConnectX-4 NIC and to the 32 x 100GbE SN2700 Ethernet
switch. The QSA28 conforms to the SFF-8402 for the SFP28 side and to SFF-8665 for the QSFP28 standards
and is thoroughly tested to meet strict quality requirements. The adapter has a QSFP28 form factor with a
receptacle for SFP28 transceiver/AOC/DAC connector. The QSA28 provides a solution for integrating systems
using different vendors equipment, since it is vendor agnostic and provides a direct path to the SFP units
memory. The QSA28 interoperates with all major optical module and direct attach copper cable vendors.

Its design ensures minimum loss on the conversion path between the QSFP28 cage and the SFP28
receptacle. The RF (high speed data) channel of the SFP28 receptacle is connected to lane 1 of the QSFP28
connector. The three remaining RF channels on the QSFP28 connector are not connected. DynamiX QSA28
is qualified for 10GbE SFP+ and 1GbE SFP transceivers meeting the Small Form Factor Pluggable (SFP)
Transceiver Multi-source Agreement (MSA).
