Supermicro 6049P-E1CR24H 4U 24-Bay 3.5" w/X11DPH-T Dual LGA3647 AOC-S3108L-H8IR
88900Supermicro 6049P-E1CR24H 4U 24-Bay 3.5" w/X11DPH-T Dual LGA3647 AOC-S3108L-H8IR
Supermicro 6049P-E1CR24H 4U 24-Bay 3.5" w/X11DPH-T Dual LGA3647 AOC-S3108L-H8IR

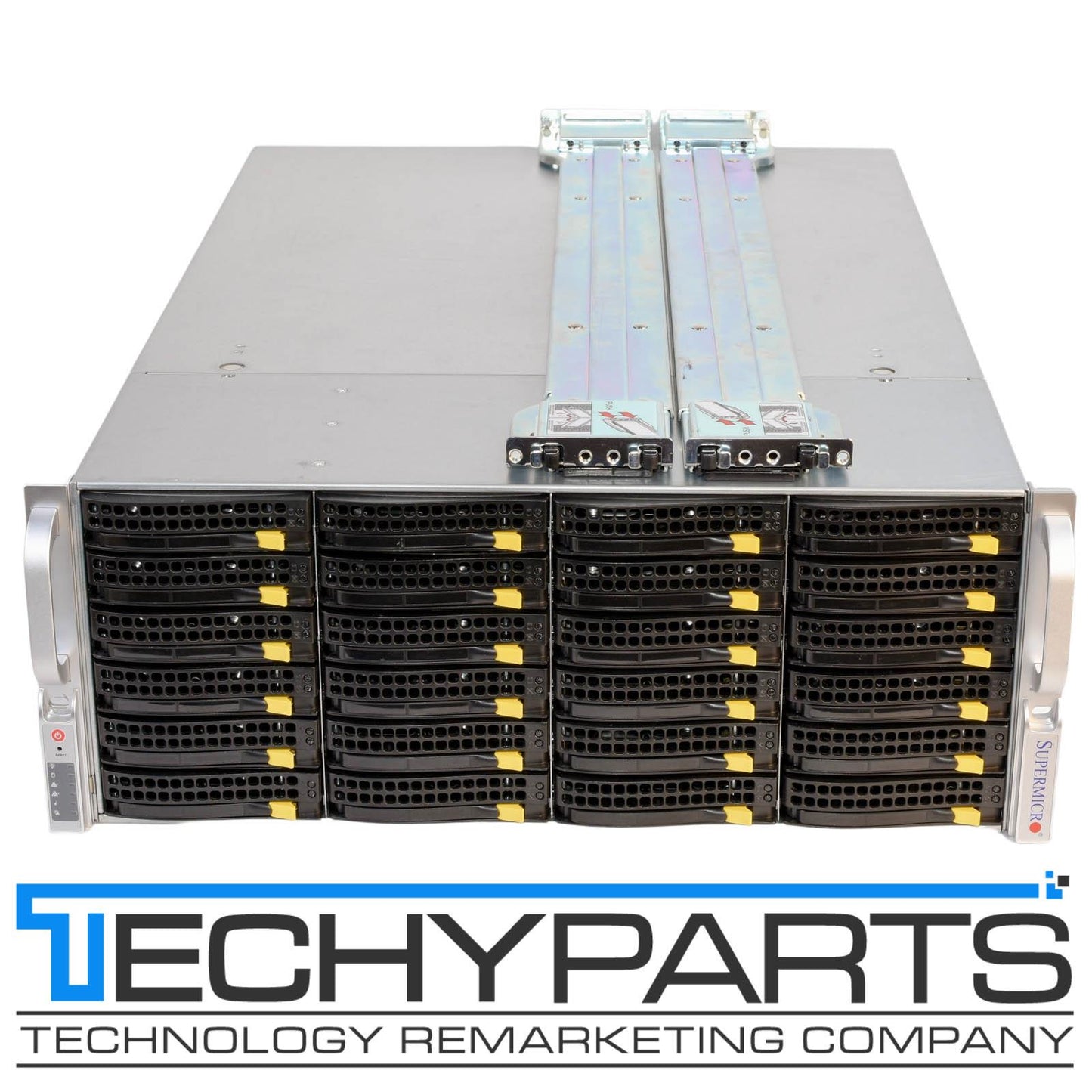

Supermicro 6049P-E1CR24H 4U 24-Bay 3.5" Rackmount Server with X11DPH-T Dual LGA 3647 Motherboard, AOC-S3108L-H8IR RAID Controller and Rackmount Rails
MPN: SSG-6049P-E1CR24H
Barebone unit. Add memory, processors, and hard drives to complete your preferred configuration.
Key Features:
- Corporate Database
- Database Processing & Storage
- Enterprise Server
- HPC, Data Center
- iSCSI SAN
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
- 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
- 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
- 24 Hot-swap 3.5" SAS3/SATA3 drive bays; 2 hot-swap 2.5" SATA3 drive bays (rear), 2 M.2 NVMe, Expander based backplane
- Broadcom 3108 SAS3 AOC
- 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 3 Hot-swap 8cm redundant PWM cooling fans, 2 hot-swap 8cm rear exhaust PWM fans PWM fans
- 1200W Redundant Power Supplies Titanium Level (96%)
Specifications:
SuperStorage 6049P-E1CR24H
SuperMicro 4U Chassis Model#: CSE-846BE1C-R1K23B 4U Chassis with BPN-SAS3-846EL1 24-Port 4U SAS3 Expander Backplane
Super X11DPH-T Dual Socket P (LGA 3647) Server Motherboard supporting 1st and 2nd Gen Intel Xeon Scalable processors
Supermicro AOC-S3108L-H8IR LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 240HDD - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
2x Supermicro PWS-1K23A-1R AC-DC 1200W, Titanium Level, Redundancy Power Supplies
Supermicro MCP-290-00057-0N 3U-4U Rackmount Rails
Condition: Off-lease equipment. Clean and tested by qualified technician.
Each server is configured to order. This process involves rigorous quality control which includes:
- Throughout visual inspection for physical damages
- Verification of all components and their functionality
- Full diagnostic test is performed utilizing manufacturer's diagnostic tools
- BIOS and firmware updates are installed
- All logs are cleared
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding current configuration.
