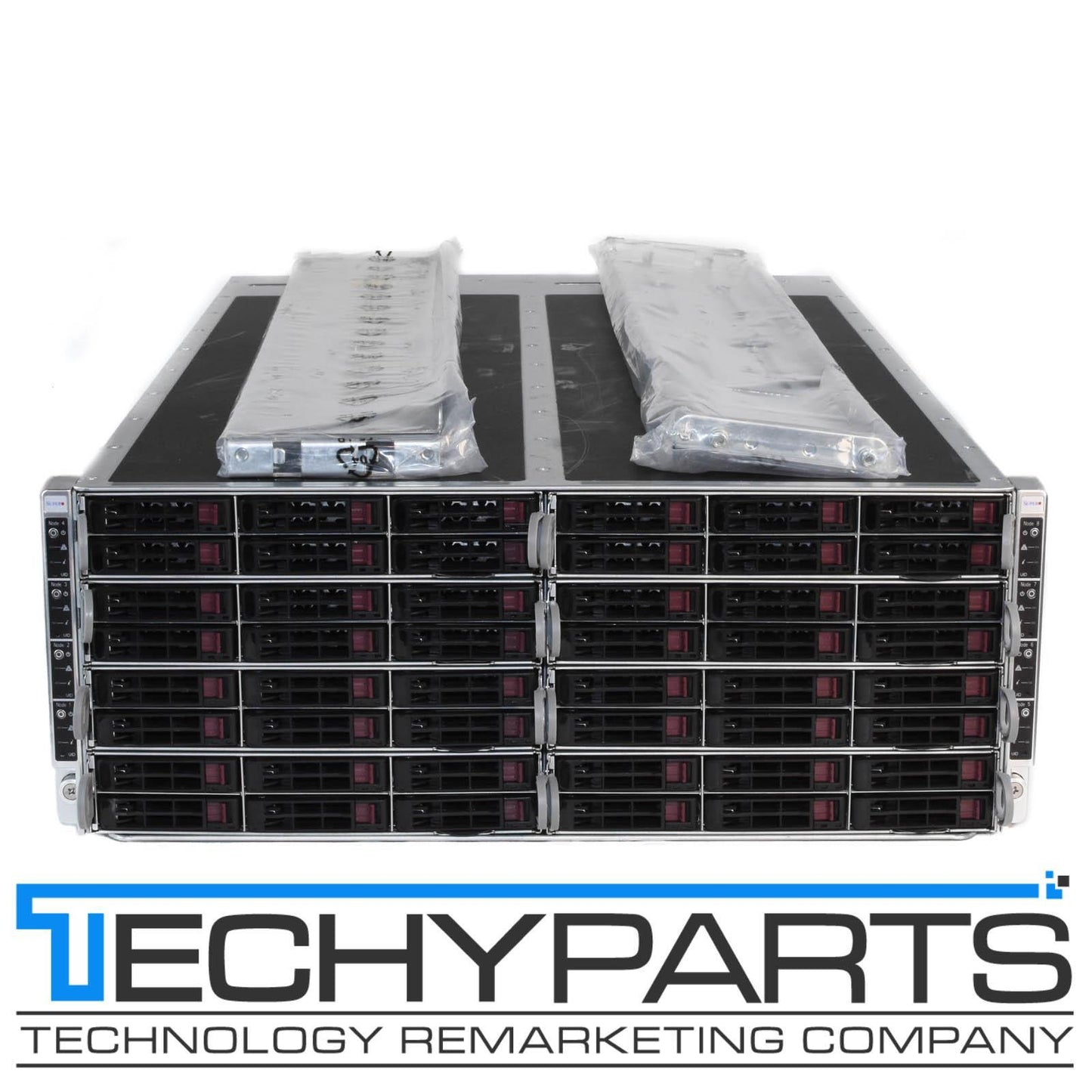

SuperMicro F618R2-RC1PT+ 4U FatTwin SuperServer 8-Node X10DRFR-NT LGA2011-3 CTO
89042SuperMicro F618R2-RC1PT+ 4U FatTwin SuperServer 8-Node X10DRFR-NT LGA2011-3 CTO
SuperMicro F618R2-RC1PT+ 4U FatTwin SuperServer 8-Node X10DRFR-NT LGA2011-3 CTO
SuperMicro F618R2-RC1PT+ 4U FatTwin SuperServer 8-Node X10DRFR-NT LGA2011-3 CTO
Professionally tested - Guaranteed 100% Working. One of the plastic pull-out handles is half torn but still works (please see pictures!)
No memory (RAM), No processors (CPUs), No Hard Drives Installed, Add memory, processors, hard drives, and rackmount rails to complete your preferred configuration.
Item comes with an optional BTR-CV3108-FT1 CacheVault kit for FatTwin Broadcom 3108 card. Includes TFM, cables, brackets, and supercap.
Key Features:
8 Hot-plug System Nodes in 4U
Each node supports:
1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to
DDR4- 2400†MHz ; 16x DIMM slots
3. Expansion slots: 1 PCI-E 3.0 x16 (LP)
1 PCI-E 3.0 x8 (Micro Low Profile)
4. I/O ports: 2 10GBase-T ports, 1 VGA,
2 USB 3.0 ports
5. Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with
dedicated LAN port
6. 6x 2.5" Hot-swap SAS/SATA via Broadcom
3108 or 4x 2.5" Hot-swap SAS/SATA
+ 2x optional NVMe (NVMe Cables are not included!)
7. 3x Heavy duty internal fans
8. 2000W High efficiency (96%)
Redundant PSU; Titanium Level
Specifications:
| Form Factor | 4U Rack Mount |
|---|---|
| Model | SUPERMICRO SYS-F618R2-RC1PT - 48 2.5" Bays |
| Processor(s) | Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) |
| Memory | 16x 288-pin DDR4 DIMM slots Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM |
| # of DIMMs and Capacity |
2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| Hard Drives | 6x 2.5" Hot-swap SAS/SATA via Broadcom 3108 or 4x 2.5" Hot-swap SAS/SATA + 2x optional NVMe |
| RAID Controller | BPN-ADP-8S3108-1UF Avago (LSI) 3108 adapter card for X10 FatTwin Rear I/O motherboards. The adapter card includes a TFM module port and x8 SAS3 ports via x2 Mini-SAS HD connectors, HF, RoHS/REACH with BTR-CV3108-FT1 CacheVault kit for FatTwin Broadcom 3108 card. Includes: TFM, cables, brackets, and supercap |
| RAID Levels | Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50 |
| Power Supply | 4x 2000W PWS-2K04A-1R |
| Optical Drive | NONE |
| Network | Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Remote Access | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Rackmount Rails | INCLUDED |
| Operating System | N/A |
| Power Cord | NOT INCLUDED |
Condition: Off-lease equipment. Clean and tested by a qualified technician.
This is off-lease equipment return. Server has been professionally tested.
Add memory, processors,hard drives, and rackmount rails to complete your preferred configuration.
We carry a lot of parts in stock and can configure this system to order upon request. Please contact us for a quote or if you have questions regarding current configuration.
30-Day Warranty!
Professionally tested - Guaranteed 100% Working. One of the plastic pull-out handles is half torn but still works (please see pictures!)
