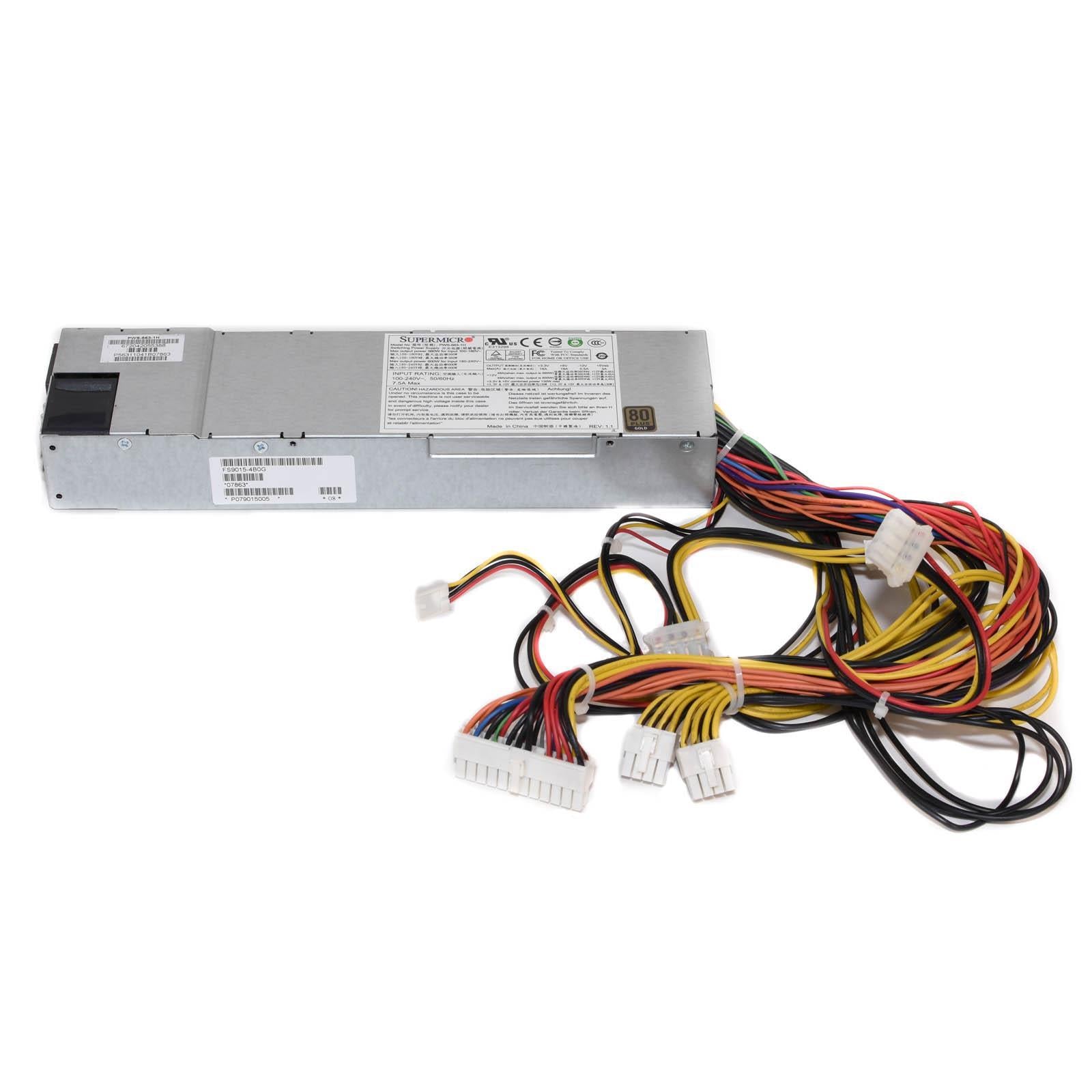

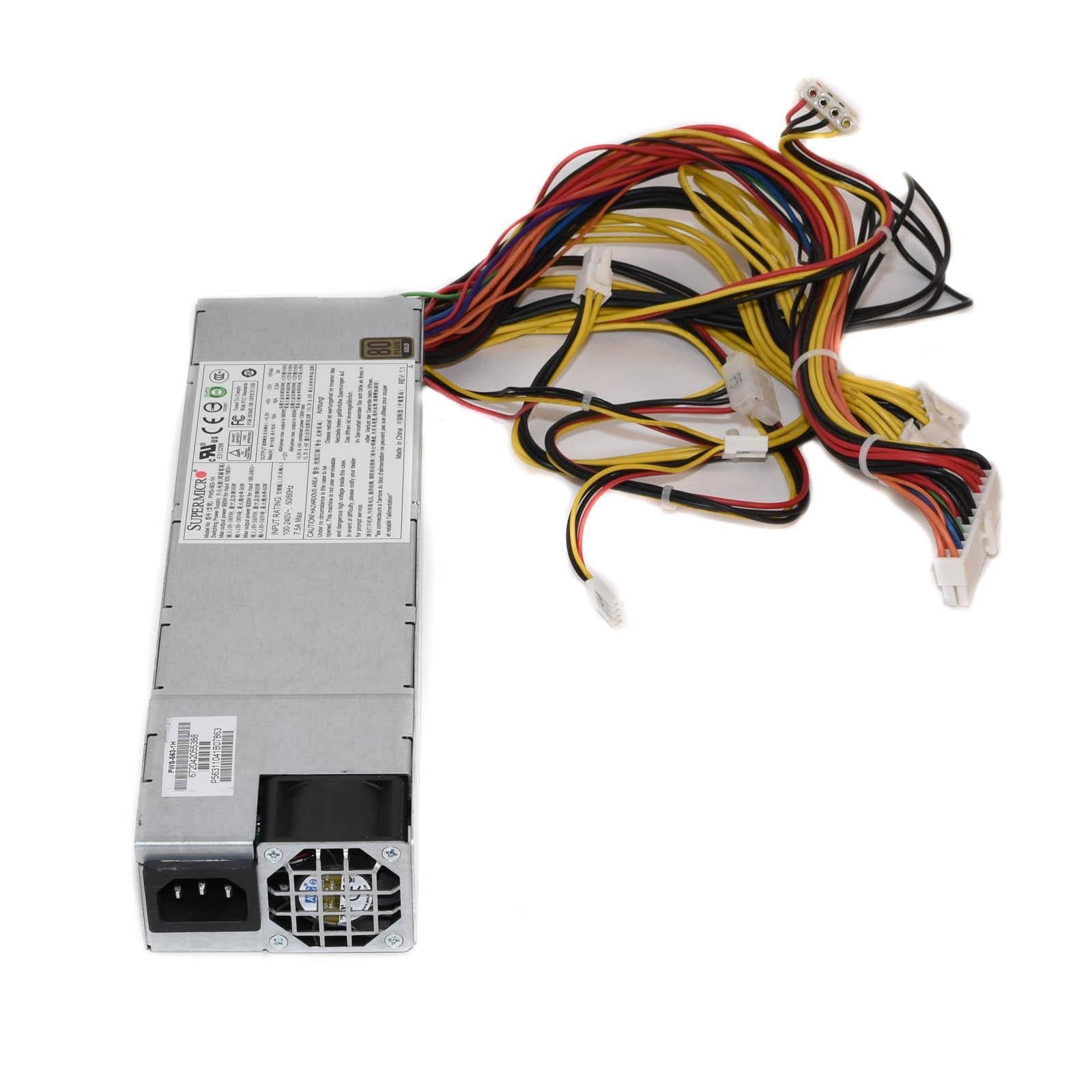

Supermicro PWS-563-1H 560W/600W 1U ATX12V & EPS12V Multi-Output 80+ Gold Power Supply

SUPERMICRO P/N: PWS-563-1H

Max Power Output: 560W-600W depending on input

Input: 100-240V AC

Condition: Clean, tested pull - Guaranteed 100% Working

30-Day Warranty!

This item is priced and packaged as pictured. No other accessories other than those pictured or mentioned in the listing will be included.

Manufacturer's description:

The Supermicro PWS-563-1H is an 80 Plus Gold level power supply capable of supplying 560W low-line and 600W high-line output power at 90% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and is certified by Supermicro.

Cables Included:
1x 24 Pin ATX (Motherboard)
2x 8 Pin 12V (CPU)
1x 4 Pin 12V (CPU)
2x 4 Pin Legacy HDD
2x 4 Pin Floppy/DVD Drive

Specifications:

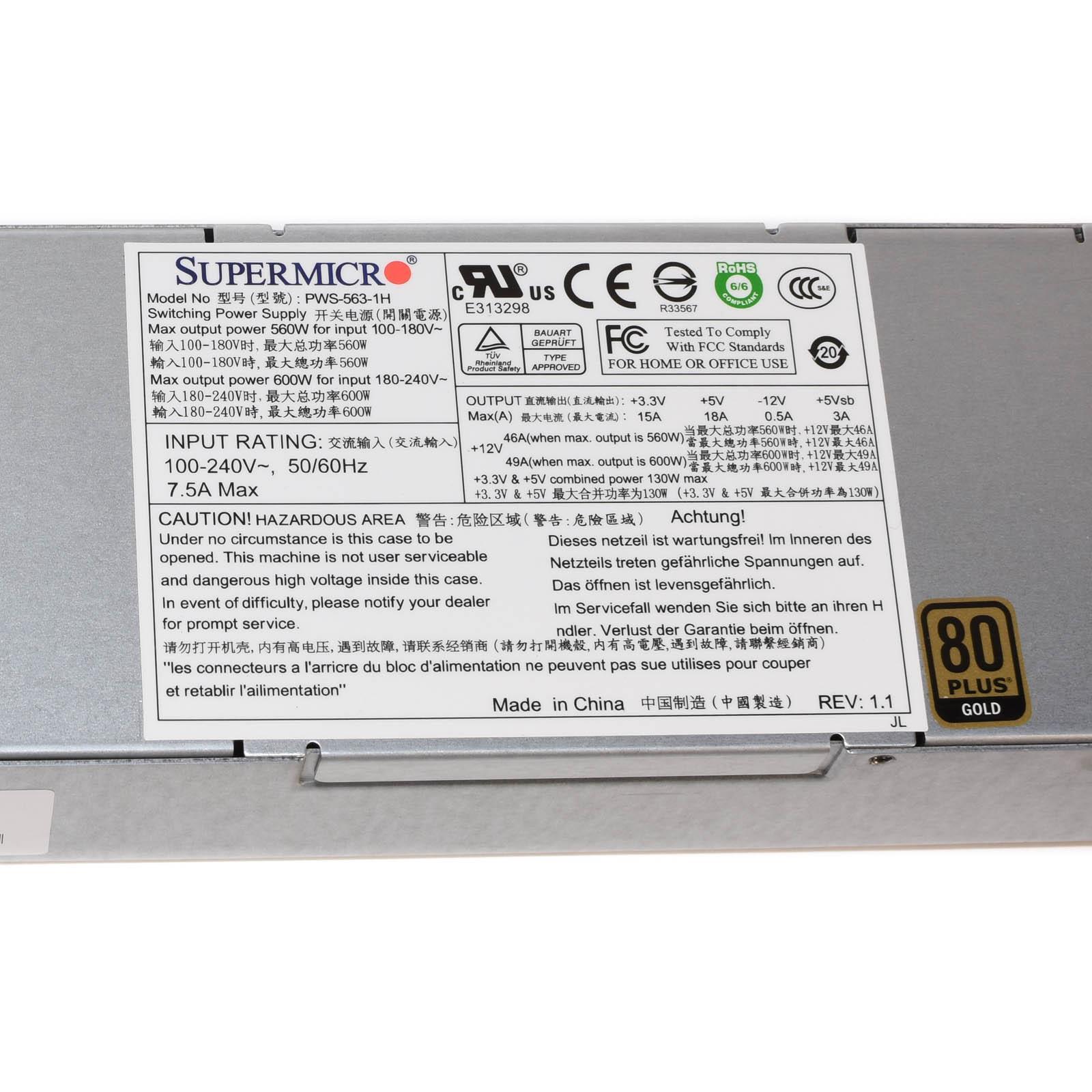

TOTAL POWER OUTPUT: 560W / 600W
TYPE: Single
TYPE OF POWER SUPPLY: Power Supply
FORM FACTOR: 1U
DIMENSION (W X H X L): 76 x 40 x 379.4mm
+5V: 18A
+12V: 46/49A
+3.3V: 15A
5V STANDBY: 3A
INPUT VOLTAGE RANGE: 100-240Vac
INPUT FREQUENCY RANGE: 50-60Hz
INPUT CURRENT RANGE: 7.5A Max
OUTPUT TYPE: 24Pin ATX Cable Output
8PIN / 4PIN (12V) CONNECTOR: Both
PFC:Yes
PMBUS:No
ENERGY EFFICIENCY: 90% Peak
80 PLUS CERTIFICATION: 80 Plus Gold
PRODUCT ENVIRONMENTAL COMPLIANCE: RoHS and REACH compliant
