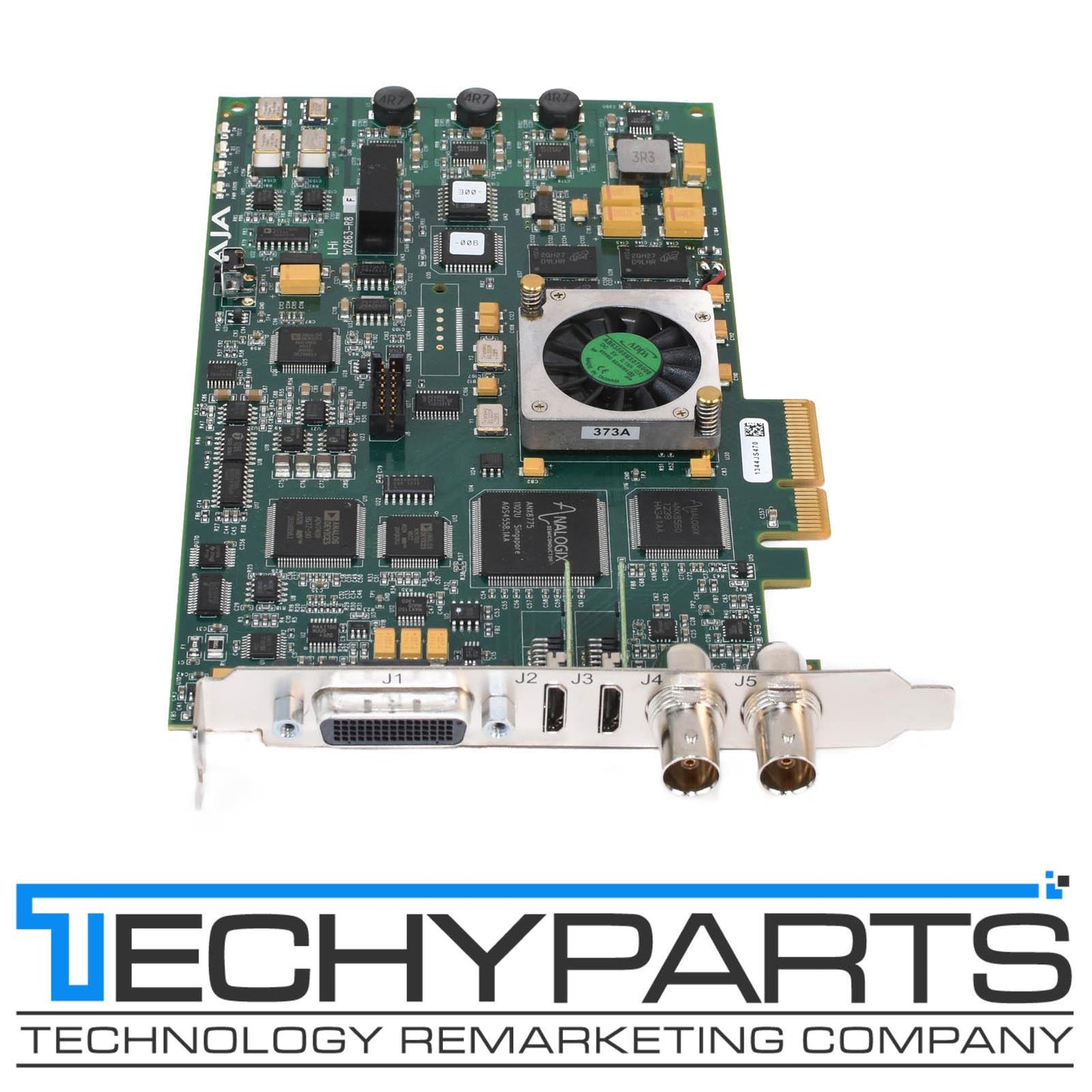

Video Formats

• (2K) 2048 x 1080p 23.98, 24, 25
• (2K) 2048 x 1080PsF 23.98, 24
• (HD) 1080i 50, 59.94, 60
• (HD) 1080PsF 23.98, 24
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94

Software Dependent Formats

• 720p 23.98
• 525i 23.98

Note: These formats are dependent on specific software functionality and are not normal over the wire formats.

Video Input Digital

• 3G/SD/HD SDI, SMPTE-259/292/296/424, 8 or 10-bits
• Single Link 4:2:2 (1x BNC)
• HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p 50/60 (1x mini-HDMI)

Video Input Analog

• Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
• NTSC, NTSCJ, PAL
• Component (3 x BNC)
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit D/A, 8x oversampling
• +/- .2 dB to 5.0 MHz Y Frequency Response
• +/- .2 dB to 1 MHz C Frequency Response
• .5% 2T pulse response
• <1% Diff Phase
• <1% Diff Gain
• <1 ns Y/C delay inequity

Video Output Digital

• 3G/SD/HD SDI, SMPTE-259/292/296/424
• Single Link 4:2:2 or 4:4:4 (1x BNC)
• HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p 50/60 (1x mini-HDMI)

Video Output Analog

• Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
• NTSC, NTSCJ, PAL
• Component (3x BNC)
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit D/A, 8x oversampling
• +/- .2 dB to 5.0 MHz Y frequency response
• +/- .2 dB to 1 MHz C frequency response
• .5% 2T pulse response
• <1% Diff Phase
• <1% Diff Gain
• <1 ns Y/C delay inequity

Audio Input Digital

• 8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 2-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KLHi-Box)

Audio Input Analog

• 2-Channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2x XLR on DB-25 breakout cable or optional KLHi-Box)
• +24 dBu full scale digital
• +/- 0.2 dB 20 Hz to 20 kHz frequency response

Audio Output Digital

• 8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 2-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KLHi-Box)

Audio Output Analog

• 2-Channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on DB-25 breakout cable or optional KLHi-Box)
• +24 dBu full scale digital (0 dBFS)
• +/- 0.2 dB 20 Hz to 20 kHz frequency response
• 2-Channel unbalanced output (via 2x RCA jacks on optional KLHi-Box)

Up-Conversion

• Hardware 10-bit
• Anamorphic: fullscreen
• Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars
• Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
• Zoom Letterbox: results in image zoomed to fill fullscreen
• Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

Down-Conversion

• Hardware 10-bit
• Anamorphic: fullscreen
• Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
• Crop: image is cropped to fit new screen size

Cross-Conversion

• Hardware 10-bit
• 1080i to 720p
• 720p to 1080i
• 720p to 1080PsF

SD to SD Aspect Ratio Conversion

• Letterbox: This transforms SD anamorphic material to a letterboxed image
• H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
• SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
• V Crop: Will transform SD letterbox material to an anamorphic image

Reference Input

• Analog Color Black (1V) or Composite Sync (2 or 4V)
• Looping
• 75 ohm on optional KLHi-Box, terminated on supplied breakout cable

Electrical Interface

• 4-lane PCIe 1.0

Machine Control

• RS-422, Sony 9-pin protocol (via DB-25 breakout cable or optional KLHi-Box)
• 9-pin D-connector pinout is as follows:

Size (w x d x h)

• 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)

Weight

• 0.7 lb (0.4 kg)

Power

• 13W typical, 15W maximum

Envrionment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
