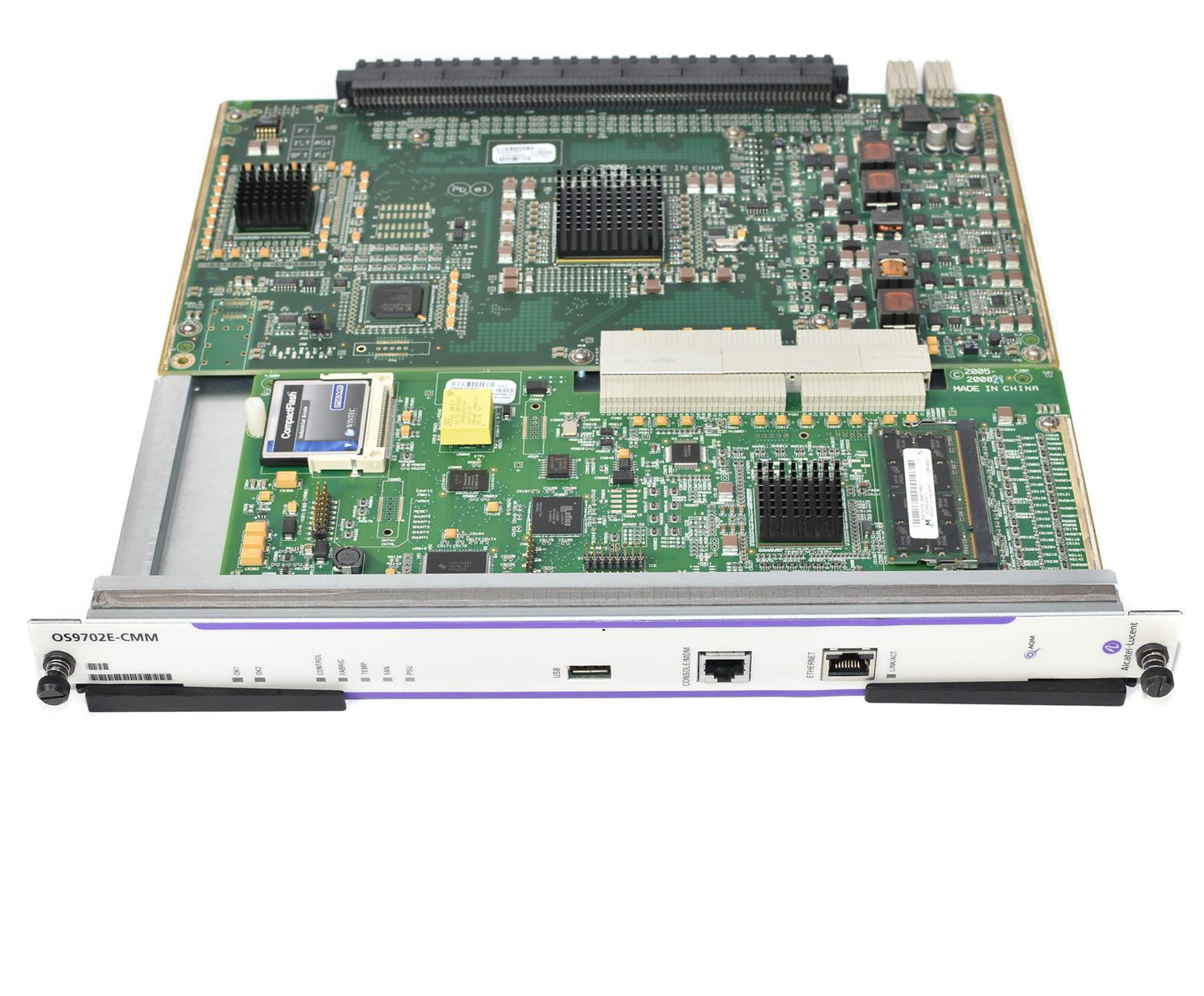

ALCATEL OS9702E-CMM Chassis Management Module 902808-90 for OmniSwitch 9702E
30397ALCATEL OS9702E-CMM Chassis Management Module 902808-90 for OmniSwitch 9702E
ALCATEL OS9702E-CMM Chassis Management Module 902808-90 for OmniSwitch 9702E
ALCATEL OS9702E-CMM Chassis Management Module 902808-90 for OmniSwitch 9702E Chassis
for use only in OmniSwitch 9702E chassis
Alcatel P/N: 902808-90
running Software Version: 6.4.6.380.R01 Service Release, September 28, 2016
Tested, guaranteed 100% working.
30-Day Warranty!
OmniSwitch 9702E Chassis Management Module w/SSL (DES,3DES,RC2,RC4). Includes processor module, enhanced fabric module and its AOS software w/ advanced IP routing SW (IPv4/IPv6), In-Service-SW-Upgrade & advanced security SW (802.1x). Requires E-series modules.
The OS9702E-CMM Chassis Management Module (CMM) is the management unit for OmniSwitch 9702E switches. In its role as the management unit, the CMM provides key system services, including:
- Console, USB, and Ethernet management port connections to the switch
- Software and configuration management, including the Command Line Interface (CLI)
- Web-based management (WebView)
- SNMP management
- Power distribution
- Switch diagnostics
- Important availability features, including redundancy (when used in conjunction with another CMM), software rollback, temperature management, and power management
- The CMM also contains the switch fabric unit for the OmniSwitch 9702E switches. Data passing from one NI module to another passes through the CMM fabric. When two CMMs are installed, both fabrics are normally active.
OS9702E-CMM Technical Specifications Overview
- Flash Memory: 256MB
- SIMM (DRAM) Memory: 1GB
Console port: One RJ45 console/modem port; set to console by default
Ethernet management port (EMP) 10/100/1000Mbps speed: One RJ45 port; provides out-of-band network management and can be used for Telnet sessions or for downloading switch software via FTP
USB port: USB 2.0 supported
CMM Power Consumption: OS9702E-CMM: 27watts
-> show system
System:
Description: Alcatel-Lucent OS9616/OS9716-CFM2 6.4.6.380.R01 Service Release, September 28, 2016.,
Object ID: 1.3.6.1.4.1.6486.800.1.1.2.1.8.1.4,
Up Time: 0 days 0 hours 11 minutes and 14 seconds,
Contact: Alcatel-Lucent, http://alcatel-lucent.com/wps/portal/enterprise,
Name: ,
Location: Unknown,
Services: 72,
Date & Time: FRI DEC 02 2016 19:48:15 (EST)
Flash Space:
Primary CMM:
Available (bytes): 218677248,
Comments : None
Secondary CMM:
Available (bytes): 175996928,
Comments : None
-> show hardware INFO
CPU Type : Motorola MPC8541 ADS,
Flash Manufacturer : CF 256MB,
Flash size : 262668288 bytes (250 MB),
RAM Manufacturer : 0x2c000040 - Micron,
RAM size : 1073741824 bytes (1024 MB),
NVRAM Battery OK ? : YES,
CPLD rev : 0x6,
FPGA major rev : 0x2,
FPGA minor rev : 0x19,
uboot Version : 6.4.3.479.R01,
uboot-miniboot Version : 6.4.3.479.R01,
Backplane type : Enhanced mode,
