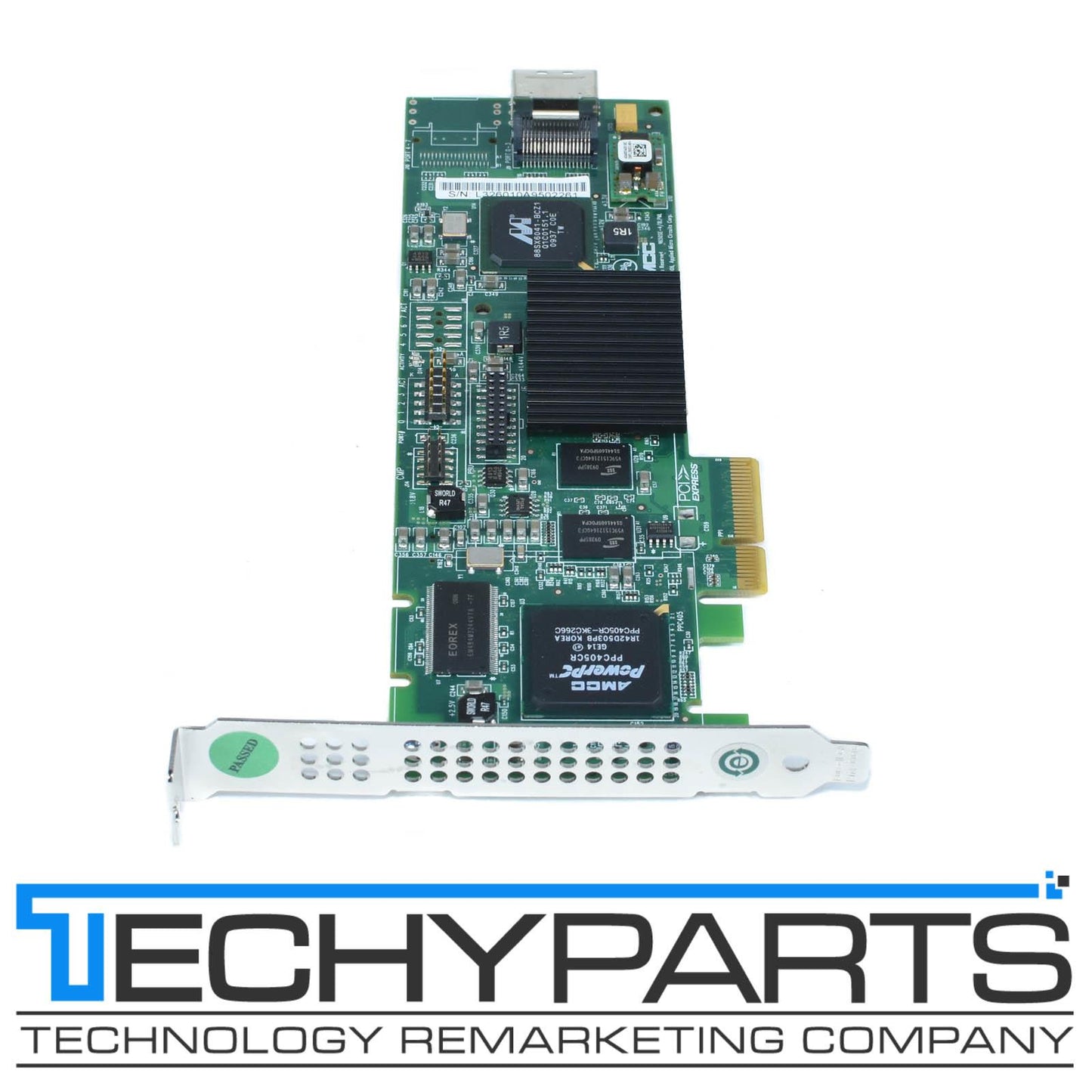

AMCC 3ware 9650SE-8LPML PCI Express 8-port SATA II RAID Controller Card

AMCC 3ware 9650SE-8LPML PCI Express 8-port SATA II RAID Controller Card

3WARE P/N: 9650SE-8LPML

Mounting bracket: Full height

Tested, guaranteed 100% working pull.

No software, cables or other accessories included. Comes with full height mounting bracket only.

30-Day Warranty!

Supporting up to 8 SATA II and SATA I hard drives, the 3ware 9650SE-8LPML PCI Express controller card is perfect for entry-level storage servers. Supporting RAID 0, 1, 5, 6, 10, 50, single disk, and JBOD, the 3ware 9650SE can not only backup data but can also significantly extend the storage capacity of a system.

Featuring a PCI-Express x4 compatibility it’s one of the few PCIe controller cards available. Providing S.M.A.R.T drive monitoring for status and reliability, hot swap and hot spare drive storage, the 3ware 9650SE is perfect for small to medium size businesses.

Another essential feature in IT environments is the ability for the 3ware 9650SE card to automatically rebuild the RAID array if a drive fails. Last but not least, the 9650SE supports a variety of operating systems including the following: Windows (XP, 2000, Server 2003), Windows x64bit, Linux and FreeBSD.

Model

Brand: 3ware

Model: 9650SE-8LPML

Details

Type: SATA II (3.0Gb/s)

Interface: PCI Express x4

Cache Memory: 256 MB DDR2 533

RAID: RAID Levels 0, 1, 5, 6, 10, 50, Single Disk, JBOD

Operating Systems Supported: Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD

Dimensions: 7.3" x 2.7"

Features

  • Port Count: 8
  • Connector Type: Multi-lane
  • BBU Support: Yes
  • 8th-generation StorSwitch non-blocking switched architecture
  • On-board I/O RISC processor and RAID offload provides true hardware RAID
  • SCSI device driver model to take advantage of the benefits of SCSI using inexpensive Serial ATA drives
  • Bootable array support for greater fault tolerance
  • Variable stripe size for performance tuning by application
  • 64-bit LBA support
  • ATA pass-through mode support
  • 32 pooled DMA channels
  • SNMP support
  • SMTP support for email/pager notification
