APC AP7866A 208V 3PH 16.2KW IEC309 60A 3P+PE 15-Outlet 12x C19 3x C13 Zero-U PDU
86496APC AP7866A 208V 3PH 16.2KW IEC309 60A 3P+PE 15-Outlet 12x C19 3x C13 Zero-U PDU
APC AP7866A 208V 3PH 16.2KW IEC309 60A 3P+PE 15-Outlet 12x C19 3x C13 Zero-U PDU

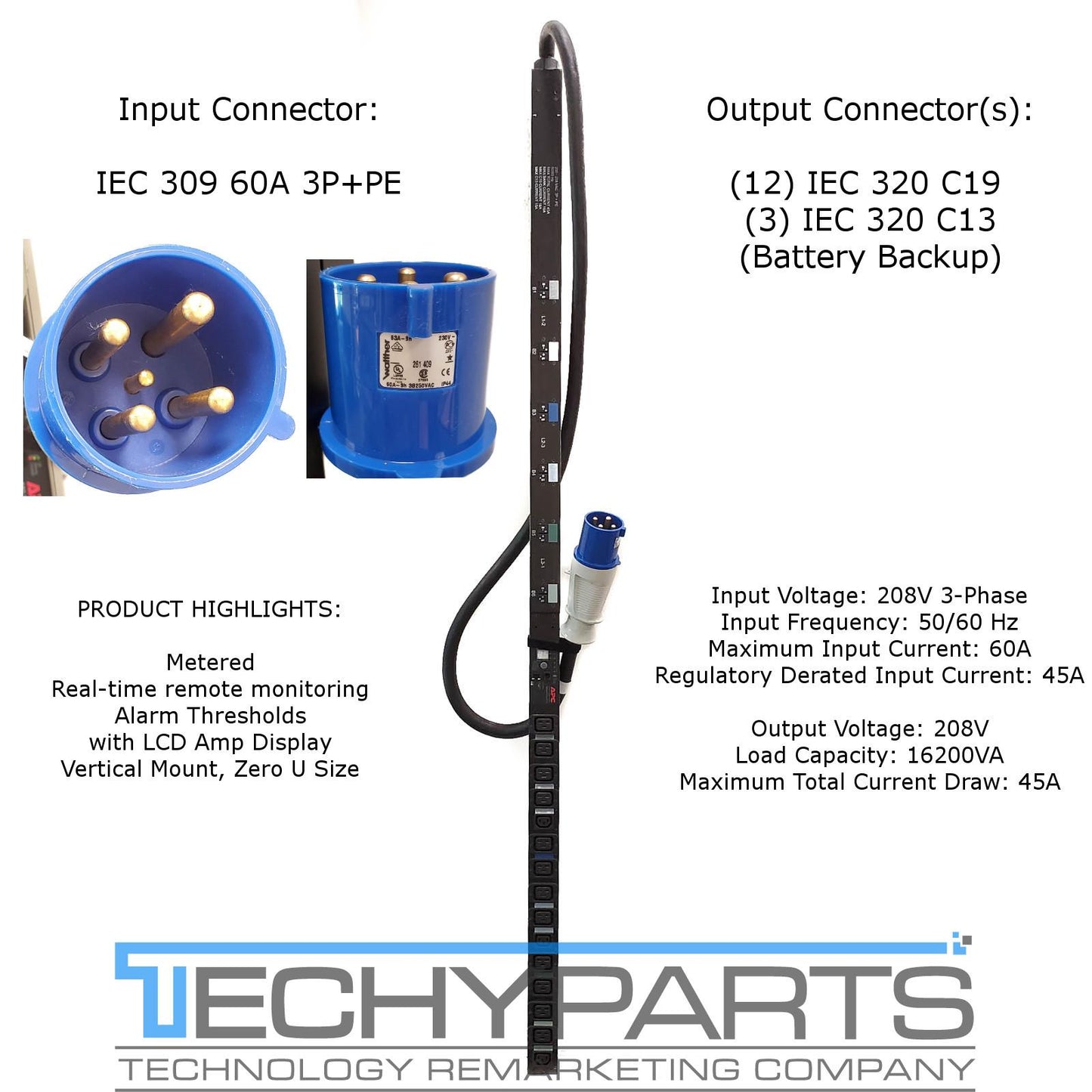

APC AP7866A 208V 3PH 16.2KW IEC309 60A 3P+PE 15-Outlet (12)C19 & (3)C13 Vertical Mount Zero-U Metered PDU
APC P/N: AP7866A
Condition: Tested pull - Guaranteed 100% Working. We have updated these with latest firmware available from APC and reset them to factory default settings.
Default login: apc
Default password: apc
PDUs have mounting pegs/buttons attached to them. No other accessories included. Console cable is not included.
Manufacturer's description and specifications:
Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
Output
Nominal Output Voltage: 208V
Always on Outlets: 15
Overload Protection: Yes
Maximum Total Current Draw: 45
Output Connections: (12) IEC 320 C19 (Battery Backup), (3) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage: 208V 3PH
Input frequency: 50/60 Hz
Input Connections: IEC 309 60A 3P+PE
Cord Length: 6ft (1.83meters)
Number of Power Cords: 1
Input Power: 16200.0Watts
Load Capacity: 16200VA
Maximum Input Current: 60A
Maximum Line Current: 45A
Regulatory Derated Input Current (North America): 45A
Physical
Maximum Height: 70.0inches (1778MM, 177.8CM)
Maximum Width: 2.19inches (56MM, 5.6CM)
Maximum Depth: 2.87inches (73MM, 7.3CM)
Net Weight: 20.45lbs. (9.3KG)
Shipping weight: 25.15lbs. (11.43KG)
Shipping Height: 83.5inches (2121MM, 212.1CM)
Shipping Width: 6.0inches (152MM, 15.2CM)
Shipping Depth: 4.75inches (121MM, 12.1CM)
Color: Black
Environmental
Operating Temperature: 23 - 140 °F (-5 - 60 °C)
Operating Relative Humidity: 5 - 95 %
Operating Elevation: 0-10000ft (0-3000meters)
Storage Temperature: -20 - 65 °C
Storage Relative Humidity: 5 - 95 %
Storage Elevation: 0-50000ft (0-15000meters)
Conformance
Approvals: cUL Listed, CSA C22.2 No. 60950-1-03, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950-1, UL Listed, VCCI Class A
