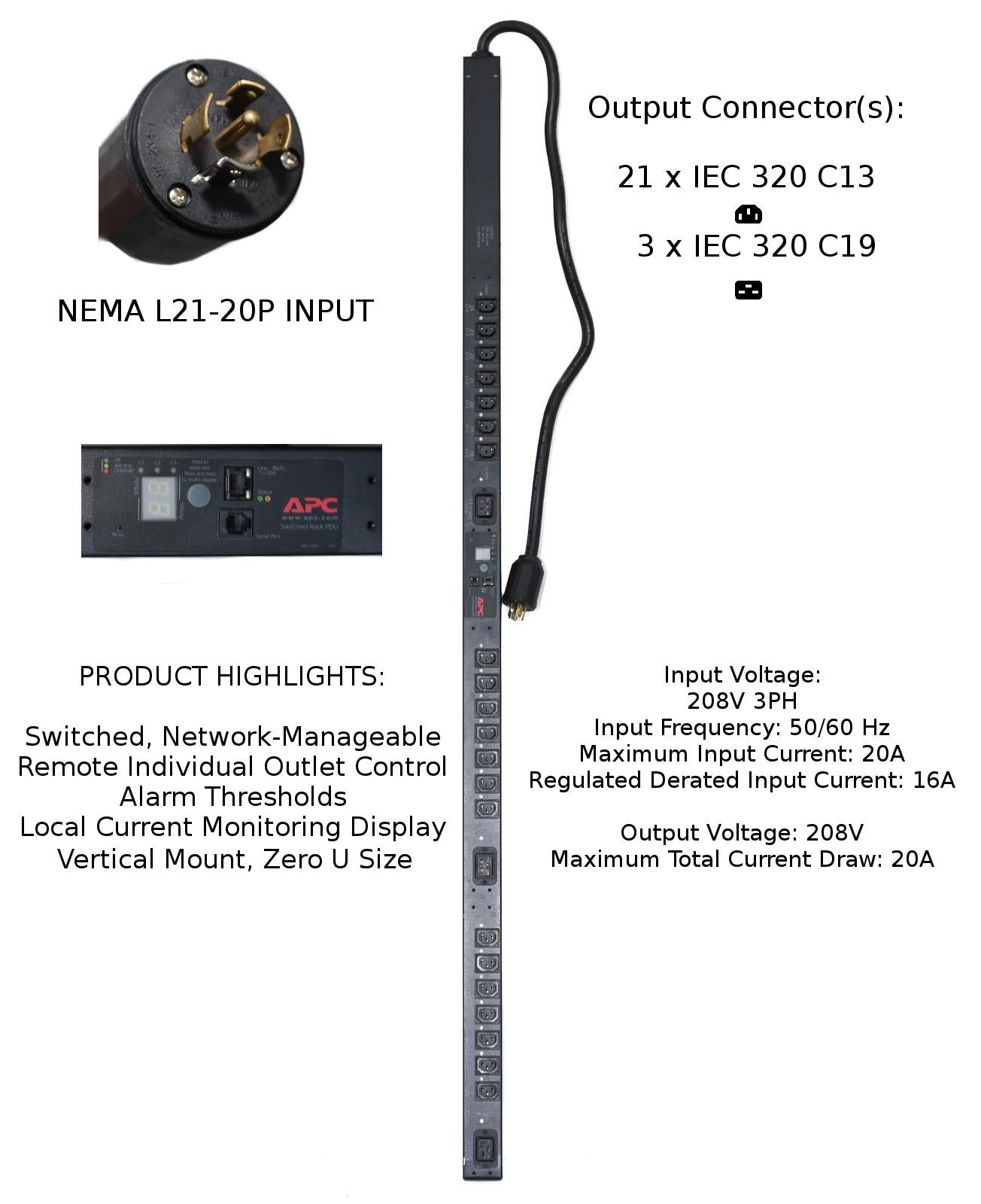

APC AP7961 208V 3PH 5.7kW L21-20P C13(21) C19(3) Zero-U Switched Rack PDU

APC AP7961 208V 3PH 5.7kW L21-20P C13(21) C19(3) Zero-U Switched Rack PDU

APC AP7961 208V 5.7kW NEMA L21-20P 24-Outlet C13(21) C19(3) Zero-U Switched Rack PDU

APC P/N: AP7961

Condition: Tested pull - Guaranteed 100% Working. Some PDUs have sticker residue or velcro straps attached to them. We have updated these with latest firmware available from APC and reset them to factory default.

Default login: apc

Default password: apc

PDUs have mounting pegs/buttons attached to them. No other accessories included. Console cable is not included.

30-Day Warranty!

Output

• Nominal Output Voltage: 208V
• Always on Outlets: 24
• Overload Protection: No
• Maximum Total Current Draw: 20

Output Connections

• (21) IEC 320 C13 (Battery Backup)
• (3) IEC 320 C19 (Battery Backup)

Input

• Nominal Input Voltage: 208V 3PH
• Input frequency: 50/60 Hz
• Input Connections: NEMA L21-20P
• Cord Length: 3ft ( 0.91meters )
• Number of Power Cords: 1
• Load Capacity: 5700VA
• Maximum Input Current: 20A
• Regulatory Derated Input Current (North America): 16A

Physical

• Maximum Height: 63.75inches ( 1619mm , 161.9CM )
• Maximum Width: 2.19inches ( 56mm , 5.6CM )
• Maximum Depth: 1.73inches ( 44mm , 4.4CM )
• Net Weight: 13.0lbs. ( 5.91KG )
• Shipping weight: 15.0lbs. ( 6.82KG )
• Shipping Height: 84.0inches ( 2134mm , 213.4CM )
• Shipping Width: 6.0inches ( 152mm , 15.2CM )
• Shipping Depth: 5.0inches ( 127mm , 12.7CM )
• Color: Black

Environmental

• Operating Temperature: 32 - 113 °F ( 0 - 45 °C )
• Operating Relative Humidity: 5 - 95 %
• Operating Elevation: 0-10000ft ( 0-3000meters )
• Storage Temperature: -25 - 65 °C
• Storage Relative Humidity: 5 - 95 %
• Storage Elevation: 0-50000ft ( 0-15000meters )

Conformance

• Approvals: cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, METI Denan, UL 60950, UL Listed
