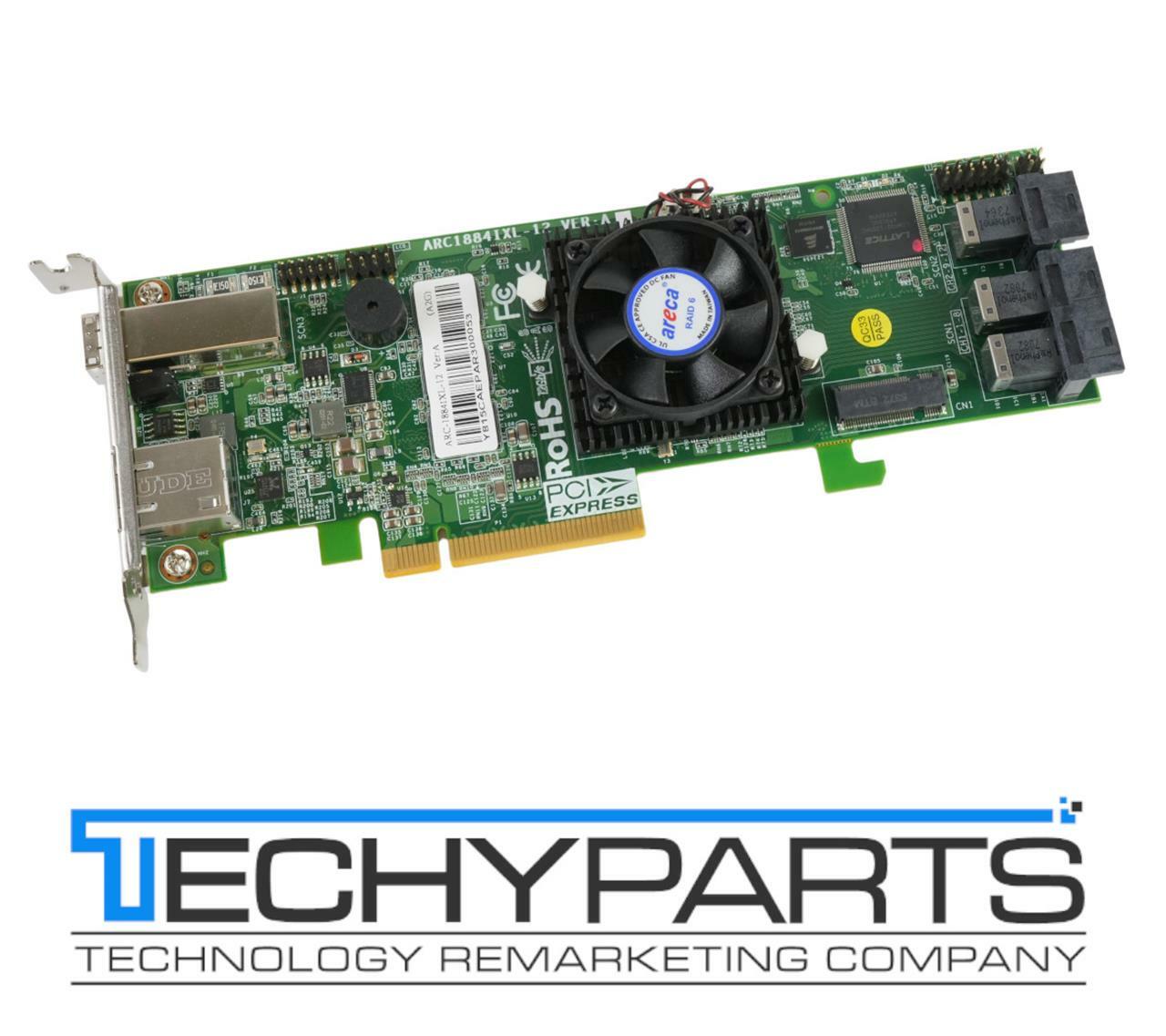

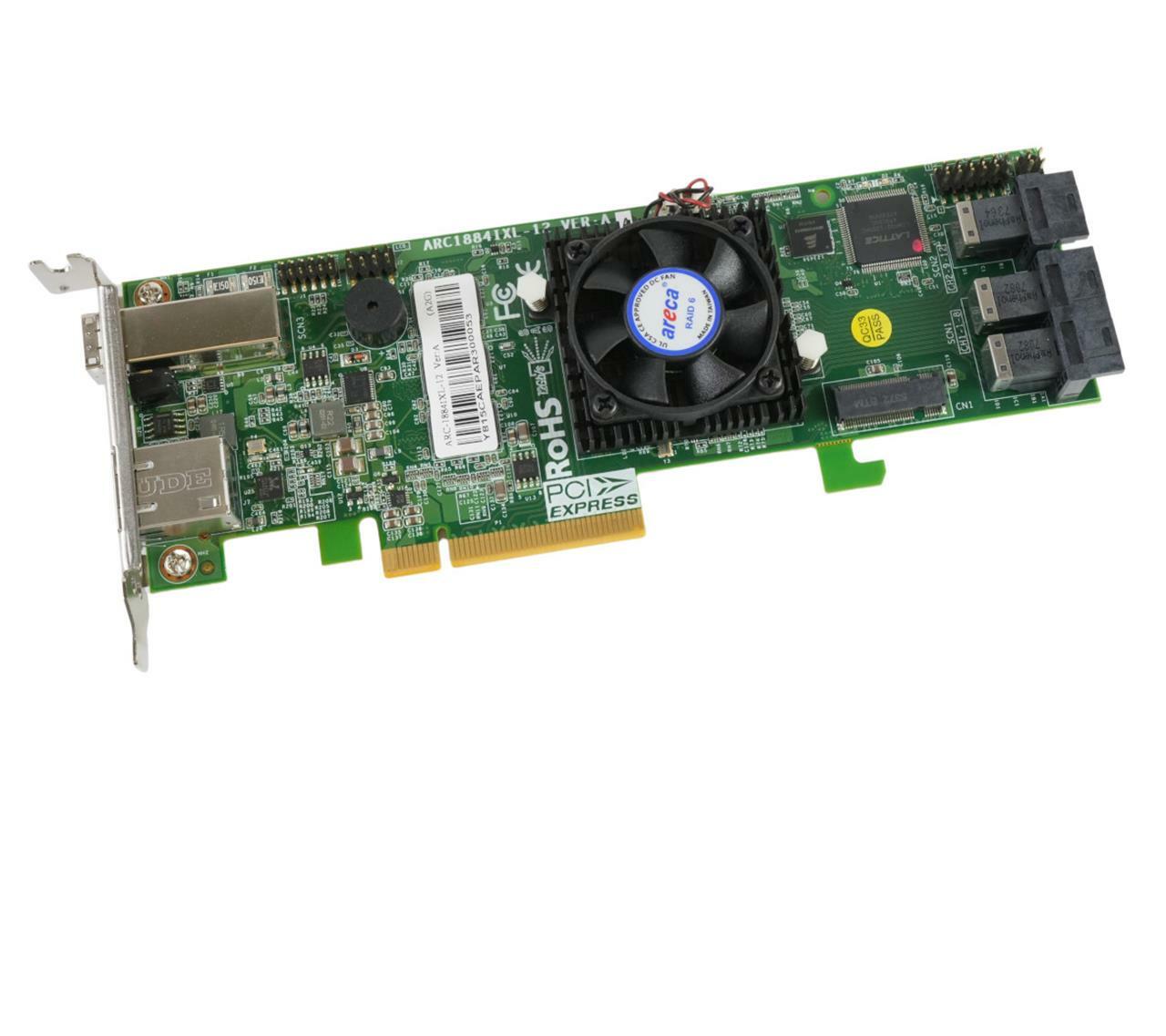

Areca ARC-1884IXL-12, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, 2GB RAID Controller

93325

Areca ARC-1884IXL-12, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, 2GB RAID Controller

1 2

ARECA

$499.99 USD
$499.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
View full details

Areca ARC-1884IXL-12, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, 2GB RAID Controller

Mounting bracket: Short SFF

Condition: Clean, tested pull - Guaranteed 100% working! Item comes with Low-Profile/SFF bracket ONLY!

ARC-1884ixl Series 12Gb/s SAS RAID Adapters ARC-1884ixl-12
Host Bus Interface 8-Lane PCI Express 3.0
Ports 12 x internal & 4 x external
Drive Connectors 3 x SFF-8643 & 1 x SFF-8644
Data Transfer Rate Up to 12Gb/s per port
Drive Support Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS Expander
Cache Memory 2GB on-board DDR3-1866 SDRAM with ECC protection
Physical Dimensions Low Profile: 190(L) x 64.4(H) mm
BBM Support ARC-6120BA-T121-12G
Power Dissipation Typical: 18W
Operating Temperature 0 C to 60 C
Operating Humidity 10% to 85%, non-condensing
RAID Levels RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
RAID-on-Chip Controller Dual Core RAID-on-Chip 1.2GHz
RAID Features
  • Multiple RAID selection
  • Configurable stripe size up to 1MB
  • Support HDD firmware update
  • Online array roaming
  • Online RAID level/stripe size migration
  • Online capacity expansion and RAID level migration simultaneously
  • Online volume set growth
  • SED (self-encrypting drives) function support
  • Multiple pairs SSD/HDD disk clone function
  • SSD automatic monitor clone (AMC) support
  • Instant availability and background initialization
  • Support global and dedicated hot spare
  • Automatic drive insertion/removal detection and rebuilding
  • Support for native 4K and 512 byte sector SAS and SATA devices
  • Support intelligent power management to save energy and extend service life
  • Support NTP protocol synchronize RAID controller clock over the on board Ethernet port

30-Day Warranty!
