ASUS Z9PE-D16/2L SSI EEB Server Motherboard Dual LGA 2011 w/ASMB6-iKVM PIKE 2008
83333ASUS Z9PE-D16/2L SSI EEB Server Motherboard Dual LGA 2011 w/ASMB6-iKVM PIKE 2008
ASUS Z9PE-D16/2L SSI EEB Server Motherboard Dual LGA 2011 w/ASMB6-iKVM PIKE 2008

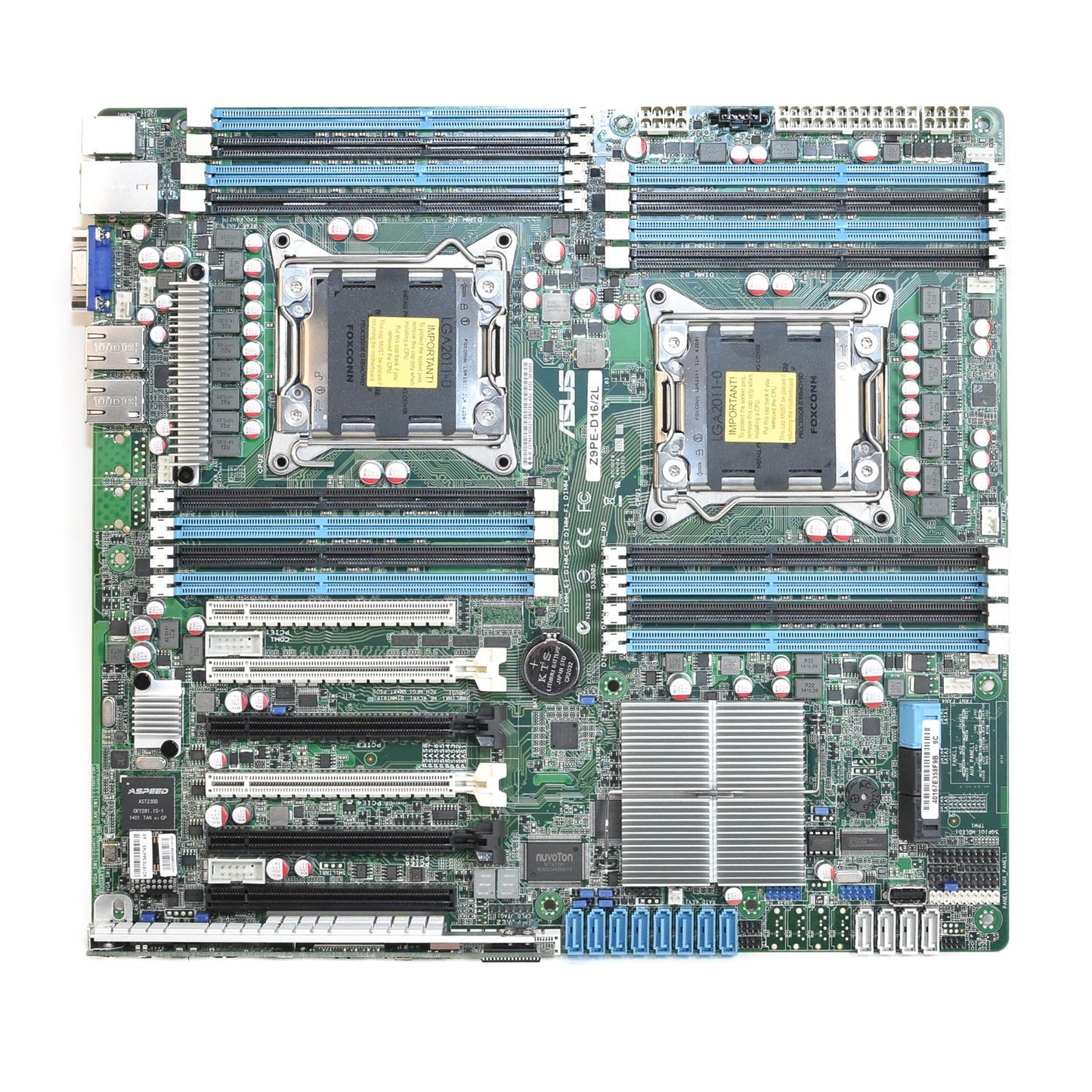

ASUS Z9PE-D16/2L SSI EEB Server Motherboard Dual LGA 2011 w/ASMB6-iKVM and Optional PIKE 2008 8-port SAS 6G RAID Card
Condition: USED, Tested. Guaranteed working. Latest BIOS flashed. Comes as pictured, ASMB6-iKVM and Optional PIKE 2008 8-port SAS 6G RAID Card are included. IO Shield is not included. No other assessories are included except what is pictured.
30 Days Warranty
Specifications:
| Socket | Dual 2011 |
| CPU Compatibility | Intel Xeon E5-2600 Family |
| Form Factor | EATX |
| Chipset Manufacturer | Intel |
| Chipset | C602-A PCH |
| Front Side Bus | QuickPath Interconnect |
| Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel i350-AM2 |
| Cooling System | Heatsink |
| Color | Green |
| Memory Support | |
| Type | DDR3 ECC Registered |
| Maximum Speed | 1600 MHz |
| Number of Slots | 16 |
| Maximum Size per Slot | 32 GB |
| Maximum Amount Supported | 512 GB |
| Onboard Video | |
| Processor Type | Aspeed AST2300 |
| VGA | 1 |
| External Connections | |
| USB 2.0 | 2 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | Yes |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| SATA II 3.0Gbps | 8 |
| SATA III 6.0Gbps | 10* |
| Serial (Com) | 2 |
| SATA Controllers | |
| SATA II 3.0Gbps Controller 1 | 4 port - Intel C602-A AHCI |
| SATA II 3.0Gbps Controller 2 | 4 port - Intel C602-A SCU |
| SATA III 6.0Gbps Controller 1 | 2 port - Intel C602-A AHCI |
| SATA III 6.0Gbps Controller 2 | 8 port - ASUS PIKE* |
| Expansion Slots | |
| Slot 1 | PCI Express 3.0 x8 in a x16 size |
| Slot 2 | PCI Express 3.0 x16 |
| Slot 3 | PCI Express 3.0 x16 |
| Slot 4 | PCI Express 3.0 x16 |
| Slot 5 | PCI Express 3.0 x8 in a x16 size |
| Slot 6 | PCI Express 3.0 x8 in a x16 size |
| Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
| BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
| Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 330 mm (13.0 in) |
