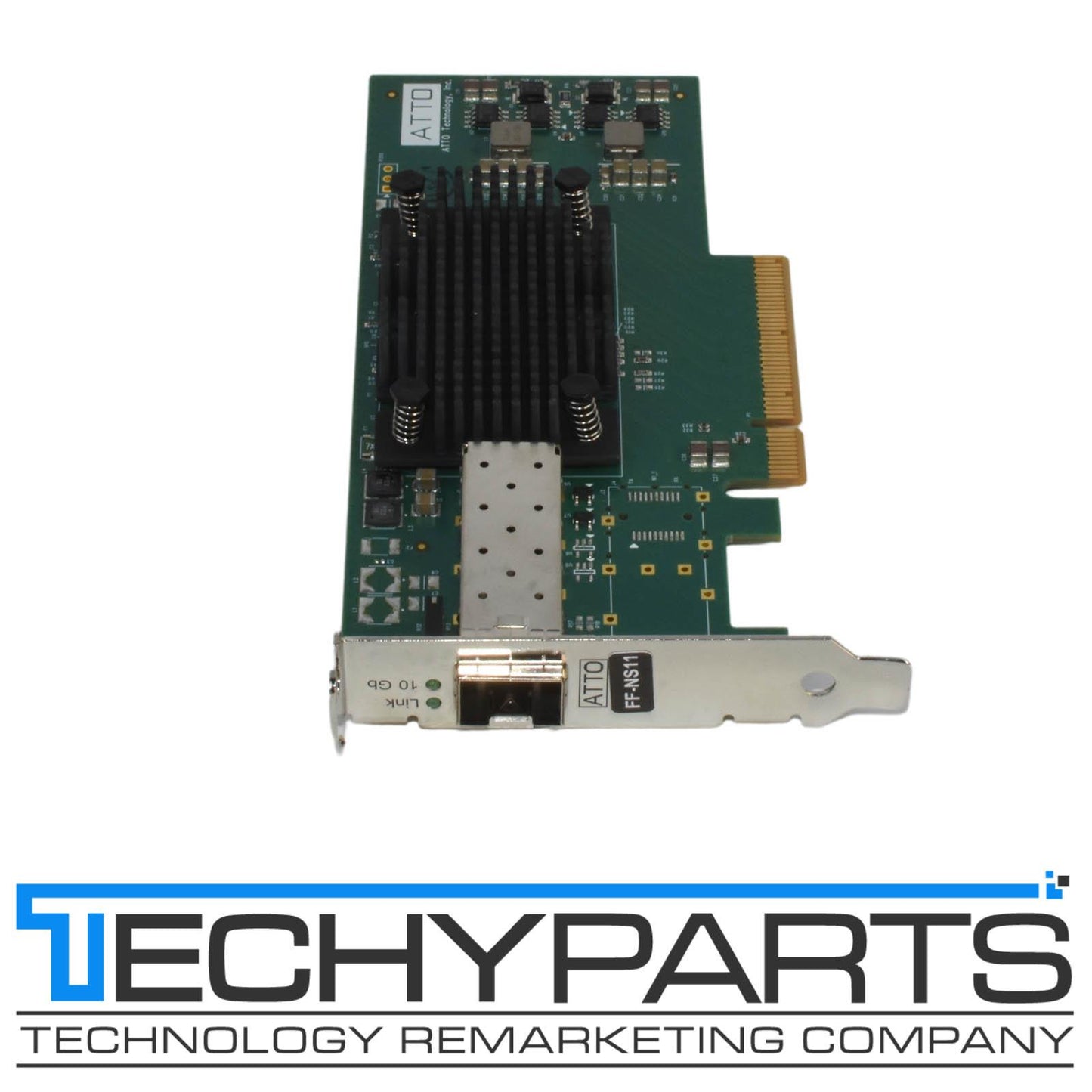

ATTO FF-NS11 FastFrame NS11 1-Port 10GbE SFP+ PCIe 2.0 NIC FFRM-NS11-000 SFF

ATTO FF-NS11 FastFrame NS11 Single-Port 10GbE SFP+ PCIe 2.0 Network Adapter FFRM-NS11-000 with Low Profile SFF Mounting Bracket

ATTO P/N: FFRM-NS11-000, FF-NS11

ATTO Model P/N: FastFrame NS11

Intel 82599 based 10 Gigabit Ethernet Controller

Tranceiver: Not included

Mounting bracket: Low Profile, SFF Small Form Factor

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with low profile, SFF Small Form Factor mounting bracket only.

30-Day Warranty!

Manufacturer's description:

FastFrame NS11 10GbE NIC card for Windows, Linux and Mac OS X, Part # FFRM-NS11-000

Built on industry leading Ethernet technology, with support for broad range of Operating systems including Windows®, Linux and Mac OS® X, FastFrame NS12, dual port PCIe Gen 2.0 Network Interface Card provides maximum throughput for high bandwidth network connectivity for demanding IT and media and entertainment applications.

Overview

The FastFrame NS11 single port 10GbE Network Adapter leverages the industry standard Ethernet technology from Intel, to meet the bandwidth-intensive demands of high-performance, high-bandwidth I/O environments. The NS11 provides industry-leading throughput and latency management with minimal CPU utilization and power consumption.

The FastFrame NS11 is the premier connectivity choice for applications such as data back-up and restoration, clustered computing, medical imaging, IP content delivery, and video rendering. With support for Data Center Bridging and native OS iSCSI initiators, ATTO’s FastFrame network adapters provide unmatched features for networking environments.

Specifications:

• x8 PCI Express 2.0
• Supported operating systems: Windows Server 2003, 2008, Windows XP, Vista, 7, Red Hat (RHEL) and SUSE (SLES) Linux and Mac OS X
• Four, two or one LC fibre-optic connectors
• Data rate per port: 10GbE
• TCP, UDP and IPv4 checksum offloading
• Tx/TCP segmentation offload (Large Send Offload—LSO)
• IPsec offload
• Data Center Bridging (DCB) support
• Priority-Based Flow Control 802.1Qbb rev.0
• Enhanced Transmission Selection 802.1Qaz rev.0
• Data Center Bridging (DCBX) 802.1Qaz rev.0 protocol
• Header splits and Replication in Receive
• Receive Side Scaling for multiple Rx queues
