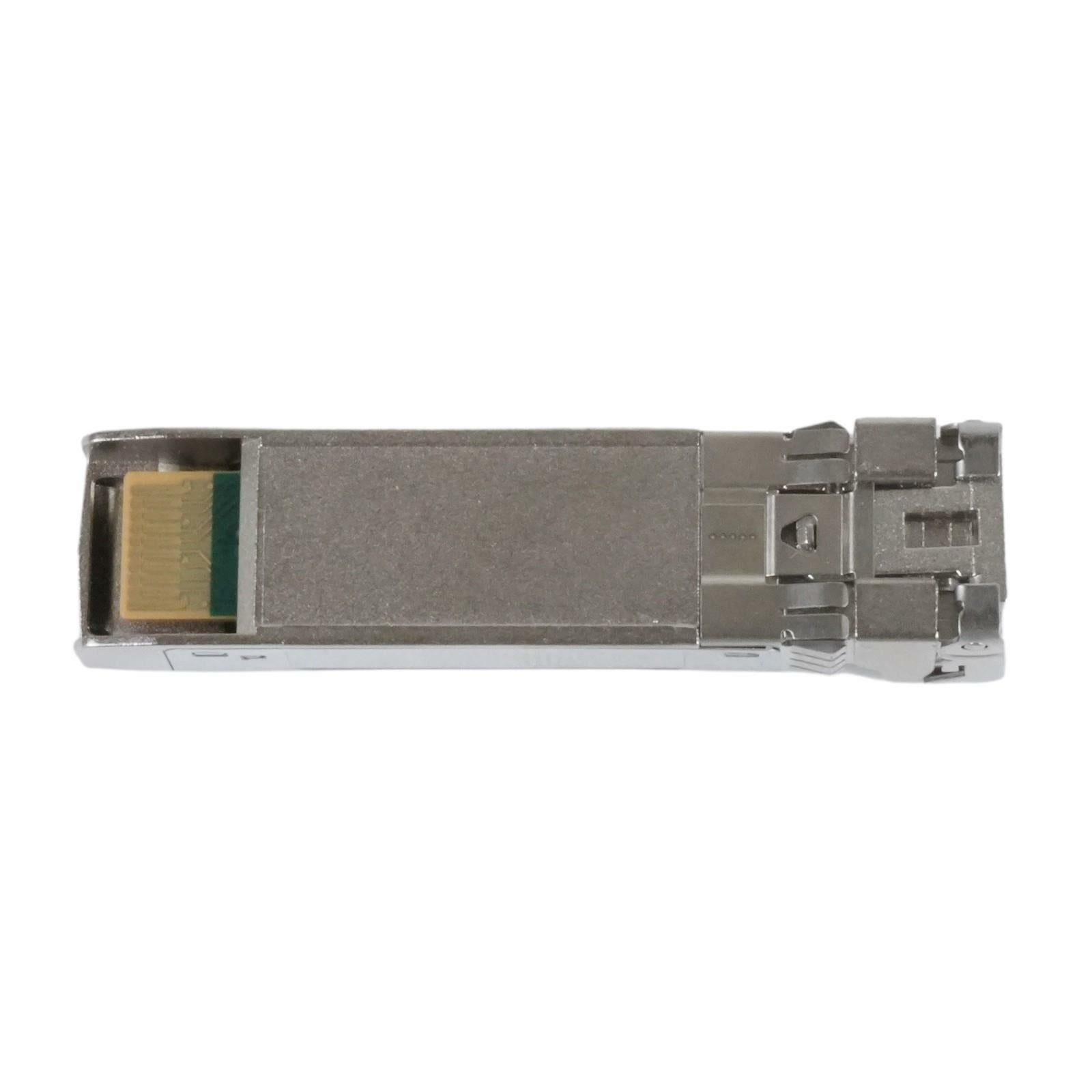

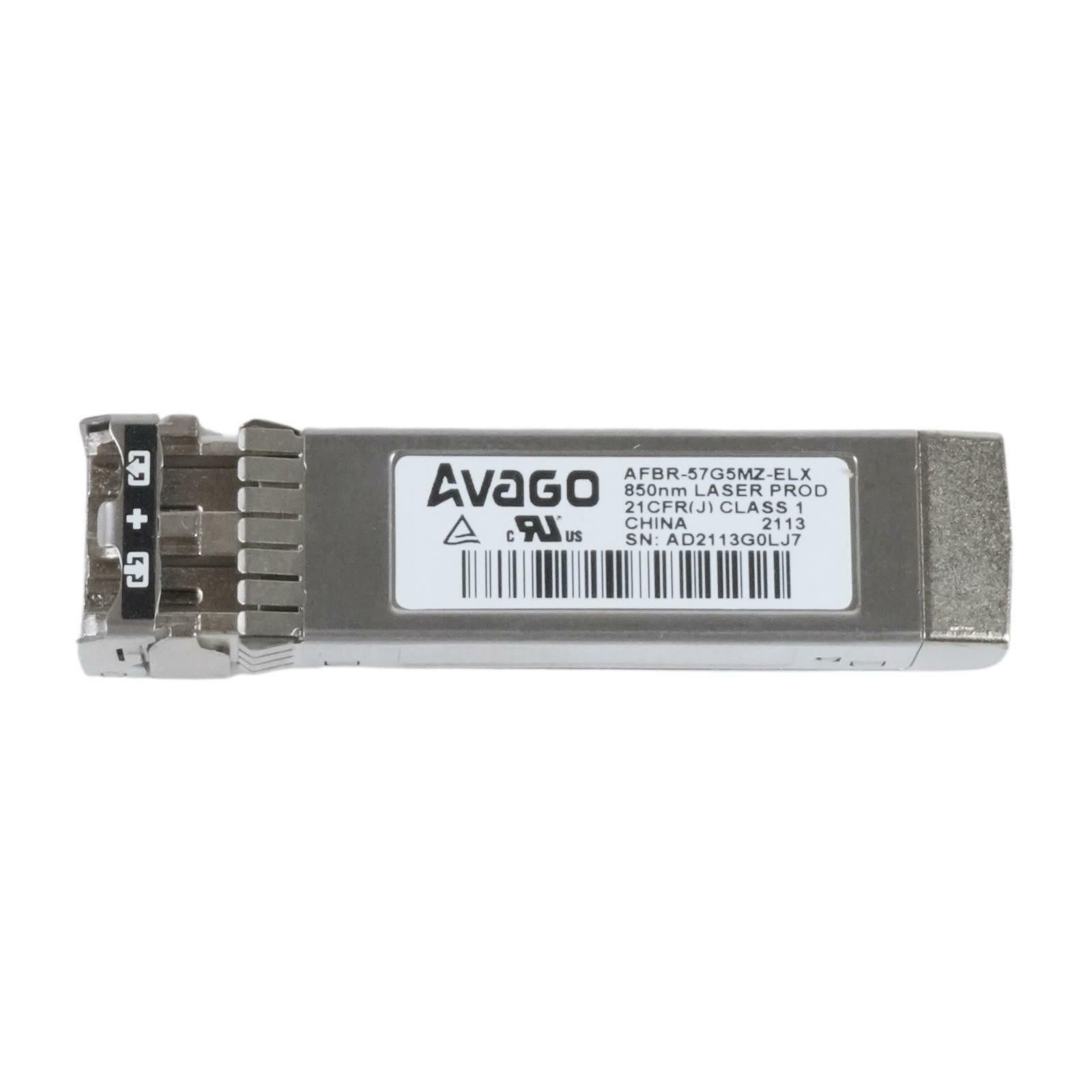

Avago AFBR-57G5MZ-ELX 32GFC SFP28 SWL Fibre Channel Transceiver for Multi-Mode Optical Fiber, 100m

Condition: Clean, tested pull - Guaranteed 100% working!

30-Day Warranty!

Manufacturer's Specifications:

• Compliant to RoHS directives
• 850 nm Vertical Cavity Surface Emitting Laser (VCSEL)
• Class 1 eye safe per IEC60825-1 and CDRH
• Wide temperature range (0C to 70C)
• LC duplex connector optical interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
• Diagnostic features per SFF-8472 DiagnosticMonitoring Interface for Optical Transceivers
• Enhanced operational features including EWRAP, OWRAP and variable electrical EQ/emphasis settings
• Real time monitoring of:
  • Transmitter average optical power
  • Received average optical power
  • Laser bias current
  • Temperature
  • Supply Voltage
• SFP+ mechanical specifications per SFF-8432
• SFP+ compliant low speed interface
• Fibre Channel FC-PI-6 compliant high speed interface
  • 3200-M5-SN-S, 1600-M5-SN-S, 800-M5-SN-S
  • 3200-M5E-SN-I, 1600-M5E,SN-I, 800-M5E-SN-I
  • 3200-M5F-SN-I, 1600-M5F-SN-I, 800-M5F-SN-I
• Fibre Channel FC-PI-6 compliant optical link distances
