Avago/LSI SAS9211-8i 8-Port 6Gb/s SATA/SAS Host Bus Adapter w/ RAID

Avago/LSI SAS9211-8i 8-Port 6Gb/s SATA/SAS Host Bus Adapter w/ RAID

Avago/LSI SAS9211-8i 8-Port 6Gb/s SATA/SAS Host Bus Adapter w/ RAID

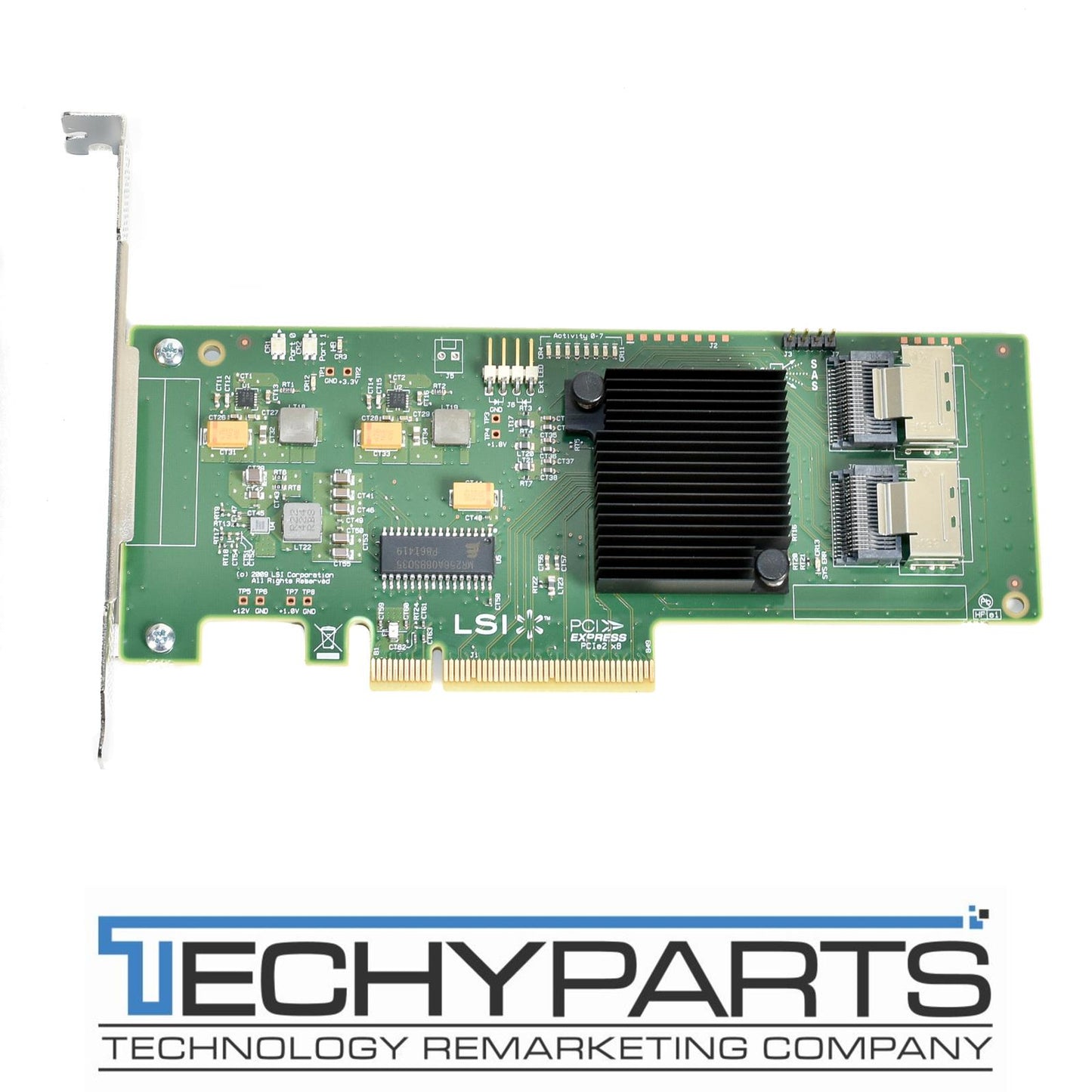

The LSI SAS 9211-8i PCI Express (PCIe)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), provides high-performance internal storage connectivity for servers and workstations. The LSI SAS 9211-8i HBA provides eight lanes of 6Gb/s SAS connectivity and is matched with eight lanes of PCIe 2.0 5Gb/s performance.The LSI SAS 9211-8i HBA is based on LSI SAS 2008 controller that integrates the latest enhancements in PCIe 2.0 technology and 6Gb/s SAS technology. The LSI SAS 9211-8i HBA has onboard Flash memory for the firmware, and BIOS and NVSRAM for Integrated RAID support (RAID 0, RAID 1, RAID 10, and RAID 1E).

• Implements one LSI SAS 2008 eight-port 6Gb/s to PCIe 2.0 controller
• Supports eight-lane, full-duplex PCIe 2.0 performance
• Supports eight internal 6Gb/s SATA+SAS ports
• Supports SATA and SAS link rates of 1.5Gb/s, 3.0Gb/s, and 6.0Gb/s
• Provides two x4 internal mini-SAS connectors (SFF-8087)
• Supports passive cable
• Supports Integrated RAID (RAID 0, RAID 1, RAID 10, and RAID 1E)
• Supports up to 256 SATA or SAS end devices

Mounting bracket: Full Height

Tested, guaranteed 100% working pull.

No software, cables or other accessories included. Comes with Full Height bracket only.

30-Day Warranty!
