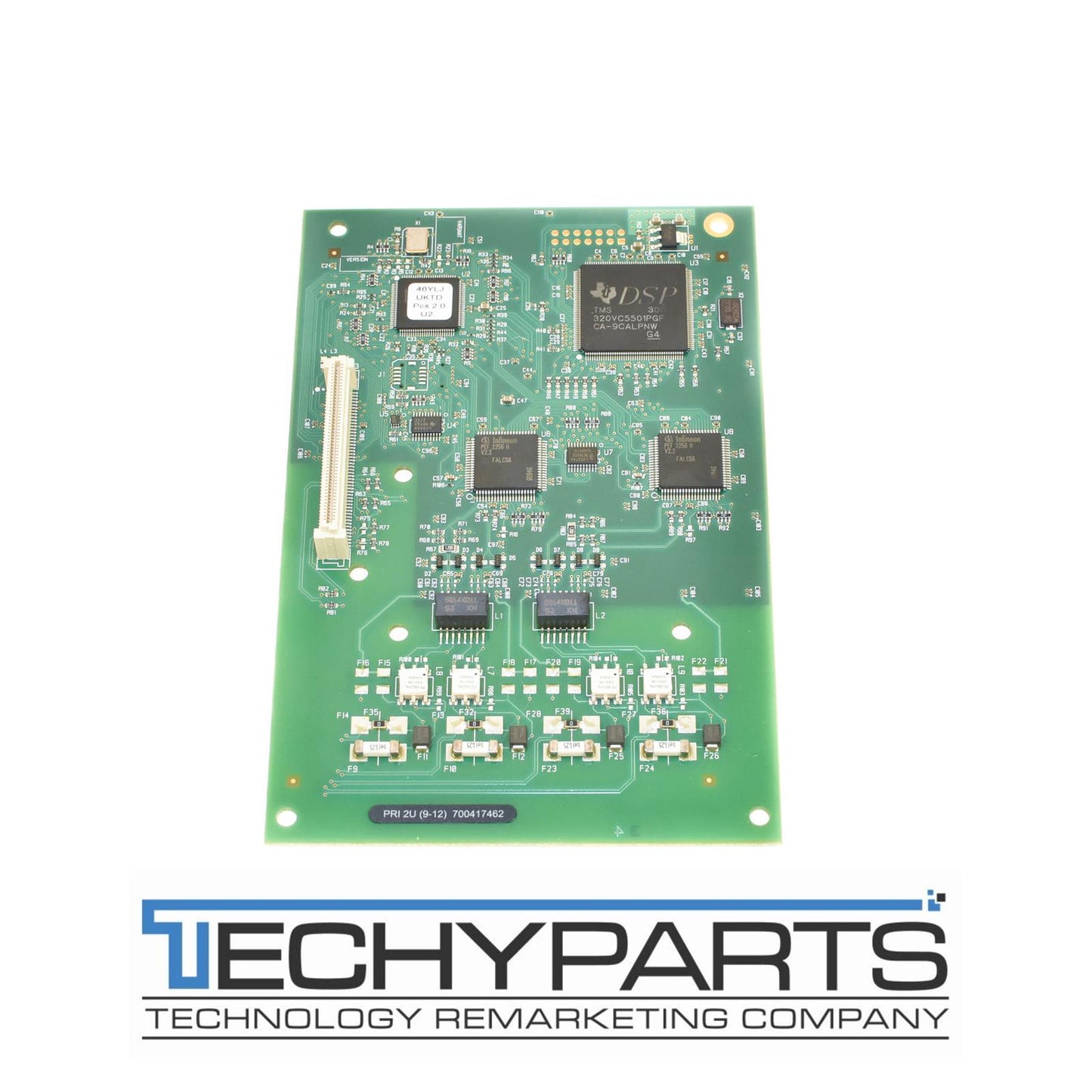

Avaya IP Office 500 Dual PRI Digital Trunk Daughter Card 700417462

Avaya IP Office 500 Dual PRI Digital Trunk Daughter Card 700417462

Avaya IP Office 500 Dual PRI Digital Trunk Daughter Card 700417462

This type of card can be added to an IP500 Digital Station card, Analog Phone card or VCM card. It allows that card to then also support primary rate digital trunk connections. This IP500 PRI card provides dual primary rate trunk interfaces. The PRI is configurable for T1, E1 or E1R2 MFC use depending on the territory.

The IP500 Universal PRI trunk cards incorporate an integrated CSU/DSU. The CSU function allows the trunk to be put in loop-back mode for testing purposes. This can be set manually, using the monitor application, or automatically from a Central Office sending a Line Loop Back (LLB) pattern. The DSU function allows the T1 trunk to be shared between data and voice services.

Tested, guaranteed 100% working pull.

No software, cards or other accessories included. Comes as pictured.

30-Day Warranty!
