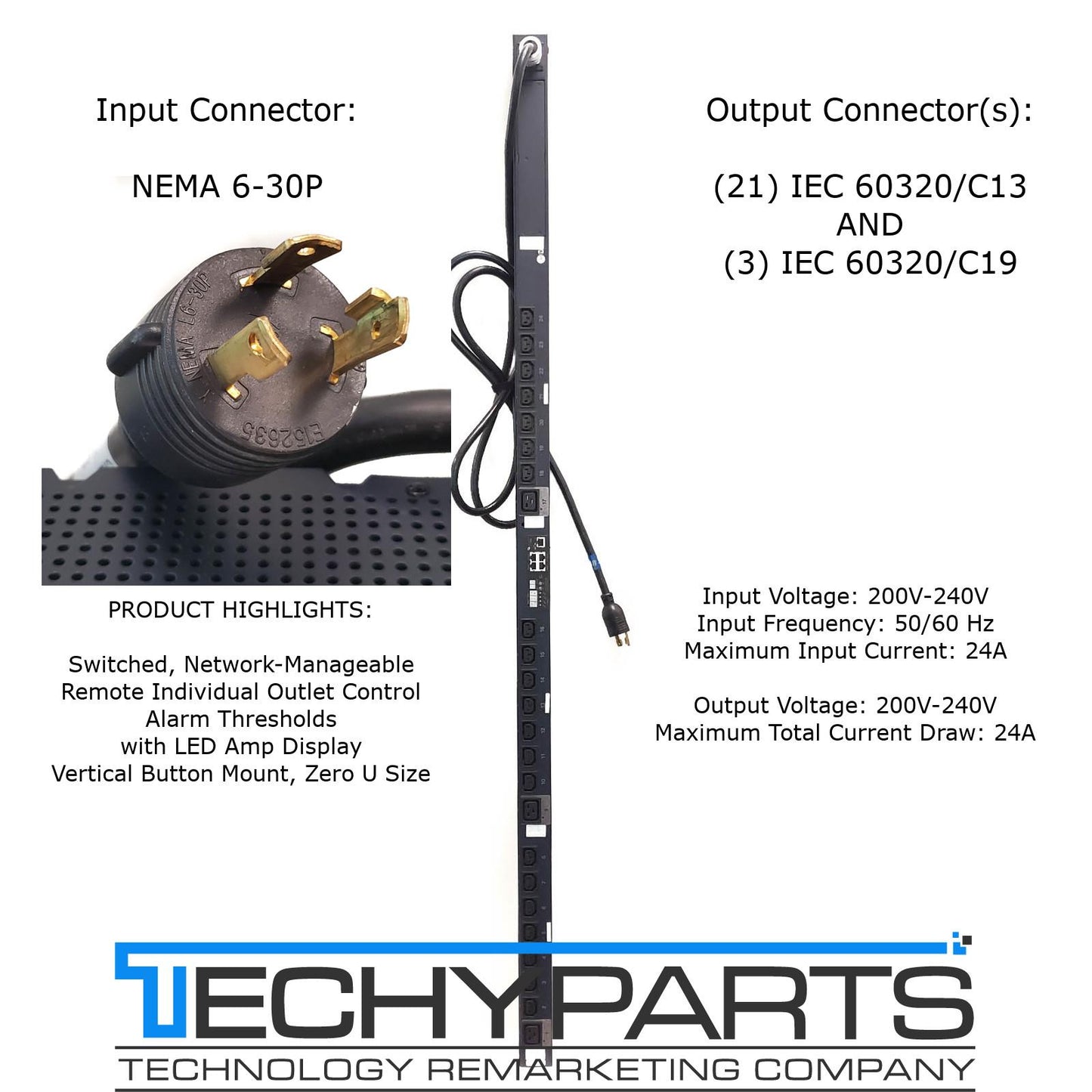

Avocent PM3001V-401 208V 24A L6-30P 24-Outlet 21x C13 3x C19 0U Rack PDU

Avocent PM3001V-401 240V 24A L6-30P 24-Outlet 21x C13 3x C19 ZeroU Rack PDU 520-507-519.

AVOCENT P/N: PM3001V-401

Condition: Clean, tested pull - Guaranteed 100% Working. Updated and running latest firmware v2.0.1.23.

Factory default login settings:

Name: root

Password: linux

Name: admin

Password: avocent

30-Day Warranty!

This item is priced and packaged as pictured. 2x Aluminum Button/Peg mounts for 0U Vertical mounting included, pre-installed.No other accessories other than those pictured or mentioned in the listing will be included.

Manufacturer's description:

The Avocent PM3001V-401 is a 0U Vertical 1-ph 24A 208V with L6-30, 21 C13 & 3 C19 ports Power Management PDU. This intelligent Power Distribution unit (IPDU) supports outlet level metering and switching capability to provide datacenter professionals the tools they need to monitor, reduce, and manage their growing power consumption costs of IT equipment. Thresholds can be created to allow datacenter teams to know before problems occur and minimize downtime caused by overloaded circuits.

Avocent PM3001V-401 Features:

  • Outlet level, phase level and strip level current metering with threshold/alert capabilities- Provides preemptive notification of any impending overload issues before they occur, and simplifies the task of installing new equipment
  • On board web interface- Can be installed for direct access right out of the box or it can be configured as part of a larger integrated solution using the DSView 3 software.
  • IP and Serial interface options- Options to install by connecting directly to the network or save IP connections by using the serial interface to connect directly to Avocent appliances already connected to the network.
  • Daisy chaining- Saves the number of IP addresses or console / KVM ports that are required to manage all power distribution needs.
  • Integration with DSView 3- Single interface for management of IT equipment and iPDU’s simplifies mapping of outlets to servers and other equipment to reduce and minimizes power cycling the wrong equipment.
  • Integration with DSView 3 Power Manager- Track historical trends to measure and monitor IT power consumption, capacity, and cost to understand what issues exist and to make more informed decisions in the future.
  • Electronic Overcurrent Protection- Electronic Overcurrent protection is an added layer of protection that gets activated in the event of minor overloads. During such events, outlets get turned off first instead of the primary overcurrent protection (OCP) getting tripped.
  • Sequential Startup- Protects integrity of all upstream electrical infrastructure by staggering the inrush current draw of all plugged in devices.
  • Sequential Shutdown- Protects integrity of applications by ensuring that multiple equipment running dependant applications shut down in the appropriate order only.

Avocent PM3001V-401 Specifications:

Mechanical
Height 3.15 in. (8.0 cm.)
Width 2.2 in. (5.6 cm.)
Depth 66.0 in. (167.6 cm.)
Weight 14.8 lbs. (6.71 kg.)

*without power cord
Form Factor 0U
Environmental
Operating Temperature 10-50ºC
Storage Temperature -40-65ºC
Relative Humidity 20 to 80 percent operating, 5 to 95 percent non-operating
Input
Input Voltage US single phase 208-240VAC 2W + PE 60HZz
Input Current 24A
Output
Output Voltage 208-240VAC 60Hz
Current
Outlet Max Current 16A
Bank Max Unbalanced Current 16A*
Bank Max Balanced Current 8A
Listed Branch Circuit Protection 30A
Network Connection

Number 1

Type 10/100/1000 Ethernet

Safety Markings and Approvals

UL, FCC, cUL, CE, VCCI, C-Tick, CB

Safety certifications and EMC certifications for this product are obtained under one or more of the following designations: CMN (Certification Model Number), MPN (Manufacturer’s Part Number) or Sales Level Model designation. The designation that is referenced in the EMC and/ or safety reports and certificates are printed on the label applied to this product.
