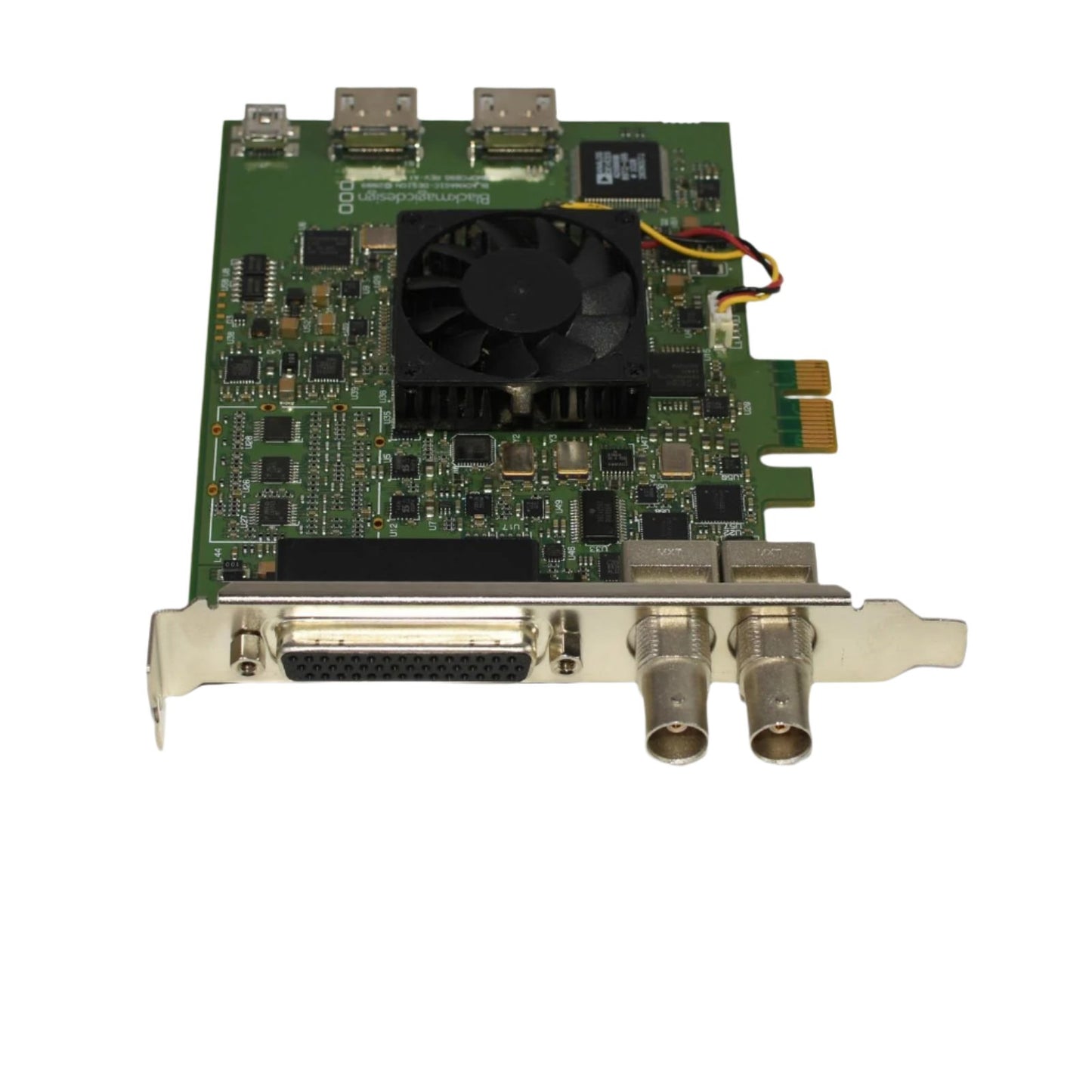

Blackmagic Design DeckLink Studio 2 SD/HD PCI-E Video Capture Card BDLKSTUDIO2

Blackmagic Design DeckLink Studio 2 SD/HD Broadcast Video PCI-E x1 Capture Card BDLKSTUDIO2 BMDPCB95

*** Missing Breakout Cable and HDMI Extension Cable Bracket ***

Blackmagic Design P/N: BDLKSTUDIO2, BMDPCB95

Condition: Clean, tested pull - Guaranteed 100% working!

Item sold as pictured, no cables or other accessories are included.

30-Day Warranty!

Manufacturer's description:

The Blackmagic Design DeckLink Studio 2 is an HD/SD broadcast video capture card with an array of digital and analog video and audio connections. The connections are non-independent so only one can be used at a time. The outputs are all live, so any input can be routed through any output.

HD/SD-SDI and HDMI inputs and outputs are integrated, and the rest of the connections are accessible via an included 3 ft breakout cable. The cable features Component BNC, S-Video, and Composite BNC video inputs and outputs, 1/4" analog audio and AES/EBU digital audio inputs/outputs, a sync input, an RS-422 deck control output, and an SD-SDI only output.

The card features two PCI slot plates and takes up two slots, but it only connects into the motherboard through one slot. The reason for the second plate is to provide easier access to the card's HDMI input and output ports. The actual ports are on the rear of the card but are accessible on the second plate through cabling connecting the plate to the rear ports.

This video card supports fully independent connections for SDI, HDMI, analog component, S-video, and composite video Audio connections include 4 channels of balanced analog audio, 8 channels of SDI audio, and 2 channels of AES/EBU digital with sample-rate converters Support for NTSC & PAL standards is included It features an RS-422 deck control The device offers blackburst and tri-sync reference input This unit is compatible with Windows, Mac, and Linux systems and 1, 4, 8 and 16 PCIe slots

Features:

  • Multi-Format Support
  • Video & Audio Support
  • RS-422 Deck Control
  • Blackburst & Tri-Sync Reference

Specifications:

SDI Video Input: 1 x 10 bit SD/HD switchable
SDI Video Output: 1 x 10 bit SD/HD switchable
Supported Video formats: 525i NTSC, 625i PAL, 720HD and 1080HD
SDI Audio Input: 8-channel embedded in SD and HD
SDI Audio Output: 8-channel embedded in SD and HD
Analog Audio Input: 4 channels of professional balanced analog audio via 1/4" jack connectors
Analog Audio Output: 4 channels of professional balanced analog audio via 1/4" jack connectors. Channels 3 and 4 can switch to AES/EBU outputs
HDMI Audio Input: 2 channels
HDMI Audio Output: 2 channels
HDMI Video Input: Direct HDMI connection supports HDMI capture from HDMI compatible cameras, set-top boxes, decks and video games
HDMI Video Output: Direct HDMI connection supports HDMI digital compatible displays, such as a TV or video projector (includes both audio and video)
HDMI Configuration: HDMI automatically configures to connected display
HDMI Resolution: Pixel-for-pixel HD resolution input to connected device.
Multiple Rate Support: Standard-definition SDI and high-definition SDI
Sync Input: Blackburst in SD and 1080i50, 720p50, 1080i59.94, 720p59.94 HD formats. TriSync in all HD formats.
Device Control:

  • Sony compatible RS422 deck control ports
  • Serial ports TxRx direction reversible under software control

Settings Control:

  • DeckLink System Preferences (Intel Mac OS X)
  • DeckLink Control Panel (Windows)

Updates:

  • Firmware for cards built into software driver
  • Loaded at system start, or via updater software

Standards:

  • HD Format Support: 1080PsF23.98/24, 1080i50, 1080i59.94, 720p50 and 720p59.94
  • SD Format Support: 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC
  • SDI Compliance: SMPTE 259M, 292/296M
  • Video Sampling: 4:2:2
  • Color Precision: 4:2:2 10-bit
  • Color Space: 4:2:2 YUV
  • SDI Metadata Support: VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file. HD RP188
  • Audio Sampling: Television rate of 48kHz at 24 bit
  • Card Type: PCI Express 1 lane, compatible with 1,4,8 and 16 PCIe slots
  • Copy Protection: For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP

Signal Processing:

  • Colorspace Conversion: Hardware-based real time
  • HD Down Conversion: Built-in hardware down conversion. High-quality down converter always outputs to SD-SDI, composite and S-video outputs when working in HD video formats. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles
  • HD Up Conversion: Real-time up conversion from 720HD to 1080HD during video capture
  • Real-Time Effects:
    • Apple Final Cut Pro internal effects in DV, ProRes and uncompressed on Intel Mac OS X
    • Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed
