Broadcom LSI HBA 9405W-16e SATA/SAS/NVMe 12Gb/s Tri-Mode PCIe 3.1 x16 Host Bus Adapter 05-50044-00

Manufacturer: Broadcom
OEM Manufacturer: LSI

Model: 9405W-16e
Part Number: 05-50044-00

Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working.

What's Included:

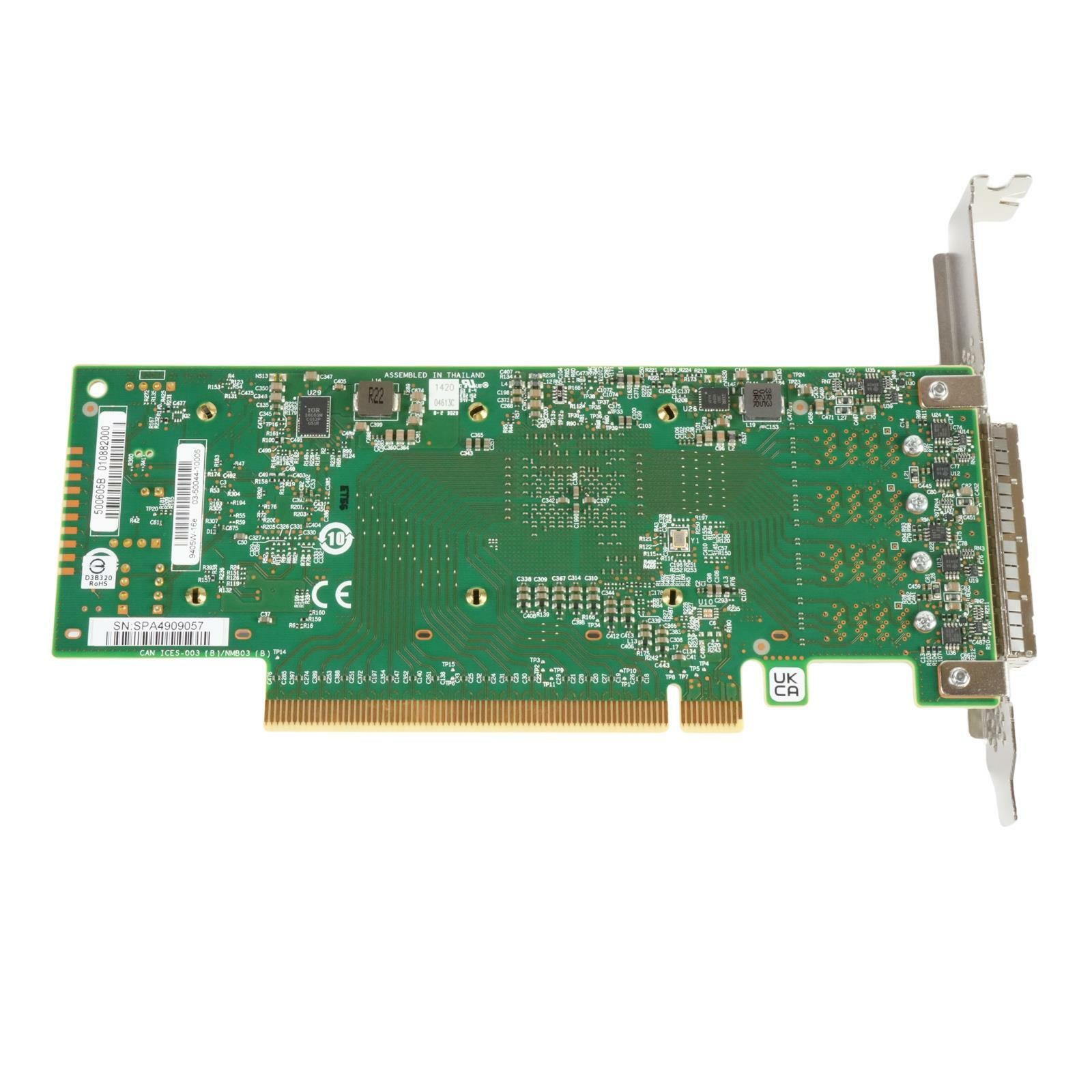

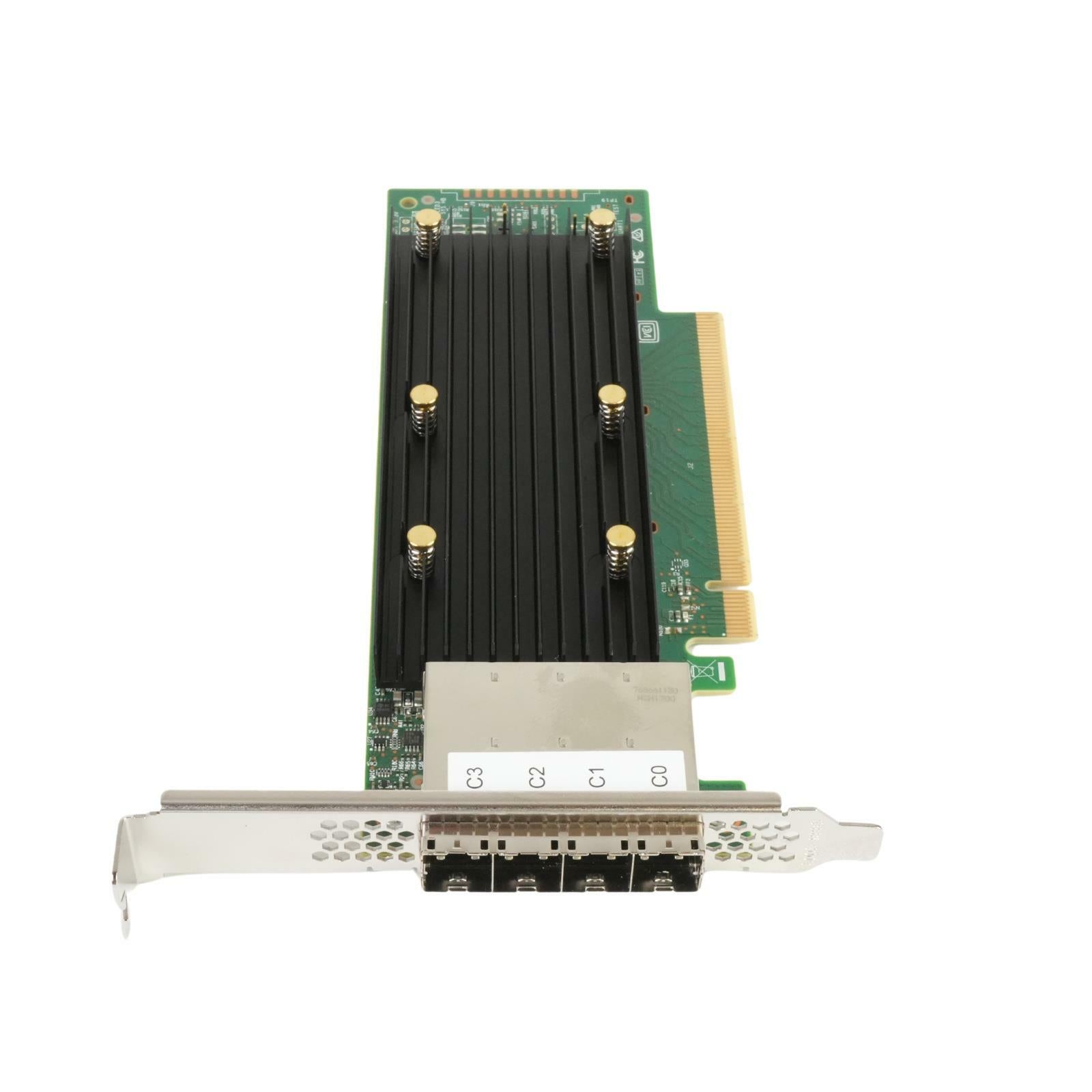

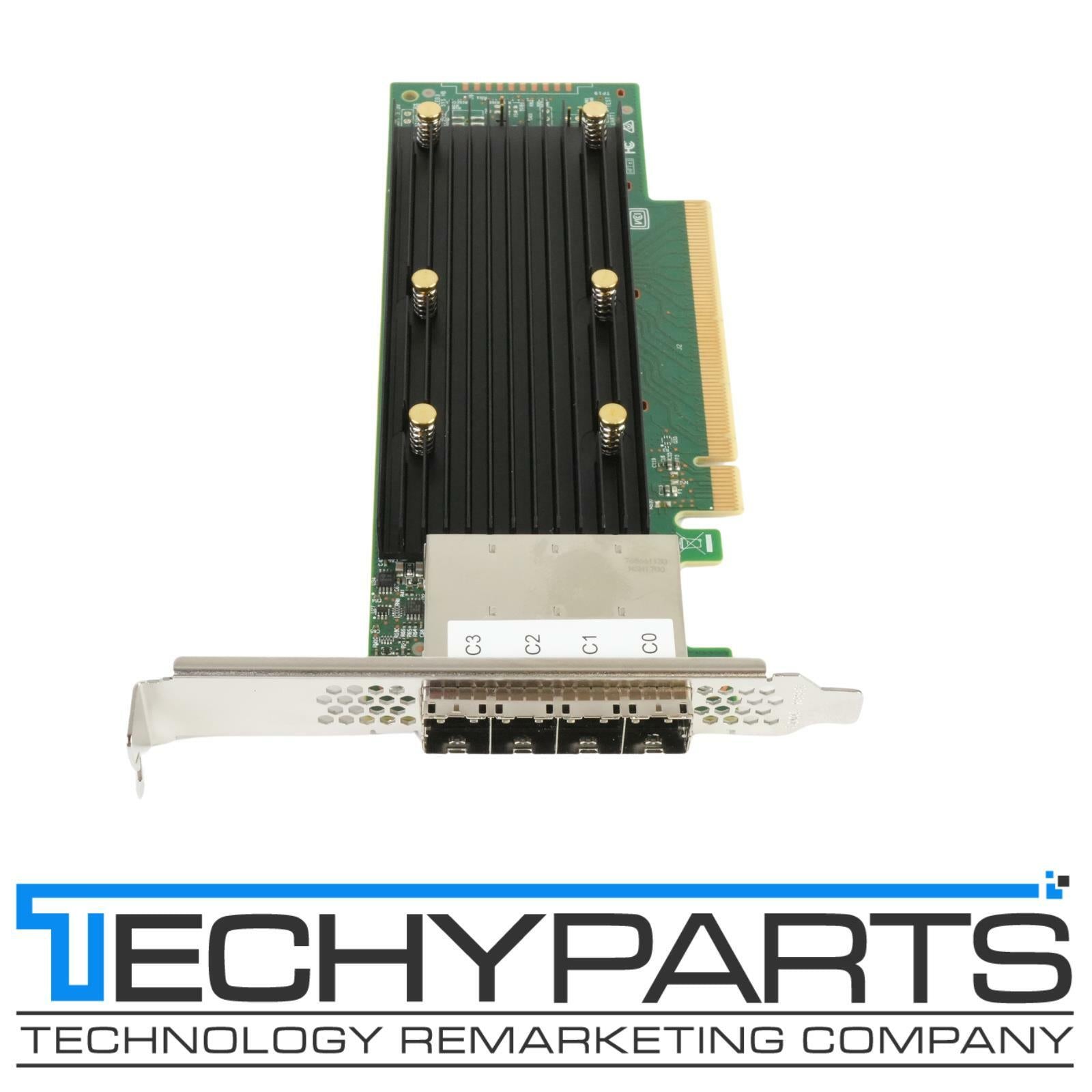

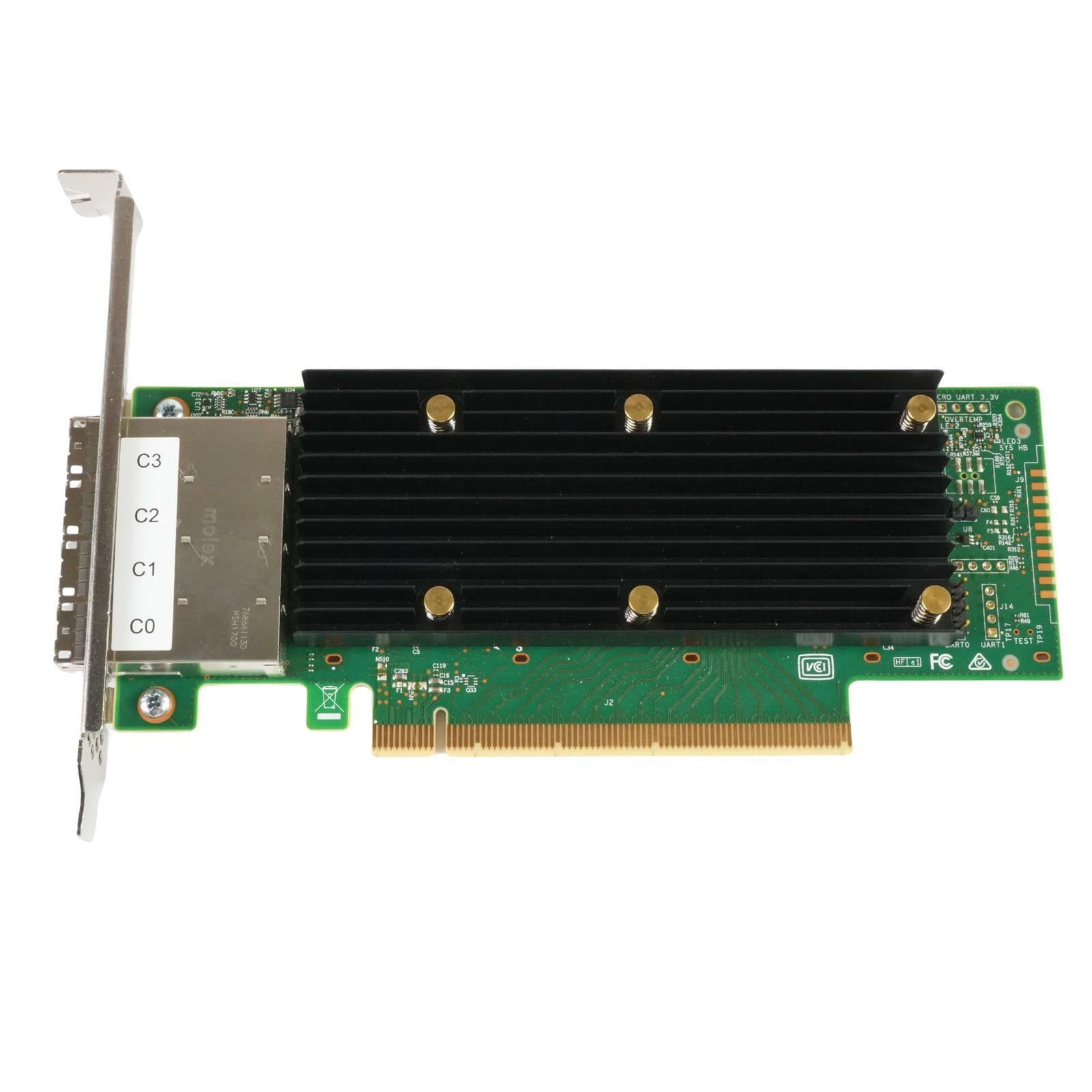

Broadcom LSI 9405W-16e Tri-Mode HBA 05-50044-00 with Full Height mounting bracket

Note: No drivers, cables, or additional accessories are included.

30-Day Warranty Included!

Ideal for high-performance servers, NAS, storage arrays, and enterprise environments requiring massive drive expansion with SAS, SATA, and NVMe support. Excellent for TrueNAS, Unraid, Proxmox, VMware, and large-scale storage builds.

This is a genuine Broadcom / LSI 9405W-16e 16-port Tri-Mode Host Bus Adapter. It provides high-bandwidth 12Gb/s connectivity for SAS, SATA, and NVMe drives over a single powerful PCIe 3.1 x16 interface, making it perfect for modern storage servers and high-capacity storage solutions.

Key Specifications:
Ports: 16x Internal (SATA / SAS / NVMe Tri-Mode)
Interface: PCIe 3.1 x16
Data Transfer Rate: Up to 12Gb/s per port
Form Factor: Full Height PCIe Card
Controller: Broadcom Tri-Mode
Supported Devices: SAS, SATA, and NVMe SSDs/HDDs

Additional Features:

• Full Tri-Mode support (SAS, SATA, and NVMe in one adapter)
• High performance NVMe passthrough
• Advanced error detection and recovery
• Hot-plug support
• Enterprise-grade reliability and management
• Compatible with major OS and hypervisors
