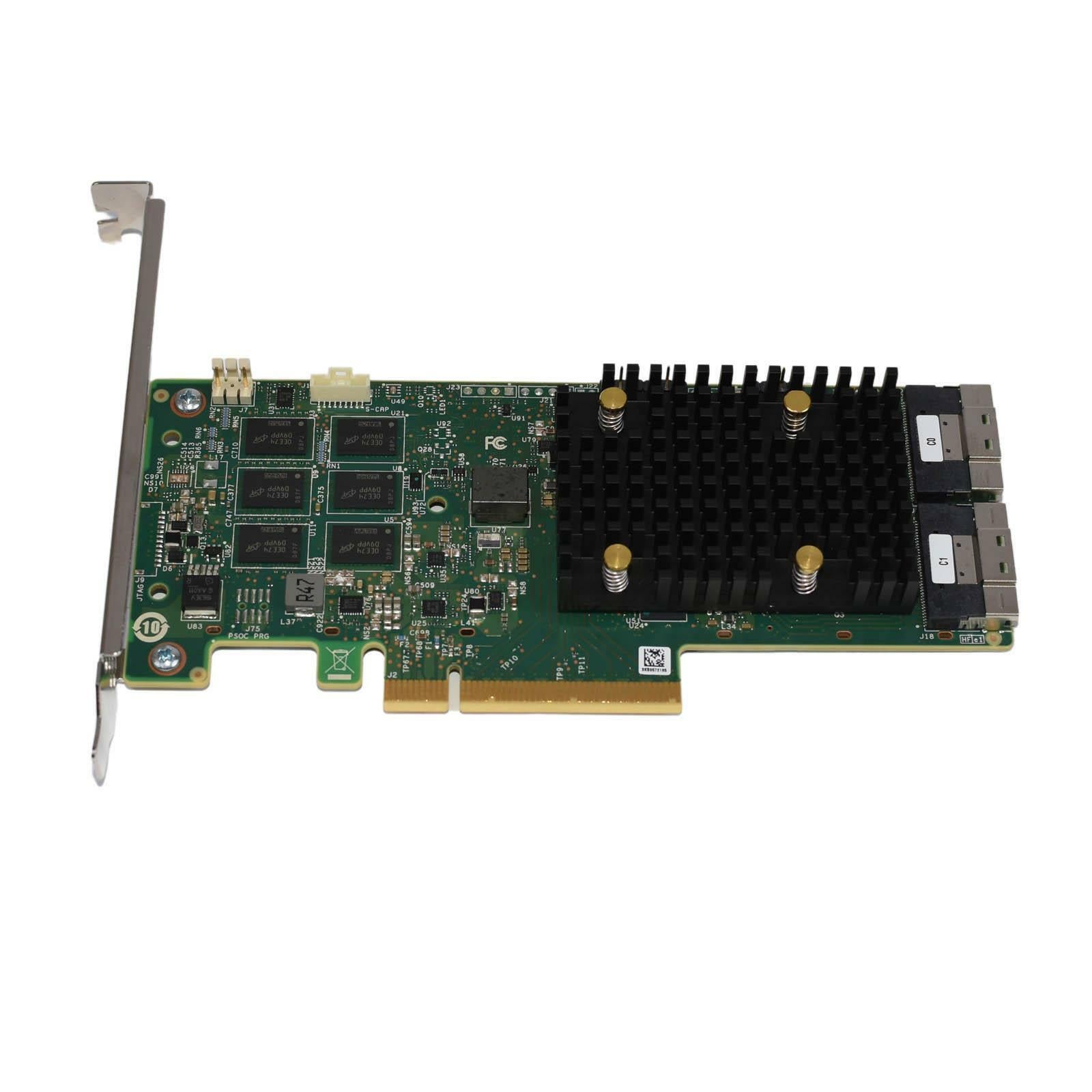

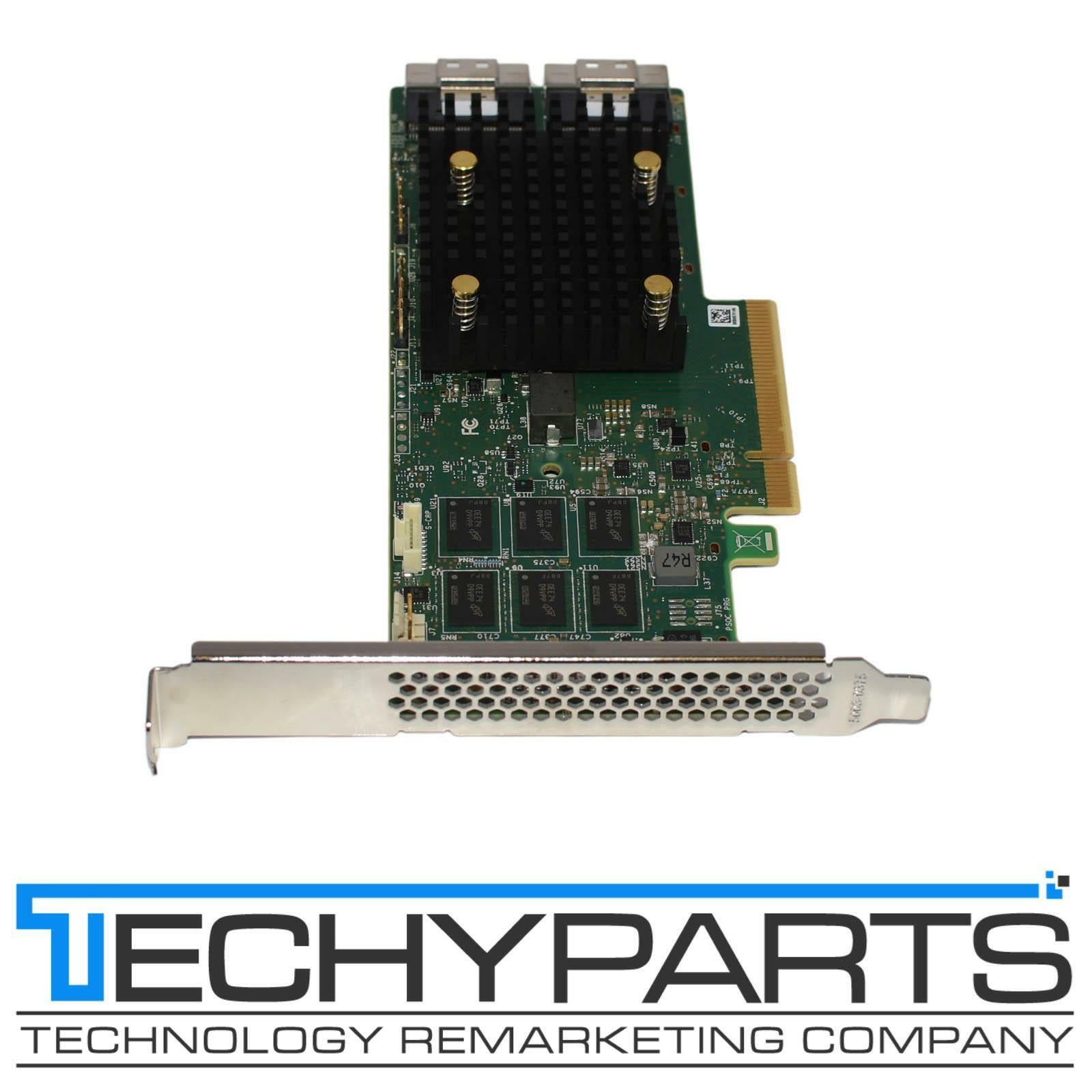

Broadcom MegaRAID 9560-16i 12G SAS/SATA/NVMe 8GB PCIe x8 RAID Card 05-50077-00
94901Broadcom MegaRAID 9560-16i 12G SAS/SATA/NVMe 8GB PCIe x8 RAID Card 05-50077-00
Broadcom MegaRAID 9560-16i 16-port 12G SAS/SATA 8GB Cache NVME Tri-Mode PCI-E 4.0 x16 RAID Adapter 05-50077-00
BROADCOM P/N: 05-50077-00, 03-50077-00003
Mounting bracket: Full height and Low profile SFF mounting brackets included.
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working.

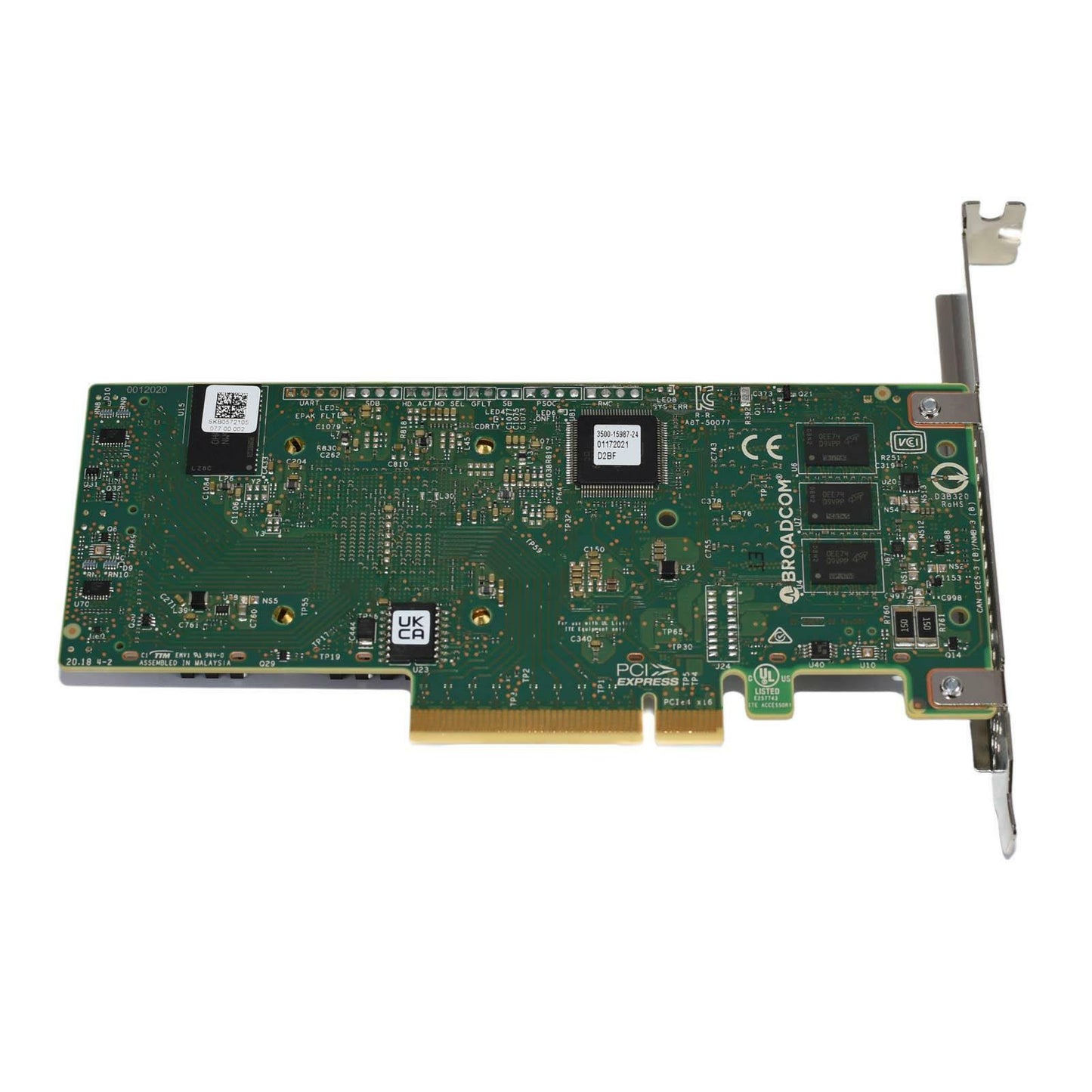

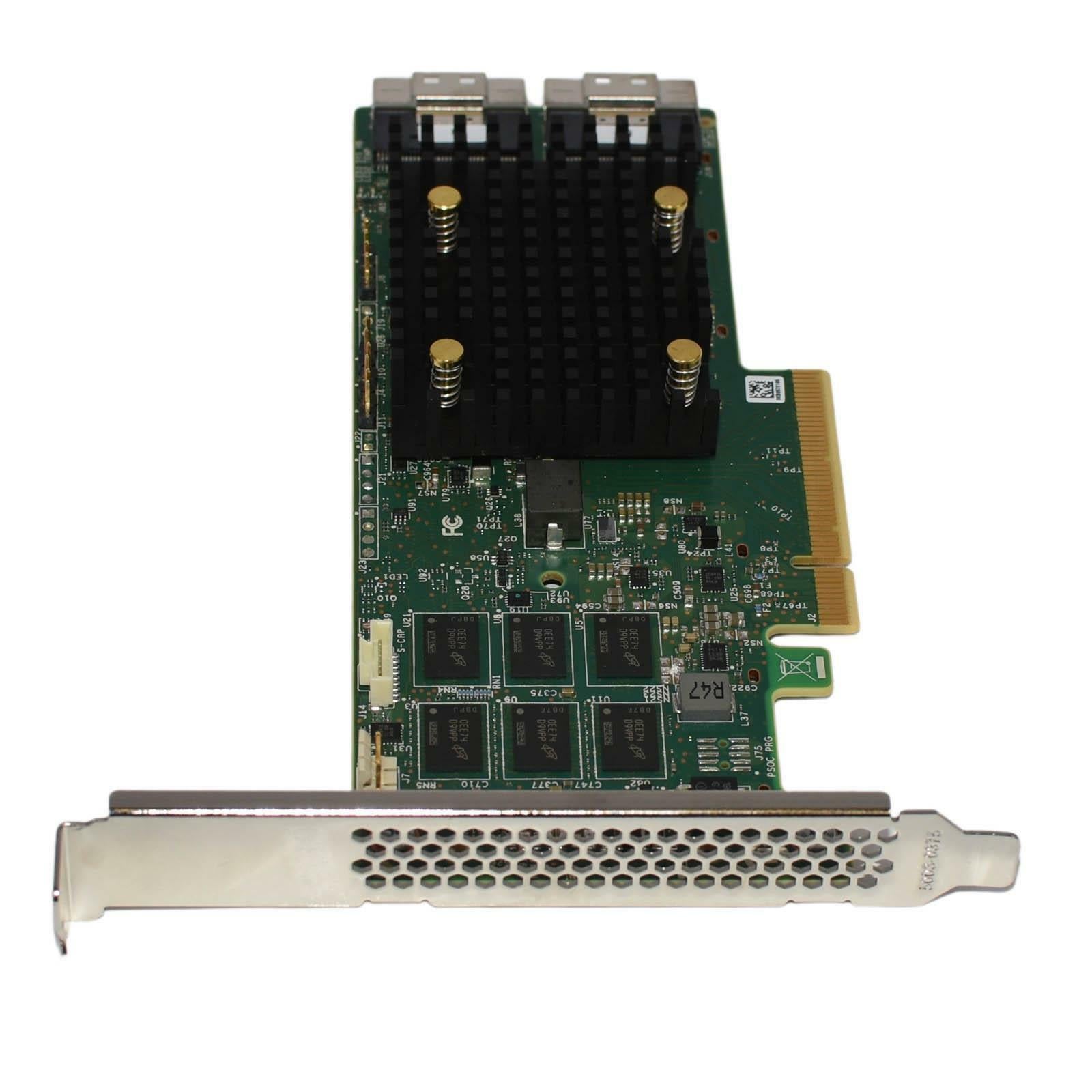

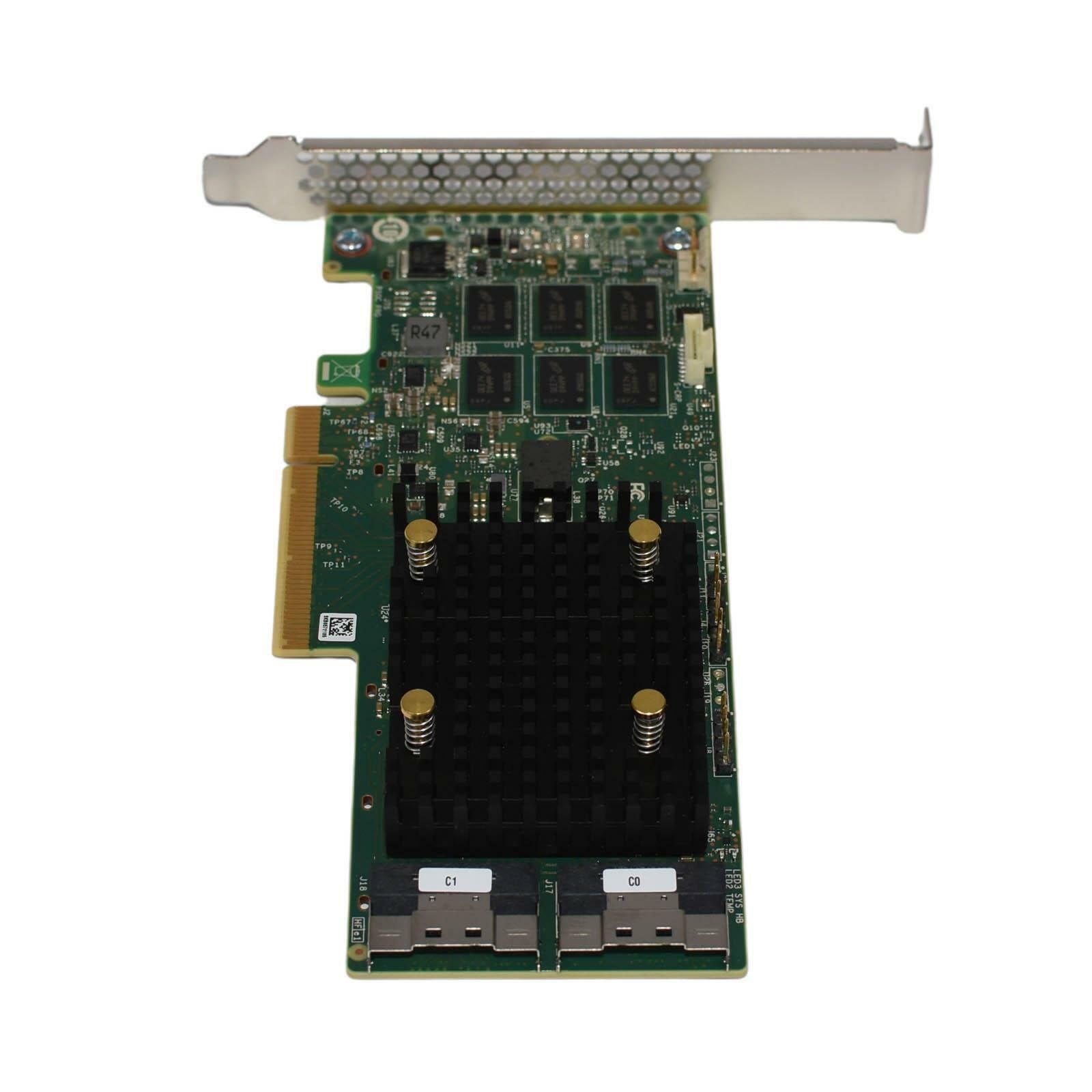

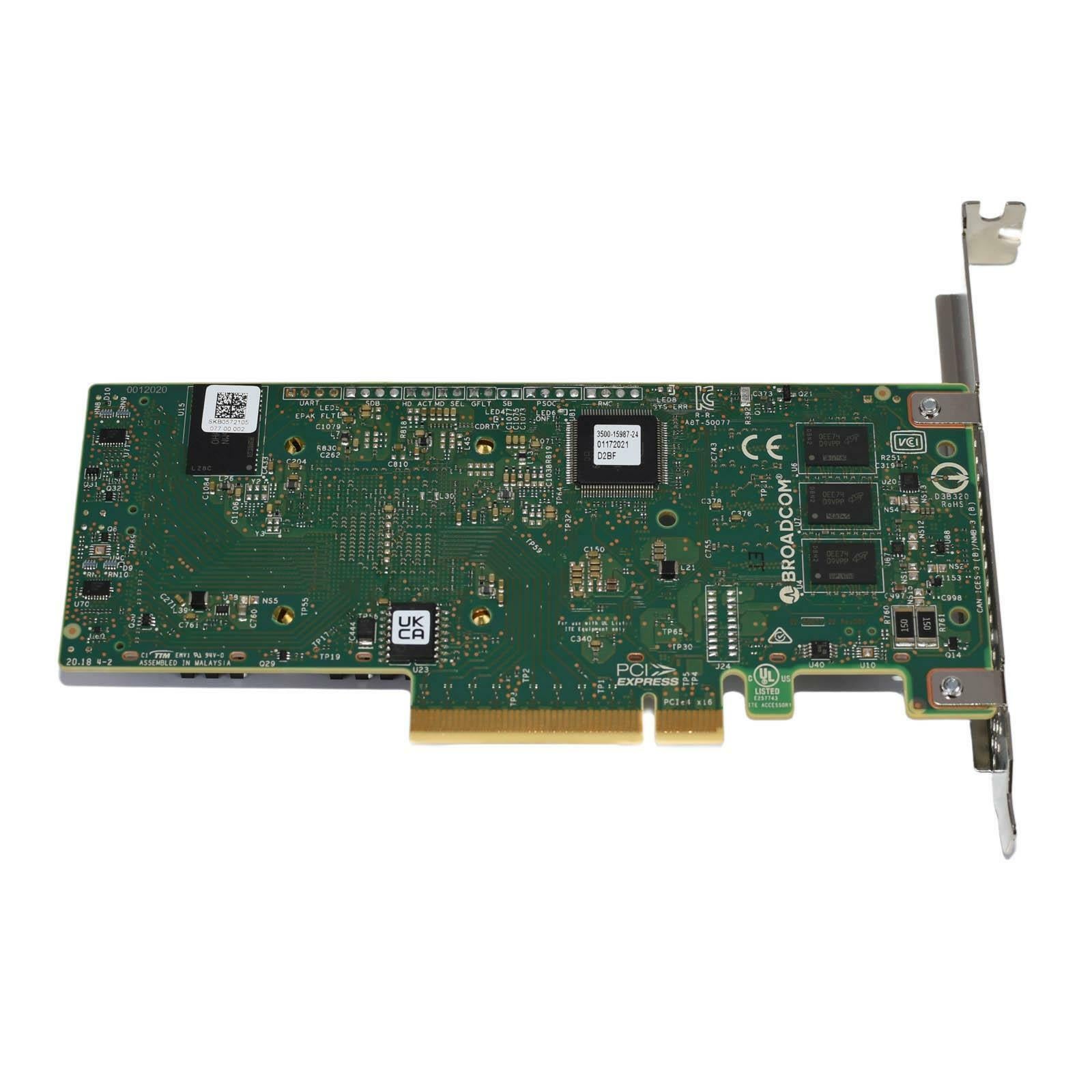

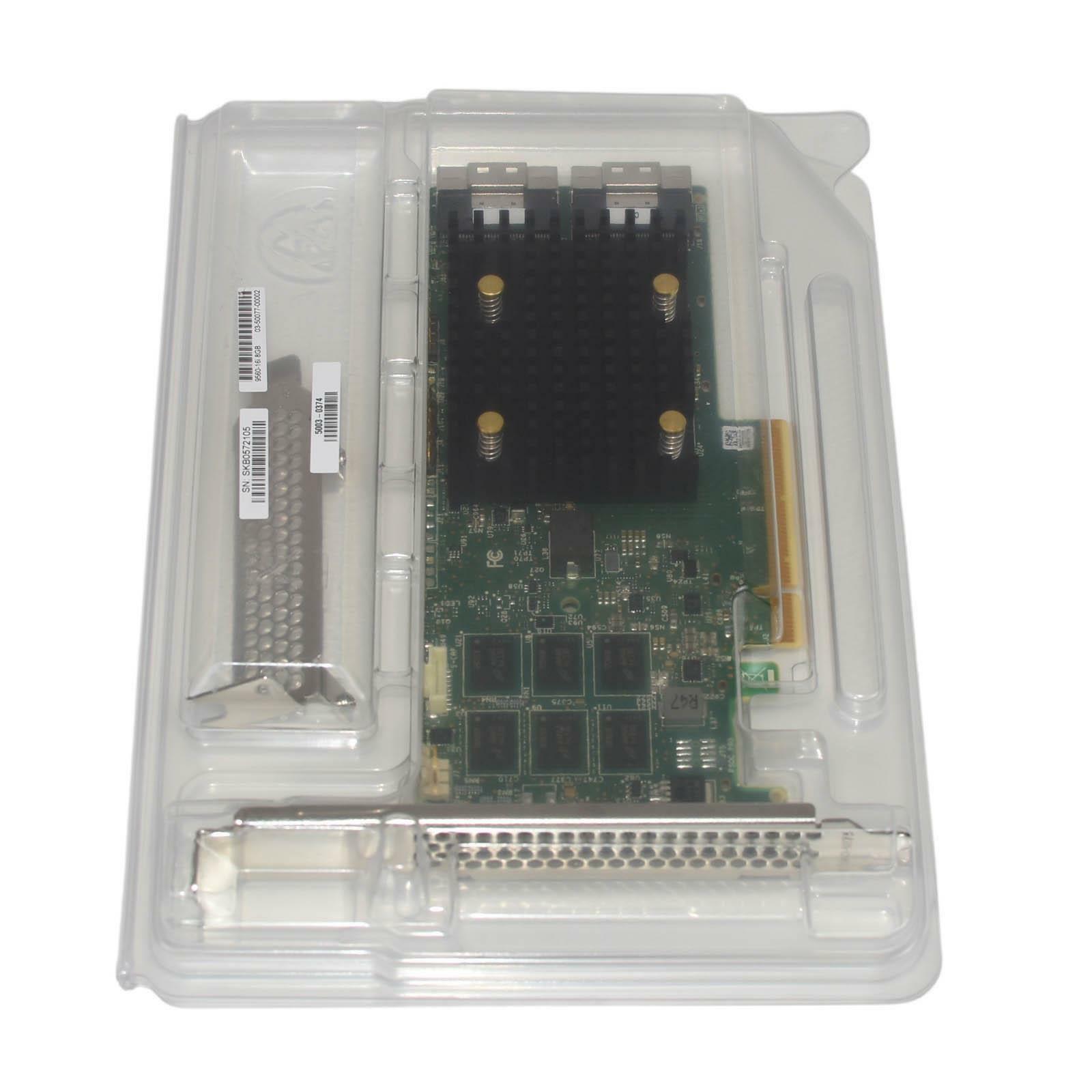

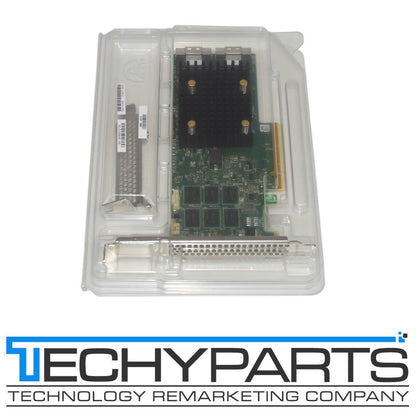

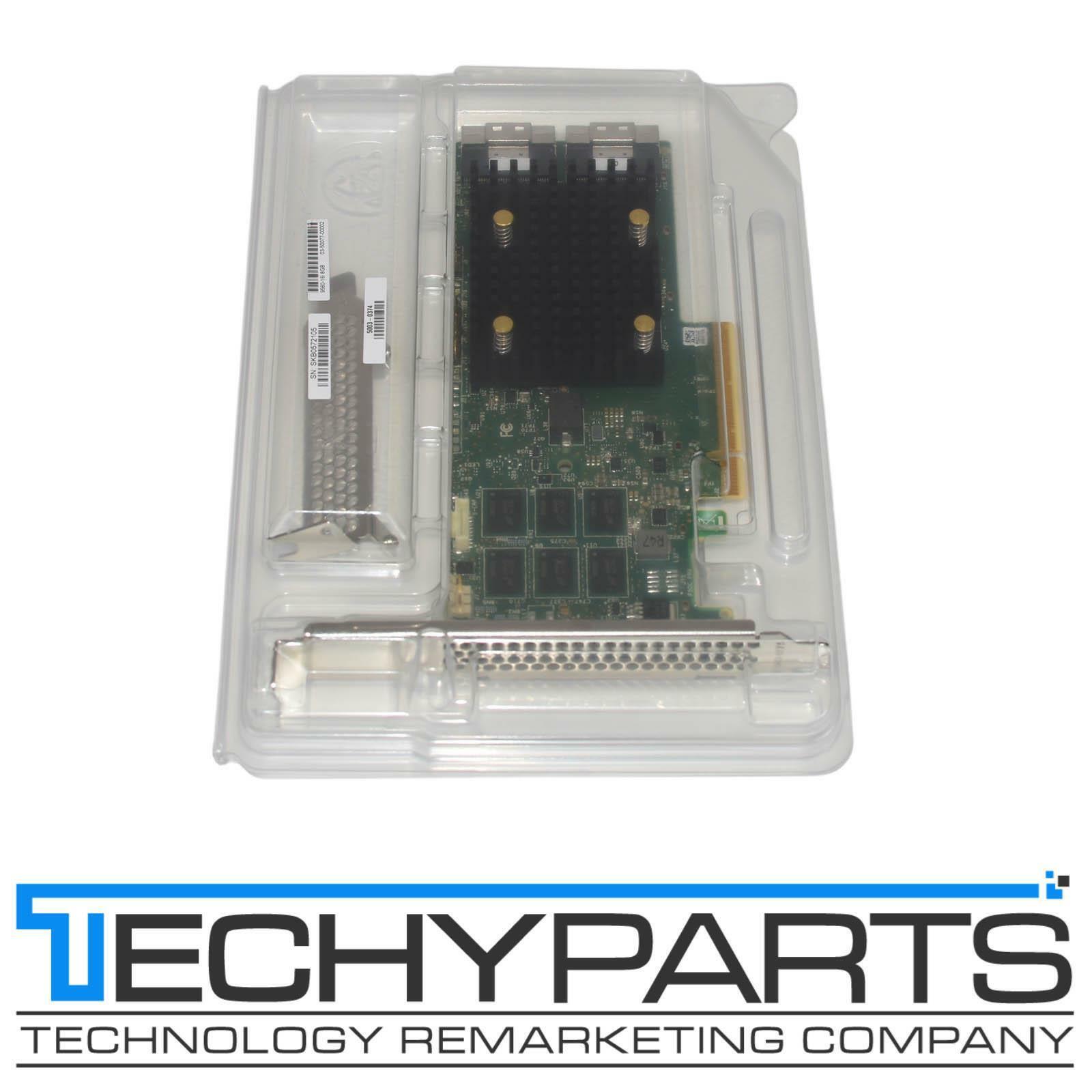

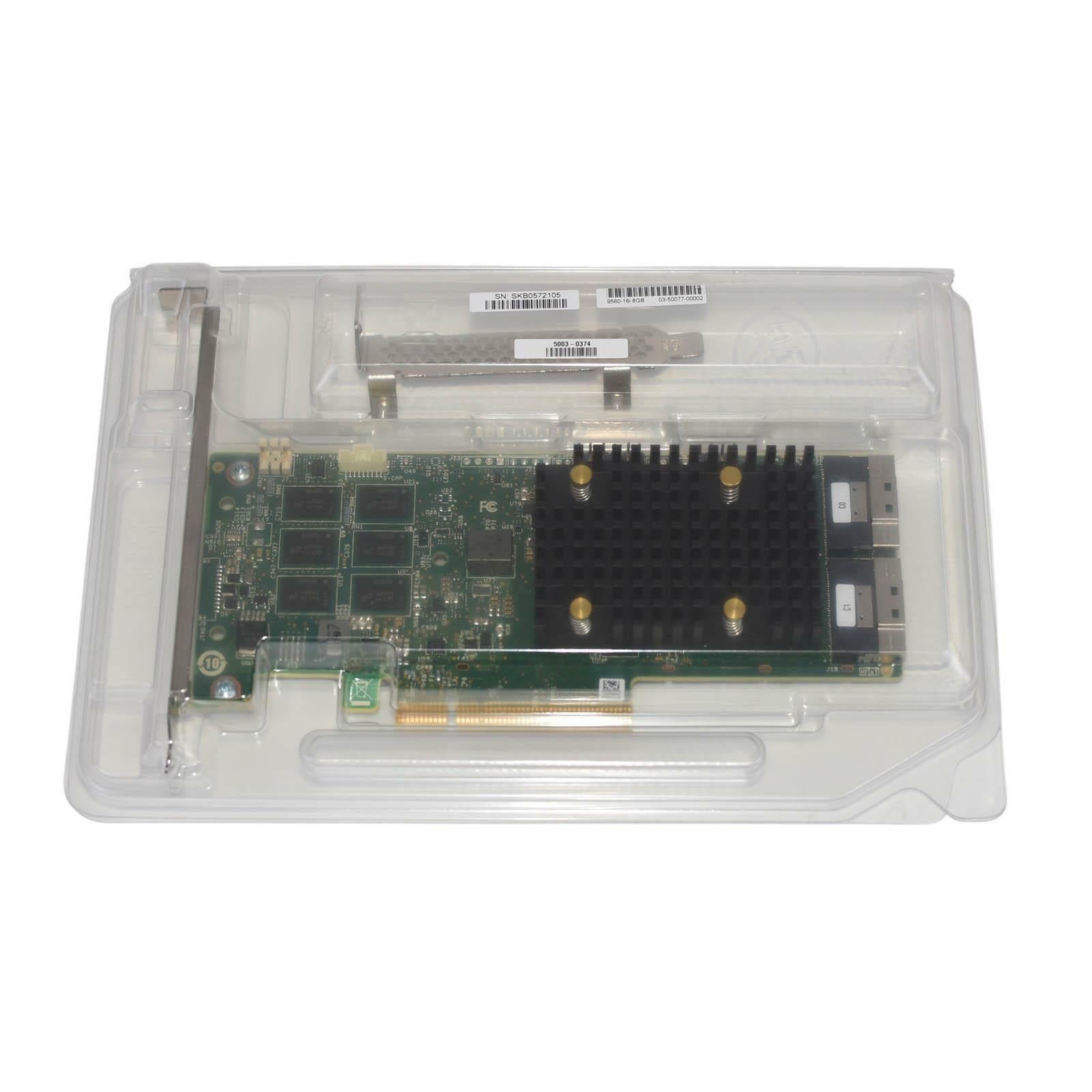

Important Note: The card packaging (plastic clamshell) will not have the part number or serial number printed on it. The actual card is clearly labeled and you will receive the exact item shown in the photos.
30-Day Warranty!
Manufacturer's description and specifications:
PCIe 4.0 RAID controller increases performance and maximizes design flexibility with Tri-Mode connectivity and NVMe devices.
The MegaRAID 9500 series is the industrys first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-16i adapter, based on the SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.
The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for todays ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance and flexibility out of U.3 backplanes:
- SFF-TA-10001 Specification (U.3), which defines a common bay type for SAS, SATA and NVMe
- Universal Backplane Management (UBM), which defines a common backplane control and management framework
With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.
Key Features Include:
- Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
- Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Form-factor friendly cable exit
- Support critical, high-bandwidth applications with PCIe 4.0 connectivity
- Balance protection and performance for critical applications with RAID 0, 00, 1, 5, 6, 10, 50 and 60
- JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
- Add more protection and peace of mind with CacheVault flash cache protection
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distributor Inventory | No |
| Cache Memory | 8GB |
| Cache Protection | CacheVault CVPM05 (optional - not included) |
| Data Transfer Rates | 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant |
| Devices Supported | SAS/SATA: 240, NVMe: 32 |
| Generation | 12 Gb/s |
| Host Bus Type | x8 lane PCI Express 4.0 |
| I/O Processor / SAS Controller | SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC) |
| Internal Connectors | 2 x8 SFF-8654 (SlimSAS) |
| Internal Ports | 16 |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| MTBF | >3,000,000 hours at 40 C |
| Operating TemperatureC | 0C to 55C |
| OS | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Physical Dimensions | Low profile 6.127 x 2.712 |
| RAID Levels | 0, 00, 1, 10, 5, 6, 60 |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
