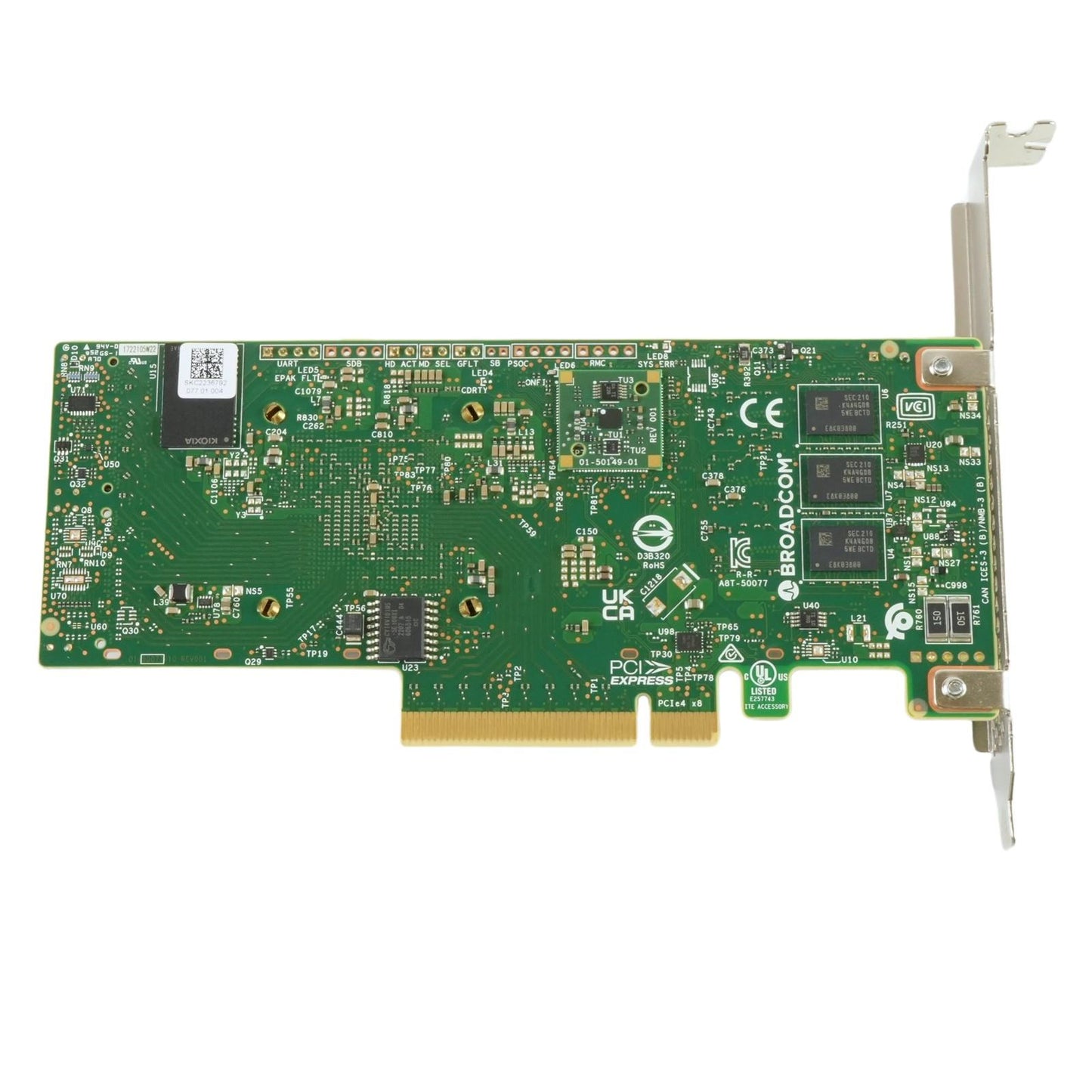

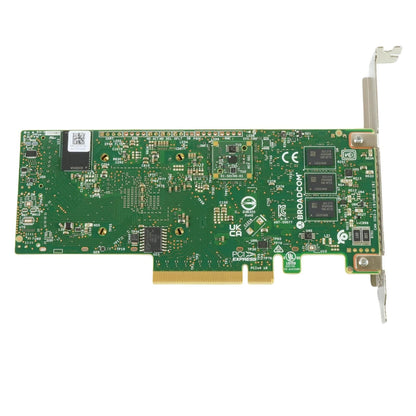

Broadcom MegaRAID 9560-8i 8-port 12G SAS/SATA 4GB NVMe Tri-Mode PCIe 4.0 x8 RAID Adapter 05-50077-01

BROADCOM P/N: 05-50077-01

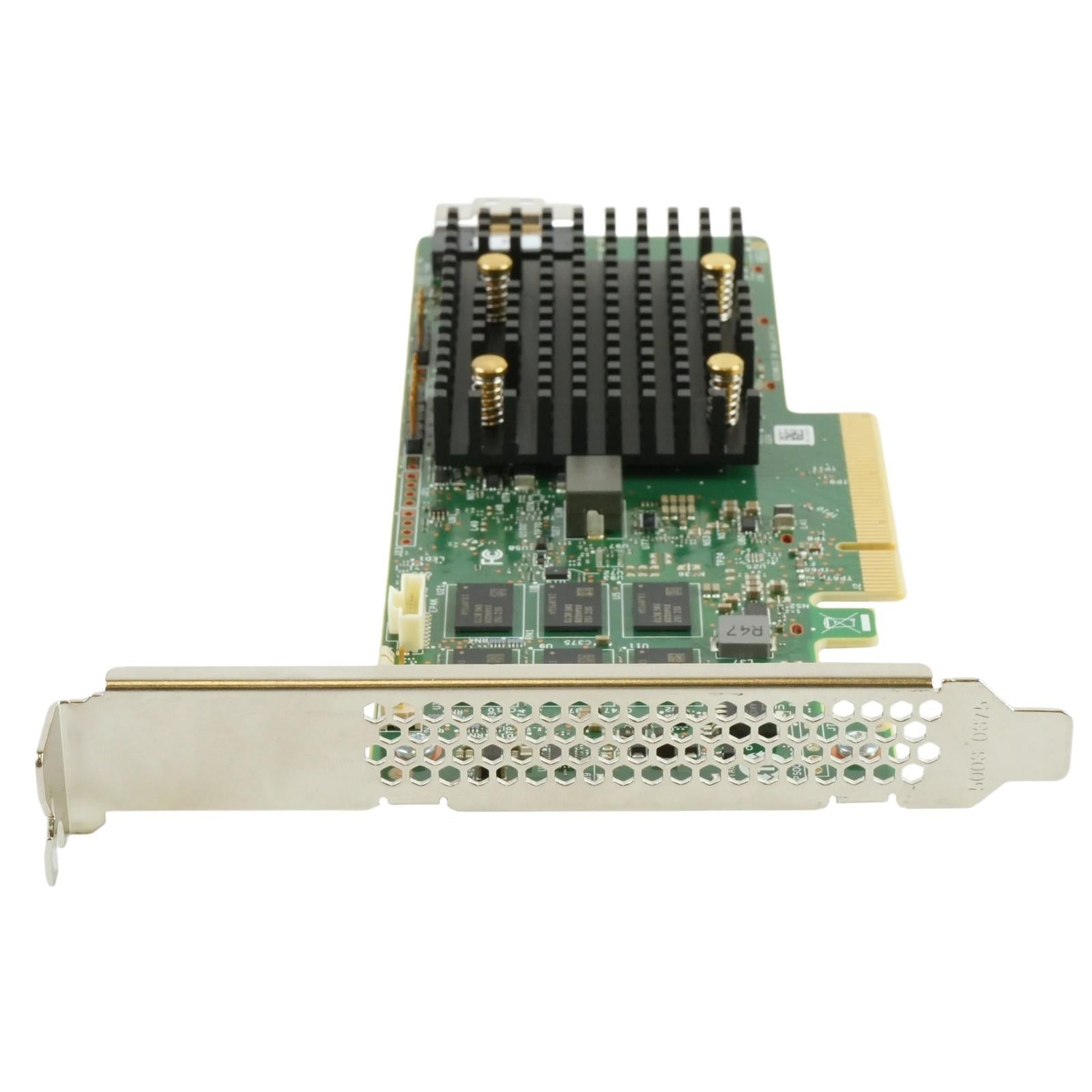

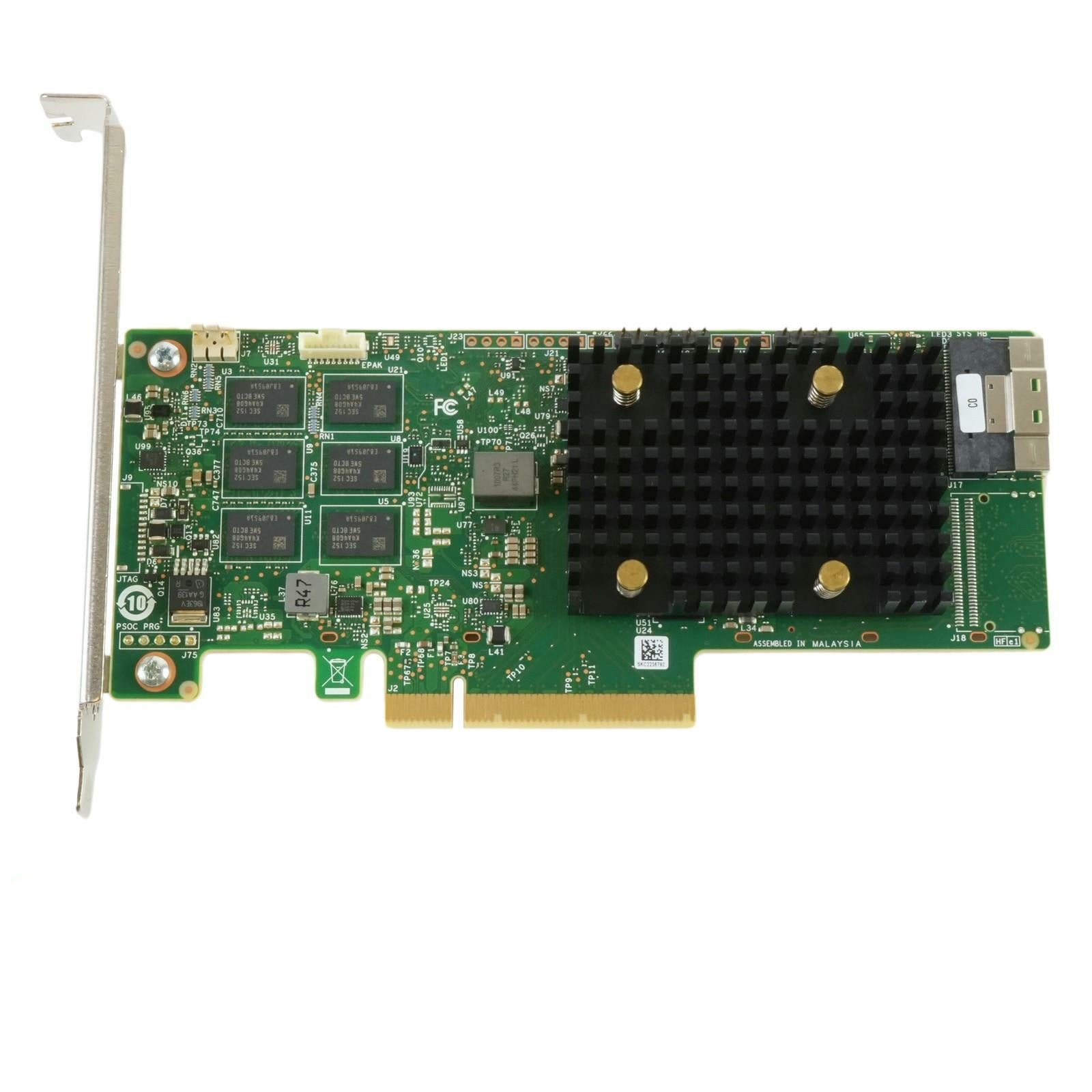

Mounting bracket: Full Height

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with Full Height mounting bracket only.

30-Day Warranty!

Manufacturer's description and specifications:

The MegaRAID 9500 series is the industrys first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, based on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.

The 9560-8i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for todays ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-8i is instrumental in getting the most performance and flexibility out of U.3 backplanes:

  • SFF-TA-10001 Specification (U.3), which defines a common bay type for SAS, SATA and NVMe
  • Universal Backplane Management (UBM), which defines a common backplane control and management framework

With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.

Key Features Include:

  • Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
  • Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
  • Form-factor friendly cable exit
  • Support critical, high-bandwidth applications with PCIe 4.0 connectivity
  • Balance protection and performance for critical applications with RAID 0, 00, 1, 5, 6, 10, 50 and 60
  • JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
  • Add more protection and peace of mind with CacheVault flash cache protection
Specification Value
Cache Memory 4GB
Cache Protection CacheVault CVPM05 (optional - not included)
Data Transfer Rates 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported SAS/SATA: 240, NVMe: 32
Generation 12 Gb/s
Host Bus Type x8 lane PCI Express 4.0

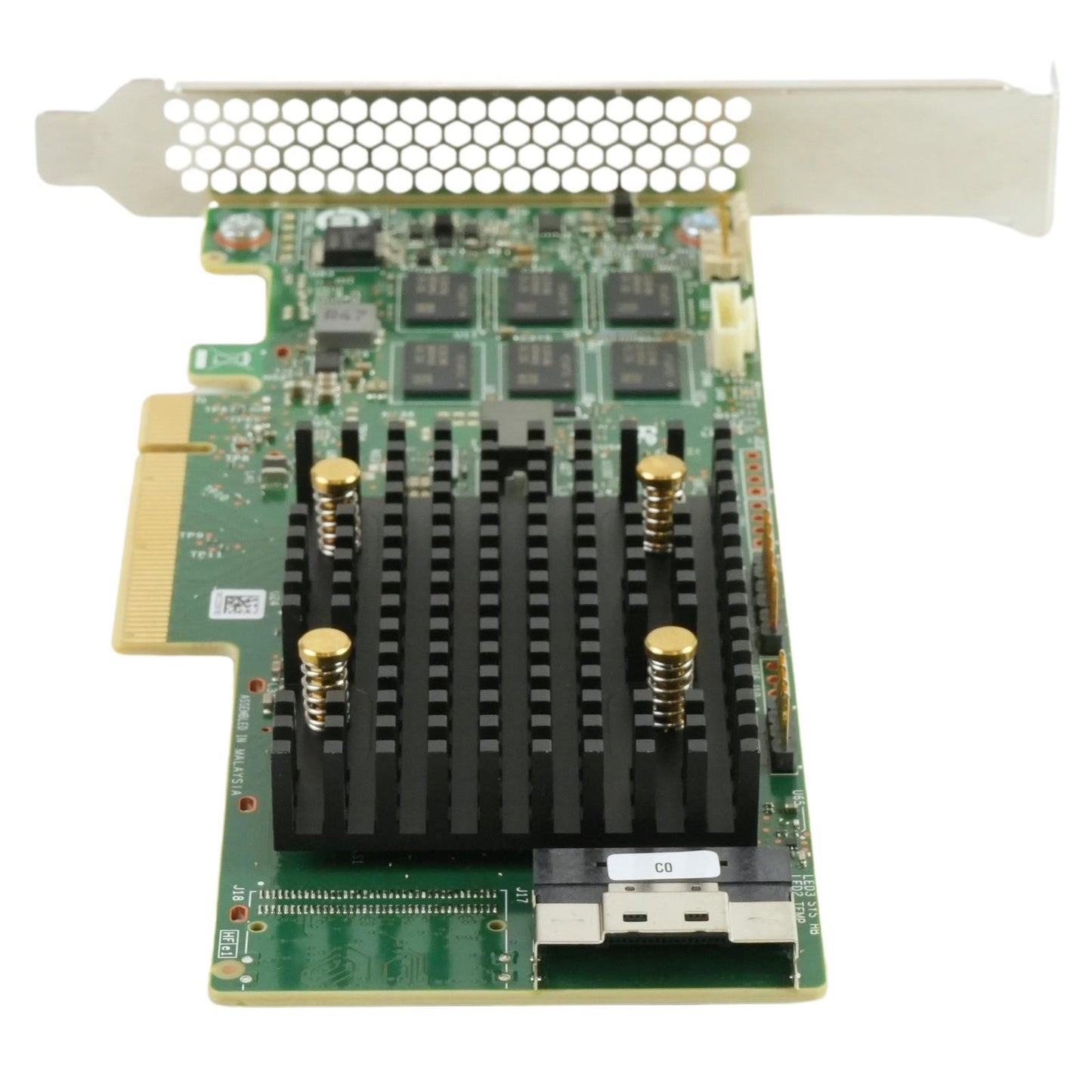

Internal Connectors 1 x8 SFF-8654 (SlimSAS)
Internal Ports 8
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF >3,000,000 hours at 40 C
Operating TemperatureC 0C to 55C
OS Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
RAID Levels 0, 00, 1, 10, 5, 6, 60
Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
