Broadcom MegaRAID 9580-8i8e 16-port 12G SAS/SATA/NVMe 8GB PCIe RAID 05-50076-00
94938Broadcom MegaRAID 9580-8i8e 16-port 12G SAS/SATA/NVMe 8GB PCIe RAID 05-50076-00
Broadcom MegaRAID 9580-8i8e 16-port 12G SAS/SATA/NVMe 8GB Tri-Mode PCI-E 4.0 x16 RAID Adapter 05-50076-00
Manufacturer: Broadcom
Broadcom Model: MegaRAID 9580-8i8e
Broadcom Part Number: 05-50076-00
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working.
What's Included:

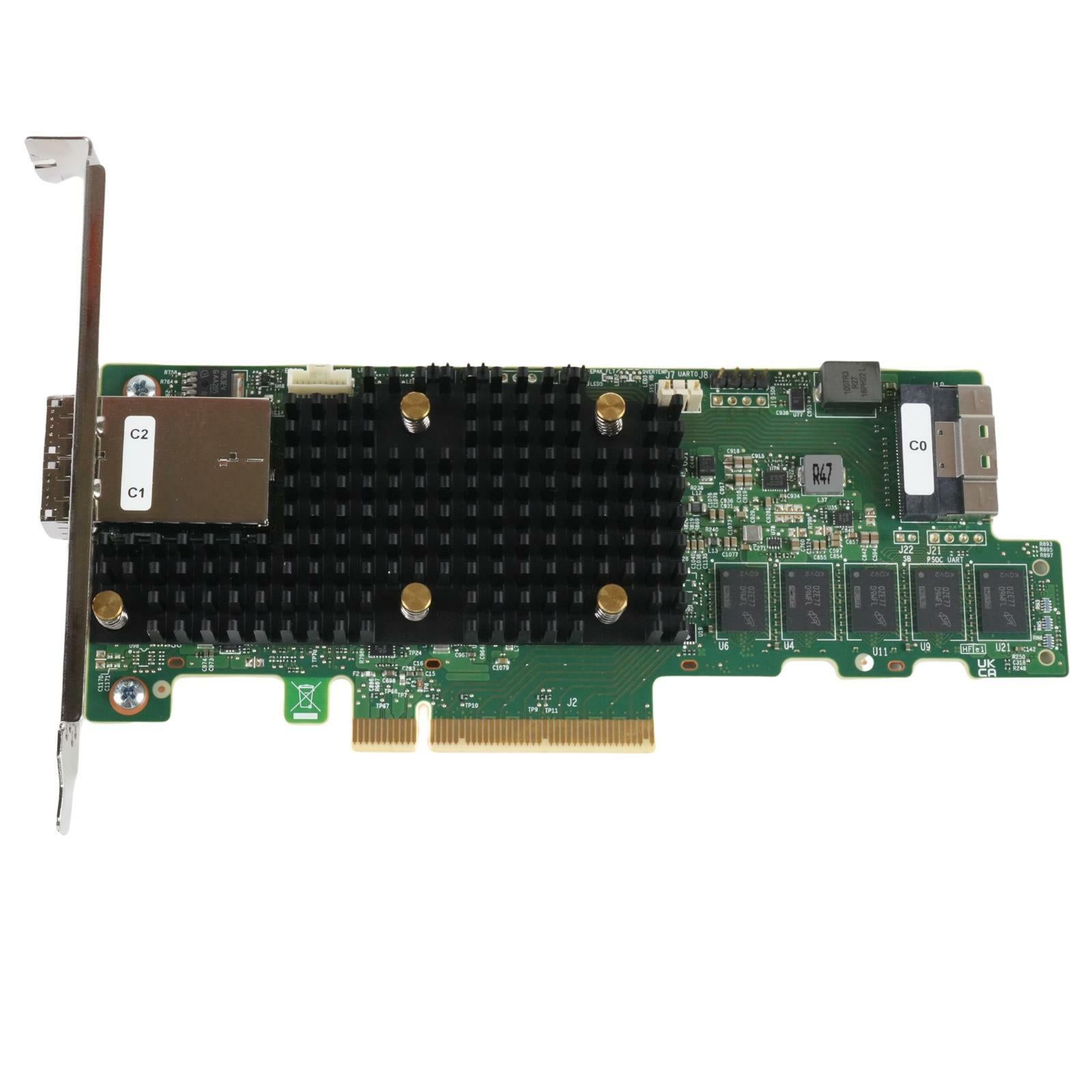

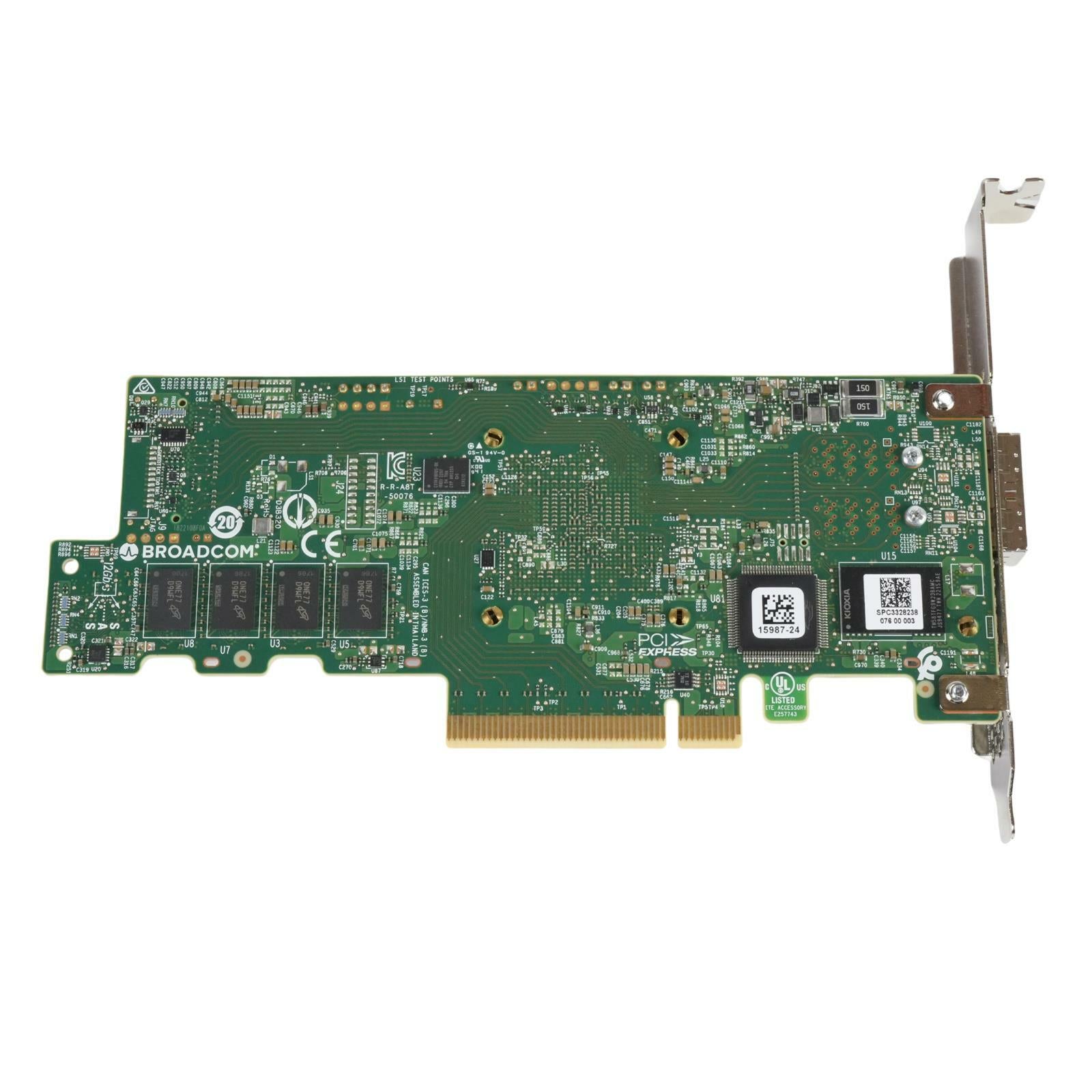

Broadcom MegaRAID 9580-8i8e Tri-Mode RAID Controller 05-50076-00 with Full Height mounting bracket only
Note: Cables, software, CacheVault CVPM05 module, or additional accessories are NOT included.
30-Day Warranty Included!
Perfect for high-performance servers, storage arrays, and enterprise environments requiring reliable RAID protection with support for SAS, SATA, and NVMe drives. Excellent choice for TrueNAS, VMware, Windows Server, and large-scale storage solutions.
This is a genuine Broadcom MegaRAID 9580-8i8e 16-port Tri-Mode RAID adapter. It delivers powerful 12Gb/s performance with 8 internal and 8 external ports in a single PCIe 4.0 x16 card, making it ideal for high-capacity, high-reliability storage servers.
Key Specifications:
Ports: 8x Internal + 8x External (16 total)
Interface: PCIe 4.0 x16
Data Rate: 12Gb/s per port (SAS/SATA/NVMe Tri-Mode)
Cache: 8GB DDR4
Form Factor: Full Height PCIe Card
RAID Levels: 0, 1, 5, 6, 10, 50, 60 + JBOD
Manufacturer Specifications:
| Specification | Value |
|---|---|
| Cache Memory | 8GB |
| Cache Protection | CacheVault CVPM05 (not included) |
| Data Transfer Rates | 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant |
| Devices Supported | SAS/SATA: 240, NVMe: 32 |

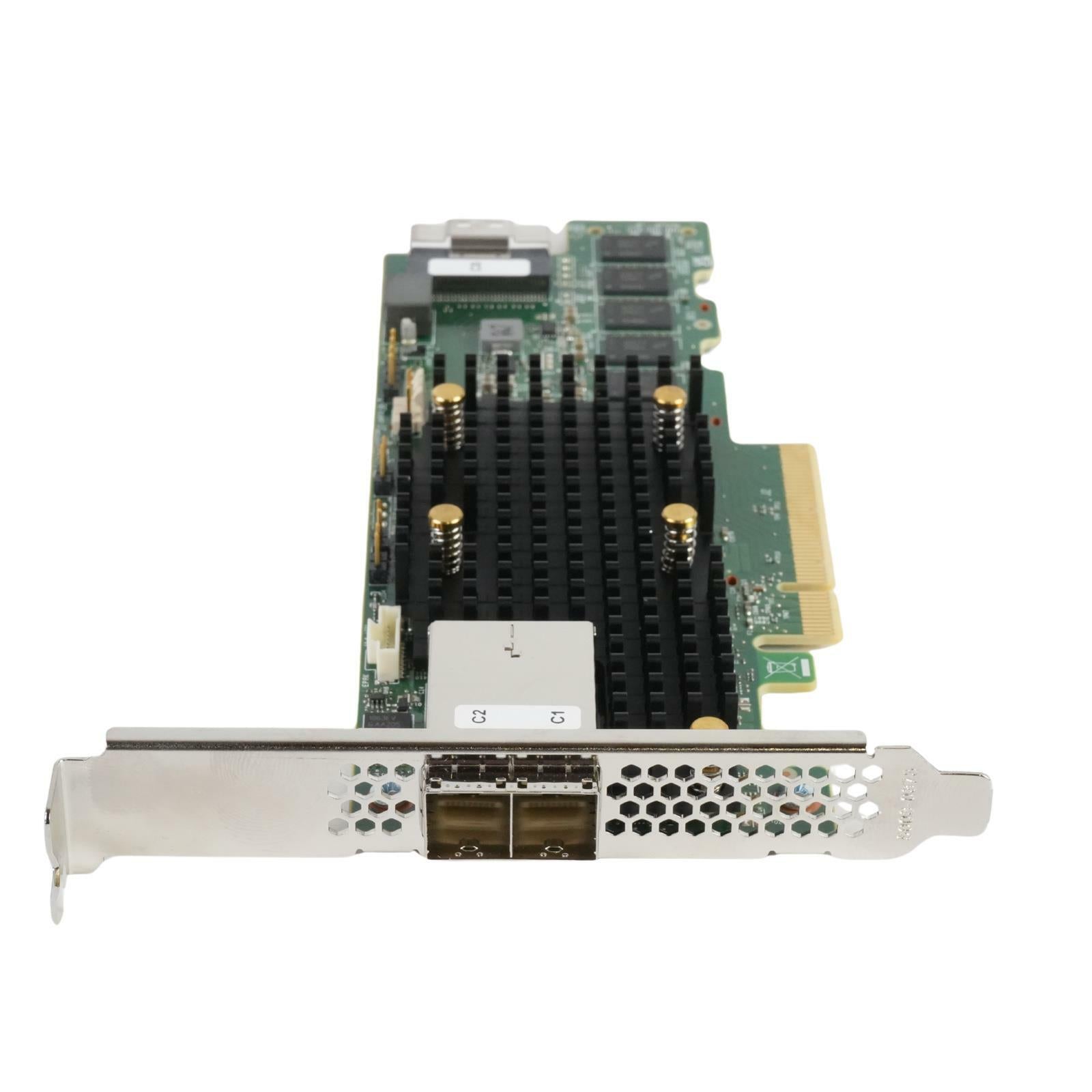

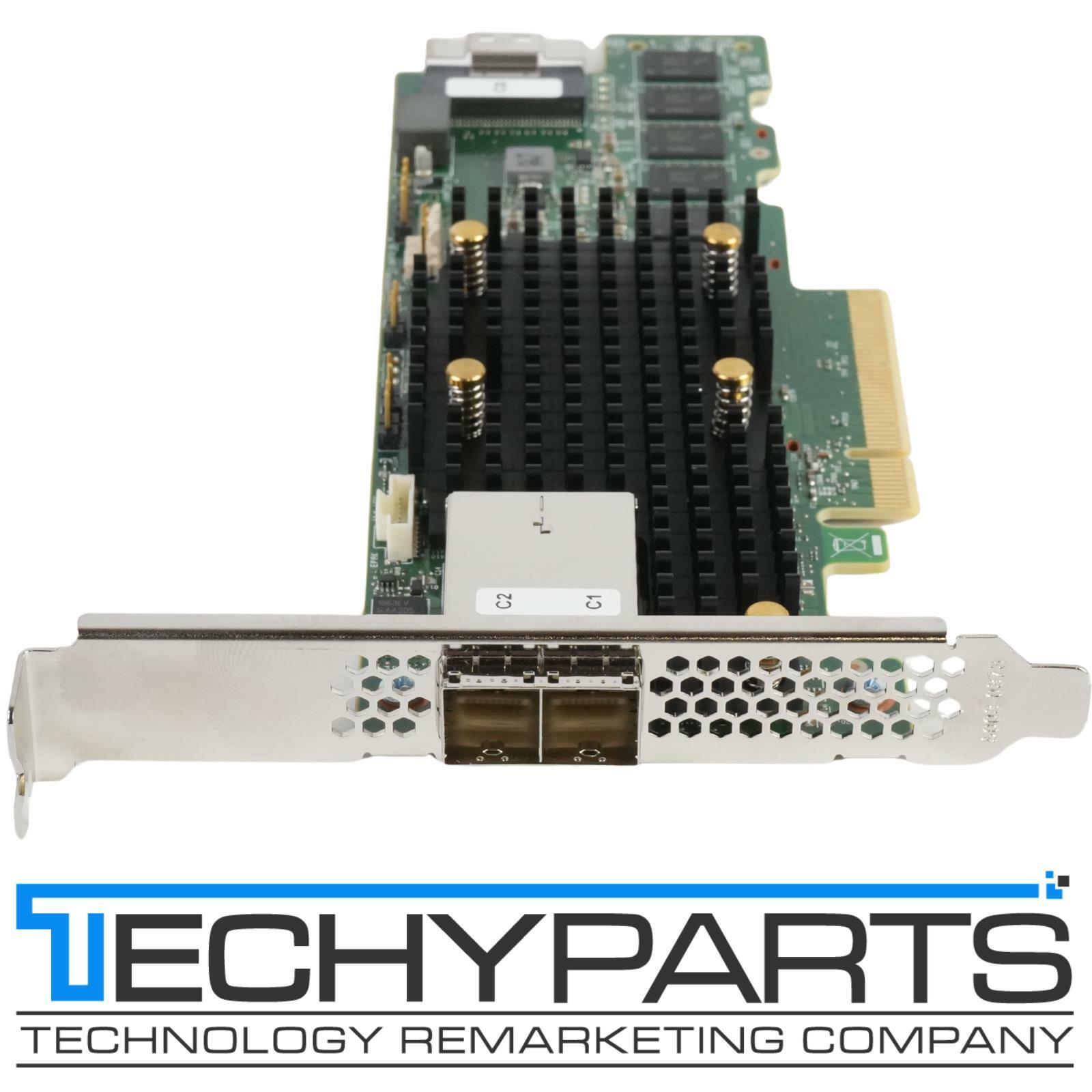

| External Connectors | 2 x4 SFF-8644 |
| External Ports | 8 |
| Generation | 12 Gb/s |
| Host Bus Type | x8 lane PCI Express 4.0 |
| I/O Processor / SAS Controller | SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC) |
| Internal Connectors | 1 x8 SFF-8654 (SlimSAS) |
| Internal Ports | 8 |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| MTBF | >3,000,000 hours at 40 C |
| Operating TemperatureC | 0C to 55C |
| OS | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Physical Dimensions | 167.52 (+/-0.13) mm x 68.77 (+/-0.13) mm |
| RAID Levels | 0, 00, 1, 10, 5, 6, 60 |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
