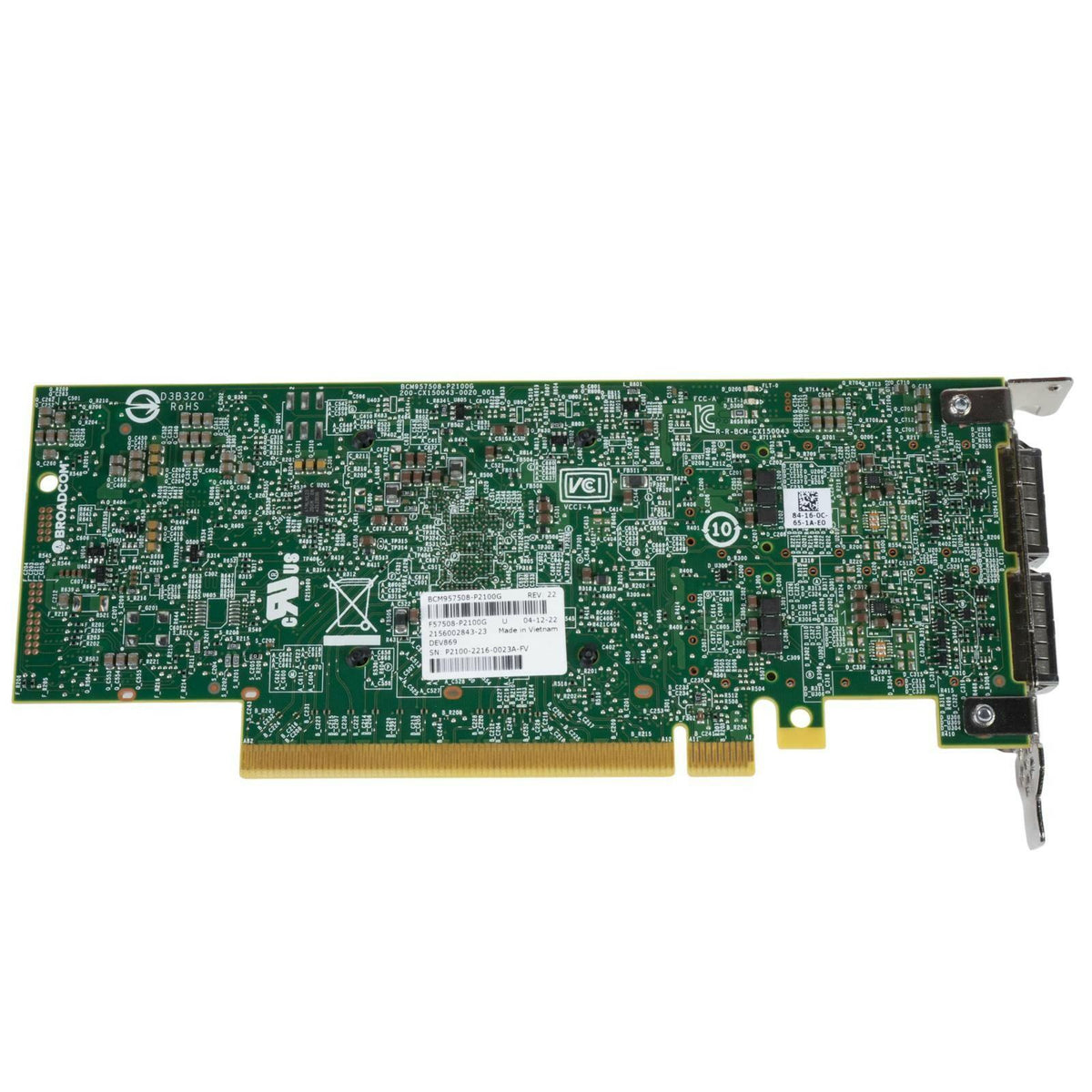

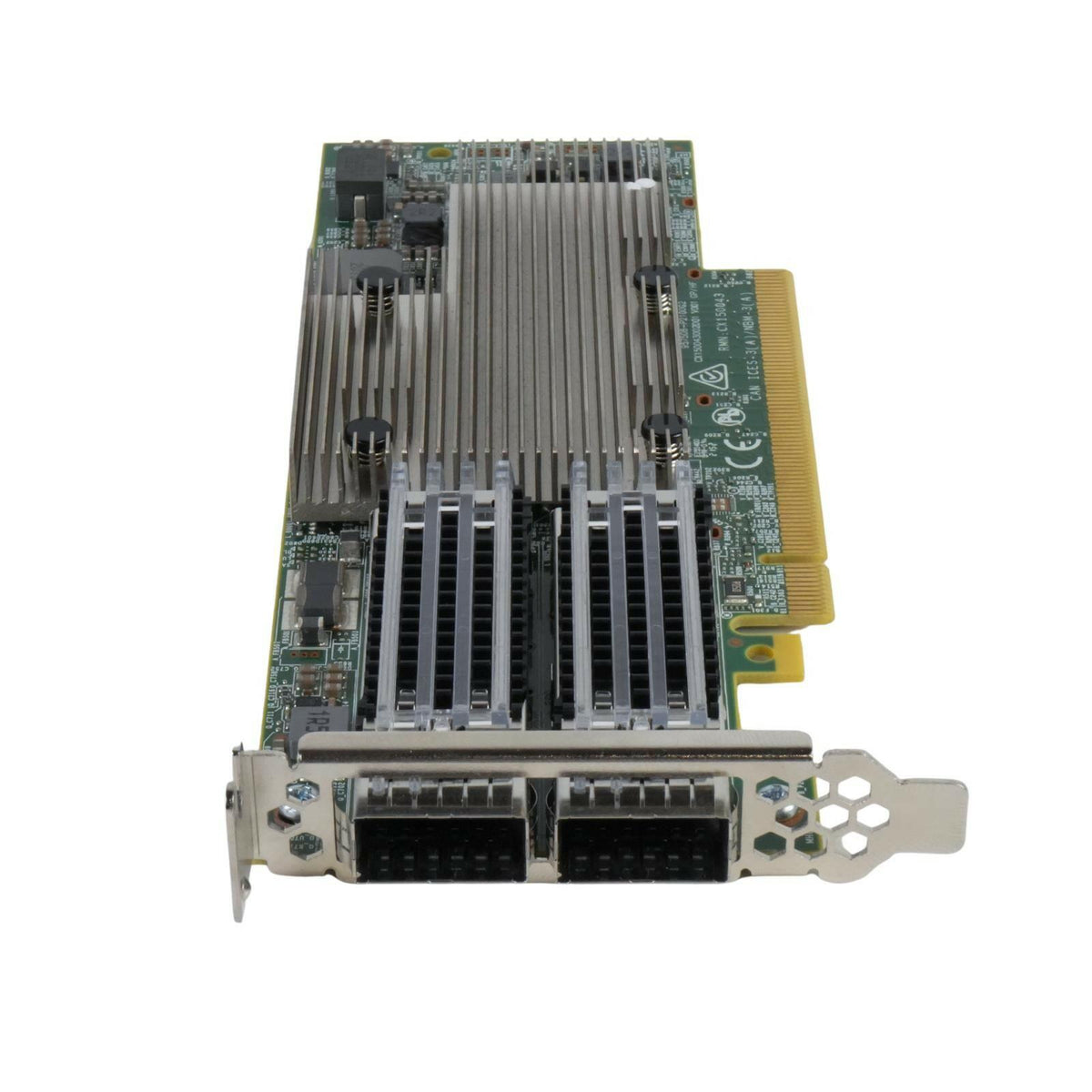

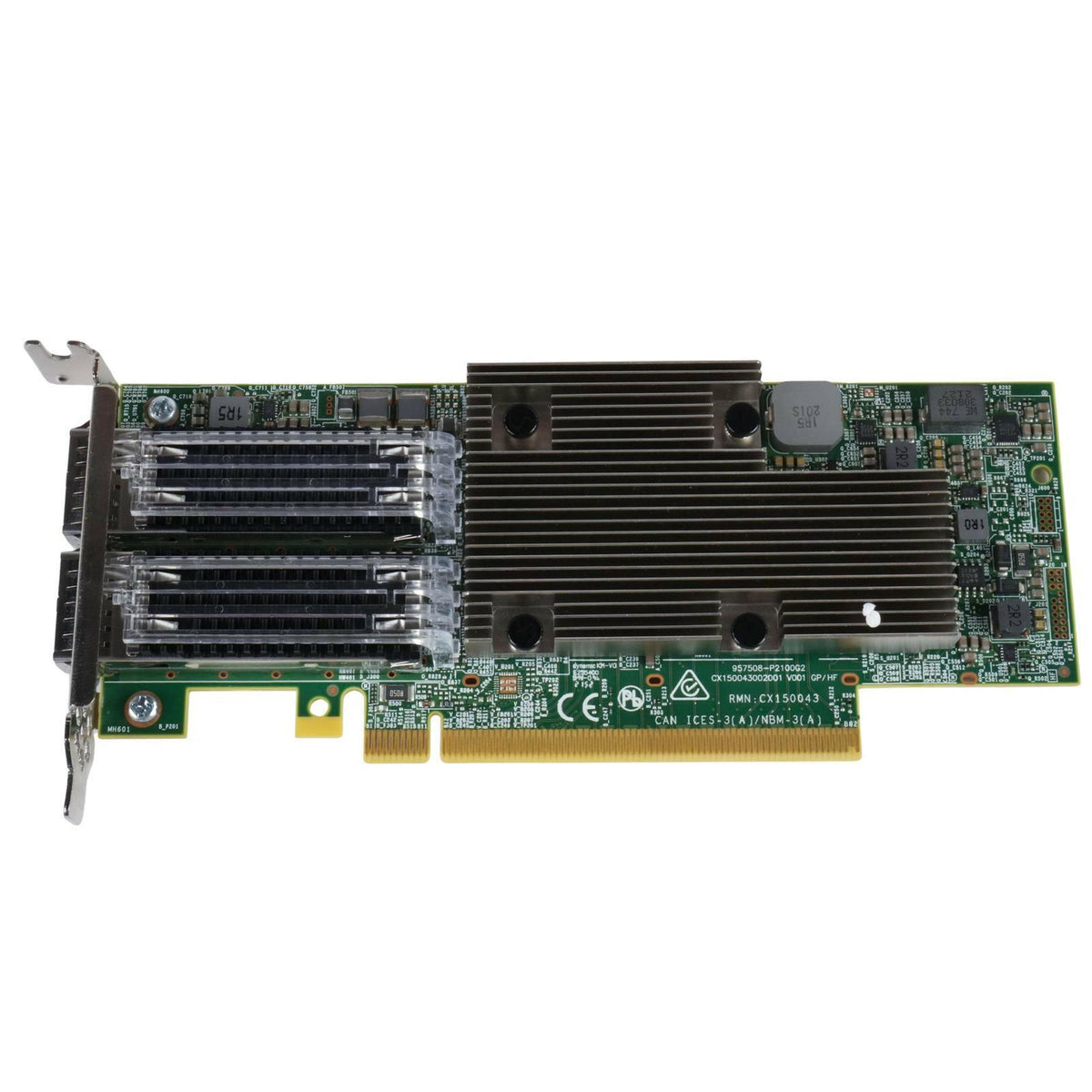

Broadcom P2100G BCM957508-P2100G Dual Port 100GbE QSFP56 PCIe 4.0 x16 NIC LP
95428Broadcom P2100G BCM957508-P2100G Dual Port 100GbE QSFP56 PCIe 4.0 x16 NIC LP
Broadcom P2100G BCM957508-P2100G Dual Port 100GbE QSFP56 PCIe 4.0 x16 NIC LP
Manufacturer: Broadcom
Model: NetXtreme-E BCM957508-P2100G
Part Number: BCM957508-P2100G

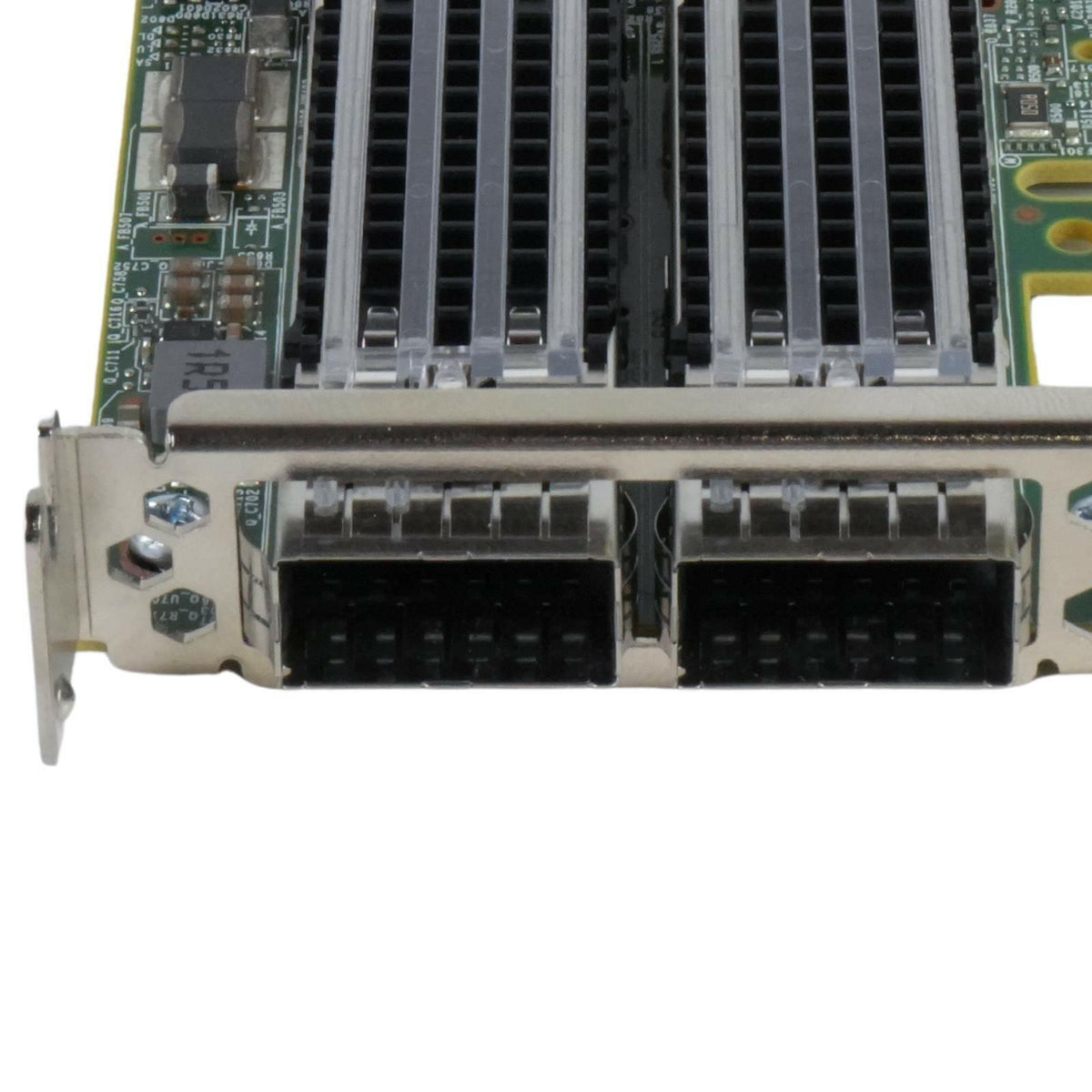

This is a genuine Broadcom BCM957508-P2100G dual-port 100GbE adapter. The BCM57508 controller supports RoCE, SR-IOV, and tunnel offloads for data center, storage, and HPC Ethernet fabrics. It comes with a third-party low profile bracket. The bracket fits the card, but the LED light pipes stick out near QSFP56 ports.
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working. Third-party low profile bracket only.
30-Day Warranty Included!
Dual 100GbE QSFP56 adapter with a low profile bracket for short-slot servers.
Manufacturer's description and specifications:
The Broadcom BCM957508-P2100G is a dual-port 100 Gb/s PCI Express 4.0 x16 network interface card. It uses the BCM57508 200GbE MAC controller and supports QSFP56, QSFP28, and QSFP+ optical modules and copper direct-attach cables.
Key Specifications:
Ports: 2x QSFP56
Supported Speeds: 100 / 50 / 40 / 25 / 10 GbE
Host Interface: PCIe 4.0 x16
Controller: Broadcom BCM57508
RDMA: RoCEv2
SR-IOV: Yes, up to 1,000 virtual functions
Offloads: VXLAN, NVGRE, Geneve, GRE, LSO, LRO, TSO
Secure Boot: BroadSAFE
Power: about 16W with passive DAC
Form Factor: Low profile, half length
Bracket: Third-party low profile only. LED light pipes stick out near one QSFP56 port
Transceivers / Cables: Not included
