Chelsio T420-LL-CR Dual Port 10G SFP+ PCI-E Unified Wire Adapter 110-1146-40 SFF

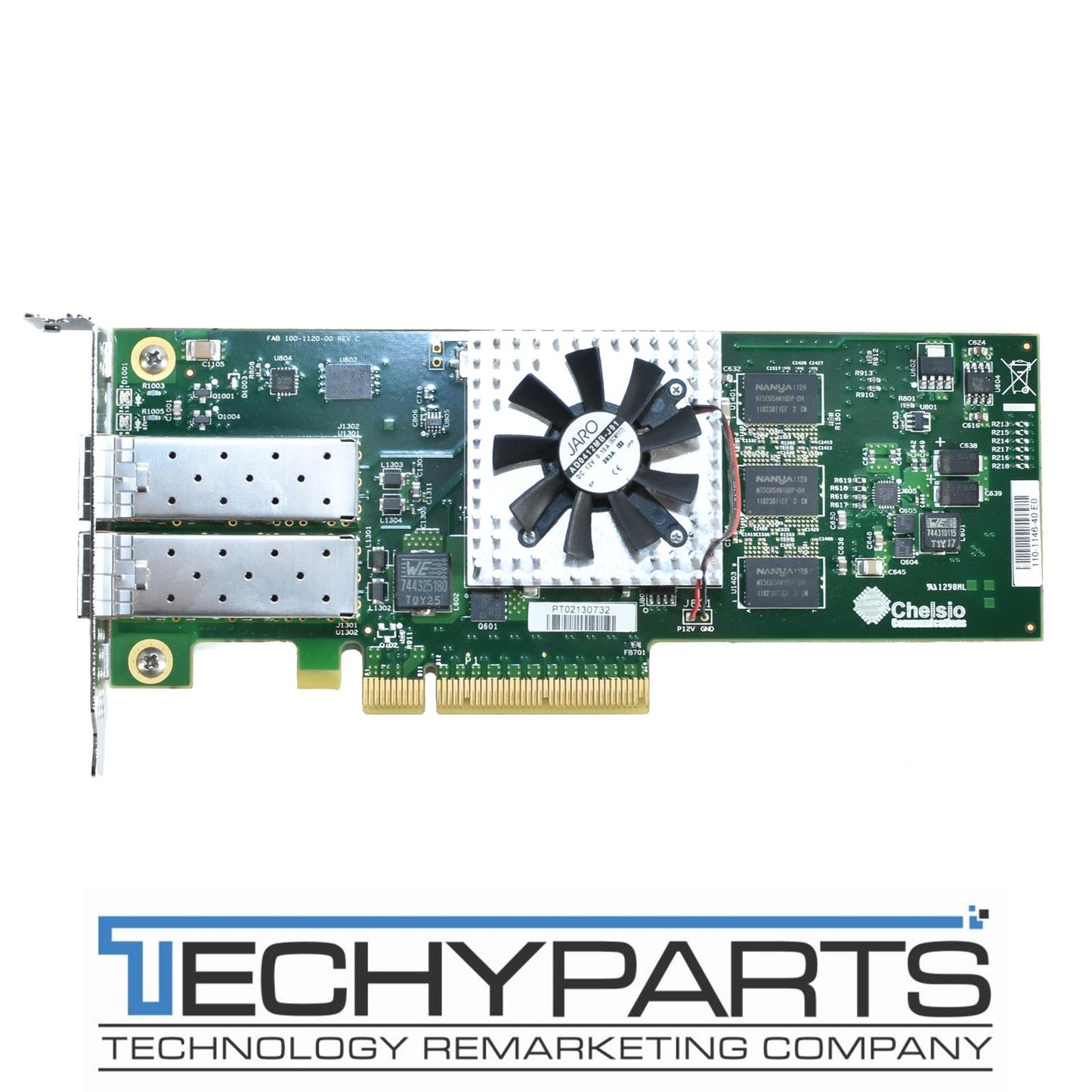

Chelsio T420-LL-CR Dual Port 10GbE SFP+ PCI-Express 2.0 x8 Unified Wire Adapter 110-1146-40 with Low Profile, Half Height SFF Mounting Bracket

CHELSIO Model P/N: T420-LL-CR

CHELSIO Assembly P/N: 110-1146-40

Tranceiver: Not included

Mounting bracket: Low Profile, Half-height SFF

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with low profile, half-height SFF mounting bracket only.

30-Day Warranty!

Manufacturer's description:

High Performance, Dual Port 10GbE Unified Wire Adapter Enables TCP, UDP, iSCSI, iWARP, and FCoE Offload over Single Unified Wire with SR-IOV, EVB/VNTag, DCB

Overview

Chelsio’s T420-LL-CR is a dual port, low latency 10 Gigabit Ethernet Unified Wire adapter with PCI Express 2.0 host bus interface, optimized for financial and HPC applications. It is also a best in class 10GbE interconnect solution for cloud computing, virtualization, storage, and other data center applications.

The fourth-generation (T4) technology from Chelsio provides the highest 10GbE performance available and dramatically lowers host-system CPU communications overhead with on-board hardware that off-loads TCP/IP, iSCSI, FCoE and iWARP RDMA processing from its host system. T420-LL-CR frees up host CPU cycles for useful applications. The system achieves increased bandwidth, lower latency, and lower power.

The Unified Wire Solution

With the T420-LL-CR, Chelsio is enabling a unified wire for LAN, NAS, SAN and cluster traffic. This unified wire was made possible by the high bandwidth and low latency of 10GbE combined with storage and cluster protocols operating over TCP/IP (iSCSI, FCoE and iWARP respectively). In parallel, operating systems and hypervisors have incorporated native support for iSCSI and database applications are now supporting file-based storage protocols such as NFS as an alternative to SANs.

T420-LL-CR includes a full-fledged integrated Traffic Manager for robust flow control, traffic management and QoS.

Fibre Channel over Ethernet (FCoE) provides a transition path from legacy SANs to converged networks. Expanding its unified wire approach, Chelsio has added FCoE hardware support to the new T420-LL-CR adapter.

The adapter’s two ports and IEEE 802.3ad link aggregation/failover features are ideal for critical network applications that require redundancy and high-availability capabilities.

T420-LL-CR Ethernet-only networking reduces the data center’s cost in network adapters, cables, switches, rack space, power, equipment

T4 – Fourth-Generation Protocol Offload Engine

The T4 is Chelsio’s fourth-generation TCP offload (TOE) design, third-generation iSCSI design, and second-generation iWARP (RDMA) implementation. For the server connection, the T4 chip includes a PCI Express v2.0 ×8 host interface. With support for the 5Gbps Gen2 data rate, the PCIe interface provides up to 32Gbps of bandwidth to the server. T4 also adds support for PCIe I/O virtualization. Most of T4 features are enhanced versions of those found in T3. Features that carry over from T3 include stateless offloads, packet filtering (firewall offload), and traffic shaping (media streaming).

Complete and Flexible TCP Offload

The T4 has hundreds of programmable registers for protocol configuration, RFCs, and offload control. The T420-LL-CR can offload TCP processing per connection, per-server, per-interface, and globally and simultaneously tunnel traffic from non-offloaded connections to the host processor for the native TCP/IP stack to process. The T420-LL-CR provides a flexible zero copy capability for regular TCP connections, requiring no changes to the sender, to deliver line rate performance at minimal CPU utilization.

Packet Switching and Routing

T420-LL-CR integrates a high performance packet switch, which allows switching traffic from any of the input ports to any of the output ports (wire-to-wire) and from any of the output ports to any of the input ports (host-to-host).

Robust, Proven Solution

Subjected to thousands of hours of compatibility testing, over multiple years of stress testing by several OEM test suites and production deployments in servers, storage systems and cluster computing, Chelsio’s robust, stable protocol offload technology delivers proven performance in a wide range of environments. The T420-LL-CR is generations ahead of competing products.

Software Drivers

Chelsio offers a full suite of protocol software and drivers with the T420-LL-CR adapters. The software supports operation in both protocol-offload and non-offload modes.
