Cisco UCSC-C240-M4L 3.5" 12-Bay 2U Server 2x Xeon E5-2620v3/512GB/12x4TB noRAILS
87171Cisco UCSC-C240-M4L 3.5" 12-Bay 2U Server 2x Xeon E5-2620v3/512GB/12x4TB noRAILS
Cisco UCSC-C240-M4L 3.5" 12-Bay 2U Server 2x Xeon E5-2620v3/512GB/12x4TB noRAILS

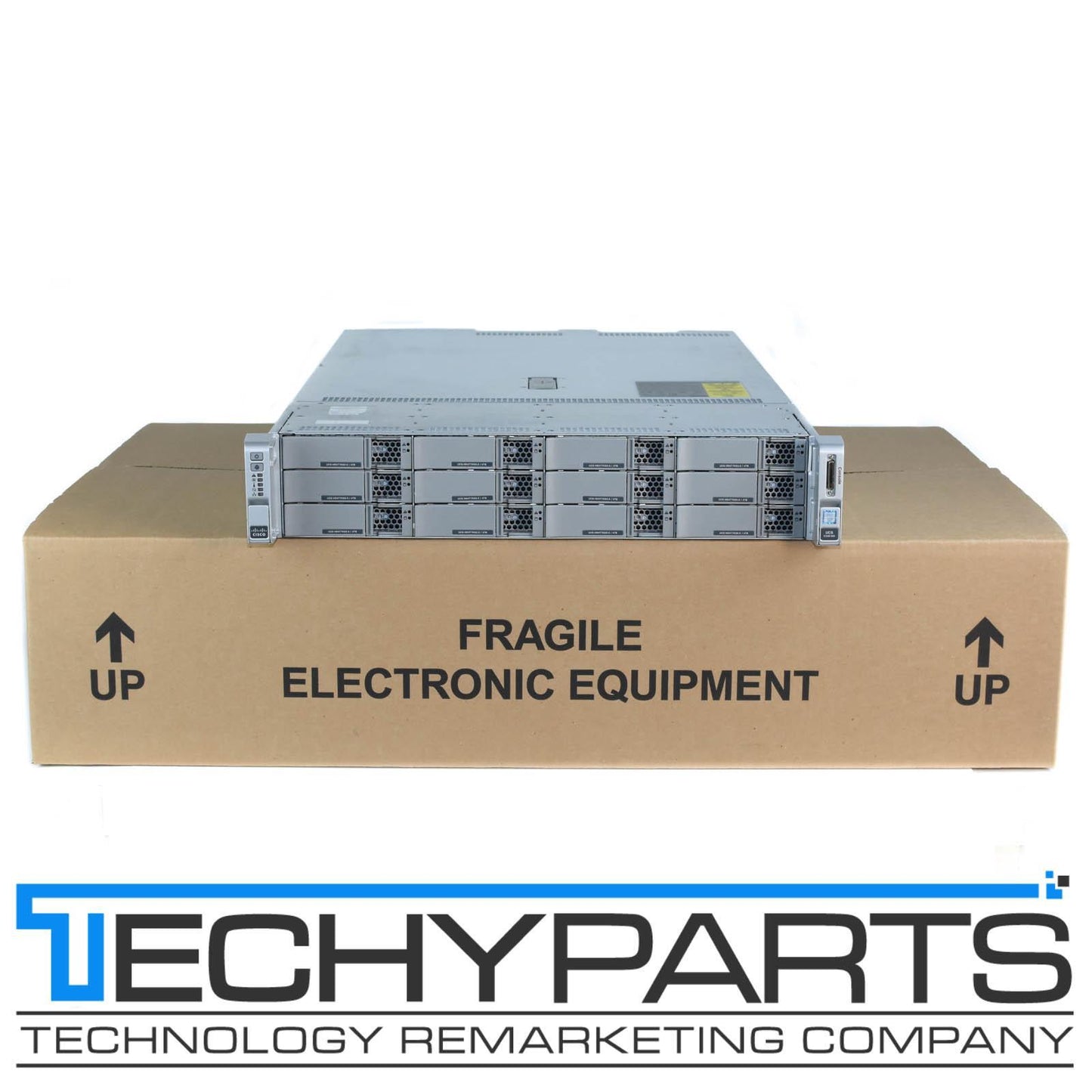

CISCO UCSC-C240-M4L 3.5" 12-Bay LFF Barebone 2U Rackmount Server CTO - 2x Intel Xeon E5-2620v3 2.40GHz 6-Core CPUs - 512GB RAM - 12x 4TB 7.2K RPM 6Gbps SAS HDDs (without Rail Kit)
- 2x Intel Xeon E5-2620v3 2.40GHz 6-Core CPUs
- 512GB PC4-2133P Registered ECC Memory
- 12x 4TB 7.2K 3.5" SAS 6Gbps LFF HDD with trays
- NO RAIL KIT INCLUDED
- 1x RAID - UCSC-MRAID12G 12G SAS Modular RAID controller card (NO Onboard FBWC)
- 1x PCI-E Riser - UCSC-PCI-1C-240M4 (PCIe slots 1, 2, and SATA boot-drive sockets (two))
- 1x Dual Port 10GB SFP+ CISCO UCSC-MLOM-CSC-02 UCS Virtual Interface Card 1227
Specifications:
Form Factor | 2U Rackmount |
---|---|
Model | Cisco UCSC-C240-M4L - 12x 3.5" Bays LFF |
Processor(s) |
2x Intel Xeon E5-2620v3 2.40GHz 6-Core CPUs Installed 2 heatsinks included |
Memory | 512GB PC4-2133P Registered ECC Memory Installed |
# of DIMMs and Capacity |
|
Hard Drives | 12x 4TB 7.2K 3.5" SAS 6Gbps LFF HDD with trays installed |
RAID Controller | Cisco UCSC-MRAID12G 12G SAS Modular RAID controller card with internal SAS connectivity (NO Onboard FBWC) |
RAID Levels | RAID 0, 1, 10 |
Power Supply | 2x 1200W Redundant 1+1 PSUs |
Expansion slots | Two PCIe slots (on one riser card)
|
Network |
|
Remote Access |
|
Rackmount Rails | Not Included |
Operating System | None |
Power Cord | 2x 6ft AC Power cable included |
Condition: Off-lease equipment. Clean and tested by a qualified technician.
Each server is configured to order. This process involves rigorous quality control which includes:
- Throughout visual inspection for physical damages
- Verification of all components and their functionality
- A full diagnostic test is performed utilizing the manufacturer's diagnostic tools
- BIOS and firmware updates are installed
- All logs are cleared
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.
30-Day Warranty!
