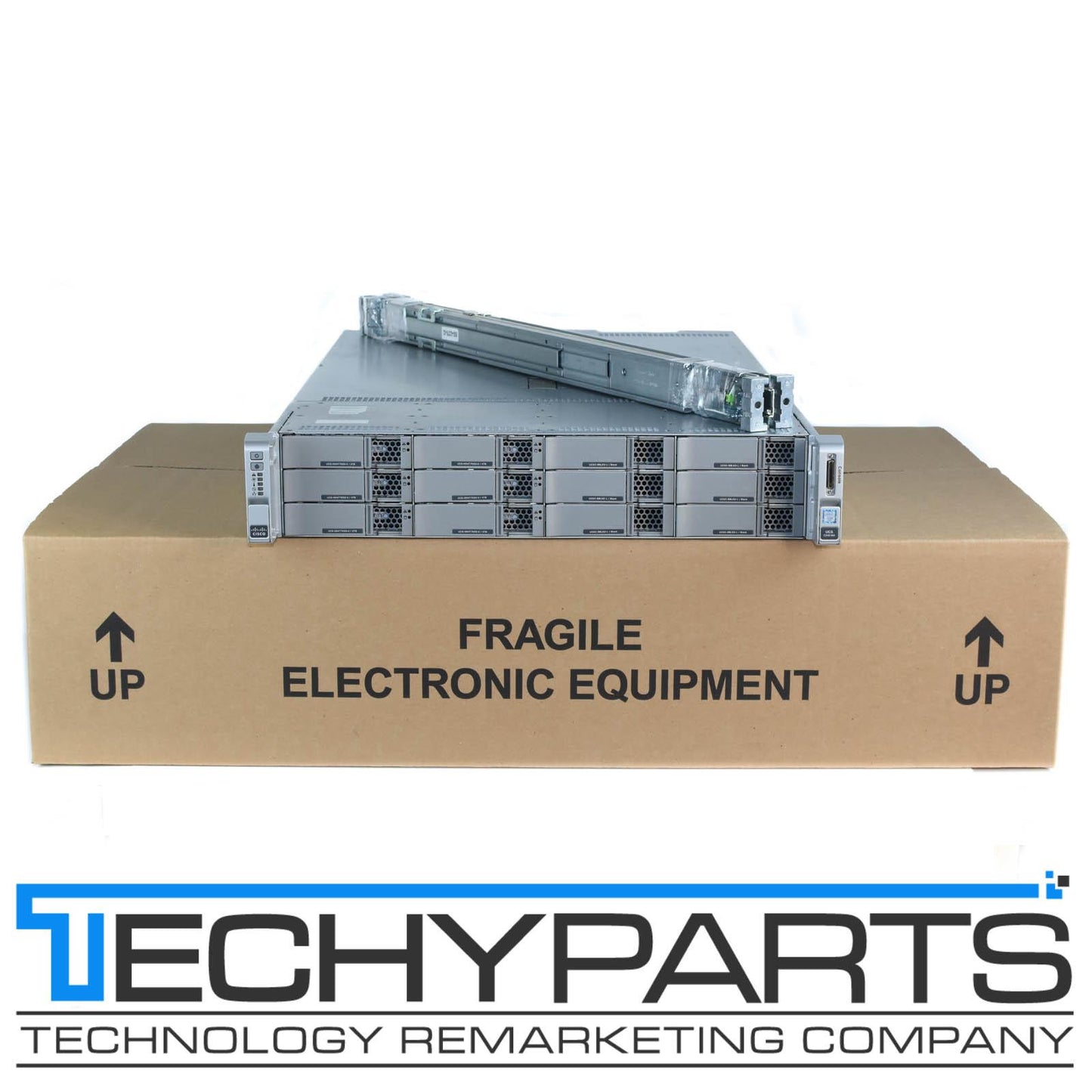

Cisco UCSC-C240-M4L 3.5" 12-Bay 2U Server 2x Xeon E5-2680v4/256GB/6x4TB /w RAILS

CISCO UCSC-C240-M4L 3.5" 12-Bay LFF Barebone 2U Rackmount Server CTO - 2x Intel Xeon E5-2680v4 2.40GHz 14-Core CPUs - 256GB RAM -6x 4TB 7.2K RPM 6Gbps SAS HDDs (with Rail Kit)

  • 2x Intel Xeon E5-2680v4 2.40GHz 14-Core CPUs
  • 256GB PC4-2133P Registered ECC Memory
  • 6x 4TB 7.2K 3.5" SAS 6Gbps LFF HDD with trays
  • 1x UCSC-RAILB-M4 Tool-Less Ball Bearing Rail Kit for UCS C220 C240 M4 Rack Servers
  • 1x RAID - UCSC-MRAID12G 12G SAS Modular RAID controller card (NO Onboard FBWC)
  • 1x PCI-E Riser - UCSC-PCI-1C-240M4 (PCIe slots 1, 2, and SATA boot-drive sockets (two))
  • 1x Dual Port 10GB SFP+ CISCO UCSC-MLOM-CSC-02 UCS Virtual Interface Card 1227

Specifications:

Form Factor 2U Rackmount
Model Cisco UCSC-C240-M4L - 12x 3.5" Bays LFF
Processor(s)

2x Intel Xeon E5-2680v4 2.40GHz 14-Core CPUs Installed

2 heatsinks included

Memory 256GB PC4-2133P Registered ECC Memory Installed
# of DIMMs and Capacity
  • 24 DIMM slots
  • Support for DDR4 registered DIMMs (RDIMMs)
  • Support for DDR4 load-reduced DIMMs (LRDIMMs)
  • Advanced error-correcting code (ECC)
  • Multi-bit Error Protection
Hard Drives

6x 4TB 7.2K 3.5" SAS 6Gbps LFF HDD with trays installed - supports up to 12x 3.5-inch SAS or SATA LFF HDDs (No extra Hard drive caddies included!)

RAID Controller Cisco UCSC-MRAID12G 12G SAS Modular RAID controller card with internal SAS

connectivity (NO Onboard FBWC)
RAID Levels RAID 0, 1, 10
Power Supply 2x 1200W Redundant 1+1 PSUs
Expansion slots Two PCIe slots (on one riser card)
  • Riser 1 UCSC-PCI-1C-240M4 (PCIe slots 1, 2, and SATA boot-drive sockets (two))
Network
  • Two embedded (on the motherboard) Intel i350 GbE Ethernet controller ports
  • Dual Port 10GB SFP+ via CISCO UCSC-MLOM-CSC-02 UCS Virtual Interface Card 1227
Remote Access
  • 1-GbE dedicated management port
  • Cisco Integrated Management Controller
Rackmount Rails UCSC-RAILB-M4 Tool-Less Ball Bearing Rail Kit for UCS C220 C240 M4 Rack Servers
Operating System None
Power Cord 2x 6ft AC Power cable included

Condition: Off-lease equipment. Clean and tested by a qualified technician.

Each server is configured to order. This process involves rigorous quality control which includes:

  • Throughout visual inspection for physical damages
  • Verification of all components and their functionality
  • A full diagnostic test is performed utilizing the manufacturer's diagnostic tools
  • BIOS and firmware updates are installed
  • All logs are cleared
  • Passwords and settings are restored to factory defaults

Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.

30-Day Warranty!
