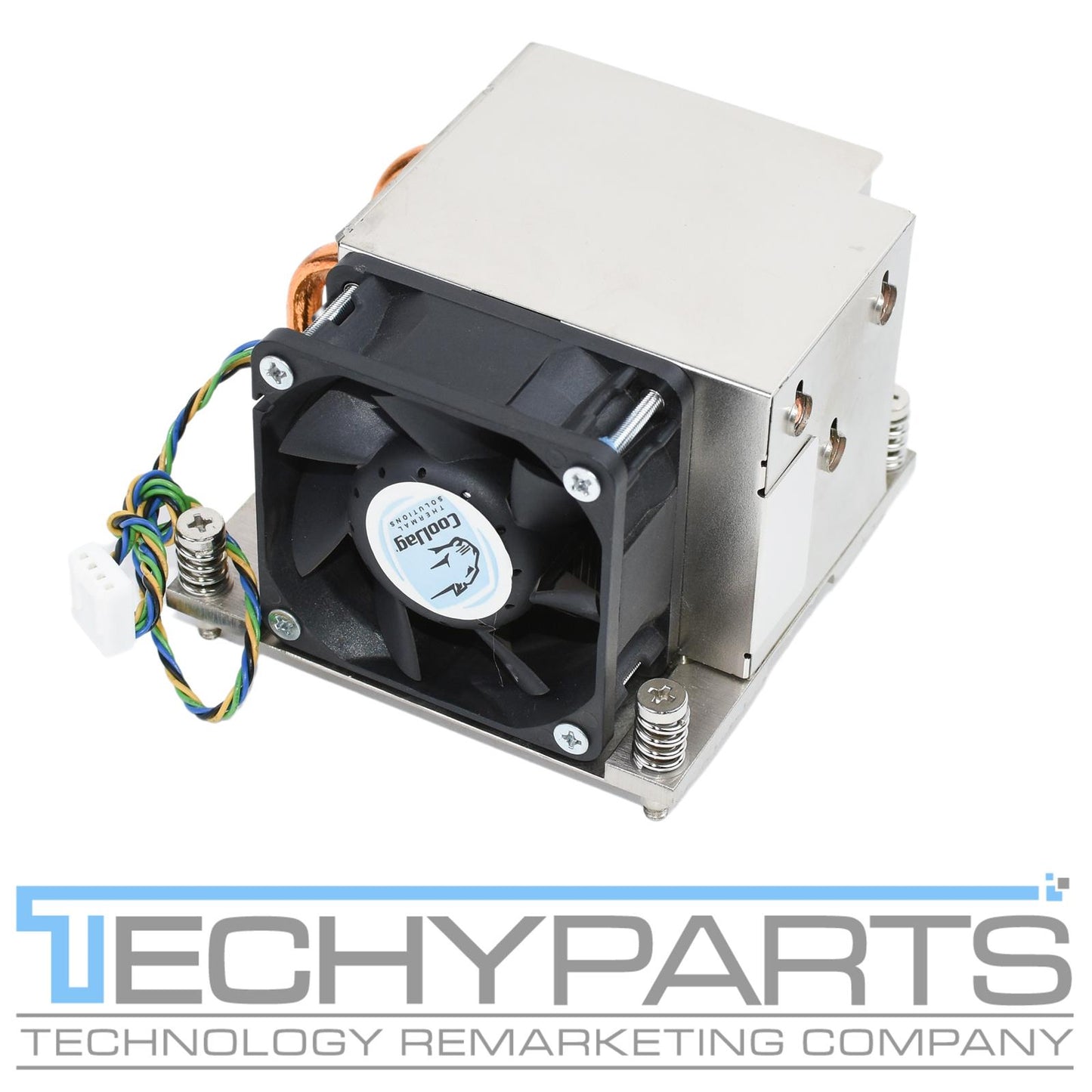

CoolJag ITO-D/S-Q 2U CPU Heatsink Fan Copper Base Heatpipe LGA2011 Square ILM

CoolJag ITO-D/S-Q 2U CPU Heatsink Cooler Fan Copper Base Heatpipe LGA2011 Square ILM

Model # ITO-D/S-Q << Square Type 80mm mounting pitch >>

· Application : For Intel® Core® i7 & Xeon E5-4600, E5-2600 & E5-1600 Series Socket 2011

· Dimensions : 90mm (L) x 90mm (W) x 64.3mm (H)

· Materials: Copper base, Aluminum fins, 3x heat pipes

· Weight: 375 g

· PWM Function: Yes

· Thermal Resistance: 0.237 C/W

· Thermal Grease: Shin-Etsu 7762 pre-applied


Fan Specifications:

· Fan size: 60x60x25.4 mm (Model: Delta AFB0612DH)

· Fan voltage: 12V

· Bearing: Ball bearing

· Fan speed: Max. 9000 rpm

· Noise Level: Max. 55 dBA

· Air Flow: max. 50.4 CFM

· Power: Max. 10.08 W

· Life Expectancy: 70,000 hrs @40C with 15%~65% RH

· Static pressure: max. 23.52 mmH2O

· Fan connector: 4-pin

· Lead wire: UL1061 #26AWG or equivalent

· Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM Input)

Condition: Clean, tested pull - Guaranteed 100% working!

30-Day Warranty!
