DekTec DTA-2154 Quad HD-SDI/ASI Input/Output PCIe x4 Adapter

DekTec DTA-2154 Quad HD-SDI/ASI Input/Output PCIe x4 Adapter

$299.95 USD
$299.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 9 left

88516

DekTec DTA-2154 Quad HD-SDI/ASI Input/Output PCIe x4 Adapter

DekTec DTA-2154 Quad HD-SDI/ASI Input/Output PCIe x4 Adapter

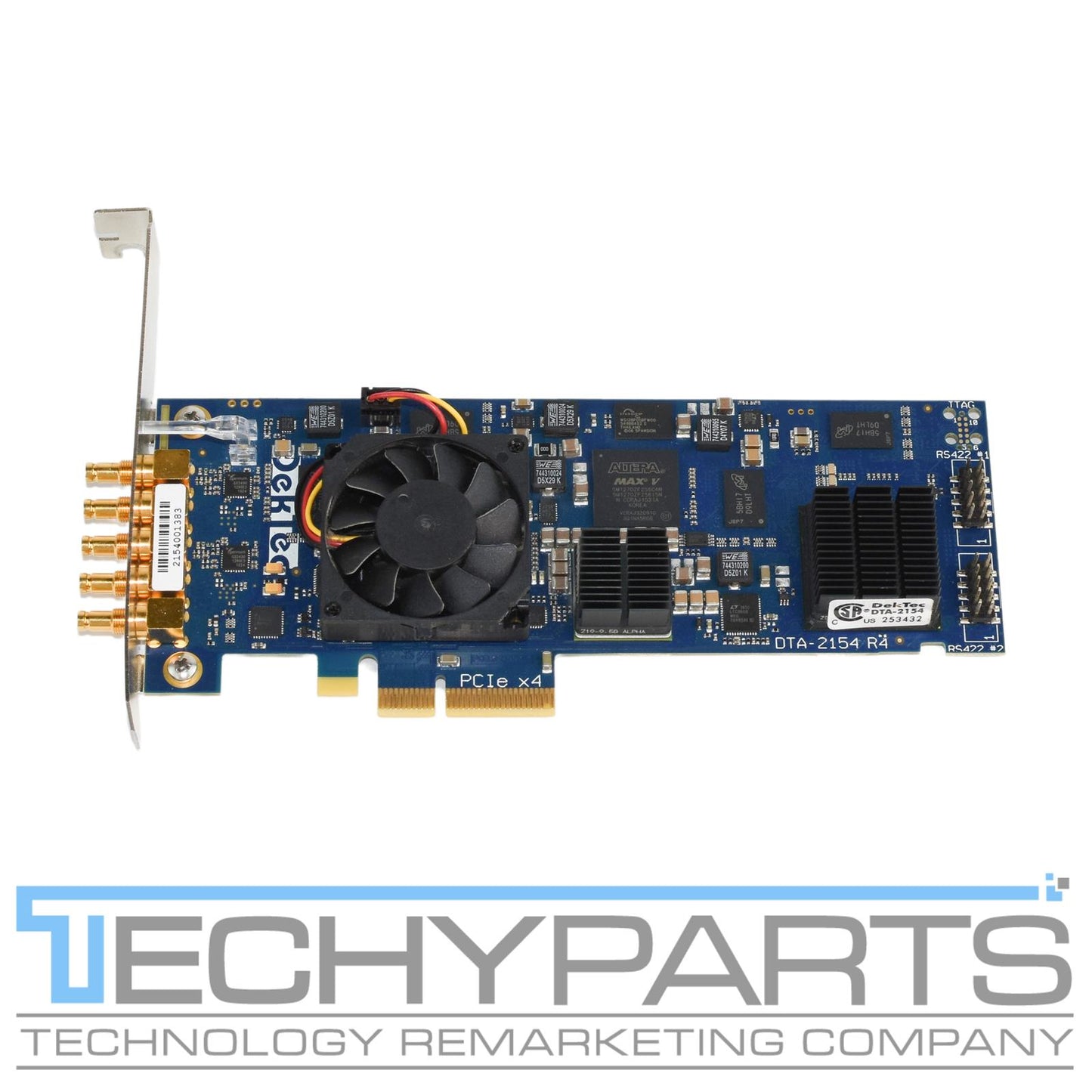

Please note: Mounting bracket is clipped at the bottom end as pictured.

Item sold as pictured, no other accessories are included.

Tested, guaranteed 100% working pull.

30-Day Warranty!

Manufacturer's Specifications:

Key Characteristics

SD-SDI SMPTE 259M

270 Mbps

8 or 10 bit format
HD-SDI SMPTE 292M

1.5 Gbps

8 or 10 bit format
ASI DVB-ASI (coax) EN50083-9

0 to 214 Mbps

Resolution <1 bps
Buffer 32MB/channel
Input return loss >12dB @ 0 to 1.5GHz

Inputs and Outputs

4x ASI/SDI 75-Ω 1.0/2.3 DIN
Genlock 75-Ω 1.0/2.3 DIN
Deck RS-422 header on PCB
PCI Express PCIe3 x4
Shipped with 5x 1.0/2.3 to BNC converter cables

Supported Video Format

SMPTE 259M 525i, 625i
SMPTE 296M 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
SMPTE 274M 1080p(sf)23.98, 1080p(sf)24, 1080p(sf)25, 1080p(sf)29.97, 1080p(sf)30, 1080i50, 1080i59.94, 1080i60

PC Support

OS Windows 10, 11

Windows Server 16, 19, 22

Linux ≥2.6.18, 3.x, 4.x, 5.x
Processor Core i5 minimum

Core i7 recommended

Or equivalent AMD CPUs

Software

StreamXpress Play TS files and control modulation parameters
SpRcApi StreamXpress remote control API for automated playout
StreamXpert Analyze your received transport streams using our analyzer software
SdEye Advanced SDI signal monitoring software
VF-REC Advanced Transport-Stream/SDI Recorder
DekTec SDKs Create your own full-custom application with the DTA-2154
