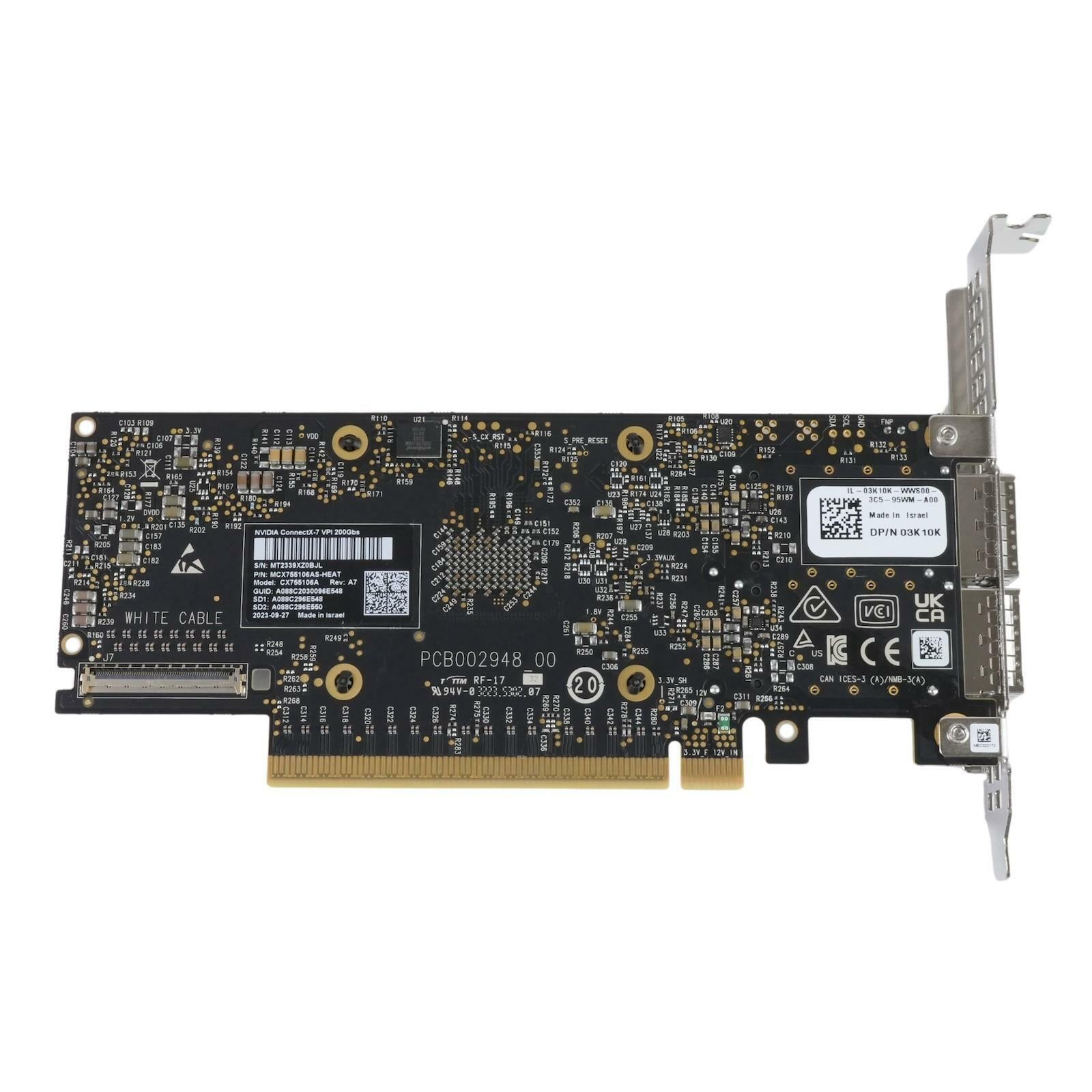

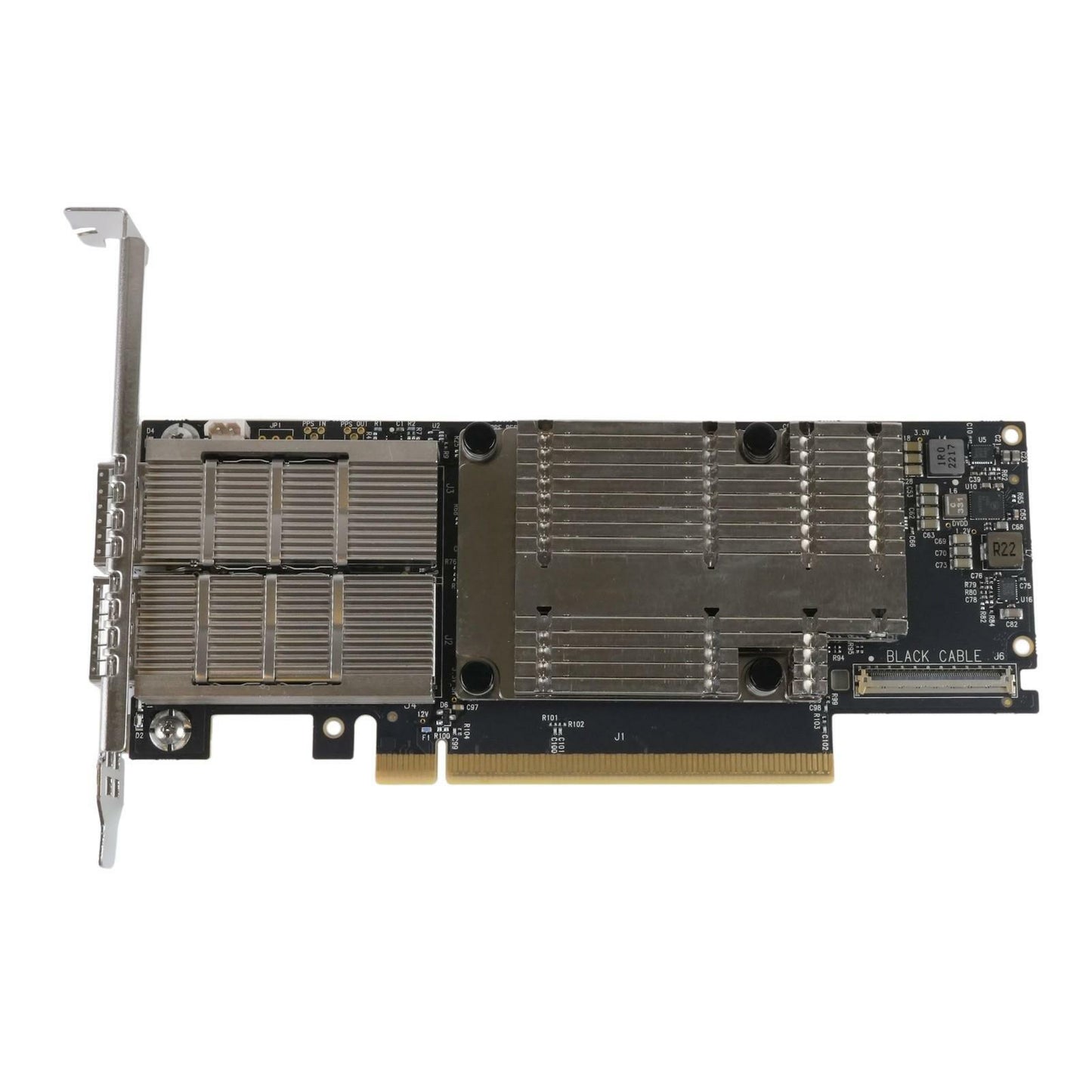

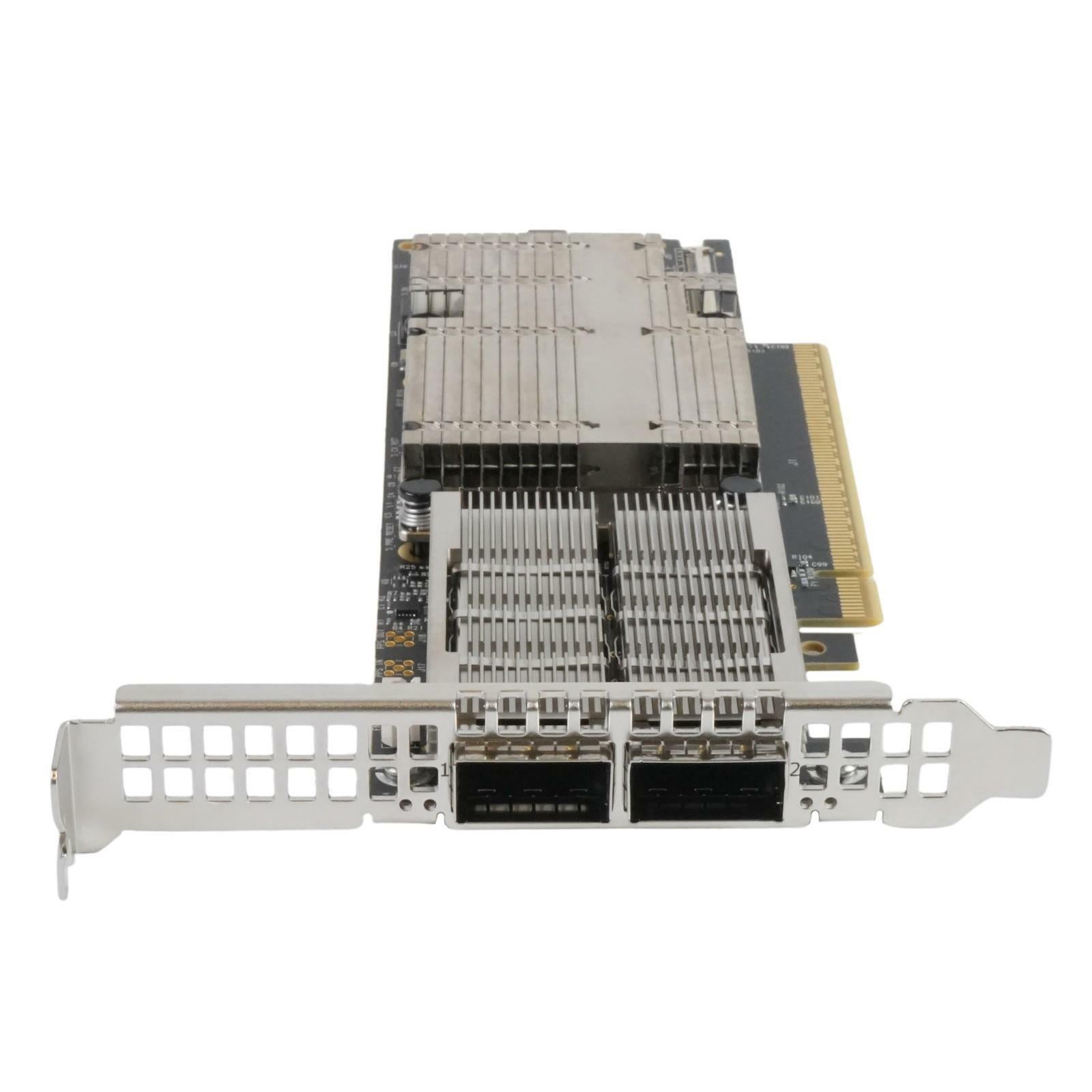

Dell 3K10K Nvidia ConnectX-7 VPI 2-Port 200Gb QSFP112 PCIe 5.0 x16 Network Interface Card

DELL P/N: 3K10K

NVIDIA P/N: MCX755106AS-HEAT

NVIDIA CX755106A

Transceiver: Not included

Mounting bracket: Full Height

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with Full Height mounting bracket only.

30-Day Warranty!

Manufacturer's Specifications:

• Gen 5.0/4.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible)
• Dual QSFP112 InfiniBand and Ethernet
• InfiniBand
  • NDR200/HDR/HDR100/EDR/FDR/SDR
  • IBTA v1.5a Auto-Negotiation: NDR200 ( 2 lanes x 100Gb/s per lane ) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane)
• Ethernet
  • 200/100/50/25/10 Gb/s
  • 200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI
• Secure Boot Enabled, Crypto Disabled
• Typical power with passive cables in PCIe Gen 5.0 x16
  • 24.9W
