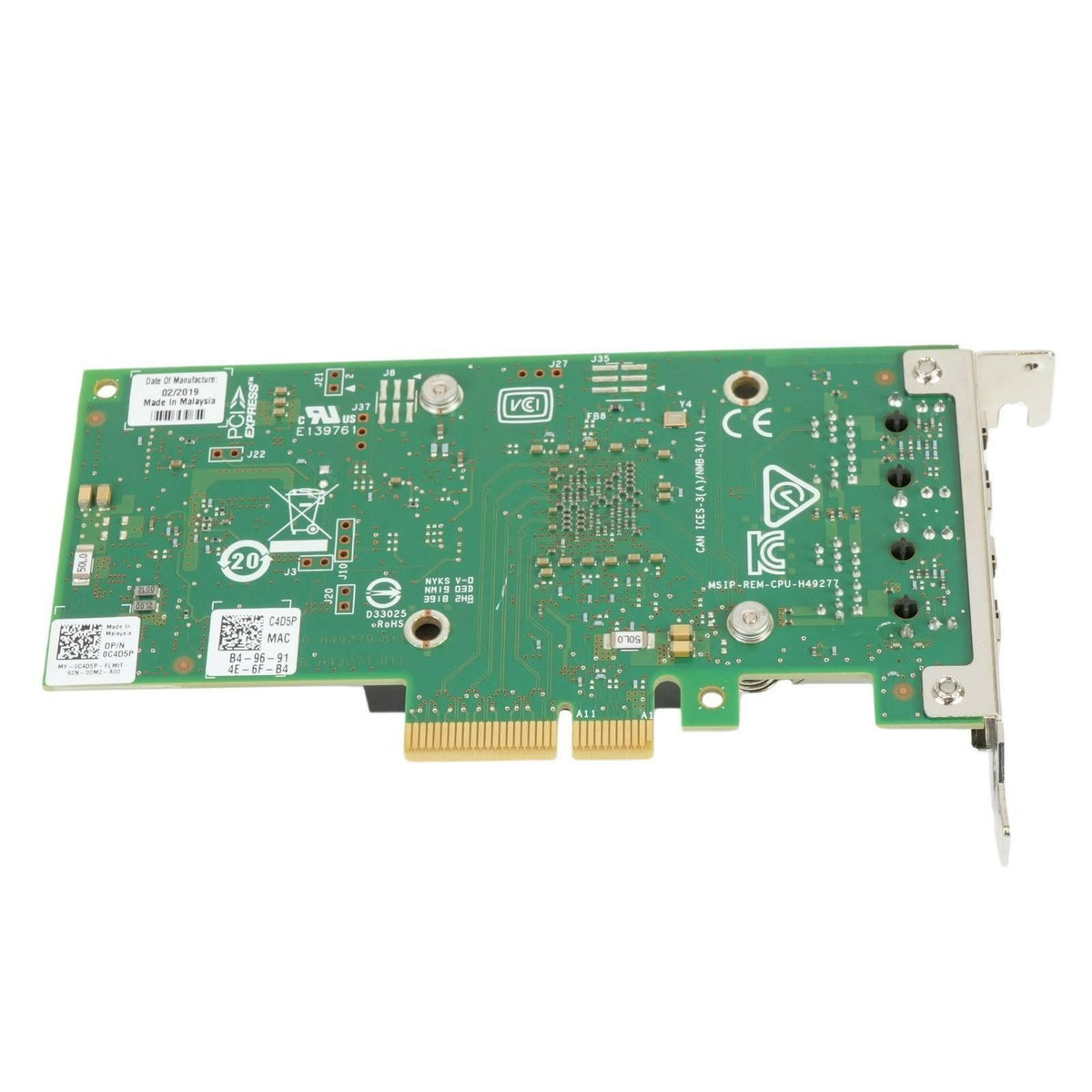

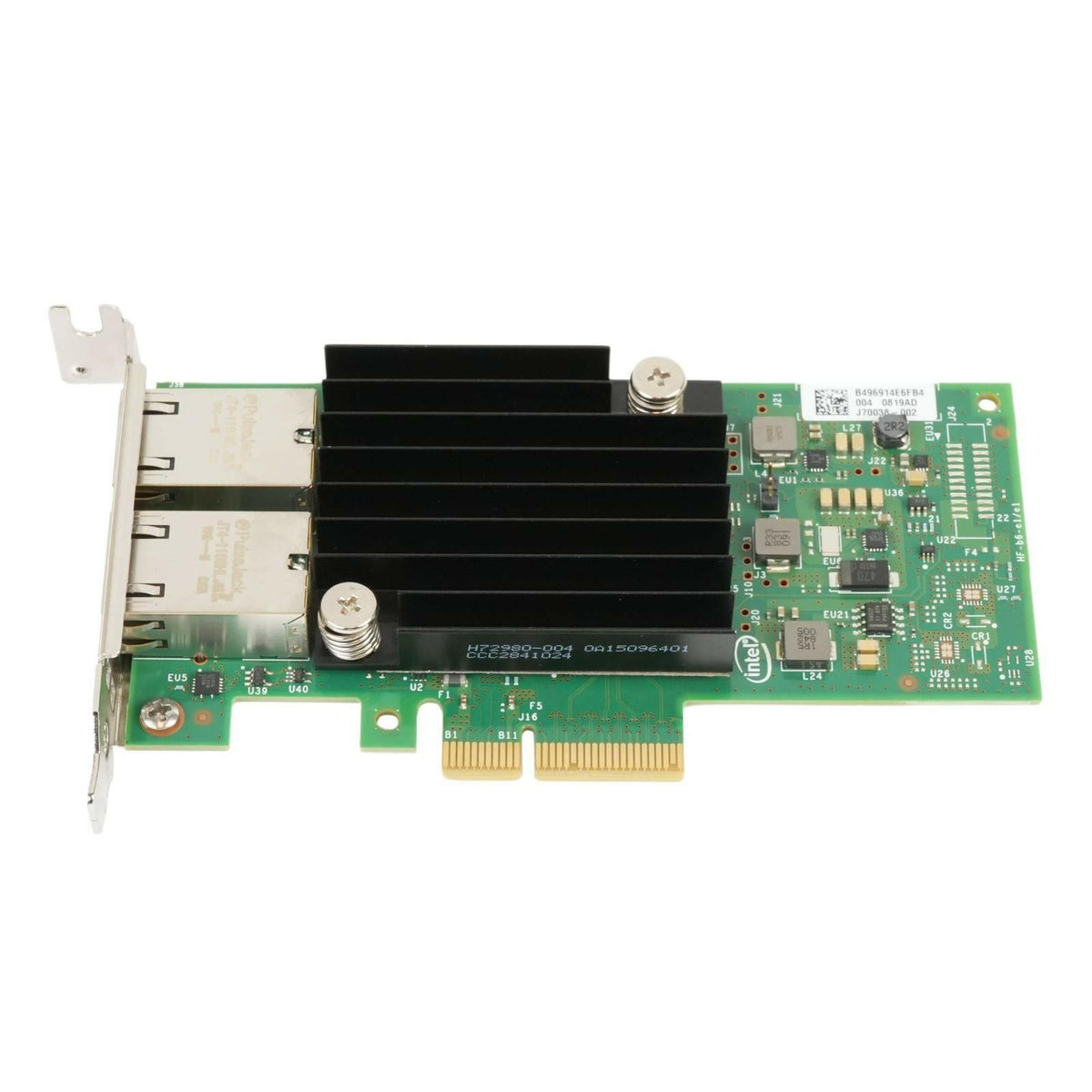

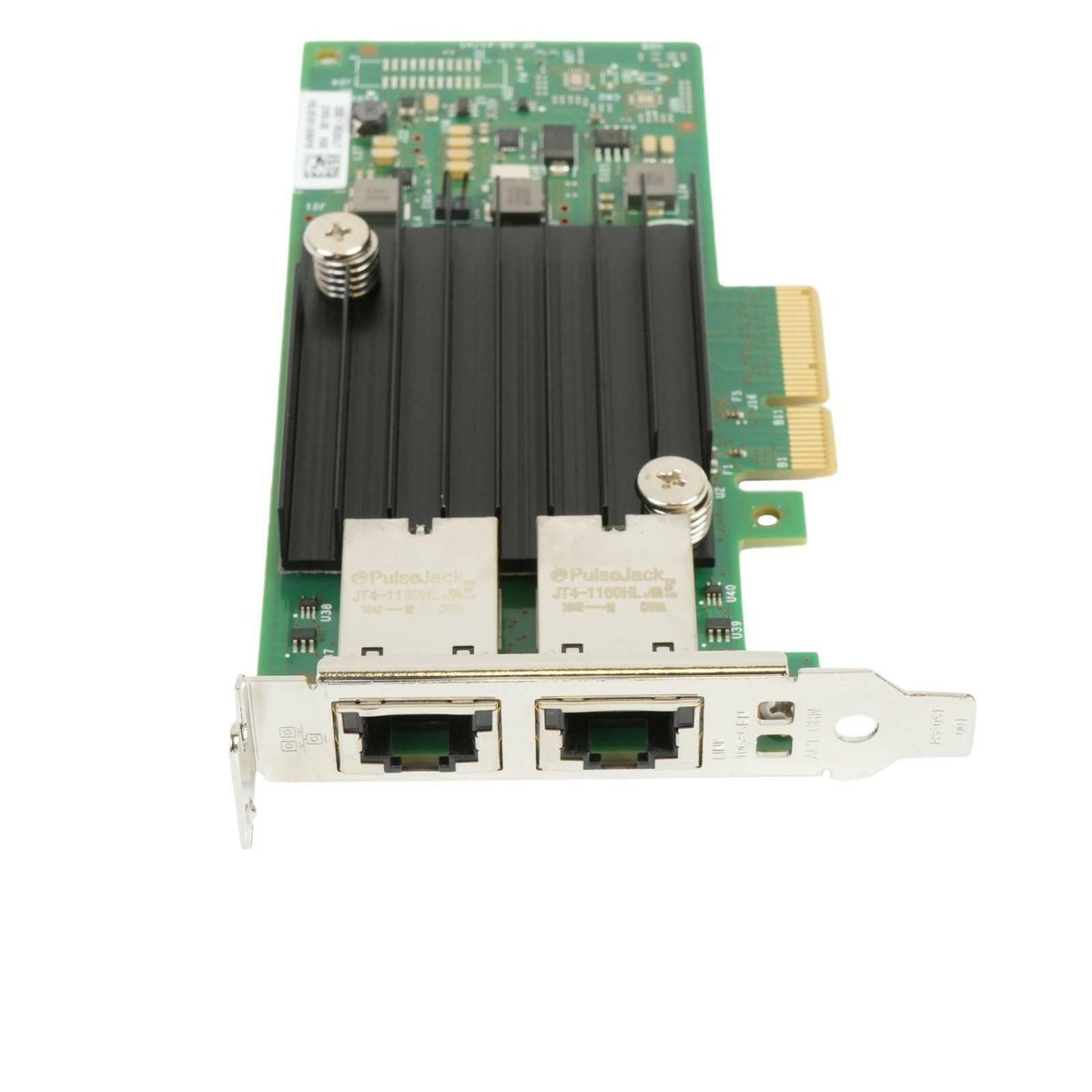

Dell C4D5P Intel X550-T2 10GbE 2-Port RJ45 PCIe 3.0 x4 NIC Ethernet CNA LP
95413Dell C4D5P Intel X550-T2 10GbE 2-Port RJ45 PCIe 3.0 x4 NIC Ethernet CNA LP
Dell C4D5P Intel X550-T2 10GbE 2-Port RJ45 PCIe 3.0 x4 Network Interface Card Ethernet Converged Network Adapter with Low Profile Mounting Bracket
Manufacturer: Dell
OEM Manufacturer: Intel
Dell Part Number: C4D5P
Intel Model: X550-T2
This is a genuine Dell Intel X550-T2 dual-port 10GBASE-T adapter. RJ45 copper ports run 10GbE over Cat6a and step down to 1GbE, so it is a simple upgrade for servers that do not use SFP+ optics.
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working.
What's Included:
Dell C4D5P Intel X550-T2 2-Port 10GbE NIC with Low Profile Mounting Bracket (only)
Note: This card is half height and comes with the low profile bracket only. Full height bracket, software, and cables are not included.
30-Day Warranty Included!
Dual RJ45 10GbE adapter with low profile bracket for 1U and short-slot servers.
Manufacturer's description and specifications:
The Intel Ethernet Converged Network Adapter X550-T2 is a dual-port 10GBASE-T adapter with an Intel X550 controller and a PCIe 3.0 x4 interface. It supports 10GbE, 5GbE, 2.5GbE, 1GbE, and 100Mb. NBASE-T support is in Linux only.
| Essentials | |
|---|---|
| Product Collection | Intel Ethernet Converged Network Adapter X550 |
| Vertical Segment | Server |
| Cable Medium | Copper |
| Cabling Type | RJ45 Category 6 up to 55m; Category 6A up to 100m |
| Bracket Height | Low Profile only |
| Supplemental Information | |
| Description | NBASE-T support in Linux only |
| Networking Specifications | |
| Port Configuration | Dual |
| Data Rate Per Port | 10GbE/5GbE/2.5GbE/1GbE/100Mb |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Speed and Slot Width | 8.0 GT/s, x4 Lane |
| Controller | Intel Ethernet Controller X550 |
| Package Specifications | |
| System Interface Type | PCIe v3.0 (8.0 GT/s) |
| Intel Virtualization Technology for Connectivity | |
| On-chip QoS and Traffic Management | Yes |
| Flexible Port Partitioning | Yes |
| Virtual Machine Device Queues (VMDq) | Yes |
| PCI-SIG SR-IOV Capable | Yes |
| Advanced Technologies | |
| iWARP/RDMA | No |
| Intel Data Direct I/O Technology | Yes |
| Intelligent Offloads | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
