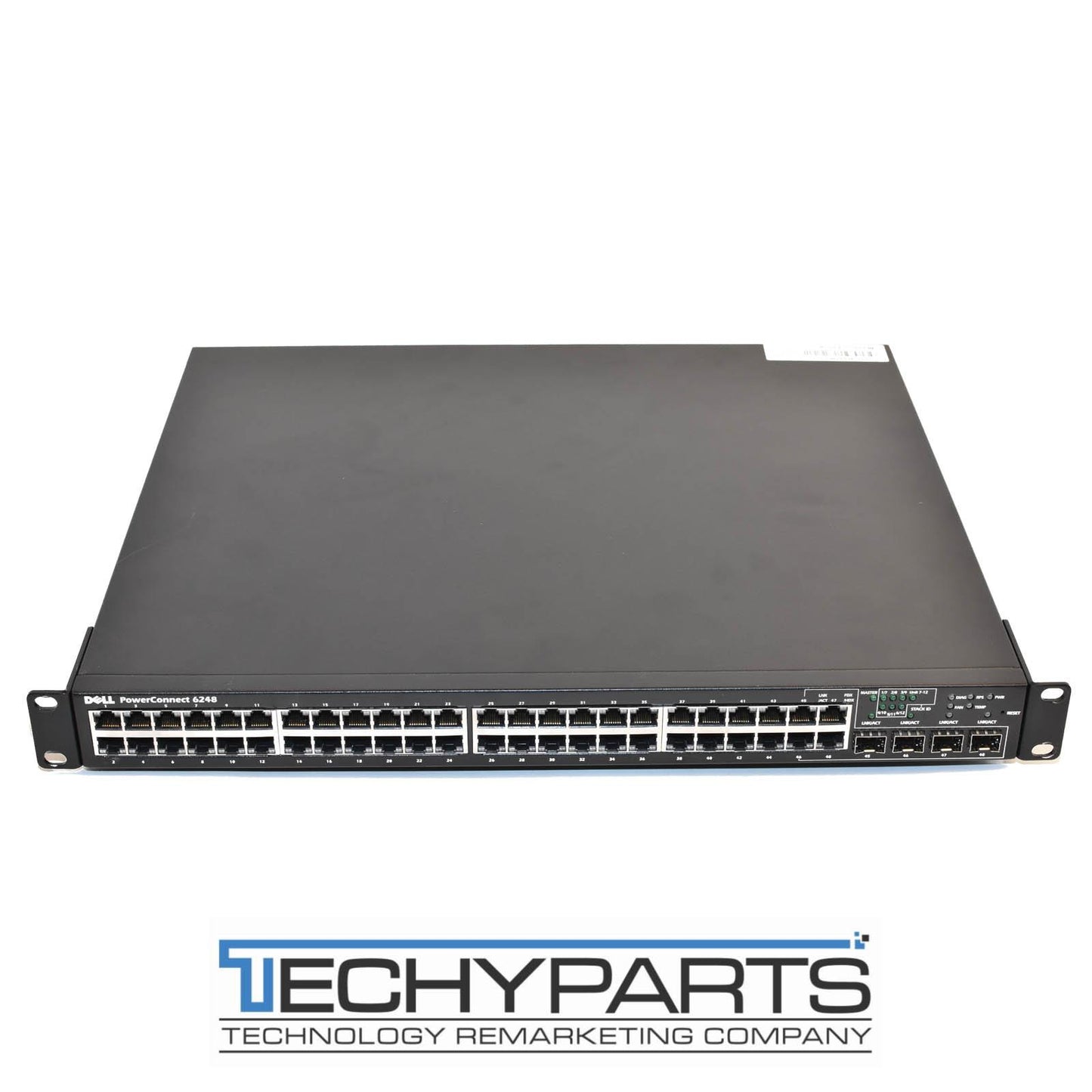

Dell PowerConnect 6248 48-Port 1Gb Layer 3 Stacking Network Switch w/Rack ears

Dell PowerConnect 6248 48-Port 1Gb Layer 3 Stacking Network Switch w/Rack ears

Dell PowerConnect 6248 48-Port 1Gb Layer 3 Stacking Network Switch w/ Rack ears

Included: 10GE CX4 Stacking/Uplink Module

Tested, guaranteed 100% working.
Switch has been reset to Factory Default settings.

**Note - Minor damage to the DC input port, plastic has broken/chipped away - See pictures

No cables or other accessories are included except what is pictured. Comes with rack mounting ears.

30-Day Warranty!

Console Output:

The following image is in the Flash File System:

File Name......................................image2

CRC............................................0x62f4 (25332)

Target Device..................................0x00508541

Size...........................................0x9a51f4 (10113524)

Number of Components...........................2

Operational Code Size..........................0x8a4d30 (9063728)

Operational Code Offset........................0x74 (116)

Operational Code FLASH flag....................1

Operational Code CRC...........................0xC86D

Boot Code Version..............................1

Boot Code Size.................................0x100000 (1048576)

Boot Code Offset...............................0x8a4da4 (9063844)

Boot Code FLASH flag...........................0

Boot Code CRC..................................0x3420

VPD - rel 2 ver 1 maint_lvl 1 build_num 4

Timestamp - Fri Sep 26 16:46:02 2008

File - PC6200r2v1m1b4.opr

VPD file (vpd.bin) read from flash.

VPD in data structure

CRC: 0xAAF1

CRC (calculated): 0xAAF1

Length Type Value

6 0xA2 CPU ID: 0x00508541

4 0xA3 CPU Type: 0x0006 (MPC 603)

8 0xA0 MAC Address: 00:25:64:21:B2:AA

3 0xA1 Number of MAC Addresses: 128

3 0xC0 Slots supported: 4

3 0xC5 Part Number:

26 0xC1 Serial Number: CN0GP9312829899F0776A09

10 0xD1 Service Tag: 409LFH1

3 0xC2 Type:

3 0xC3 Model:

3 0xC7 Description:

4 0xC4 Manufacturer: 0xBC00

4 0xC8 Maintenance Level: A

11 0xD0 Password: debug

[Boot Menu]

console>show system

System Description: Dell Ethernet Switch

System Up Time: 0 days, 00h:00m:53s

System Contact:

System Name:

System Location:

Burned In MAC Address: 0025.6421.B2AA

System Object ID: 1.3.6.1.4.1.674.10895.3011

System Model ID: PCT6248

Machine Type: Dell 48 Port Gigabit Ethernet

Temperature Sensors:

Unit Temperature (Celsius) Status

---- --------------------- ------

1 24 OK

Fans:

Unit Description Status

---- ----------- ------

1 Fan 1 OK

1 Fan 2 OK

1 Fan 3 OK

1 Fan 4 OK

Power Supplies:

Unit Description Status Source

---- ----------- ----------- ------

1 Main OK AC

1 Secondary Failure DC

console>show version

Image Descriptions

image1 : default image

image2 :

Images currently available on Flash

--------------------------------------------------------------------

unit image1 image2 current-active next-active

--------------------------------------------------------------------

1 2.2.0.3 2.1.1.4 image2 image2
